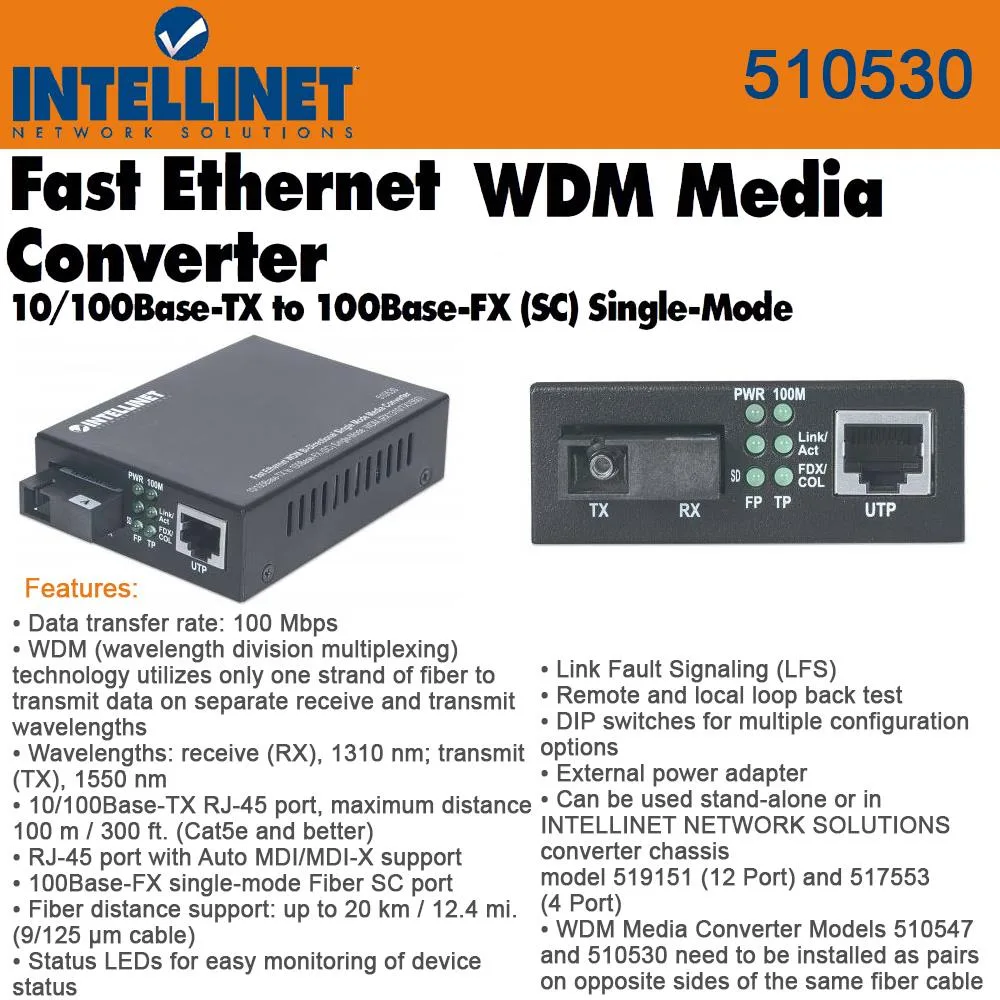

Intellinet Network Solutions 510530 switch module 10/100Base-TX to 100Base-FX SC 20 km WDM RX1310 TX1550
Converts 10/100 copper to 100 Mbps single-mode fibre over 20 km using one strand and WDM wavelengths 1310/1550 nm
- Extends network reach up to 20 km over single-mode fiber
- Transmits and receives on one strand using 1310/1550 nm wavelengths
- Connects copper segments at 100 Mbps via 10/100Base-TX RJ45 port
- Auto MDI/MDI-X eliminates crossover cable hassle
- Pairs with model 510547 for bi-directional link
Single-fibre media converter

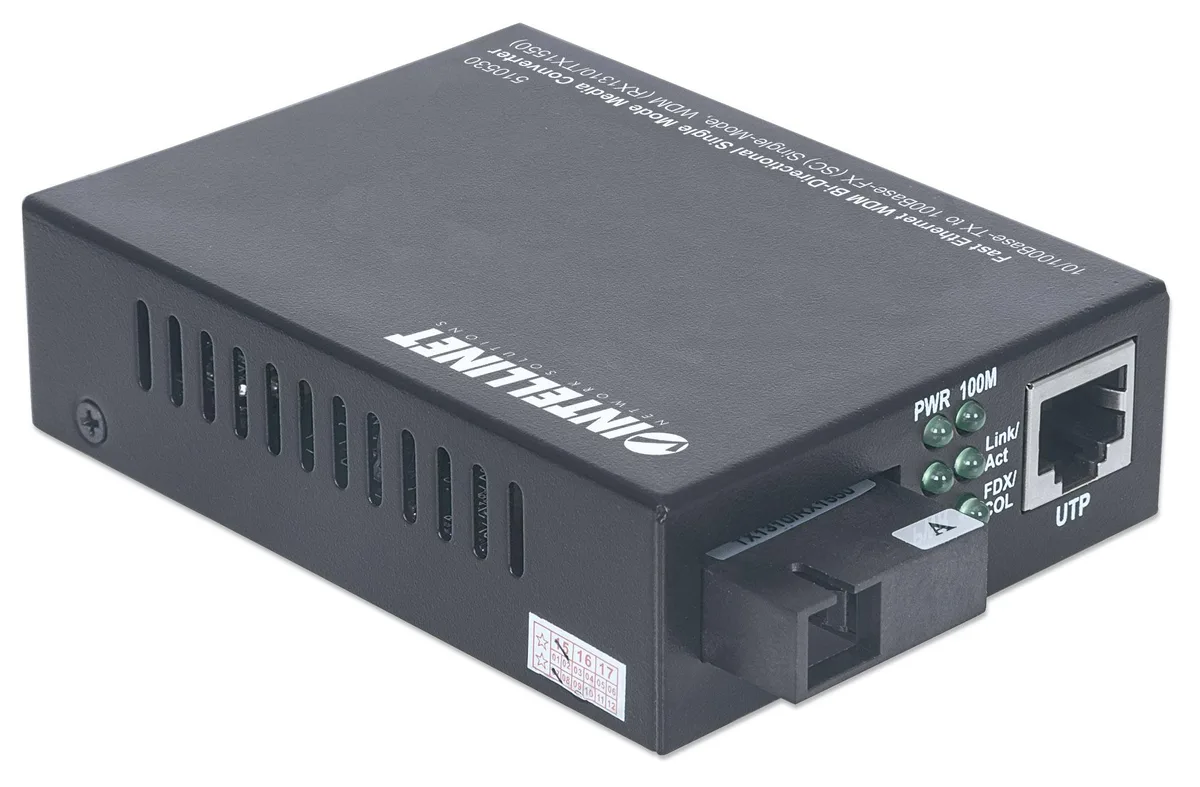

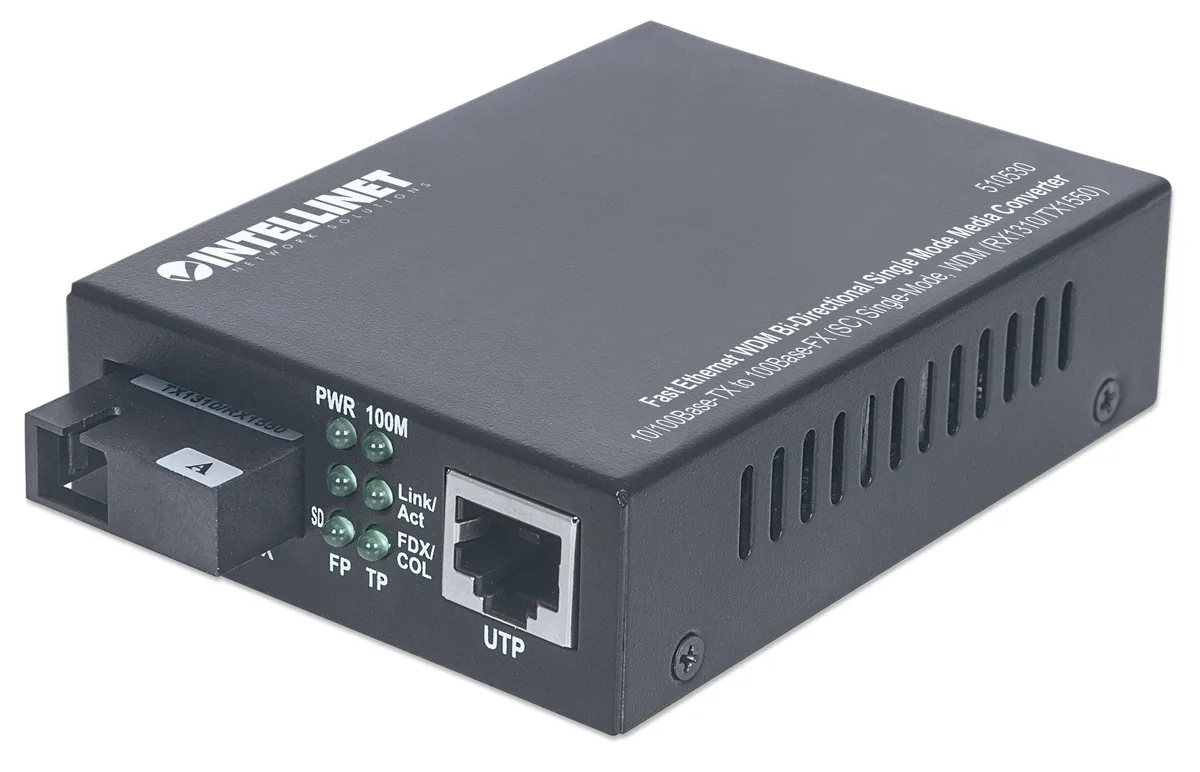

The Intellinet 510530 converts 10/100Base-TX copper signals to 100Base-FX single-mode fibre using wavelength division multiplexing. It transmits at 1550 nm and receives at 1310 nm over a single SC connector. The RJ45 port supports auto MDI/MDI-X and runs up to 100 metres on Cat5e or better cabling.
Link extension up to 20 km
Network managers who need to bridge two sites over one fibre strand will use this module. It is not for links that exceed 20 km or for multi-mode fibre installations. Buyers requiring Gigabit speeds or a second independent fibre pair should look at other equipment.
Must pair with model 510547
This converter only operates when the far end uses the matching WDM unit with reversed wavelengths (model 510547). Without that specific counterpart the link will not establish. Verify the companion module is available before ordering.
Highlights
- Extends network reach up to 20 km over single-mode fiber
- Transmits and receives on one strand using 1310/1550 nm wavelengths
- Connects copper segments at 100 Mbps via 10/100Base-TX RJ45 port
- Auto MDI/MDI-X eliminates crossover cable hassle
- Pairs with model 510547 for bi-directional link
Specifications
| Brand | Intellinet |
|---|---|
| Shipping weight | 0.30 kg |
| Package size | 231 × 124 × 53 mm |
Questions about this item
Will the 510530 work with my existing 10/100Base-TX copper switch over Cat5e?
Yes, the RJ45 port supports 10/100Base-TX with Auto MDI/MDI-X up to 100 m on Cat5e or better cabling.
How do I verify the 510530 is operating correctly after installation?

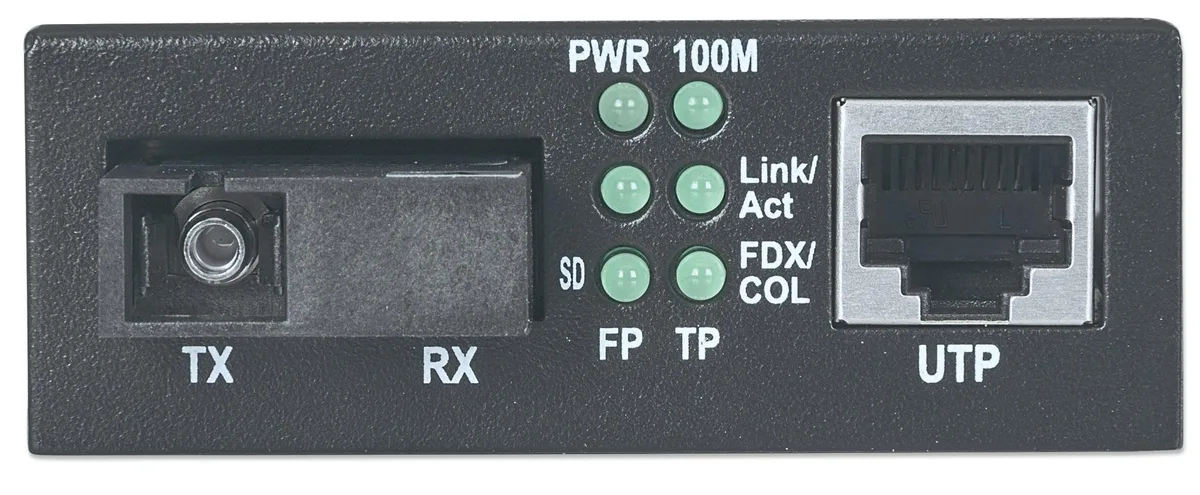

Check that the link LEDs show activity on both the RJ45 and SC ports and that traffic passes at 100 Mbps across the single-mode fiber link.
Does the 510530 include the matching 510547 converter and fiber patch cord, or must I buy them separately?
The 510547 media converter is required at the far end and is sold separately; fiber patch cords for the SC port are also not included.
