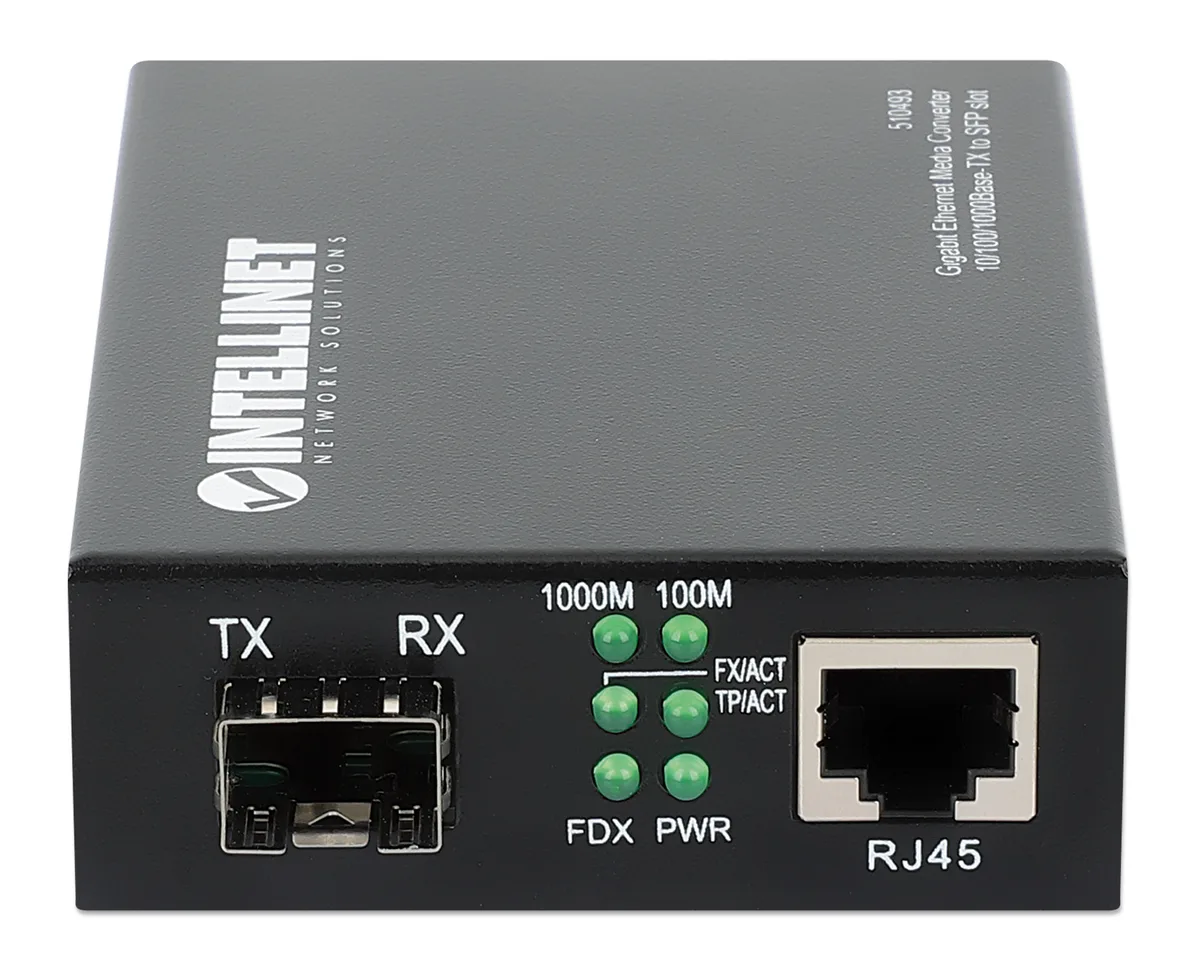

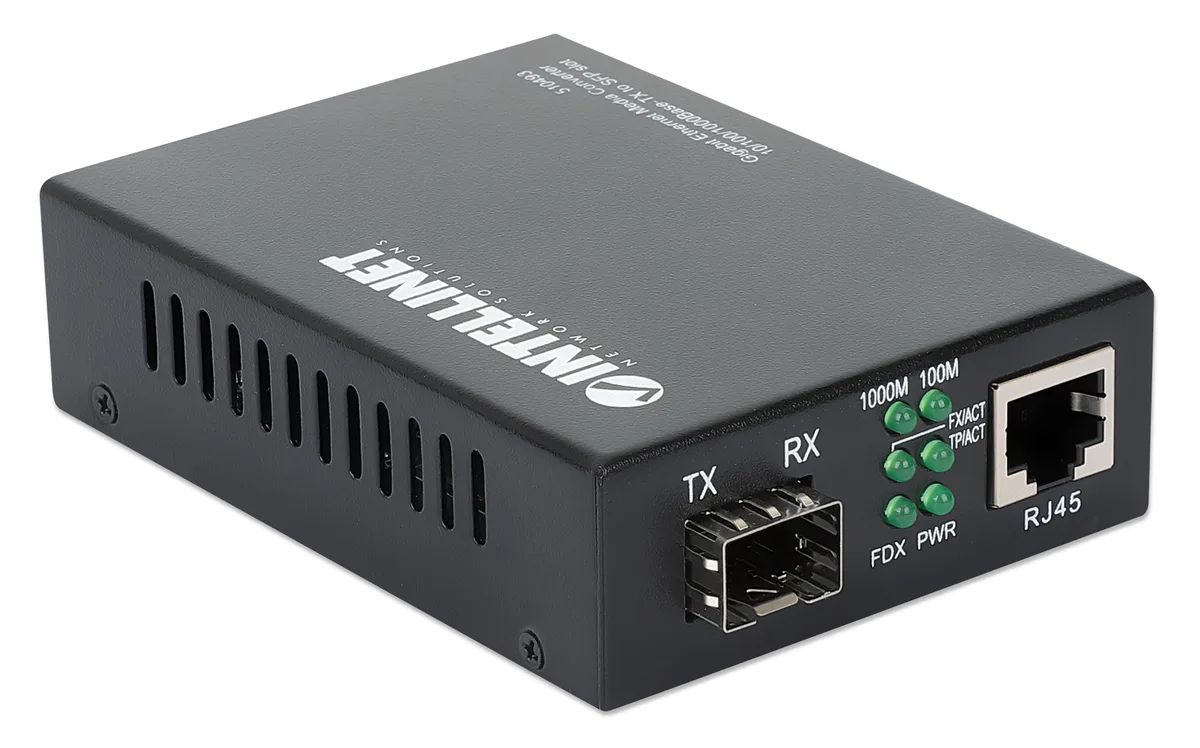

Small black metal box with RJ45 port and empty SFP slot on front, status LEDs above, external power adapter beside it

Intellinet Network Solutions

Intellinet Network Solutions 510493 Gigabit Ethernet to SFP Media Converter

SKU CH-5GDW-Y1ZTK MPN 510493

Converts Gigabit copper Ethernet to an SFP fiber slot with auto-sensing RJ45 and status LEDs

  • Device TypeConverter
  • StandardsIEEE 802.3 (Twisted Pair Ethernet) IEEE 802.3ab (Twisted Pai
  • LEDsPower Link / Activity Full-Duplex / Collision 1000 Mbps link
  • Power AdapterExternal power adapter, 12V DC, 1.2 A Power consumption: 5 w
  • TemperatureOperating temperature: 0 - 50 degree C (32 - 122 degree F) S
  • Humidity10 - 80% RH, non-condensing
  • Gigabit speeds over copper up to 100 m
  • Hot-swappable SFP slot for multimode or single-mode fiber
  • Auto MDI/MDI-X removes crossover cable hassles
  • Jumbo frames to 9 kBytes boost throughput
  • Fits 14-slot 19-inch chassis or stands alone

Copper-to-fiber bridge for network managers

This media converter links a 10/100/1000Base-TX copper segment to an SFP fiber transceiver, extending Ethernet beyond the standard 100 m copper limit. It suits administrators who need to join remote workgroups or connect separate buildings without adding routers. The RJ45 port auto-negotiates speed and supports Auto MDI/MDI-X for straight-through or crossover cables. An SFP module is not included and must be chosen for the required fiber type and distance.

Plug-and-play with chassis option

Installation requires only the supplied 12 V DC external adapter and a compatible SFP module inserted into the front slot; no software configuration is needed. Status LEDs show power, link activity, duplex state and a dedicated 1000 Mbps indicator for the copper port. The unit can operate standalone on a desktop or be mounted in the 14-slot 19-inch rack chassis model 507356 for high-density deployments. Verify that the selected SFP module matches the fiber core size and wavelength before powering up.

Continuous line-rate operation

The converter forwards traffic at full 1000 Mbps wire speed and supports jumbo frames up to 9 kBytes, so sustained throughput matches the connected link capacity. Maximum power draw is 5 watts, and the fanless enclosure operates reliably from 0 to 50 °C with 10 to 80 % non-condensing humidity. No throttling or performance degradation occurs during prolonged high-load periods, making it suitable for always-on backbone links between switches or media converters.

Highlights

  • Gigabit speeds over copper up to 100 m
  • Hot-swappable SFP slot for multimode or single-mode fiber
  • Auto MDI/MDI-X removes crossover cable hassles
  • Jumbo frames to 9 kBytes boost throughput
  • Fits 14-slot 19-inch chassis or stands alone

Specifications

BrandIntellinet Network Solutions
Model510493
Device TypeConverter
StandardsIEEE 802.3 (Twisted Pair Ethernet)
IEEE 802.3ab (Twisted Pair Gigabit Ethernet)
IEEE 802.3u (Twisted Pair Fast Ethernet)
IEEE 802.3z (Fiber Optic Gigabit Ethernet)
LEDsPower
Link / Activity
Full-Duplex / Collision
1000 Mbps link speed indicator for RJ45 port
Link indicator for fiber port
Power AdapterExternal power adapter, 12V DC, 1.2 A
Power consumption: 5 watts (maximum)
TemperatureOperating temperature: 0 - 50 degree C (32 - 122 degree F)
Storage temperature: -20 - 70 degree C (-4 - 158 degree F)
Humidity10 - 80% RH, non-condensing
FeatureData transfer rate: 1000 Mbps
10/100/1000Base-TX auto-sensing RJ45 port, maximum distance 100 m / 300 ft. (Cat5e and better)
RJ45 port with Auto MDI / MDI-X support
SFP (Small Form Factor Pluggable) optical transceiver module port (SFP module not included)
Module port for Gigabit multimode or single-mode Mini GBIC 1.25G SFP-type fiber modules
Status LEDs for power and Link/TX for both ports
Functions as a stand-alone converter or can be used with the 14-slot media converter chassis, model 507356
Three-Year Warranty
Dimensions1.20" x 3.78" x 2.76"
Weight0.34 lb.
Package ContentsGigabit Ethernet to SFP Media Converter
External power adapter
Instructions
Shipping weight0.39 kg
Package size457 × 203 × 127 mm

Questions about this item

How can I confirm the 510493 is converting traffic correctly after connecting the RJ45 and SFP ports?

The Power LED should stay solid, the RJ45 Link/Activity LED will blink at 1000 Mbps when a Cat5e or better cable is linked, and the fiber port Link LED will light when a compatible SFP module establishes a connection.

What does the 510493 package include and which SFP module must I purchase separately?

The box contains the media converter, a 12 V DC 1.2 A external power adapter, and instructions. Any Gigabit 1.25 G SFP transceiver — multimode or single-mode — must be bought separately.

Which SFP module type should I select for the 510493 converter?

Choose a Gigabit 1.25 G Mini GBIC SFP module; multimode for short-range fiber runs or single-mode for long-distance links, matching the fiber cable you plan to use.
