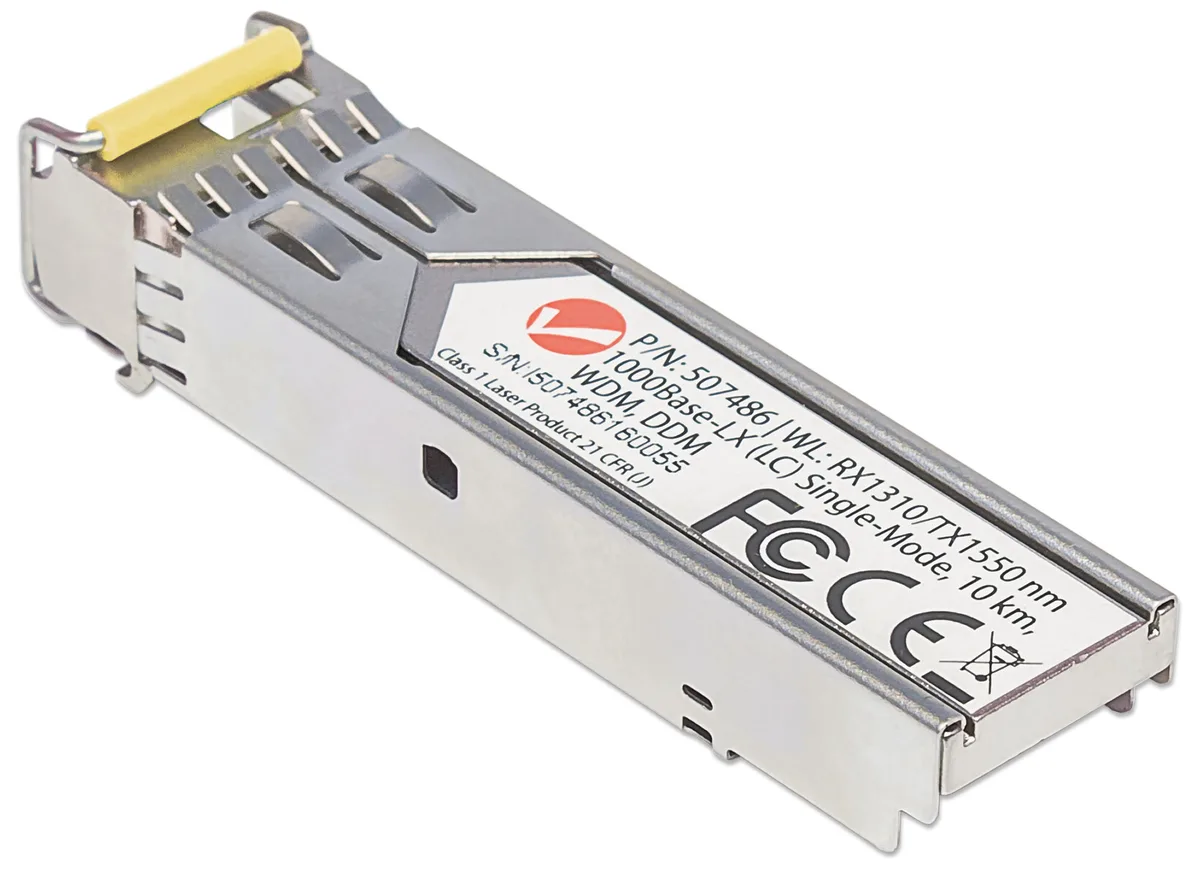

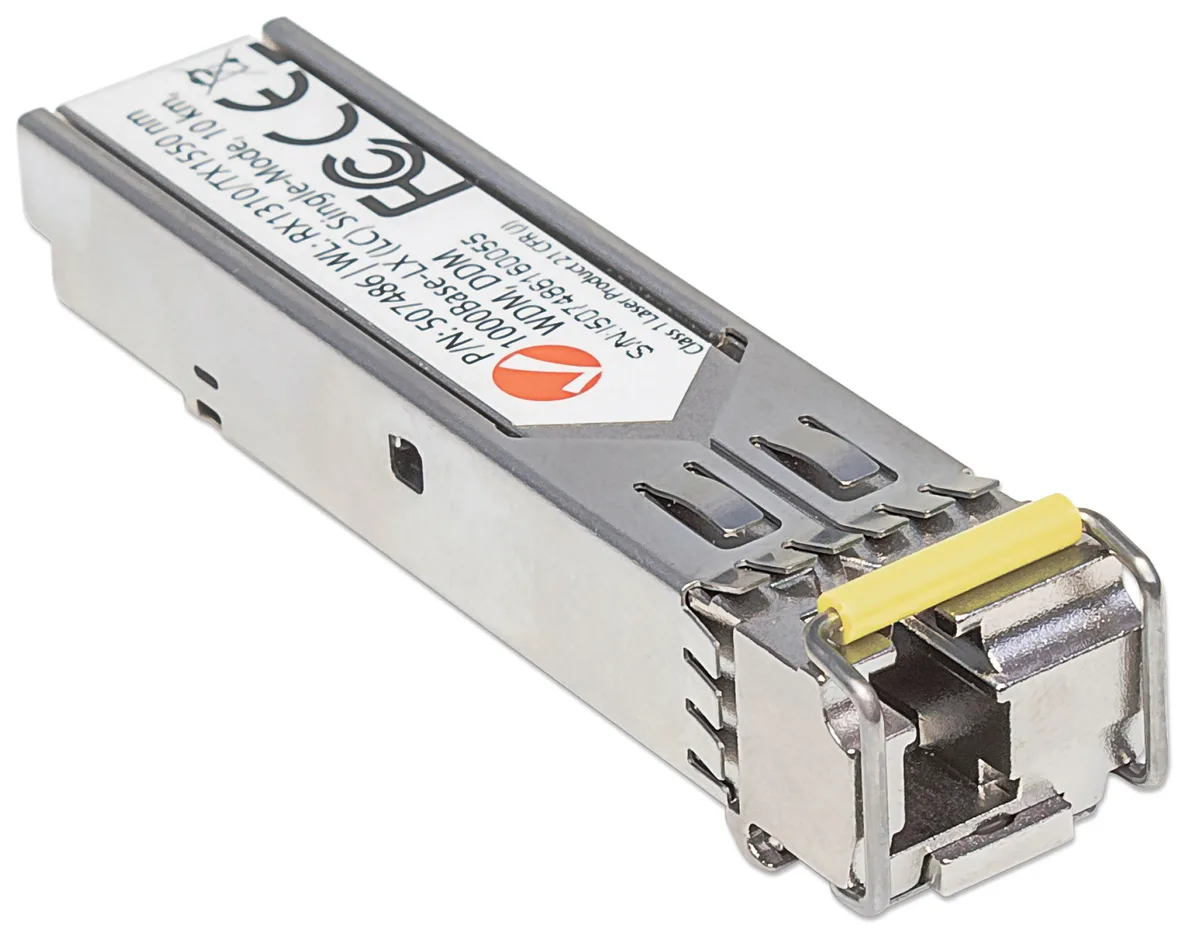

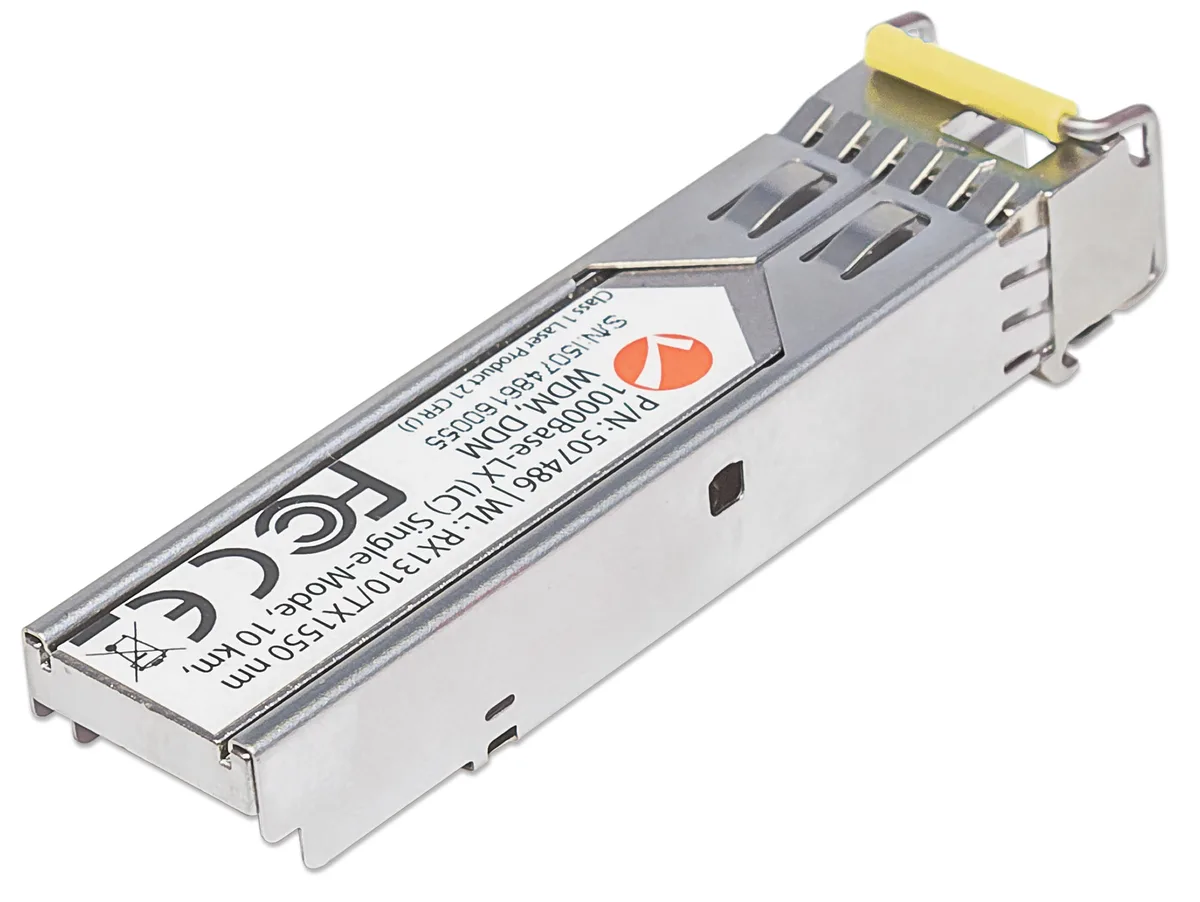

Small metal SFP transceiver module with LC port and side label

Intellinet Network Solutions

Intellinet Network Solutions 507486 SFP transceiver 1000Base-LX 10 km RX1310 TX1550

SKU CH-AZ85-GE9MK MPN 507486

Gigabit SFP transceiver for single-mode fiber up to 10 km using WDM on one strand with RX 1310 nm and TX 1550 nm

  • Device TypeTransceiver
  • StandardsIEEE 802.3z (Fiber Optic Gigabit Ethernet)
  • WavelengthReceive (RX): 1310 nm Transmit (TX): 1550 nm
  • Fiber Cable1000Base-LX single-mode 9/125 µm Fiber
  • Max Distance10 km
  • Power AdapterPower requirement: 3.3 V Power consumption: 1.0 Watt (maximu
  • WDM technology sends data on one fiber strand using separate RX 1310 nm and TX 1550 nm wavelengths
  • Extends Gigabit Ethernet links up to 10 km over single-mode 9/125 µm fiber
  • Hot-pluggable SFP module installs without powering down compatible Intellinet MSA or Cisco switches
  • Low 1.0 W maximum power draw at 3.3 V reduces thermal load in dense cabinets
  • Operates reliably from 0 to 70 °C with storage tolerance from -40 to 85 °C

Compact bi-directional SFP for single-strand fiber

The Intellinet 507486 is a new SFP transceiver that delivers 1000 Mbps over a single strand of 9/125 µm single-mode fiber up to 10 km. It is designed for network administrators extending Gigabit Ethernet links between switches or routers using wavelength-division multiplexing.

IEEE 802.3z distance and wavelength constraints

The module operates at the standard LX distance of 10 km with RX at 1310 nm and TX at 1550 nm, so it must be paired with a matching 1550/1310 nm transceiver such as the 507509 or GLC-BX-U. Links beyond 10 km or on multimode fiber are not supported by this wavelength plan.

Metal housing and hot-plug operation

A compact metal enclosure measuring .50 x 2.24 x .55 inches and weighing .04 lb reduces electromagnetic interference and fits high-density SFP cages. The unit is hot-pluggable into any MSA or Cisco-compliant port running at 3.3 V with a maximum draw of 1.0 W, and it operates from 0 to 70 °C.

Highlights

  • WDM technology sends data on one fiber strand using separate RX 1310 nm and TX 1550 nm wavelengths
  • Extends Gigabit Ethernet links up to 10 km over single-mode 9/125 µm fiber
  • Hot-pluggable SFP module installs without powering down compatible Intellinet MSA or Cisco switches
  • Low 1.0 W maximum power draw at 3.3 V reduces thermal load in dense cabinets
  • Operates reliably from 0 to 70 °C with storage tolerance from -40 to 85 °C

Specifications

BrandIntellinet Network Solutions
Model507486
Device TypeTransceiver
StandardsIEEE 802.3z (Fiber Optic Gigabit Ethernet)
WavelengthReceive (RX): 1310 nm
Transmit (TX): 1550 nm
Fiber Cable1000Base-LX single-mode 9/125 µm Fiber
Max Distance10 km
Power AdapterPower requirement: 3.3 V
Power consumption: 1.0 Watt (maximum)
TemperatureOperating temperature: 0 - 70 degree C (32 - 158 degree F)
Storage temperature: -40 - 85 degree C (-40 - 185 degree F)
Humidity10 - 85% RH, non-condensing
FeatureFits any Intellinet Gigabit Ethernet switch with SFP module slots, or any MSA or Cisco compliant SFP port
Must be used with Gigabit Fiber WDM Bi-Directional SFP Optical Transceiver Module, model 507509
Data transfer rate: 1000 Mbps
One 1000Base-LX single-mode Fiber LC duplex port
Fiber distance support: up to 10 km (6.2 mi.)
WDM (wavelength division multiplexing) technology utilizes only one strand of fiber to transmit data on separate receive and transmit wavelengths
Wavelengths: receive (RX), 1310 nm; transmit (TX), 1550 nm
Compliant with the SFP Multi-Source Agreement (MSA)
Cisco
Dimensions0.50" x 2.24" x 0.55
Weight0.04 lb.
Package ContentsGigabit Fiber WDM Bi-Directional SFP Optical Transceiver Module
Shipping weight0.20 kg
Package size57 × 14 × 12 mm

Questions about this item

Which model should I pair with the 507486 for a complete WDM link?

Use the Intellinet 507509 or Cisco GLC-BX-U; they transmit at 1310 nm and receive at 1550 nm, the exact opposite of this module.

What does the 1000 Mbps rate mean once the module is installed in a switch?

It provides a full-duplex gigabit Ethernet link over a single strand of single-mode fibre up to 10 km.

What does the SFP MSA compliance cap in practice?

It guarantees mechanical and electrical fit in any MSA or Cisco SFP port running 1000Base-LX at 1000 Mbps.
