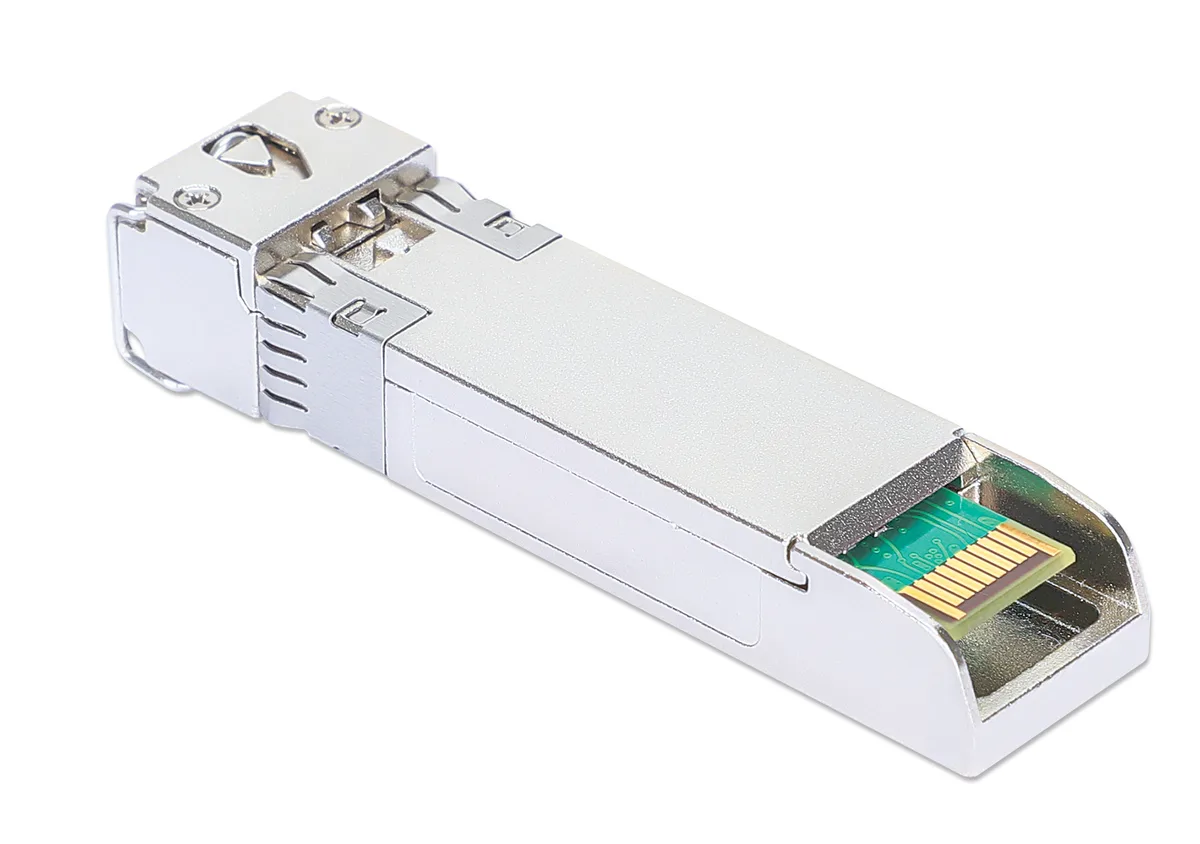

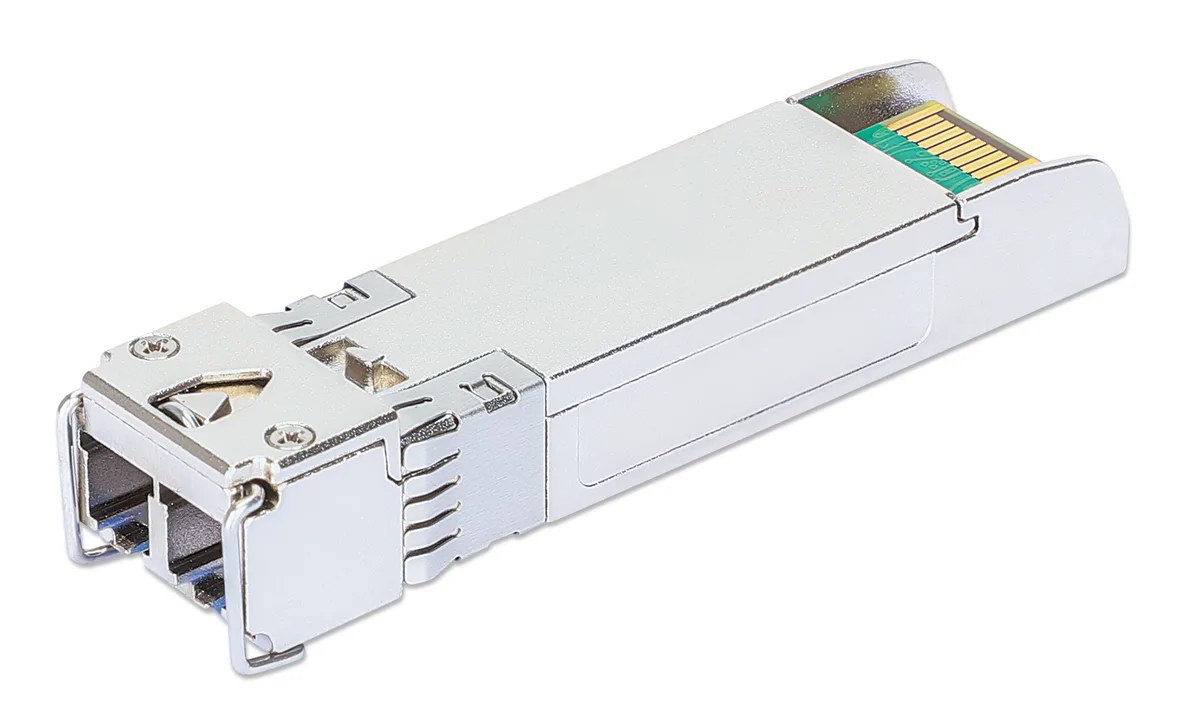

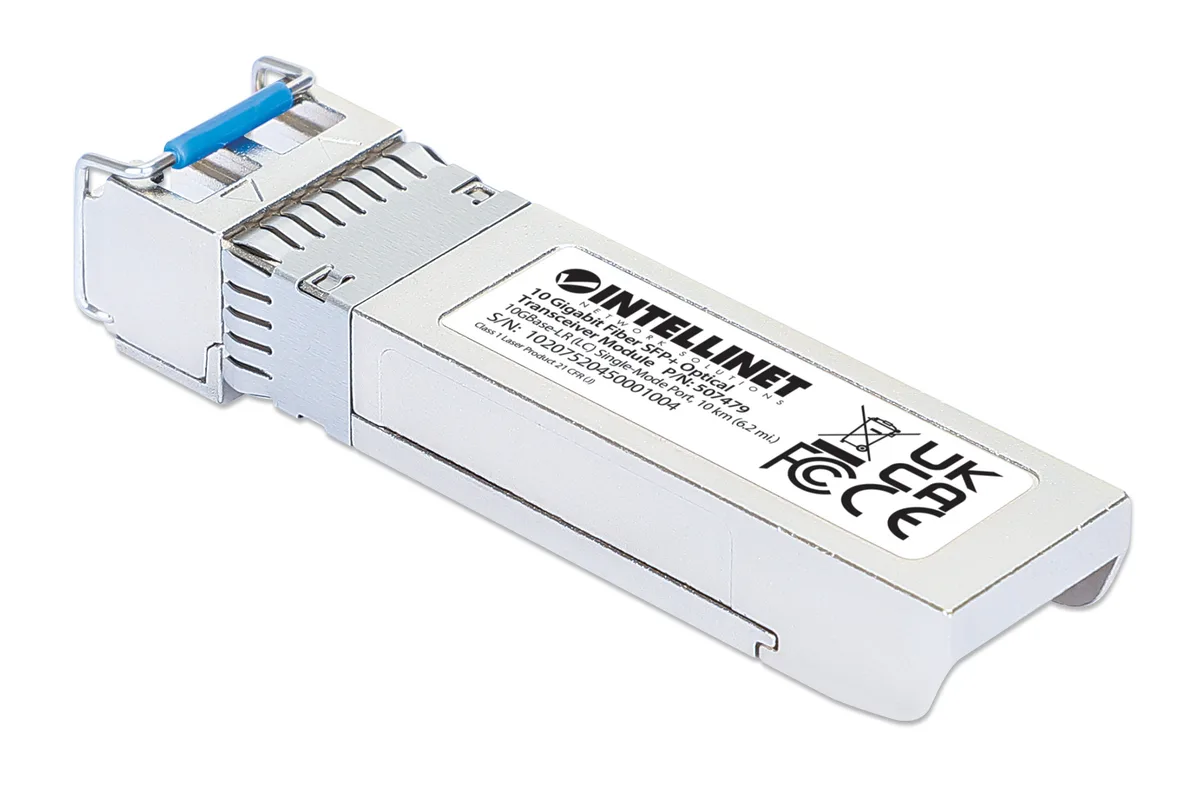

Small metal SFP+ transceiver module with LC duplex port

Intellinet Network Solutions

Intellinet Network Solutions 507479 SFP+ Transceiver Module

SKU CH-Q3DV-X2QTY MPN 507479

Connects switches over single-mode fibre at 10 Gbps up to 10 km using an LC duplex port

  • StandardsIEEE 802.3z (Fiber Optic Gigabit Ethernet) IEEE 802.3ae (Fib
  • Wavelength1310nm
  • Fiber Cable10GBase-LR multi-mode fiber
  • Max Distance10 km (6.2 mi.) with 9/125 µm cable
  • Transfer Rate10 Gbps
  • Power AdapterPower requirement: 3.3 V Power consumption: 1.0 Watt (maximu
  • 10 Gbps data transfer for high-speed network links
  • Reaches 10 km over single-mode fibre at 1310 nm
  • MSA and Cisco SFP+ compliant for broad switch compatibility
  • Low 1.0 W maximum power draw at 3.3 V
  • Compact SFP+ form factor fits dense port configurations

10 km 10GBase-LR transceiver

The Intellinet 507479 is a 10 Gbps SFP+ optical module built for single-mode fiber links up to 10 km. It suits network engineers extending campus or metro connections between switches or routers. The LC duplex interface fits any MSA-compliant SFP+ port on Intellinet or third-party equipment.

Sustained 10 Gbps over long fiber

Operating at 1310 nm wavelength, the module maintains line-rate throughput across the full 10 km reach without the signal decay seen in shorter-range optics. Maximum power draw stays at 1.0 W from a 3.3 V supply, so thermal output remains predictable inside densely populated chassis. The rated operating window of 0 to 70 °C covers standard data-centre and wiring-closet conditions.

Metal housing with LC duplex port

A compact metal enclosure measuring 0.50 x 2.24 x 0.55 inches and weighing 0.04 lb shields against electromagnetic interference while allowing high-density patch-panel deployments. The standard SFP+ form factor and LC duplex connector enable hot-swap installation without tools. Storage tolerance from -40 to 85 °C and 10–85 % non-condensing humidity ensure shelf-life resilience.

Highlights

  • 10 Gbps data transfer for high-speed network links
  • Reaches 10 km over single-mode fibre at 1310 nm
  • MSA and Cisco SFP+ compliant for broad switch compatibility
  • Low 1.0 W maximum power draw at 3.3 V
  • Compact SFP+ form factor fits dense port configurations

Specifications

BrandIntellinet Network Solutions
Model507479
StandardsIEEE 802.3z (Fiber Optic Gigabit Ethernet)
IEEE 802.3ae (Fiber Optic 10 Gigabit Ethernet)
Wavelength1310nm
Fiber Cable10GBase-LR multi-mode fiber
Max Distance10 km (6.2 mi.) with 9/125 µm cable
Transfer Rate10 Gbps
Power AdapterPower requirement: 3.3 V
Power consumption: 1.0 Watt (maximum)
TemperatureOperating temperature: 0 – 70 degree C (32 – 158 degree F)
Storage temperature: -40 – 85 degree C (-40 – 185 degree F)
Humidity10 – 85% RH, non-condensing
FeatureFits any Intellinet Gigabit Ethernet switch with SFP module slots, or any MSA or Cisco compliant SFP port
Data transfer rate: 10 Gbps
One 10GBase-LR single-mode Fiber LC duplex port
Fiber distance support: up to 10 km (6.2 mi.)
Wavelength: 1310 nm
Compliant with the SFP Multi-Source Agreement (MSA)
Cisco compatible
SFP+ standard form factor

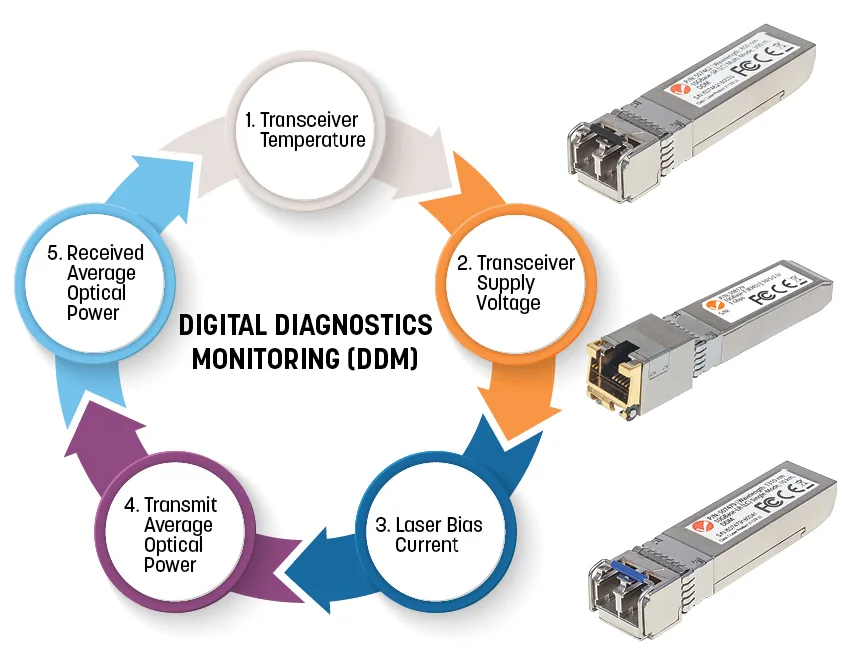

Supports digital diagnostics monitoring (DDM)
Low EMI due to fully metallic housing
Up to 11.1 Gbps bi-directional communication
Supports hot-plugging
Three-Year Warranty
Dimensions0.50" x 2.24" x 0.55
Weight0.04 lb.
Package Contents10 Gigabit Fiber SFP+ Optical Transceiver Module
Shipping weight0.20 kg
Package size57 × 14 × 12 mm

Questions about this item

How much power does the 507479 module draw and what heat should I expect when it runs 24/7?

Maximum draw is 1.0 W at 3.3 V, and it is rated for continuous operation between 0 °C and 70 °C.

What must my switch provide for this transceiver to operate?

An SFP+ slot that follows the MSA specification or a Cisco-compatible SFP+ port, plus a single-mode LC duplex patch cord.

Will the 1310 nm wavelength work with the older 1 GbE SFP ports I still use?

No, the module is built for 10 GbE (IEEE 802.3ae) and requires an SFP+ port; it will not link at 1 GbE on legacy SFP slots.
