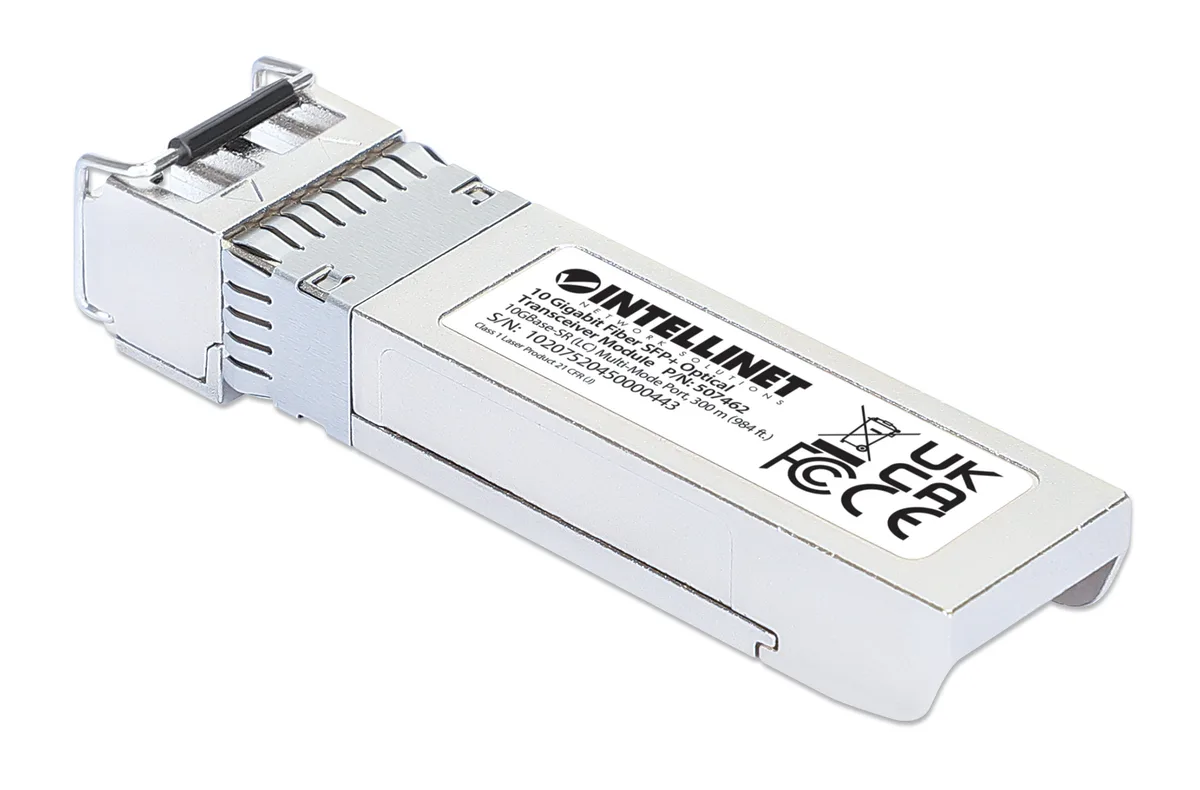

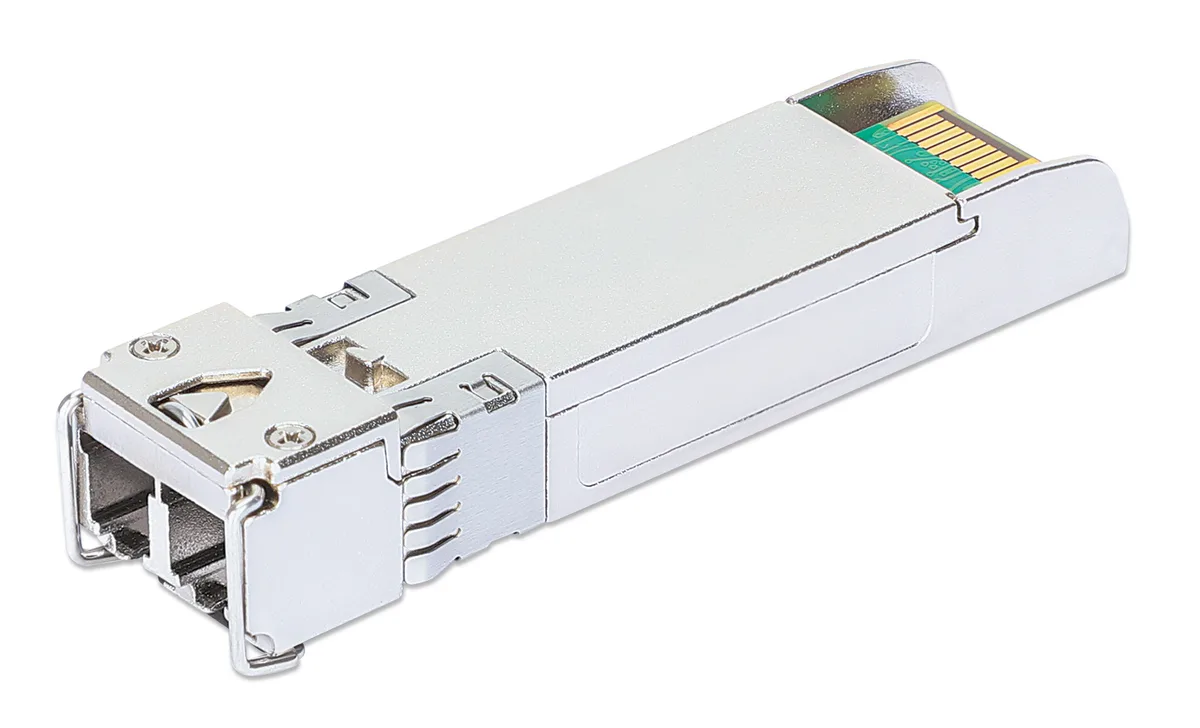

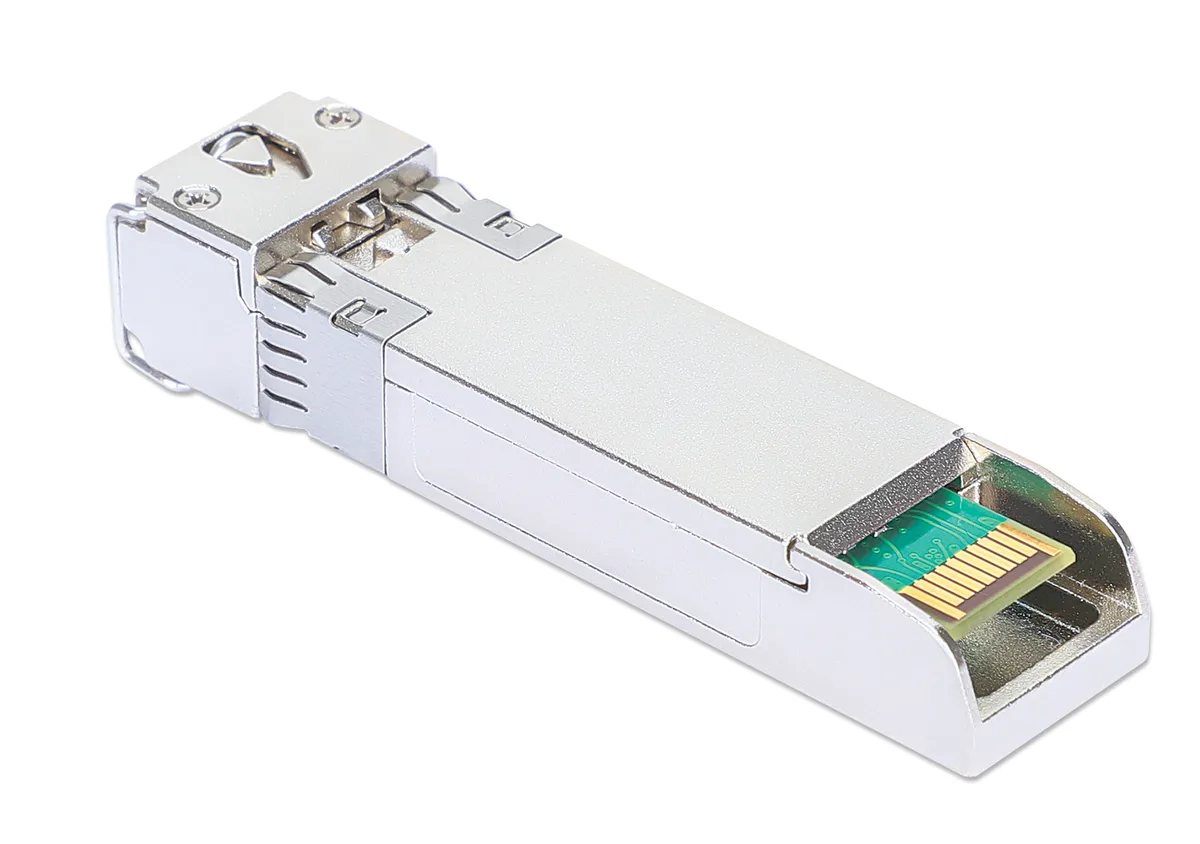

Compact silver metal SFP+ transceiver with LC duplex port

Intellinet Network Solutions

Intellinet Network Solutions 507462 10GBase-SR SFP+ Transceiver 850nm 300m

SKU CH-P0AQ-0TARC MPN 507462

10 Gbps multi-mode fibre transceiver with LC duplex port reaching 300 m over 50/125 µm cable at 850 nm wavelength

  • Device TypeTransceiver
  • StandardsIEEE 802.3z (Fiber Optic Gigabit Ethernet) IEEE 802.3ae (Fib
  • Wavelength850nm
  • Fiber Cable1000Base-SX multi-mode 50/125 Fiber 1000Base-SX multi-mode 6
  • Max Distance300 m (984 ft.) with 50/125 µm cable on 2000 MHz-km 33 m (10
  • Transfer Rate10 Gbps
  • 10 Gbps data transfer for high-speed network links
  • 850 nm wavelength supports 300 m over 50/125 µm multi-mode fiber
  • SFP+ MSA form factor fits Intellinet, Cisco and other compliant ports
  • Metal housing reduces EMI and improves module durability
  • Low 1.0 W power draw at 3.3 V for efficient operation

10GBase-SR SFP+ transceiver

The Intellinet Network Solutions 507462 is a 10GBase-SR SFP+ transceiver built for 10 Gbps fiber links up to 300 metres on multi-mode cable. It suits network administrators upgrading switch-to-switch or server-to-switch connections inside a rack or data centre. The module operates at 850 nm wavelength and uses an LC duplex connector. It is compliant with the SFP Multi-Source Agreement and matches the Cisco SFP-10G-SR form factor.

Metal housing LC duplex fit

The transceiver ships in a metal housing that reduces electromagnetic interference and improves durability. Its mini-GBIC footprint measures 0.50" x 2.24" x 0.55" and weighs 0.04 lb, allowing dense port populations in cabinets or computer rooms. A single LC duplex port accepts 50/125 µm or 62.5/125 µm multi-mode fiber. Power draw is 1.0 Watt maximum from a 3.3 V supply, and the unit runs from 0 to 70 °C with 10 to 85 percent non-condensing humidity.

Replaces 1 GbE uplinks

This module replaces 1 GbE SFP uplinks when 10 Gbps throughput is required between compatible switches, servers or NAS devices. The jump is worth it when existing multi-mode fiber runs support the 300 m reach on 50/125 µm cable rated at 2000 MHz-km, or 33 m on 62.5/125 µm cable rated at 200 MHz-km. It is not for buyers who need single-mode distances or longer multi-mode reaches beyond the stated limits.

Highlights

  • 10 Gbps data transfer for high-speed network links
  • 850 nm wavelength supports 300 m over 50/125 µm multi-mode fiber
  • SFP+ MSA form factor fits Intellinet, Cisco and other compliant ports
  • Metal housing reduces EMI and improves module durability
  • Low 1.0 W power draw at 3.3 V for efficient operation

Specifications

BrandIntellinet Network Solutions
Model507462
Device TypeTransceiver
StandardsIEEE 802.3z (Fiber Optic Gigabit Ethernet)
IEEE 802.3ae (Fiber Optic 10 Gigabit Ethernet)
Wavelength850nm
Fiber Cable1000Base-SX multi-mode 50/125 Fiber
1000Base-SX multi-mode 62.5/125 Fiber
Max Distance300 m (984 ft.) with 50/125 µm cable on 2000 MHz-km
33 m (108) with 62.5/125 µm cable on 200 MHz-km
Transfer Rate10 Gbps
Power AdapterPower requirement: 3.3 V
Power consumption: 1.0 Watt (maximum)
TemperatureOperating temperature: 0 – 70 degree C (32 – 158 degree F)
Storage temperature: -40 – 85 degree C (-40 – 185 degree F)
Humidity10 – 85% RH, non-condensing
FeatureFits any Intellinet Gigabit Ethernet switch with SFP module slots, or any MSA or Cisco compliant SFP port
Data transfer rate: 10 Gbps
One 10GBase-SR multi-mode Fiber LC duplex port
Fiber distance support: up to 300 m (984 ft.)
Wavelength: 850 nm
Compliant with the SFP Multi-Source Agreement (MSA)
Cisco compatible
SFP+ standard form factor

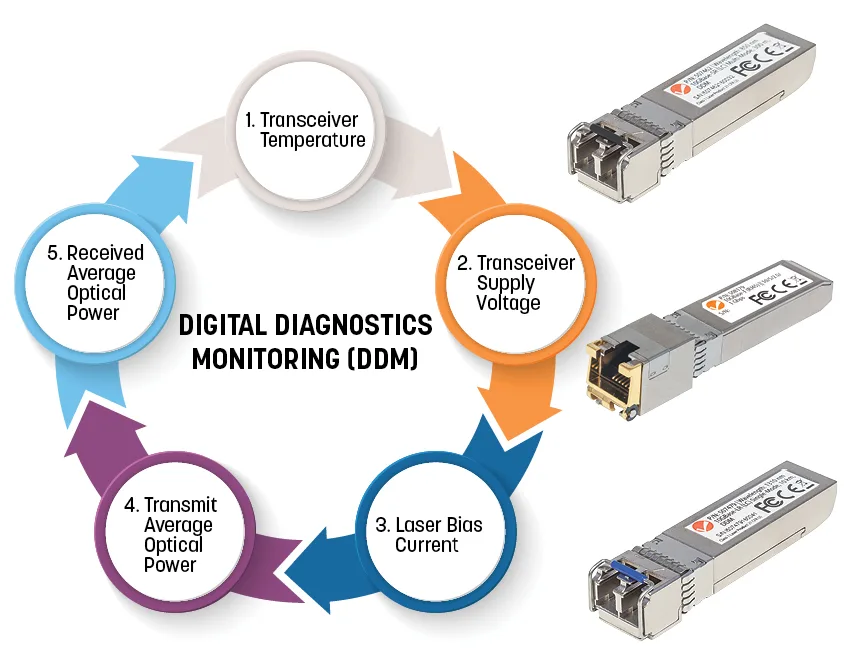

Supports digital diagnostics monitoring (DDM)
Low EMI due to fully metallic housing
Up to 11.1 Gbps bi-directional communication
Supports hot-plugging
Three-Year Warranty
Dimensions0.50" x 2.24" x 0.55
Weight0.04 lb.
Package Contents10 Gigabit Fiber SFP+ Optical Transceiver Module
Shipping weight0.20 kg
Package size57 × 14 × 12 mm

Questions about this item

What distance does the 10GBase-SR 850 nm interface reach on 50/125 µm multi-mode fibre?

The 507462 supports up to 300 m (984 ft) on 50/125 µm cable rated at 2000 MHz-km.

What physical slot and connector does this SFP+ module require?

It fits any MSA or Cisco-compliant SFP+ port and presents an LC duplex connector for multi-mode fibre.

How is the transceiver installed and what step is often missed?

Insert the module into an SFP+ slot until it clicks, then connect the LC duplex patch cord; the latch must engage fully or the link will not come up.
