Intellinet Network Solutions 507332 10/100Base-TX to 100Base-FX SC 1310 nm 20 km switch module
Converts 10/100Base-TX copper to 100Base-FX single-mode fibre over 20 km at 1310 nm
- Extends copper links to 20 km over single-mode fiber
- RJ45 auto-negotiation removes crossover cable hassle
- 100 Mbps full-duplex throughput for Fast Ethernet segments
- Jumbo frames up to 1.6 KBytes boost large-packet efficiency
- Dual LED indicators show power and link status instantly
Fast Ethernet fibre converter for copper-to-fibre
The Intellinet 507332 converts 10/100Base-TX copper links to 100Base-FX single-mode fibre using a 1310 nm wavelength. It reaches 20 km (12.4 miles) over duplex SC connectors while the RJ45 port handles up to 100 m (300 ft) with auto-negotiation and Auto MDI/MDI-X. Status LEDs show power and link activity for both ports.

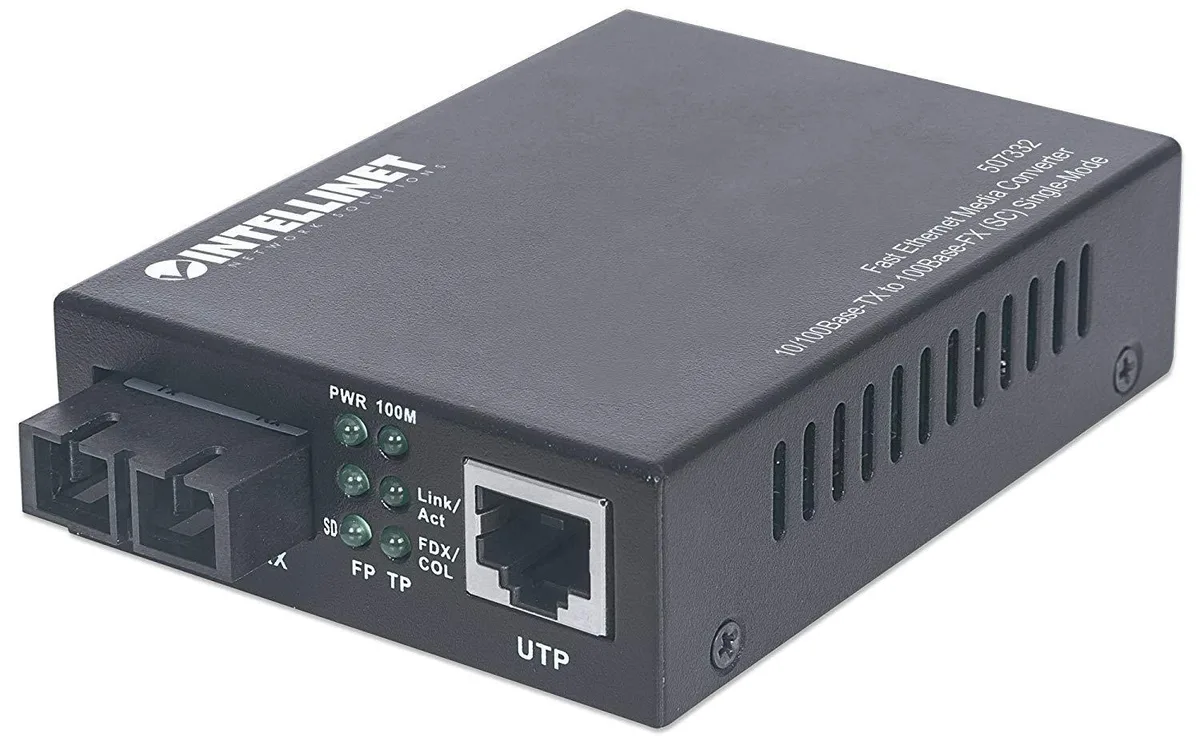

Compact media converter with SC duplex and RJ45
A single SC duplex port carries the fibre connection and a standard RJ45 jack handles twisted-pair copper. Auto MDI/MDI-X removes the need for crossover cables, and auto-negotiation sets speed and duplex without manual configuration. The unit supports jumbo frames up to 1.6 KBytes for improved throughput on large packets.
Extends copper segments beyond 100 m limit
Replaces direct copper runs that exceed the 100 m distance ceiling by bridging to single-mode fibre. The jump is worth it when buildings or workgroups sit farther apart than copper allows but still require 100 Mbps Fast Ethernet. Not suited for networks that need gigabit speeds, multi-mode fibre interfaces or Power over Ethernet on the copper side.
Highlights
- Extends copper links to 20 km over single-mode fiber
- RJ45 auto-negotiation removes crossover cable hassle
- 100 Mbps full-duplex throughput for Fast Ethernet segments
- Jumbo frames up to 1.6 KBytes boost large-packet efficiency
- Dual LED indicators show power and link status instantly
Specifications
| Brand | Intellinet |
|---|---|
| Shipping weight | 0.45 kg |
| Package size | 231 × 122 × 51 mm |
Questions about this item
What distance does the 100Base-FX SC single-mode port on the 507332 support?
The single-mode SC port carries 100 Mbps traffic up to 20 km (12.4 mi) at 1310 nm wavelength.
What copper port does the 507332 provide and how far can it reach?
A 10/100Base-TX RJ45 port with auto MDI/MDI-X and auto-negotiation links up to 100 m (300 ft) over twisted-pair cabling.
How is the 507332 powered and what indicates it is working?
The module requires an external power source; status LEDs show power and Link/TX activity for both the RJ45 and SC ports.
