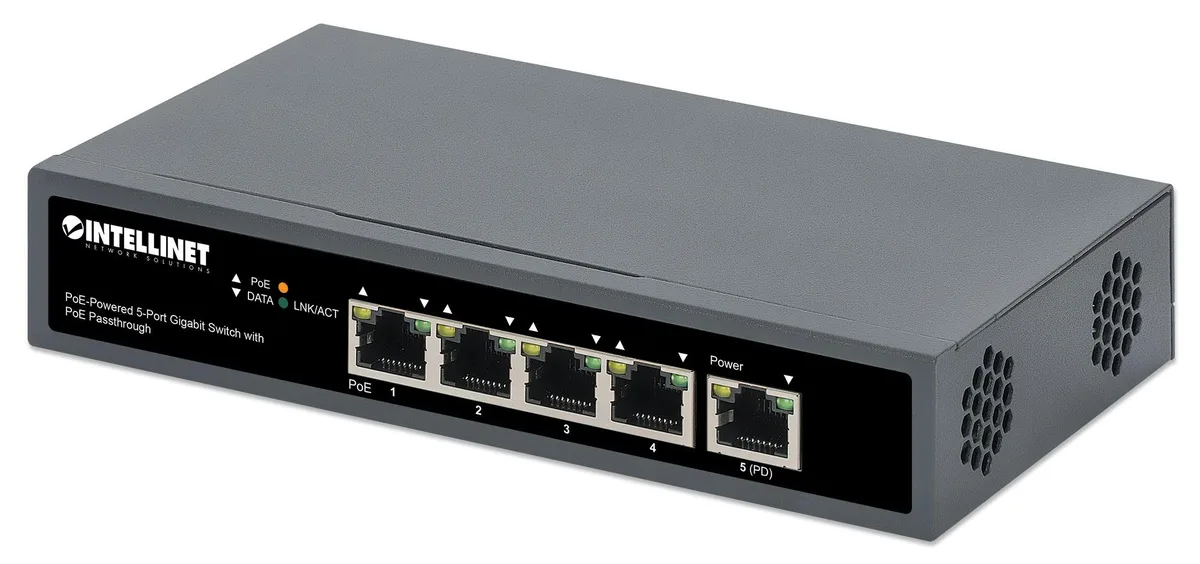

Compact desktop switch, five RJ45 ports, matte metal case

Intellinet Network Solutions

Intellinet Network Solutions 5-Port Gigabit PoE Passthrough Switch

SKU CH-3X69-SSYAC

Powers four PoE devices from a single 95 W input, extending reach to 200 m

  • FormatDesktop
  • Network Management TypeUnmanaged
  • Primary Ports5 x RJ45
  • Primary Port Speed10/100/1000Mbps
  • Switching MethodStore and Forward
  • PoEYes
  • Powers four devices from a single PoE feed
  • Extends PoE reach from 100 m to 200 m
  • Accepts up to 95 W input via IEEE 802.3bt PD port
  • Delivers up to 30 W per output port
  • Operates from PoE or included AC adapter

Powered passthrough switch

The Intellinet 5-port Gigabit switch draws up to 95 W from a PoE++ injector or switch and redistributes up to 65 W across four IEEE 802.3at/af output ports. It targets installers who need to extend powered Ethernet runs without local mains sockets.

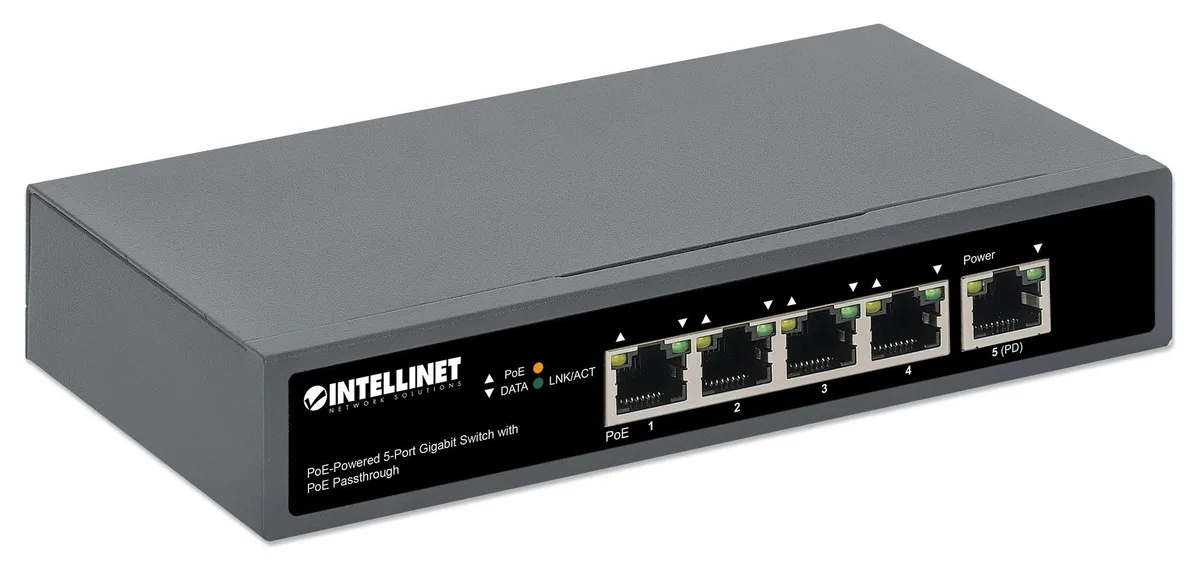

Desktop metal enclosure

A fanless desktop chassis houses five RJ45 ports that auto-negotiate at 10/100/1000 Mbps using store-and-forward switching. One port acts as an 802.3bt PD input while the remaining four serve as PSE outputs, so the unit can sit inline on a single cable run up to 200 m total.

AC adapter and mounting kit

The box includes a mains power adapter for sites where upstream PoE is unavailable and hardware for wall or DIN-rail mounting. No software configuration is required; the unmanaged Layer 2 design begins forwarding traffic and negotiating PoE classes immediately on power-up.

Highlights

  • Powers four devices from a single PoE feed
  • Extends PoE reach from 100 m to 200 m
  • Accepts up to 95 W input via IEEE 802.3bt PD port
  • Delivers up to 30 W per output port
  • Operates from PoE or included AC adapter

Specifications

BrandIntellinet Network Solutions
ModelUnmanaged Gigabit Ethernet PoE Switch
FormatDesktop
Network Management TypeUnmanaged
Primary Ports5 x RJ45
Primary Port Speed10/100/1000Mbps
Switching MethodStore and Forward
PoEYes
StackableNo
Layer2
Module SupportNo
TopologyStar

Questions about this item

What does the IEEE 802.3bt PD input port allow this switch to do?

It accepts up to 95 W from a PoE++ injector or switch, enabling the unit to power four downstream devices without a local mains socket.

How much clearance does the desktop format need for the five RJ45 ports and power jack?

The compact desktop chassis fits on a shelf or wall bracket; allow a few centimetres at the rear for the DC jack and cable bend radius.

When powering the switch through the PD port, which step do installers often miss?

They forget to verify the upstream PoE++ source actually delivers 95 W; a lower 802.3at or 802.3af feed drops the budget to 25 W or 10 W respectively.
