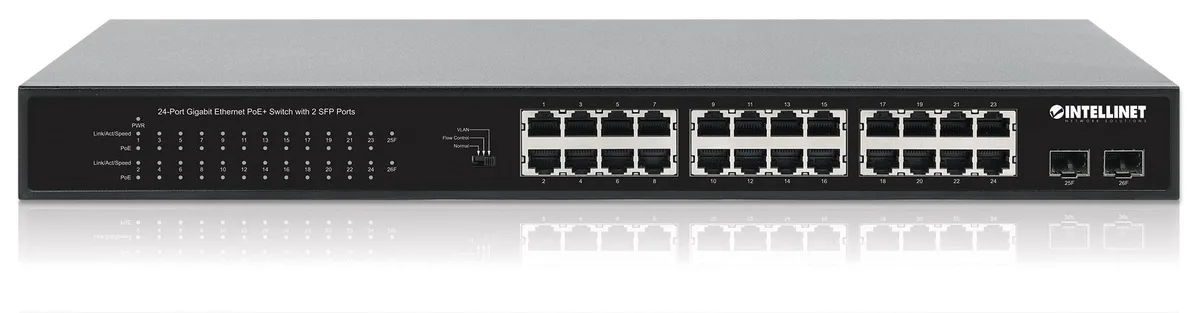

Silver metal 19-inch rackmount box with 24 RJ45 ports and two SFP slots on the front

Intellinet Network Solutions

Intellinet Network Solutions 24-Port Gigabit PoE+ Switch with 2 SFP Ports, 370W Budget

SKU CH-2SXF-HC660

Unmanaged rackmount switch with 24 Gigabit RJ45 ports, 2 SFP uplinks and a 370 W PoE+ budget delivering up to 30 W per port

  • Switch Typeunmanaged
  • FormatRackmount
  • Network Management TypeUnmanaged
  • Uplink Ports2
  • Uplink InterfaceSFP
  • Uplink Speed1 Gbps
  • Powers up to 24 PoE devices with 370 W budget
  • Delivers up to 30 W per port for high-power gear
  • Two 1 Gbps SFP uplinks extend the network
  • 52 Gbps fabric handles heavy traffic without bottlenecks
  • Manual VLAN isolates ports 1-24 while keeping uplinks open

24-Port Gigabit PoE+ Switch with 2 SFP Uplinks

This unmanaged rackmount switch provides 24 Gigabit RJ45 ports and two 1G SFP uplink slots for fibre connectivity. It powers PoE+ devices such as wireless access points, VoIP phones and IP cameras while passing data at up to 1,000 Mbps per port. The unit fits a standard 19-inch rack and requires no configuration to operate.

PoE+ Budget Limits and Per-Port Power

The switch delivers a total PoE power budget of 370 watts with a maximum of 30 watts available on any single port. Connecting 24 class 4 devices at full draw would exceed the budget, so actual port loading must be planned. Non-PoE devices can be mixed freely, but legacy equipment without 802.3af/at compliance needs a separate splitter to function.

Rackmount Installation and Common Issues

The 19-inch form factor mounts in standard server racks using the included brackets. SFP transceivers are not supplied and must be purchased separately for the two uplink ports. Manual VLAN mode isolates ports 1 to 24 from each other while keeping uplink access on ports 25 and 26, which can confuse troubleshooting if enabled unintentionally.

Highlights

  • Powers up to 24 PoE devices with 370 W budget
  • Delivers up to 30 W per port for high-power gear
  • Two 1 Gbps SFP uplinks extend the network
  • 52 Gbps fabric handles heavy traffic without bottlenecks
  • Manual VLAN isolates ports 1-24 while keeping uplinks open

Specifications

BrandIntellinet Network Solutions
ModelUnmanaged Gigabit Ethernet PoE Switch
Part NumberIPS-24G02-370W
Switch Typeunmanaged
FormatRackmount
Network Management TypeUnmanaged
Uplink Ports2
Uplink InterfaceSFP
Uplink Speed1 Gbps
Primary Ports24 x RJ45 + 2 x SFP
Primary Port Speed10/100/1000Mbps
Primary Port TypeRJ45
MAC Address Table8K
Switching MethodStore and Forward
VLAN SupportYes
Jumbo Frames9220 bytes
Buffer Memory512KB
PoEYes
StackableNo
SNMPNo
QoSNo
LACPNo
Layer2
Port MirroringNo
Module SupportYes
TopologyStar
Fanyes
PoE Ports24
PoE Power Budget370W
Max Power Consumption400W
Dimensions8.19 x 17.32 x 1.73 in.
Weight7.43 lbs
Temperature0°C to 45°C (32°F to 113°F)
Humidity10% - 90%, Non-condensing

Questions about this item

Should I pick the 24-port model or the smaller 8-port version?

This listing covers the 24-port PoE+ switch with 370 W budget and two 1 Gbps SFP uplinks; no 8-port variant is shown here.

What does the 370 W PoE budget actually deliver per port?

Each of the 24 RJ45 ports can supply up to 30 W, but the total across all ports is capped at 370 W, so you cannot run every port at 30 W simultaneously.

How do the two SFP uplink slots limit my fibre links?

The two open SFP slots accept 1 Gbps modules, giving you up to two gigabit fibre uplinks; they do not support 10 Gbps transceivers.
