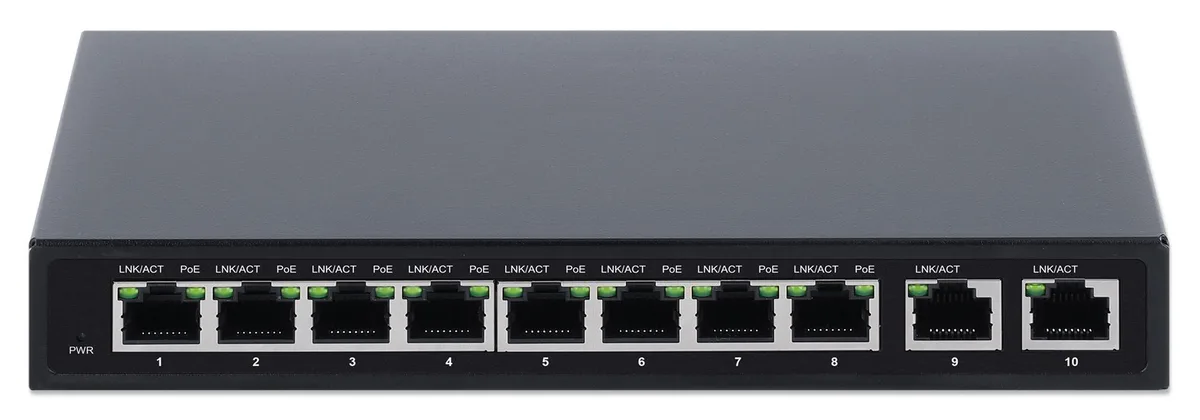

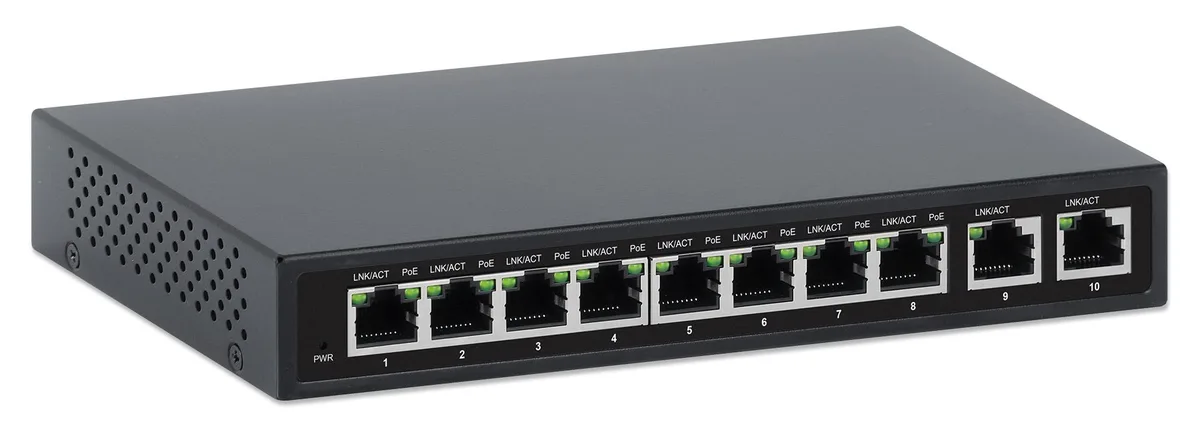

Metal desktop switch with eight PoE ports and two uplinks

Intellinet Network Solutions

Intellinet Network Solutions 10-Port PoE+ Switch 8×GbE + 2×GbE Uplink 58 W

SKU CH-FSTX-Z7CAF

Unmanaged 10-port Gigabit PoE+ switch with eight powered ports, two uplinks and a 58 W budget

  • FormatWall Mountable
  • StandardsIEEE 802.3/3u/3ab, IEEE 802.3af/at
  • Network Management TypeUnmanaged
  • Uplink Ports2
  • Uplink Speed10/100/1000 Mbps
  • Primary Ports8 x RJ45
  • Powers eight devices with data and 30 W per port
  • 58 W total PoE budget covers cameras, phones and access points
  • Two Gigabit uplinks keep backbone traffic flowing at 1000 Mbps
  • Manual VLAN isolates ports 1-8 while sharing uplinks 9-10
  • Unmanaged 20 Gbps fabric with 9216-byte jumbo frame support

PoE+ Switch with Eight Powered Ports

The Intellinet 10-port switch provides eight Gigabit RJ45 ports that deliver both data and PoE+ power plus two dedicated Gigabit uplink ports. It operates as an unmanaged Layer 2 switch with a 58 watt total PoE budget and up to 30 watts available on any single port. The unit is wall-mountable and includes manual VLAN and flow-control toggle modes.

Installers Needing Simple PoE Distribution

This switch suits installers who want to power up to eight VoIP phones, wireless access points or IP cameras without a separate power supply for each device. The manual VLAN mode isolates the eight PoE ports from one another while keeping uplink access, which is useful for basic tenant or camera segmentation. It does not serve buyers who need SNMP monitoring, QoS prioritisation, LACP link aggregation or a managed feature set.

58 Watt Total PoE Budget

The 58 watt power budget is the single figure that decides whether this switch can support your planned device count. Each port can supply up to 30 watts under the IEEE 802.3at standard, but the combined draw of all connected devices must stay within the 58 watt limit. Check the power specification of every PoE device you intend to connect before purchasing.

Highlights

  • Powers eight devices with data and 30 W per port
  • 58 W total PoE budget covers cameras, phones and access points
  • Two Gigabit uplinks keep backbone traffic flowing at 1000 Mbps
  • Manual VLAN isolates ports 1-8 while sharing uplinks 9-10
  • Unmanaged 20 Gbps fabric with 9216-byte jumbo frame support

Specifications

BrandIntellinet
Part NumberIPS-08G02-58W
FormatWall Mountable
StandardsIEEE 802.3/3u/3ab, IEEE 802.3af/at
Network Management TypeUnmanaged
Uplink Ports2
Uplink Speed10/100/1000 Mbps
Primary Ports8 x RJ45
Primary Port Speed10/100/1000Mbps
MAC Address Table4K
Switching MethodStore and Forward
VLAN SupportYes
Jumbo Frames9216 bytes
Buffer Memory192KB
PoEYes
StackableNo
SNMPNo
QoSNo
LACPNo
Layer2
Port MirroringNo
Module SupportNo
TopologyStar
Power100~240VAC, 50/60Hz
Temperature0°C to 45°C (32°F to 113°F)
Humidity10% - 90%, Non-condensing
Package Contents10-Port PoE+ Switch with 8 Gigabit Ethernet Ports and 2 RJ45 Gigabit Uplink Ports, Power adapter, Instructions

Questions about this item

Should I choose the eight PoE+ ports or the two uplink ports for my powered devices?

Use the eight PoE+ ports for cameras, phones or access points that need up to 30 watts each; the two uplink ports carry data only and connect the switch to the rest of the network.

What does the 58 watt PoE budget mean when I plug in multiple devices?

The switch can deliver a combined 58 watts across all eight PoE+ ports, so you can run several devices at once as long as their total draw stays within that limit.

How does the 20 Gbps switching capacity affect real-world throughput?

The 20 Gbps fabric lets all ten Gigabit ports run at line rate simultaneously without blocking, so each connected device sees full 1000 Mbps performance.
