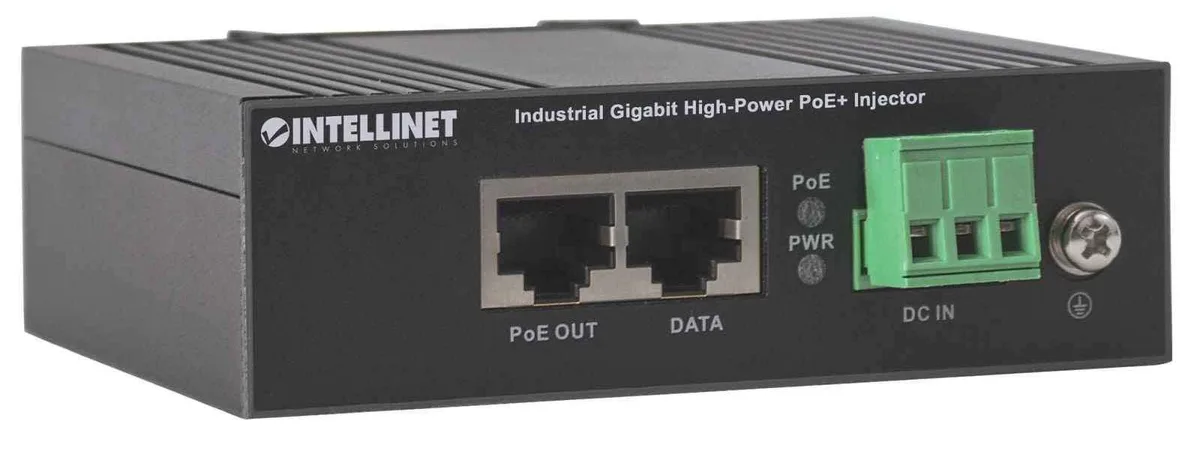

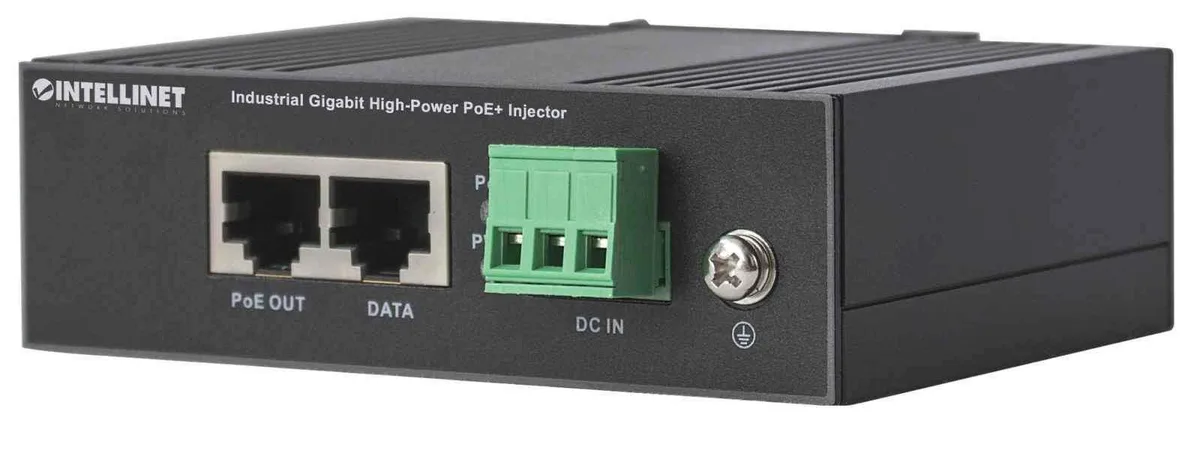

Metal PoE+ injector with LED indicators and DIN-rail option

Intellinet

Intellinet Industrial Gigabit High-Power PoE+ Injector 30 W

SKU CH-56HD-5RY5Q

Delivers up to 30 W of PoE+ power over Gigabit Ethernet to IEEE 802.3af/at devices up to 100 m away, with DC input from 45 to 56 V and DIN-rail mounting

  • Delivers up to 30 W over existing LAN cable
  • Auto-detects IEEE 802.3af or 802.3at powered devices
  • Supports 10/100/1000Base-T Gigabit data rates
  • Powers devices up to 100 m (330 ft) away
  • Accepts 45 – 56 V DC input with DIN-rail option

Industrial PoE+ injector for non-PoE networks

This Intellinet injector adds IEEE 802.3at PoE+ power to a standard Gigabit Ethernet link. It connects a compliant powered device such as a wireless access point, IP camera or VoIP phone to a non-PoE switch port. The unit accepts a 45 – 56 V DC supply and mounts on a DIN rail for industrial cabinets.

30 W output on two pairs

The injector delivers up to 30 W across two wire pairs and auto-detects any IEEE 802.3af or 802.3at powered device. It supports 10/100/1000Base-T speeds so Gigabit data passes through without bottleneck. LED indicators show power input and PoE output status at a glance.

100 m reach for typical PoE devices

At up to 100 m (330 ft) the injector comfortably powers most common PoE+ endpoints including PTZ cameras and dual-radio access points. Devices requiring more than 30 W or standards beyond 802.3at will need a higher-power midspan or a PoE++ switch instead.

Highlights

  • Delivers up to 30 W over existing LAN cable
  • Auto-detects IEEE 802.3af or 802.3at powered devices
  • Supports 10/100/1000Base-T Gigabit data rates
  • Powers devices up to 100 m (330 ft) away
  • Accepts 45 – 56 V DC input with DIN-rail option

Specifications

BrandIntellinet

Questions about this item

What does the 30 W rating mean for a device I plug into this injector?

It supplies up to 30 watts over the Ethernet cable, enough for most IEEE 802.3af or 802.3at powered devices such as wireless access points, IP phones or network cameras.

How does the IEEE 802.3at/af standard limit what I can connect?

The injector auto-detects compliant powered devices and delivers power on two pairs, capping output at 30 W while passing 10/100/1000Base-T data up to 100 m.

What does the injector need to mount in a cabinet?

It offers an option for DIN-rail installation and requires a 45–56 V DC power input.
