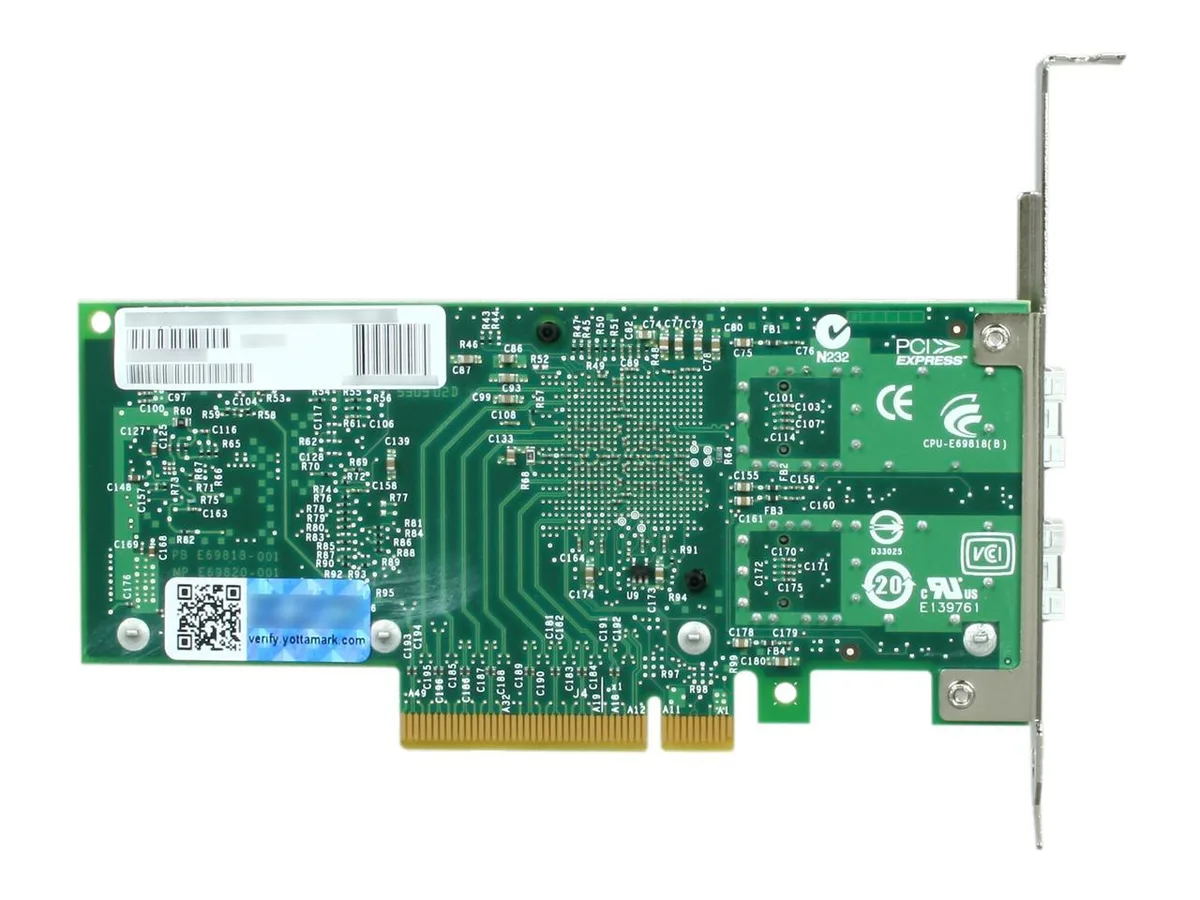

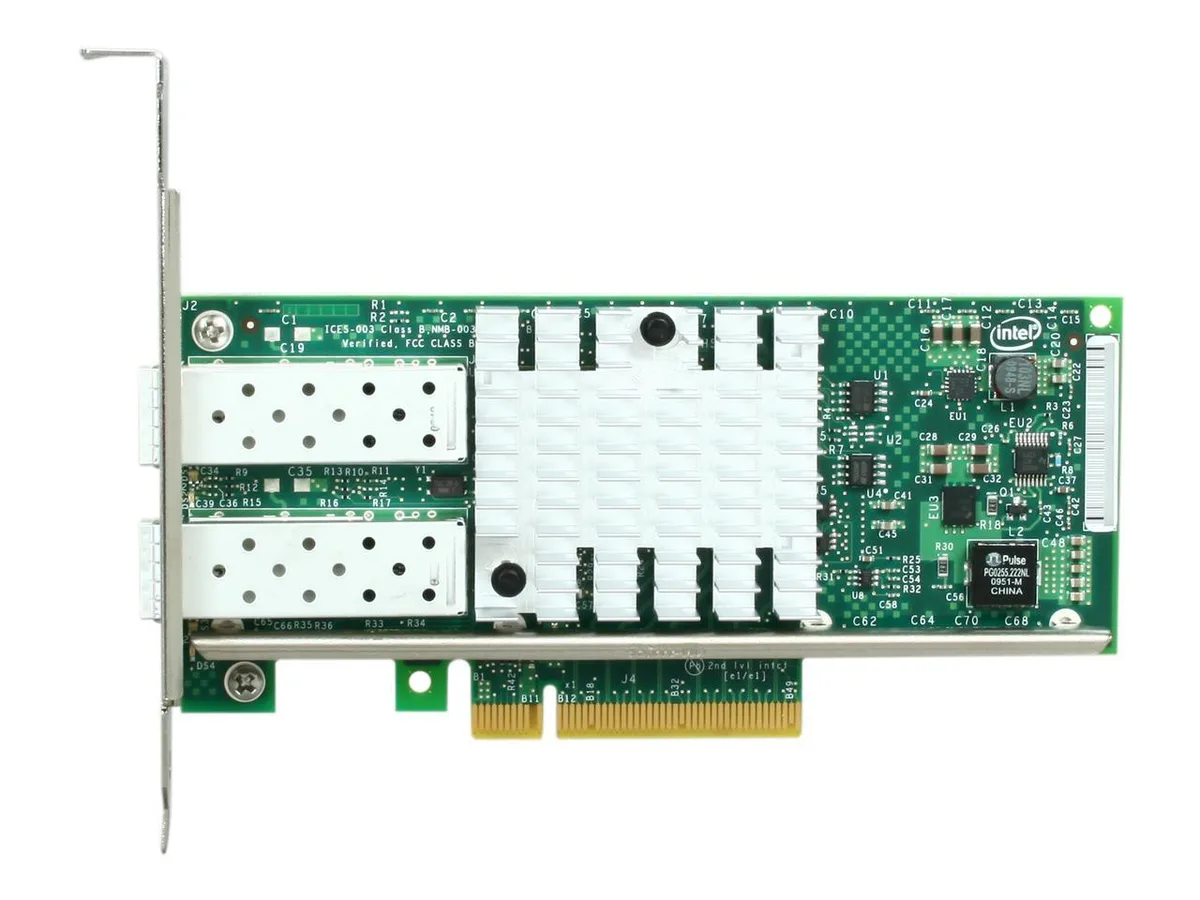

Green PCB network card with silver bracket and two SFP+ cages

Intel

Intel X520-DA2 E10G42BTDA 10Gbps PCIe 2.0 x8 2x SFP+ network card

SKU CH-D406-VVT8X

Dual-port 10Gbps SFP+ adapter using a PCIe 2.0 x8 slot for server networking

  • Speed10Gbps
  • Connectors2 x SFP+
  • InterfacePCI-Express
  • 10Gbps throughput with dual SFP+ ports
  • PCIe 2.0 x8 interface for server compatibility
  • Intel 82599 controller for reliable performance
  • Two SFP+ connectors enable flexible fibre links
  • Converged LAN and SAN networking on one adapter

Intel X520-DA2 10Gbps SFP+ Adapter

The Intel X520-DA2 is a dual-port 10Gbps network interface card built for servers and workstations needing high-throughput wired connectivity. It installs into a PCI Express 2.0 x8 slot and uses the Intel 82599 controller to deliver reliable performance for virtualization, storage and compute clusters.

Dual SFP+ Ports for Flexible Cabling

Two SFP+ cages accept a variety of direct-attach copper cables or fibre transceivers, letting you match reach and media to the rack layout without changing the card. The low-profile bracket fits standard and dense chassis, and the x8 electrical interface provides sufficient bandwidth for both ports at line rate.

Upgrade from 1GbE or Single-Port 10GbE

This adapter replaces gigabit NICs or single-port 10GbE cards when aggregate throughput, redundancy or convergence of LAN and SAN traffic is required. The jump is worth it for hosts running multi-core workloads, database clusters or video-on-demand streams that saturate slower links.

Highlights

  • 10Gbps throughput with dual SFP+ ports
  • PCIe 2.0 x8 interface for server compatibility
  • Intel 82599 controller for reliable performance
  • Two SFP+ connectors enable flexible fibre links
  • Converged LAN and SAN networking on one adapter

Specifications

BrandIntel
ModelX520-DA2
Part NumberE10G42BTDA
Speed10Gbps
Connectors2 x SFP+
InterfacePCI-Express

Questions about this item

What PCIe generation and lane width does the Intel X520-DA2 use?

The adapter uses a PCI Express 2.0 x8 interface, delivering up to 10 Gbps per port through the Intel 82599 controller.

What physical slot and bracket does the card require?

It requires a PCIe x8 or wider slot and ships with a full-height bracket; no low-profile bracket is supplied.

How is the card installed and what step is often missed?

Insert the card into the PCIe slot, secure the bracket screw, then attach SFP+ modules and cables before powering on the server.
