Intel
Intel SSDPE2MX012T701 1.2TB 2.5" PCIe 3.0 x4 MLC enterprise SSD
2.5-inch PCIe 3.0 x4 enterprise SSD with 1.2TB MLC storage delivering 1700MBps reads and 1300MBps writes
- Form Factor2.5"
- Capacity1.2TB
- Memory ComponentsMLC
- InterfacePCI-Express 3.0 x4
- Max Sequential ReadUp to 1700 MBps
- Max Sequential WriteUp to 1300 MBps
Options 1.2TB 2.5"
- 1.2TB 2.5"
- 450GB 2.5"
- 2 TB capacity for high-density server storage
- PCIe 3.0 x4 interface delivers up to 1700 MB/s sequential read speed
- MLC memory sustains up to 320,000 random read IOPS
- 2 million hour MTBF supports continuous enterprise workloads
- 5 inch form factor fits standard drive bays
1.2 TB PCIe 3.0 x4 MLC enterprise SSD

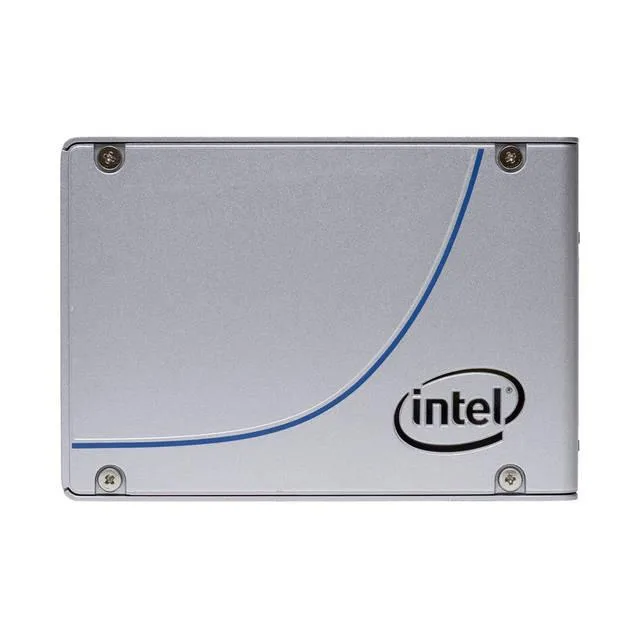

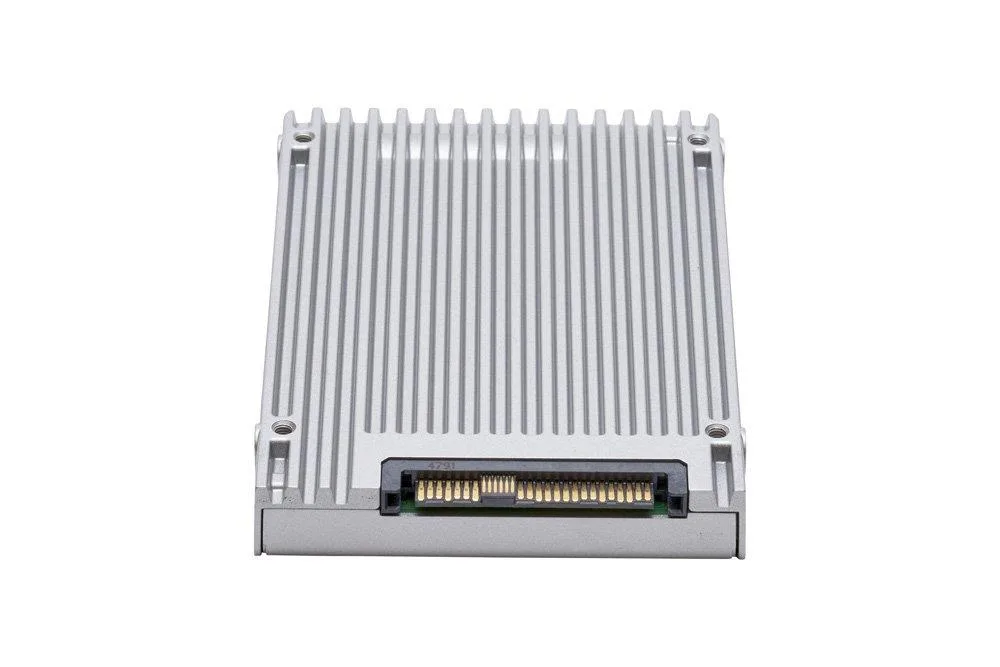

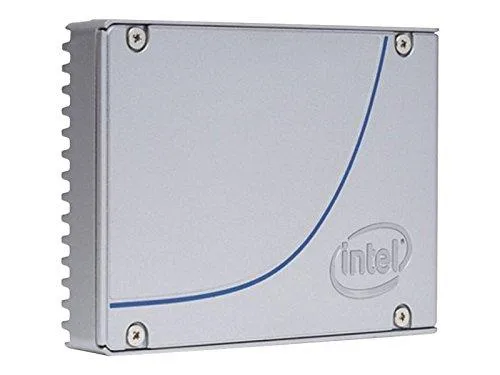

The Intel SSDPE2MX012T701 is a 2.5 inch enterprise solid-state drive with 1.2 TB capacity and a PCI-Express 3.0 x4 interface. It uses MLC memory components and is built for servers that need consistent performance in read-heavy workloads.
Sustained write behaviour
Sequential write speed reaches up to 1300 MBps while random write performance delivers up to 26,000 IOPS at 4 KB. Write latency is rated at 20 µs and active write power draws 11 W, allowing steady throughput without the sharp drops seen in burst-only drives.
PCIe 3.0 x4 interface limits
The four-lane PCIe 3.0 link caps sequential reads at 1700 MBps and random reads at 320,000 IOPS. Operating temperature is limited to 0 °C to 35 °C and the drive tolerates 2.17 GRMS vibration while running, so dense chassis must provide adequate airflow to stay within spec.
Highlights
- 2 TB capacity for high-density server storage
- PCIe 3.0 x4 interface delivers up to 1700 MB/s sequential read speed
- MLC memory sustains up to 320,000 random read IOPS
- 2 million hour MTBF supports continuous enterprise workloads
- 5 inch form factor fits standard drive bays
Specifications
| Brand | Intel |
|---|---|
| Model | SSDPE2MX012T701 |
| Form Factor | 2.5" |
| Capacity | 1.2TB |
| Memory Components | MLC |
| Interface | PCI-Express 3.0 x4 |
| Max Sequential Read | Up to 1700 MBps |
| Max Sequential Write | Up to 1300 MBps |
| 4KB Random Read | Up to 320,000 IOPS |
| 4KB Random Write | Up to 26,000 IOPS |
| Read Latency | 20 µs |
| Write Latency | 20 µs |
| MTBF | 2,000,000 hours |
| Power Consumption (Idle) | 4W |
| Power Consumption (Active) | 11W (Write) 9W (Read) |
| Operating Temperature | 0°C ~ +35°C |
| Max Shock Resistance | 1000G/0.5msec |
| Max Vibration Resistance | Operating: 2.17 GRMS Non-Operating: 3.13 GRMS |
| Height | 15.00mm |
| Weight | 125.00g |
| Shipping weight | 0.16 kg |
| Package size | 150 × 107 × 28 mm |
Other versions of this model
1 more in the same range
Same family, different memory, cooler or clock — compare before you commit.
Questions about this item
How much power does the Intel SSDPE2MX012T701 draw when reading or writing continuously?
Active power is 9W during reads and 11W during writes, while idle power is 4W.
What slot and form factor does the SSDPE2MX012T701 require on my server board?
It needs a 2.5" PCI-Express 3.0 x4 slot; the drive is 15.00mm high and weighs 125.00g.
Will the 1.2TB PCIe 3.0 x4 MLC drive work in a system that only has older PCIe 2.0 slots?
The drive uses a PCI-Express 3.0 x4 interface; it will negotiate down to the slot speed available.
