Intel

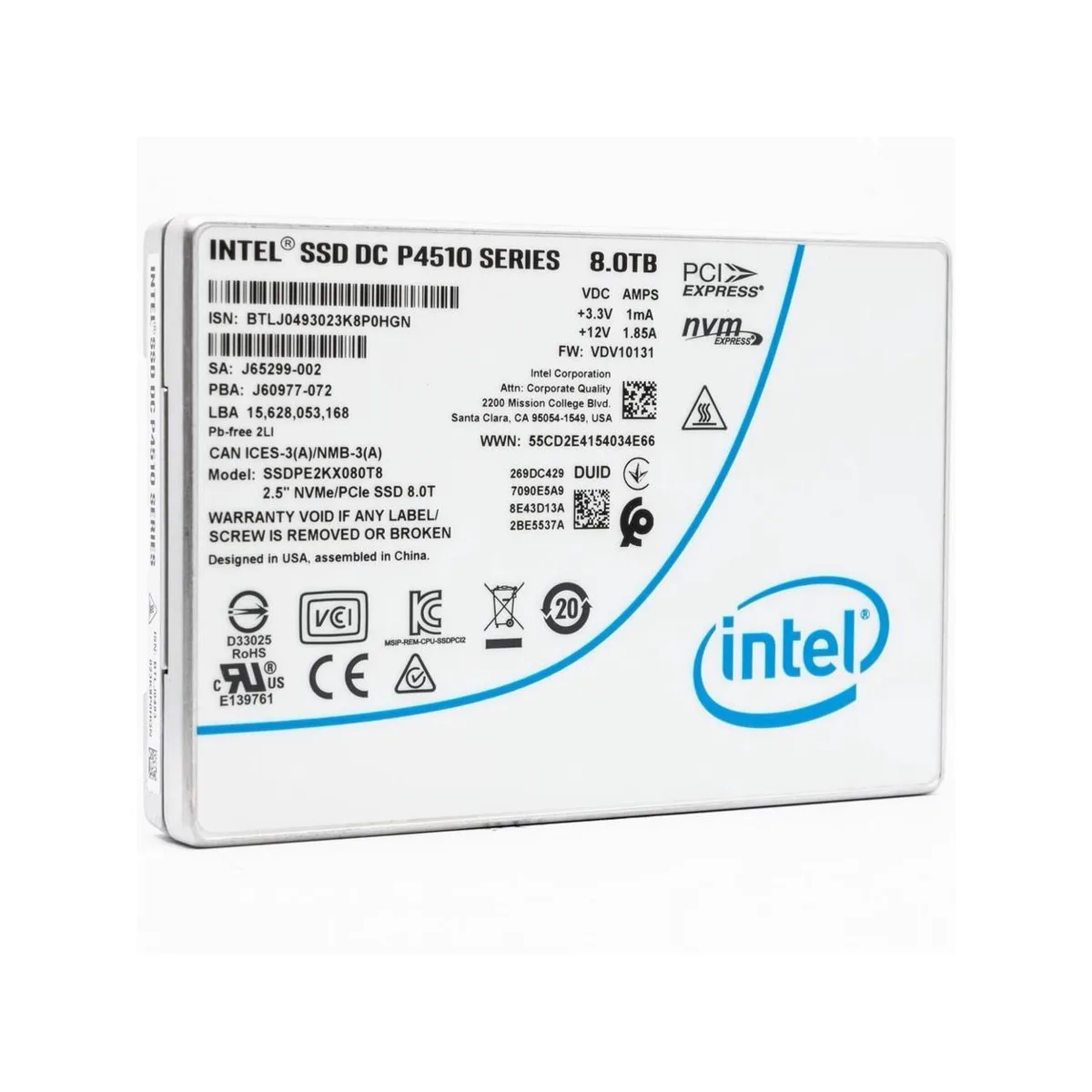

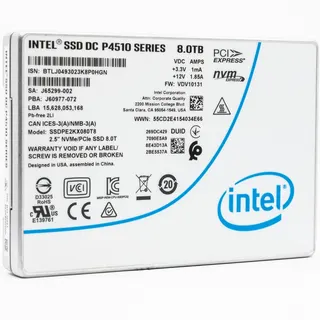

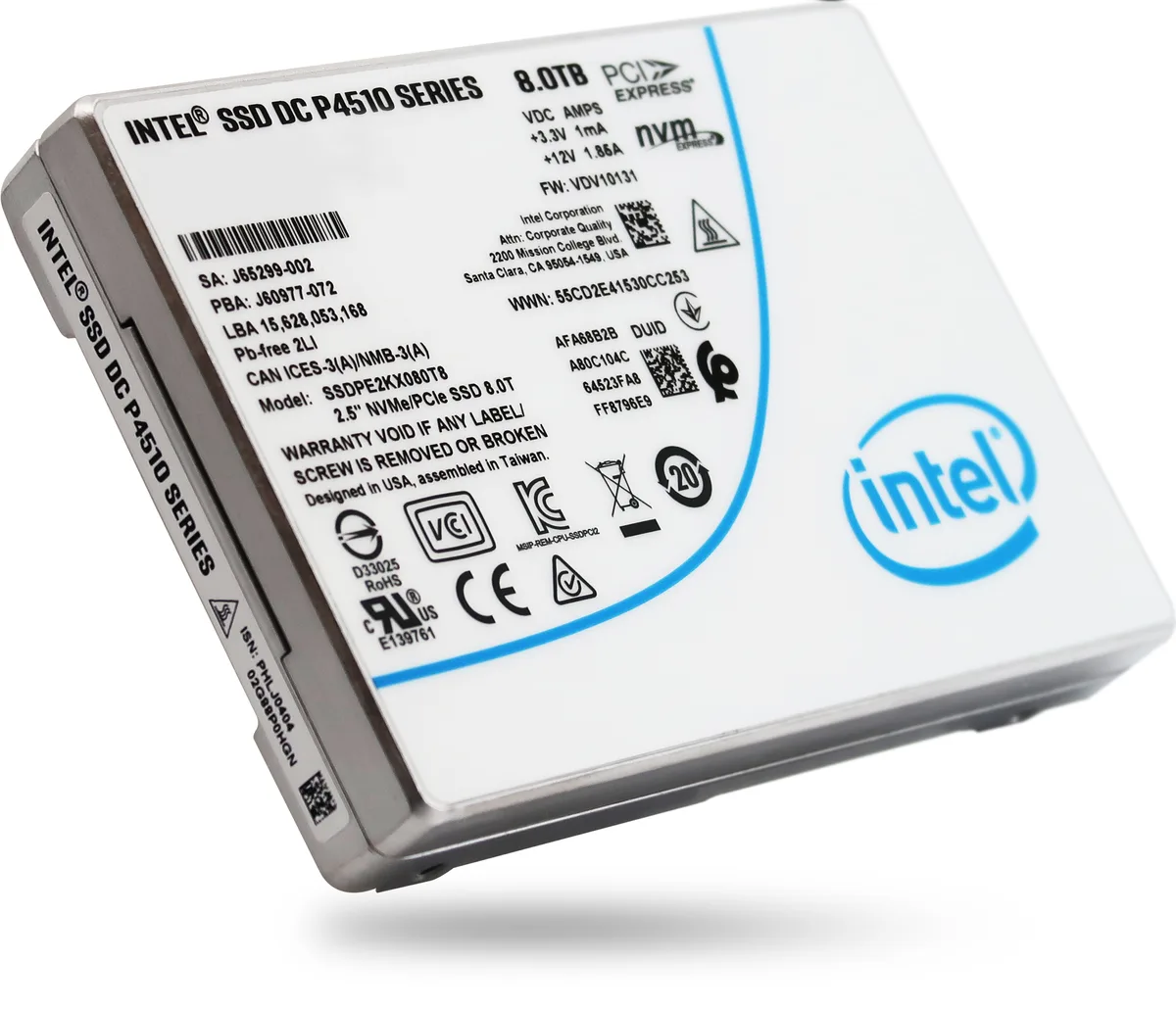

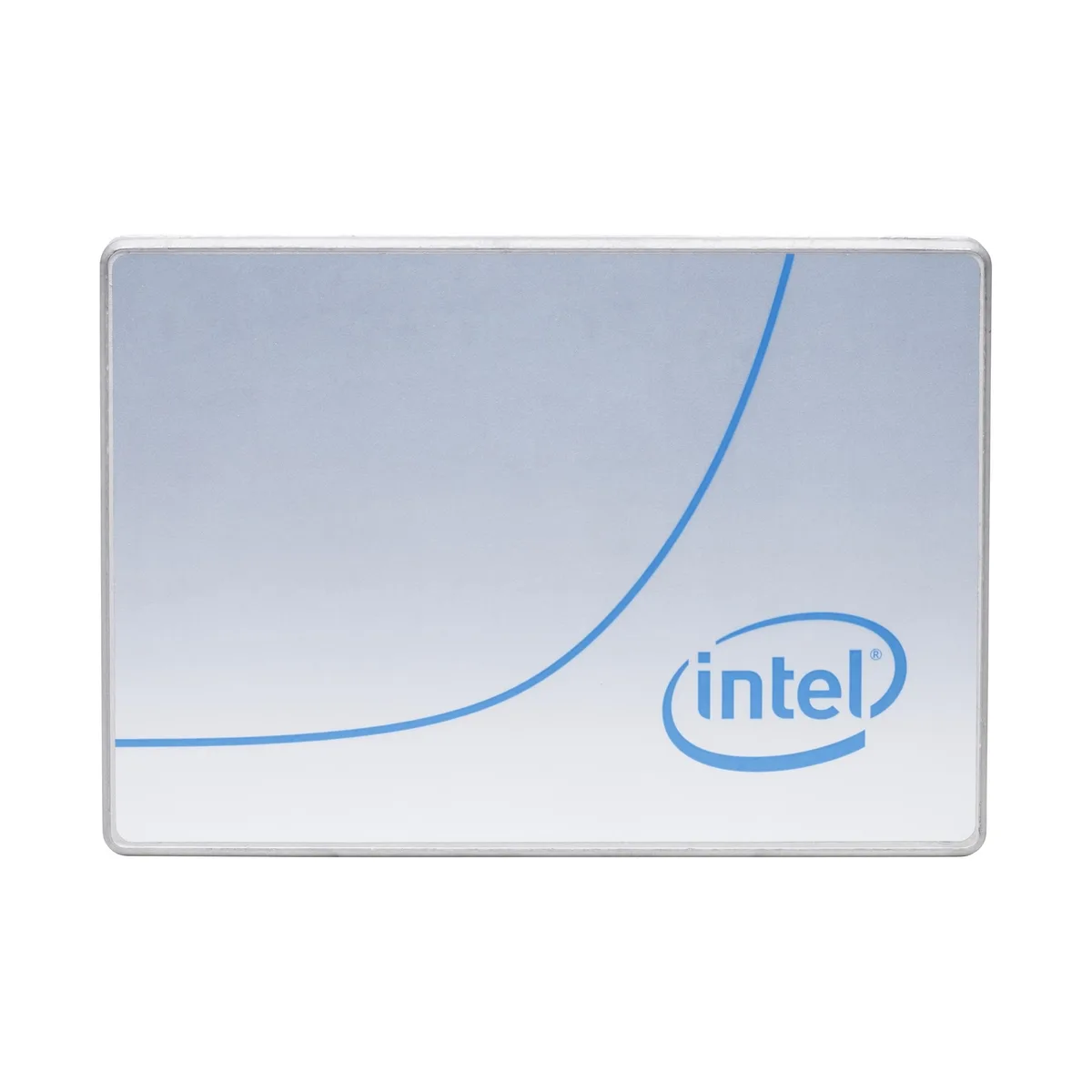

Intel SSDPE2KX080T801 DC P4510 2.5" U.2 8TB NVMe enterprise SSD
2.5" U.2 enterprise SSD delivering 8TB capacity with PCIe 3.1 x4 NVMe speeds up to 3200 MB/s read and 3000 MB/s write, rated 1 DWPD endurance and 2,000,000 hours MTBF
- Form Factor2.5" U.2
- Capacity8TB
- Memory Components64-Layer 3D TLC NAND
- InterfacePCIe NVMe 3.1 x4
- Max Sequential ReadUp to 3200 MBps
- Max Sequential WriteUp to 3000 MBps
- Enterprise speed with 3200 MBps sequential read
- Sustained write performance at 3000 MBps sequential write
- High endurance rated at 13.88 PBW total bytes written
- Hardware-based AES-XTS 256-bit encryption protects data
- 2 million hour MTBF ensures long-term reliability
Enterprise Capacity
The Intel DC P4510 SSDPE2KX080T801 delivers 8TB of NVMe storage in a 2.5" U.2 form factor. Built with 64-Layer 3D TLC NAND, it targets cloud and data-centre workloads that demand high capacity and consistent read performance up to 3200 MBps.
Build Integration
The drive connects through a PCIe 3.1 x4 U.2 backplane and fits bays accepting a 15.00mm height. Hardware AES-XTS 256-bit encryption and TCG Opal 2.0 support secure data at rest without host CPU overhead. Sequential write speeds reach 3000 MBps for sustained ingest.
Fit and Limits
Suits operators needing dense, read-optimised NVMe capacity with 1 DWPD endurance and a 2,000,000-hour MTBF rating. Not suited for write-heavy workloads exceeding the rated endurance or for systems lacking a U.2 connector and PCIe 3.1 x4 electrical support.
Highlights
- Enterprise speed with 3200 MBps sequential read
- Sustained write performance at 3000 MBps sequential write
- High endurance rated at 13.88 PBW total bytes written
- Hardware-based AES-XTS 256-bit encryption protects data
- 2 million hour MTBF ensures long-term reliability
Specifications
| Brand | Intel |
|---|---|
| Series | DC P4510 |
| Form Factor | 2.5" U.2 |
| Capacity | 8TB |
| Memory Components | 64-Layer 3D TLC NAND |
| Interface | PCIe NVMe 3.1 x4 |
| Max Sequential Read | Up to 3200 MBps |
| Max Sequential Write | Up to 3000 MBps |
| Endurance | 1 DWPD |
| MTBF | 2,000,000 hours |
| Operating Temperature | 0°C ~ +70°C |
| Height | 15.00mm |
| Shipping weight | 0.14 kg |
| Package size | 145 × 114 × 23 mm |
Questions about this item
At what operating temperature does the SSDPE2KX080T801 begin to throttle under sustained heavy workloads?
The drive is rated for continuous operation up to 70°C; sustained workloads that push the controller to this limit will trigger thermal throttling to protect the 64-Layer 3D TLC NAND and maintain data integrity.
What are the typical power draw and acoustic profile when the DC P4510 runs at full sequential write speed all day?
As a solid-state device with no moving parts, the SSD produces no audible noise; power consumption scales with the PCIe 3.1 x4 interface activity during sustained 3000 MB/s writes, and the 15.00 mm height allows standard server airflow to manage heat.
Which server backplane or adapter is required to connect this U.2 NVMe drive to a host system?
The SSDPE2KX080T801 uses a 2.5" U.2 form factor with a PCIe 3.1 x4 electrical interface, so it requires a U.2 backplane, a U.2-to-PCIe adapter card, or a motherboard with a native U.2 connector wired for four PCIe lanes.
