Intel
Intel Optane Memory M10 MEMPEK1J064GA01 64GB M.2 2280 internal SSD
64 GB M.2 2280 NVMe module with 3D XPoint memory accelerates system responsiveness at up to 1450 MB/s read and 640 MB/s write over PCIe 3.0 x2
- Device TypeInternal Solid State Drive (SSD)
- Used ForSystem Acceleration / Cache Drive
- Form FactorM.2
- Capacity64GB
- Memory ComponentsIntel 3D XPoint Memory
- InterfacePCIe 3.0 x2, NVMe 1.2
- Accelerates system responsiveness with 64GB Intel 3D XPoint memory
- PCIe 3.0 x2 NVMe 1.2 interface delivers up to 1450MB/s sequential read
- M.2 2280 form factor fits compatible slots for easy installation
- Up to 255000 IOPS random read speeds up application loading
- Up to 145000 IOPS random write performance enhances multitasking responsiveness

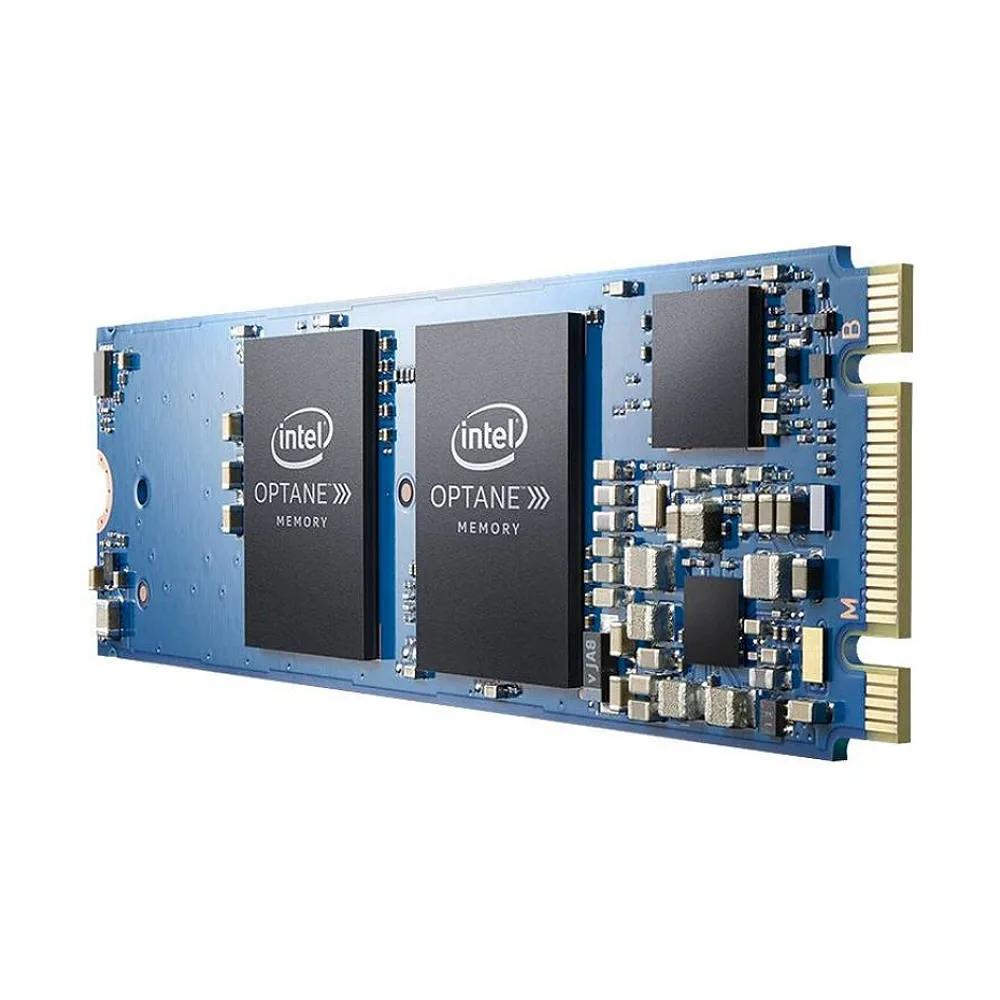

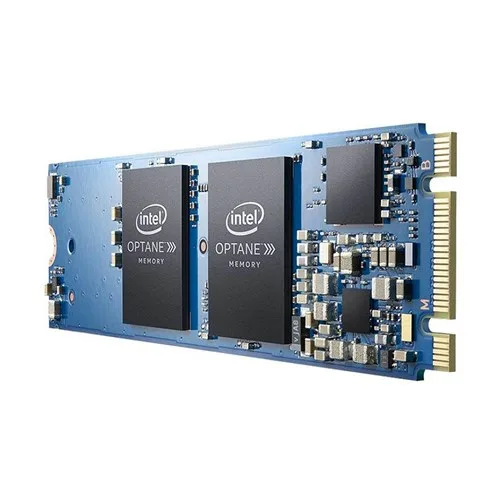

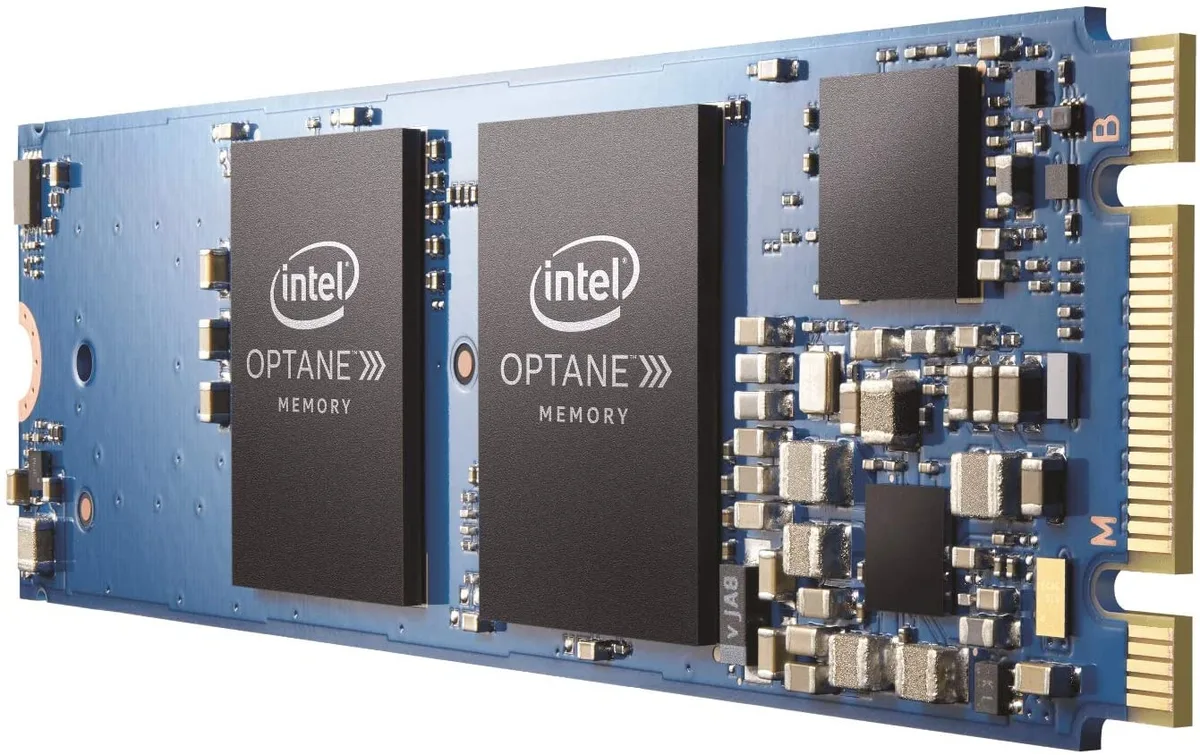

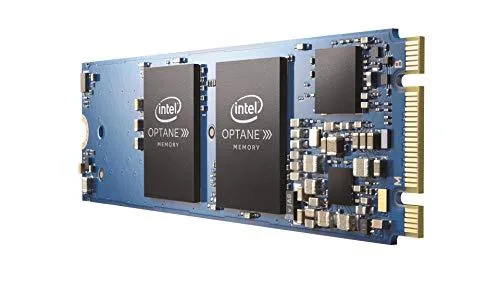

Intel Optane Memory M10 64GB Module
This Intel Optane Memory M10 module provides 64GB of 3D XPoint memory in an M.2 2280 form factor. It connects through a PCIe 3.0 x2 interface using the NVMe 1.2 protocol. The drive is designed as a system accelerator and cache device rather than a primary storage volume.
System Acceleration for Compatible Platforms
It suits builders adding responsive caching to a compatible motherboard and processor combination that supports Intel Optane technology. Systems without the required platform support or those needing a large-capacity boot drive should consider a standard NVMe SSD instead.
PCIe 3.0 x2 NVMe 1.2 Interface
The single specification that decides compatibility is the PCIe 3.0 x2 NVMe 1.2 interface paired with an M.2 2280 M-key or B+M-key slot. Verify that the motherboard and CPU officially support Intel Optane memory before purchase.
Highlights
- Accelerates system responsiveness with 64GB Intel 3D XPoint memory
- PCIe 3.0 x2 NVMe 1.2 interface delivers up to 1450MB/s sequential read
- M.2 2280 form factor fits compatible slots for easy installation
- Up to 255000 IOPS random read speeds up application loading
- Up to 145000 IOPS random write performance enhances multitasking responsiveness
Specifications
| Brand | Intel |
|---|---|
| Series | Optane Memory M10 Series |
| Model | MEMPEK1J064GA01 |
| Part Number | MEMPEK1J064GA01 |
| Device Type | Internal Solid State Drive (SSD) |
| Used For | System Acceleration / Cache Drive |
| Form Factor | M.2 |
| Capacity | 64GB |
| Memory Components | Intel 3D XPoint Memory |
| Interface | PCIe 3.0 x2, NVMe 1.2 |
| Connector | M.2 2280 edge connector (M-Key/B+M Key PCIe NVMe) — standard M.2 PCIe interface for installation into compatible M.2 slots |
| Controller | Intel NVMe Controller (Intel-designed controller integrated on the Optane module) |
| Cache | None / N/A |
| Max Sequential Read | 1450?MB/s (up to) |
| Max Sequential Write | 640?MB/s (up to) |
| Sustained Sequential Read | 1450?MB/s (same as max sequential read, no separate sustained spec provided) |
| Sustained Sequential Write | ~640?MB/s (same as max sequential write, no separate sustained spec provided) |
| Sustained Random 4KB Read | 255,000?IOPS (up to) — Intel doesn’t publish a separate sustained random 4KB read spec, so the “up to” random read performance is used as the representative figure |
| Sustained Random 4KB Write | 145,000?IOPS (up to) — Intel doesn’t publish a separate sustained random 4KB write value, so the “up to” random write performance is used as the representative spec |
| 4KB Random Read | Up to 255,000?IOPS (4K Blocks) |
| 4KB Random Write | 145,000?IOPS (up to) (4K Blocks) |
| Seek Time | Read ~7?µs, Write ~18?µs (typical) — Intel doesn’t list a classic “seek time” value but provides average latency figures which represent access times for Optane Memory M10 |
| Read Latency | ~7?µs (typical) — Intel reports this as the average latency for read operations on the Optane Memory M10 64GB |
| Write Latency | ~18?µs (typical) — Intel reports this as the average latency for write operations on the Optane Memory M10 64GB |
| Terabytes Written (TBW) | ~365?TBW — the total amount of data that can be written to the Intel Optane Memory M10 64GB over its lifespan |
| MTBF | ~1,600,000?hours — typical reliability metric provided by Intel for the Optane Memory M10 64GB |
| MTTF | ~1,600,000?hours — Intel does not differentiate MTTF from MTBF for Optane Memory M10, so the same reliability figure applies |
| Ready Boost | no |
| Height | 2.38mm |
| Width | 22mm |
| Depth | 80mm |
| Weight | 1 |
| Shipping weight | 0.23 kg |
| Package size | 178 × 51 × 13 mm |
Questions about this item
Will this Optane M10 module work as a standalone boot drive for my operating system?
It is designed as a system acceleration and cache device rather than a primary boot drive; it pairs with a larger storage drive to speed up frequently used files and applications.
What motherboard slot and interface does the MEMPEK1J064GA01 require?
It needs an M.2 2280 slot with an M-Key or B+M key that supports PCIe 3.0 x2 and NVMe 1.2 signalling.
What real-world speeds can I expect from the 64 GB Optane M10?
Up to 1450 MB/s sequential read, 640 MB/s sequential write, 255000 IOPS random 4 KB read and 145000 IOPS random 4 KB write.
