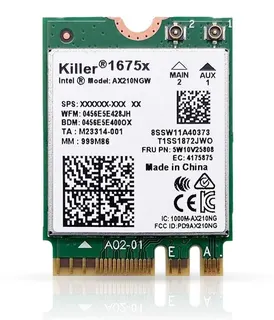

Green and white M.2 2230 Wi-Fi 6E card with Bluetooth 5.3

Intel

Intel Killer AX1675x Wi-Fi 6E M.2 2230 adapter

SKU CH-8J1R-22PBR

Adds Wi-Fi 6E and Bluetooth 5.3 via an M.2 2230 slot, reaching 2.4 Gbps on 2.4, 5 and 6 GHz bands with Killer prioritisation for gaming

  • ColorGreen & White
  • StandardsWi-Fi 6E M.2 PCIe
  • FeaturesKiller Wi-Fi,Tri-Band,6Ghz,WiFi 6E
  • DimensionsWi-Fi 6E
  • Weight4
  • Tri-band 2.4/5/6 GHz WiFi 6E for wider spectrum
  • 4 Gbps peak throughput on 160 MHz channels
  • Bluetooth 5.3 built-in for modern peripherals
  • Killer Prioritization Engine ranks gaming packets first
  • M.2 2230 Key A/E fits compatible Intel Windows 10/11 PCs

What this adapter adds

The Intel Killer AX1675x is an M.2 2230 Wi-Fi 6E and Bluetooth 5.3 card for Intel-based PCs running Windows 10 or 11 64-bit. It connects through a Key A or Key E slot using PCIe and delivers tri-band 2x2 streams across 2.4 GHz, 5 GHz and 6 GHz. The Killer Prioritization Engine manages traffic for gaming and streaming workloads.

Upgrading from older Wi-Fi

This card replaces modules that use the CNVio or CNVio2 interface such as the 9560 part. The jump is worth it when the system has a free M.2 Key A or E slot and needs 6 GHz spectrum, 160 MHz channel width and Bluetooth 5.3. Machines already using CNVio2 or lacking a compatible slot cannot use this adapter.

Limits of the M.2 2230 interface

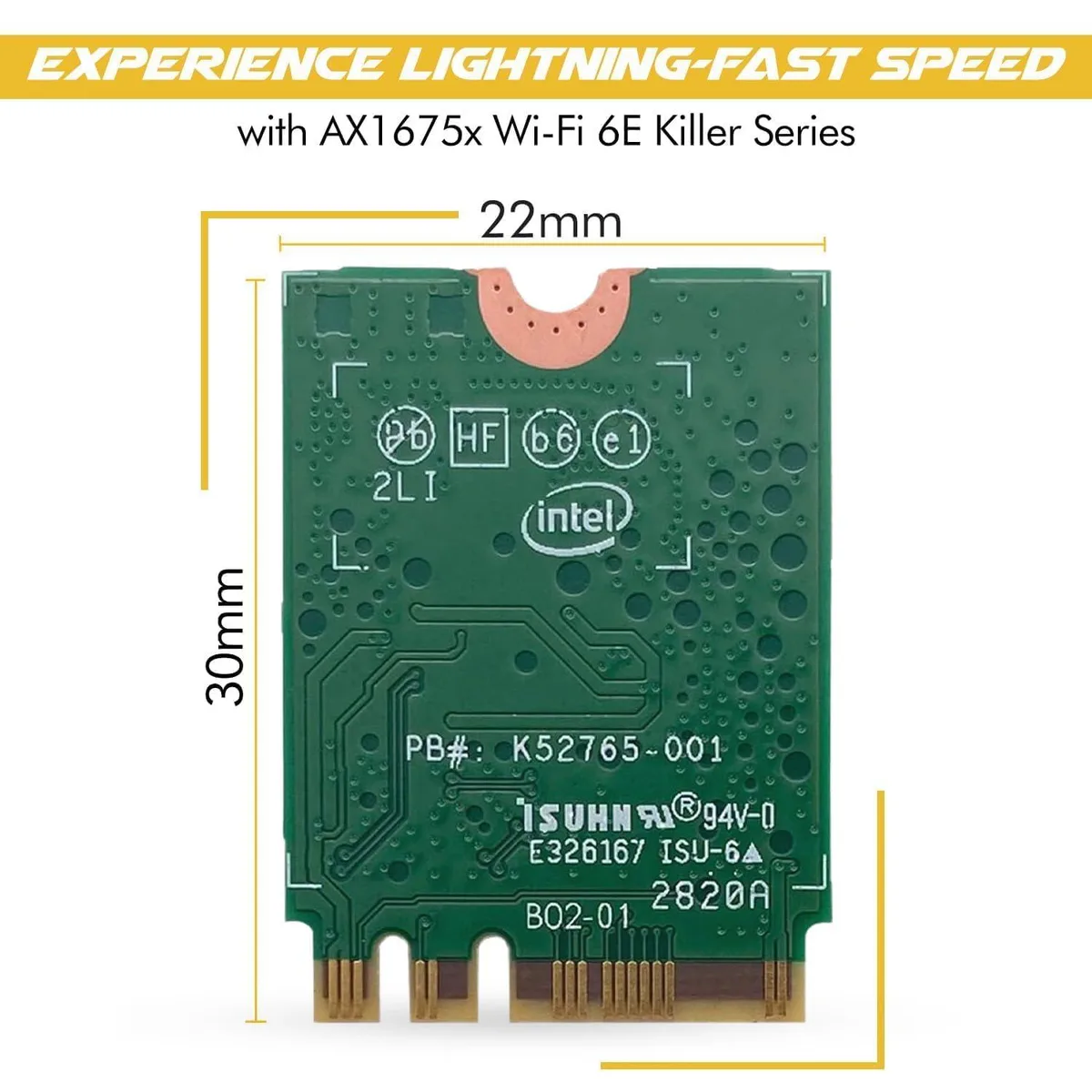

The board measures 22 mm by 30 mm and requires external antennas that are not supplied. Maximum link rate is 2.4 Gbps on Wi-Fi 6E with 160 MHz channels. MU-MIMO and OFDMA are supported, while Intel vPro is not. Compliance includes FIPS and FISMA, and the adapter is Wi-Fi CERTIFIED for 802.11ax.

Highlights

  • Tri-band 2.4/5/6 GHz WiFi 6E for wider spectrum
  • 4 Gbps peak throughput on 160 MHz channels
  • Bluetooth 5.3 built-in for modern peripherals
  • Killer Prioritization Engine ranks gaming packets first
  • M.2 2230 Key A/E fits compatible Intel Windows 10/11 PCs

Specifications

BrandHighZer0 Electronics
ModelAX1675x
ColorGreen & White
StandardsWi-Fi 6E M.2 PCIe
FeaturesKiller Wi-Fi,Tri-Band,6Ghz,WiFi 6E
DimensionsWi-Fi 6E
Weight4

Questions about this item

What M.2 key and slot size does the AX1675x adapter require?

The card uses an M.2 2230 form factor and needs a Key A or Key E slot with PCIe interface.

Which step do installers often miss when fitting this Wi-Fi 6E card?

Antennas are not included, so you must attach compatible antenna cables to the card's connectors before closing the case.

When will the Bluetooth 5.3 module need a firmware refresh?

Intel releases Bluetooth firmware updates through Windows Update; apply them when they appear to keep 5.3 stability and security current.
