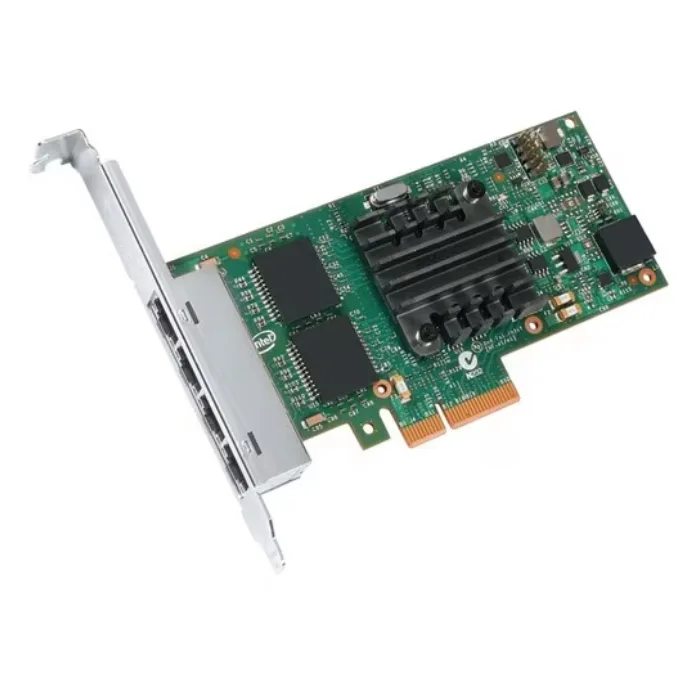

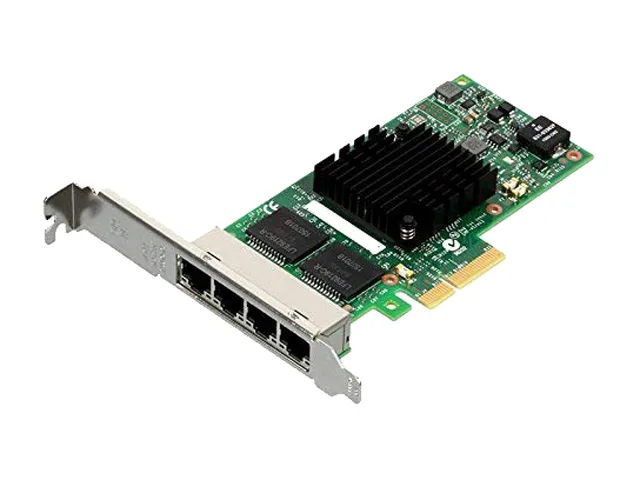

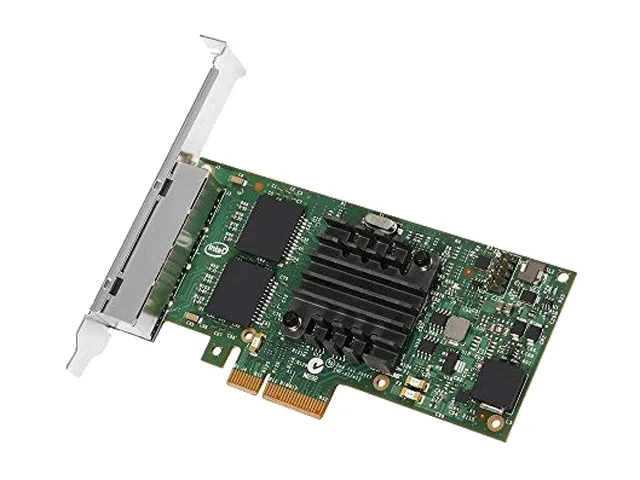

Green full-height PCIe card with four silver RJ45 ports

Intel

Intel I350T4V2 quad-port gigabit network card

SKU CH-T1Y0-JKAXE MPN I350T4V2

Quad-port gigabit Ethernet server adapter with PCIe 2.1 interface, Energy Efficient Ethernet and virtualization support for up to 32 virtual ports

  • StandardsEEE 802.3 (10BASE-T, 100BASE-TX, 1000BASE-T)
  • Speed10/100/1000Mbps
  • Connectors4 x RJ45
  • InterfacePCIe v2.1 (5.0 GT/s)
  • BUSBus Type: PCIe 2.1 (5GT/s) Bus Width: 4-lane PCIe; operable
  • FeaturesEthernet features IEEE 802.3 autonegotiation 1Gb/s Ethernet

Model I350T4V2

Ports 4 Ports

  • Four RJ45 ports give 10/100/1000Mbps wired connectivity
  • PCIe 2.1 x4 interface provides 5.0 GT/s bandwidth
  • Energy Efficient Ethernet and DMA Coalescing reduce power draw
  • I/O virtualisation supports up to 32 virtual ports with QoS
  • Bridgeless Intel I350 controller enables scalable iSCSI SAN connectivity

Quad-port Gigabit server adapter

The Intel I350T4V2 is a quad-port Gigabit Ethernet server adapter built on the Intel I350 controller. It provides four RJ45 connectors operating at 10, 100 or 1000 Mbps over standard twisted-pair cabling. The card targets servers and workstations that need multiple wired network links for virtualisation, iSCSI storage or segmented traffic.

Upgrade from dual-port or single-port NICs

Adding this adapter replaces older single or dual-port Gigabit cards when four independent ports are required for virtual machine queues, iSCSI targets or network segmentation. The jump is worth it when the host needs up to 32 virtual ports with QoS or when DMA Coalescing and Energy Efficient Ethernet can reduce CPU overhead and power draw in a busy virtualised environment.

PCIe 2.1 x4 installation with two brackets

The card uses a PCIe 2.1 x4 interface and fits x4, x8 or x16 slots. Both a full-height bracket at 12.0 cm and a low-profile bracket at 7.92 cm are included for different chassis types. Installation fails when the slot negotiates at a lower width or when the operating system lacks driver support for the I350 feature set.

Highlights

  • Four RJ45 ports give 10/100/1000Mbps wired connectivity
  • PCIe 2.1 x4 interface provides 5.0 GT/s bandwidth
  • Energy Efficient Ethernet and DMA Coalescing reduce power draw
  • I/O virtualisation supports up to 32 virtual ports with QoS
  • Bridgeless Intel I350 controller enables scalable iSCSI SAN connectivity

Specifications

BrandIntel
ModelI350-T4
Part NumberI350T4V2
StandardsEEE 802.3 (10BASE-T, 100BASE-TX, 1000BASE-T)
Speed10/100/1000Mbps
Connectors4 x RJ45
InterfacePCIe v2.1 (5.0 GT/s)
BUSBus Type: PCIe 2.1 (5GT/s)
Bus Width: 4-lane PCIe; operable in x4, x8, and x16 slots
FeaturesEthernet features
IEEE 802.3 autonegotiation
1Gb/s Ethernet IEEE 802.3, 802.3u, 802.3ab PHY specifications compliant
Integrated PHY for 10/100/1000 Mb/s for multi-speed, full, and half-duplex
IEEE 802.3x and IEEE 802.3z compliant flow control support with software-controllable Rx thresholds and Tx pause frames
Automatic cross-over detection function (MDI/ MDI-X)
IEEE 1588 protocol and 802.1AS implementation
Adapter Product Features
Plug and play specification support: Standard
Intel I/O Acceleration Technology (Intel I/OAT): Extreme system throughput
Ships with full-height bracket in
DimensionsLength 13.54 cm (5.33 in)
Width 6.89 cm (2.71 in)
Full-height end bracket 12.0 cm (4.725 in)
Low-profile end bracket 7.92 cm (3.117 in)
Shipping weight0.20 kg
Package size226 × 142 × 28 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 13.54 cm long card with its 12.0 cm full-height bracket fit my standard server chassis?

The card measures 13.54 cm in length and ships with a 12.0 cm full-height bracket that matches standard server mounting rails.

Which PCIe slot width should I use for the 4-lane PCIe 2.1 interface?

Insert the adapter into any x4, x8, or x16 PCIe 2.1 slot; the 4-lane edge connector will negotiate 5.0 GT/s automatically.

Do the four RJ45 ports require any periodic cleaning or module replacement?

The fixed copper RJ45 ports have no removable transceivers; occasional dust removal from the port openings is the only upkeep needed.
