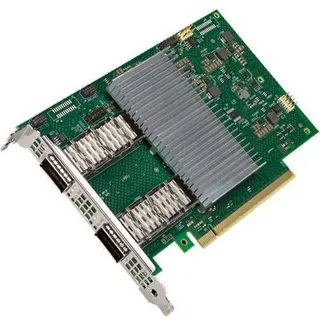

Intel E810-2CQDA2 dual-port QSFP28 network card, full-height PCIe 4.0 x16, silver bracket and green PCB

Intel

Intel E8102CQDA2 network card 100GbE dual-port QSFP28 PCIe 4.0 x16

SKU CH-Z3TG-AKEJ8 MPN E8102CQDA2

Dual-port QSFP28 adapter delivering up to 200Gbps total bandwidth over PCIe 4.0 x16 with ADQ and DDP for cloud and storage workloads

  • FeaturesAdapter Features Data Rate Supported: 100/50/25/10GbE per po
  • Up to 200Gbps total bandwidth across dual QSFP28 ports
  • PCIe 4.0 x16 bus delivers 200Gbps performance with bifurcation
  • Application Device Queues improve response-time predictability for cloud workloads
  • Dynamic Device Personalization enables up to 3x throughput gains on select workloads
  • Supports RDMA iWARP and RoCEv2 for low-latency storage and HPC connectivity

Dual-port 100GbE QSFP28 adapter for PCIe 4.0 x16

The Intel E810-2CQDA2 provides two QSFP28 ports each running at 100, 50, 25 or 10GbE. It targets communications, cloud and storage deployments that need up to 200Gbps aggregate bandwidth in a single bifurcated slot. Application Device Queues and Dynamic Device Personalization steer traffic and accelerate packet classification for predictable response times. Both RDMA iWARP and RoCEv2 are supported for low-latency storage and HPC connectivity.

Sustained throughput with bifurcation enabled

Full 200Gbps performance requires PCIe 4.0 x16 slot bifurcation configured in the system BIOS. Without bifurcation the adapter cannot expose both ports at line rate, so sustained cloud and storage workloads depend on platform support. ADQ isolates critical queues to maintain consistent latency under continuous load. DDP profiles can triple throughput for specific packet-processing pipelines during prolonged operation.

Thermals noise and power in normal use

The supplier data does not disclose thermal design power, fan presence or acoustic figures for this adapter. Power draw and cooling requirements will vary with the host chassis airflow and the optical or direct-attach cables installed. Operators should validate thermal margins in their specific server platform before deployment.

Highlights

  • Up to 200Gbps total bandwidth across dual QSFP28 ports
  • PCIe 4.0 x16 bus delivers 200Gbps performance with bifurcation
  • Application Device Queues improve response-time predictability for cloud workloads
  • Dynamic Device Personalization enables up to 3x throughput gains on select workloads
  • Supports RDMA iWARP and RoCEv2 for low-latency storage and HPC connectivity

Specifications

BrandIntel
ModelE810-2CQDA2
Part NumberE8102CQDA2
FeaturesAdapter Features
Data Rate Supported: 100/50/25/10GbE per port
Bus Type/Bus Width: PCIe 4.0 x16
Note: full 200Gbps performance requires PCIe slot bifurcation enabled in the system BIOS
Hardware Certifications: BSMI, CE, CMIM, FCC, ICES, KCC, RCM, UKCA, cURus, and VCCI
BMSI RoHS and RoHS-compliant: Product is compliant with Taiwan Bureau of Standards, Metrology and Inspection (BMSI), and EU RoHS Directive 2 2011/65/EU (Directive 2011/65/EU) and its amendments (e.g. 2015/863/EU)
Controller: Intel® Ethernet Controller E810-CAM1 (two controllers per adapter)
Power Consumption
DAC's
100Gb
Shipping weight2.36 kg
Package size234 × 163 × 28 mm

Questions about this item

How much power does the E810-2CQDA2 draw when both QSFP28 ports run at 100GbE all day?

The adapter delivers up to 200Gbps total throughput over a PCIe 4.0 x16 slot; actual power draw depends on the host system and attached modules.

What must the host system provide for the card to reach its full 200Gbps capability?

A PCIe 4.0 x16 slot with bifurcation enabled in the BIOS is required for full 200Gbps performance.

Will the adapter work in an older server that only has PCIe 3.0 slots?

The card uses a PCIe 4.0 x16 interface; it will negotiate down to the slot speed available, but total bandwidth will be limited by the slower generation.
