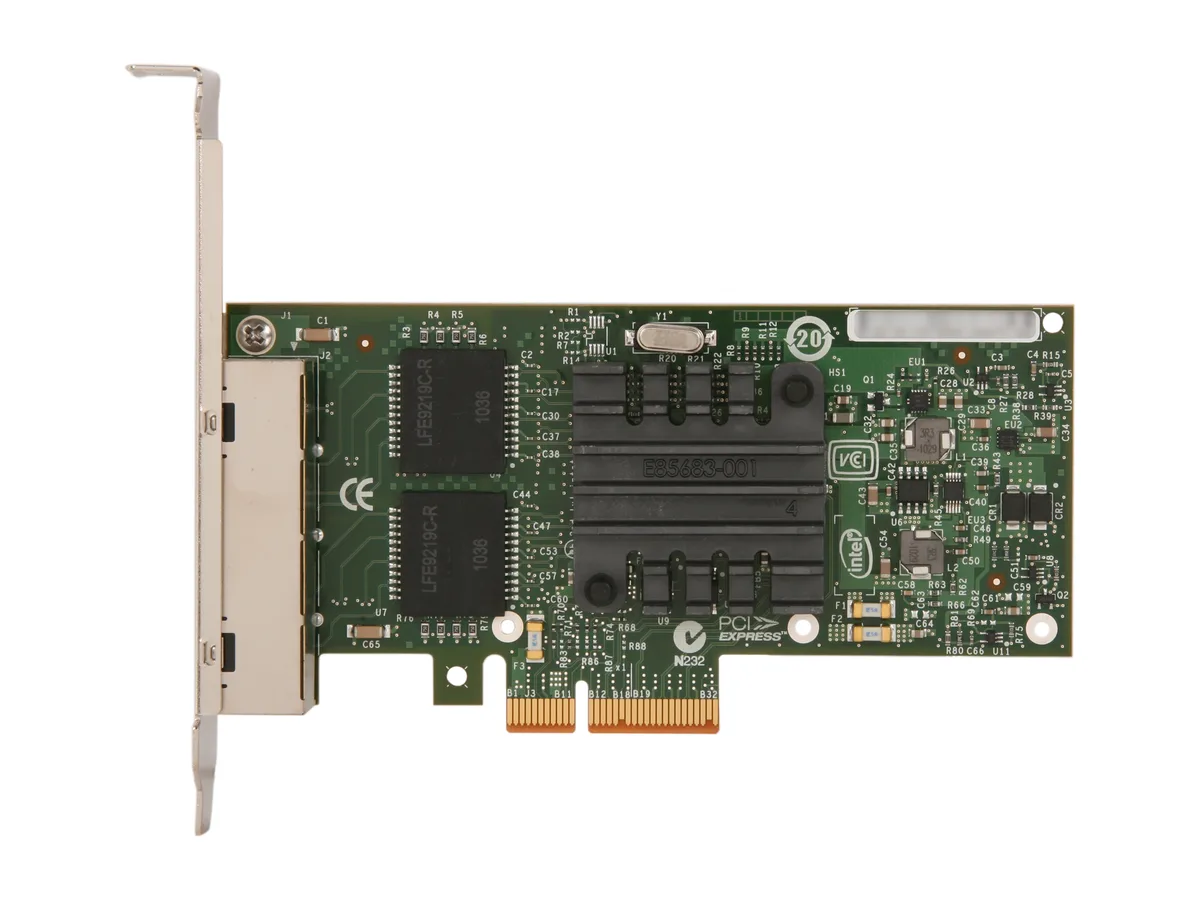

Green circuit board with four RJ45 ports and a metal bracket

Intel

Intel E1G44HTBLK I340-T4 quad-port Gigabit network card

SKU CH-332M-95VAT MPN E1G44HTBLK

Quad-port Gigabit server adapter with four RJ45 ports on a PCI-Express 2.0 interface

  • StandardsIEEE802.3, IEEE802.3u, IEEE802.3ab
  • Speed10/100/1000Mbps
  • Connectors4 x RJ45
  • InterfacePCI-Express 2.0
  • Temperature0°C ~ 55°C
  • FeaturesProcessor : Intel 82580
  • Four RJ45 ports deliver 10/100/1000 Mbps wired connectivity
  • PCI Express 2.0 interface provides 5 GT/s bandwidth for multi-core servers
  • Intel 82580 controller integrates four ports on one chip for lower power draw
  • Hardware acceleration offloads TCP/IP and iSCSI processing from the host CPU
  • Halogen-free, lead-free board meets environmentally friendly design requirements

Quad-port Gigabit server adapter

The Intel I340-T4 is a PCI Express 2.0 network card that delivers four RJ45 ports running at 10/100/1000 Mbps. It is built for servers and workstations that need multiple wired links for virtualisation, iSCSI storage or segmented traffic.

Replaces single and dual-port Gigabit cards

Moving from a one or two-port adapter to this quad-port design consolidates cabling and frees expansion slots when a host serves several VLANs, storage networks or backup links simultaneously. The step up is worthwhile when the system already saturates fewer ports or when CPU offload for TCP-IP and iSCSI becomes necessary.

Handles four concurrent Gigabit streams

Each port negotiates 10, 100 or 1000 Mbps over copper, giving full line-rate throughput on all four channels within the 0 to 55 °C operating range. Bandwidth headroom ends at the PCI Express 2.0 bus limit, so aggregate traffic beyond the bus capacity will queue at the controller.

Highlights

  • Four RJ45 ports deliver 10/100/1000 Mbps wired connectivity
  • PCI Express 2.0 interface provides 5 GT/s bandwidth for multi-core servers
  • Intel 82580 controller integrates four ports on one chip for lower power draw
  • Hardware acceleration offloads TCP/IP and iSCSI processing from the host CPU
  • Halogen-free, lead-free board meets environmentally friendly design requirements

Specifications

BrandIntel
ModelE1G44HTBLK
StandardsIEEE802.3, IEEE802.3u, IEEE802.3ab
Speed10/100/1000Mbps
Connectors4 x RJ45
InterfacePCI-Express 2.0
Temperature0°C ~ 55°C
FeaturesProcessor : Intel 82580
Weight1
Shipping weight0.11 kg
Package size199 × 136 × 28 mm

Questions about this item

Does this card need a PCI-Express 2.0 x4 or x8 slot to fit?

It installs in any PCI-Express 2.0 slot; the quad-port design uses four lanes, so an x4 or wider slot is required for full bandwidth.

Is a low-profile bracket included, or must I order one separately for a 2U server?

The bulk pack ships with a standard-height bracket only; a low-profile bracket is not included and must be sourced separately.

Are the RJ-45 ports user-replaceable if a latch breaks, or is the whole card swapped?

The four RJ-45 connectors are soldered to the board; a damaged port means replacing the entire adapter.
