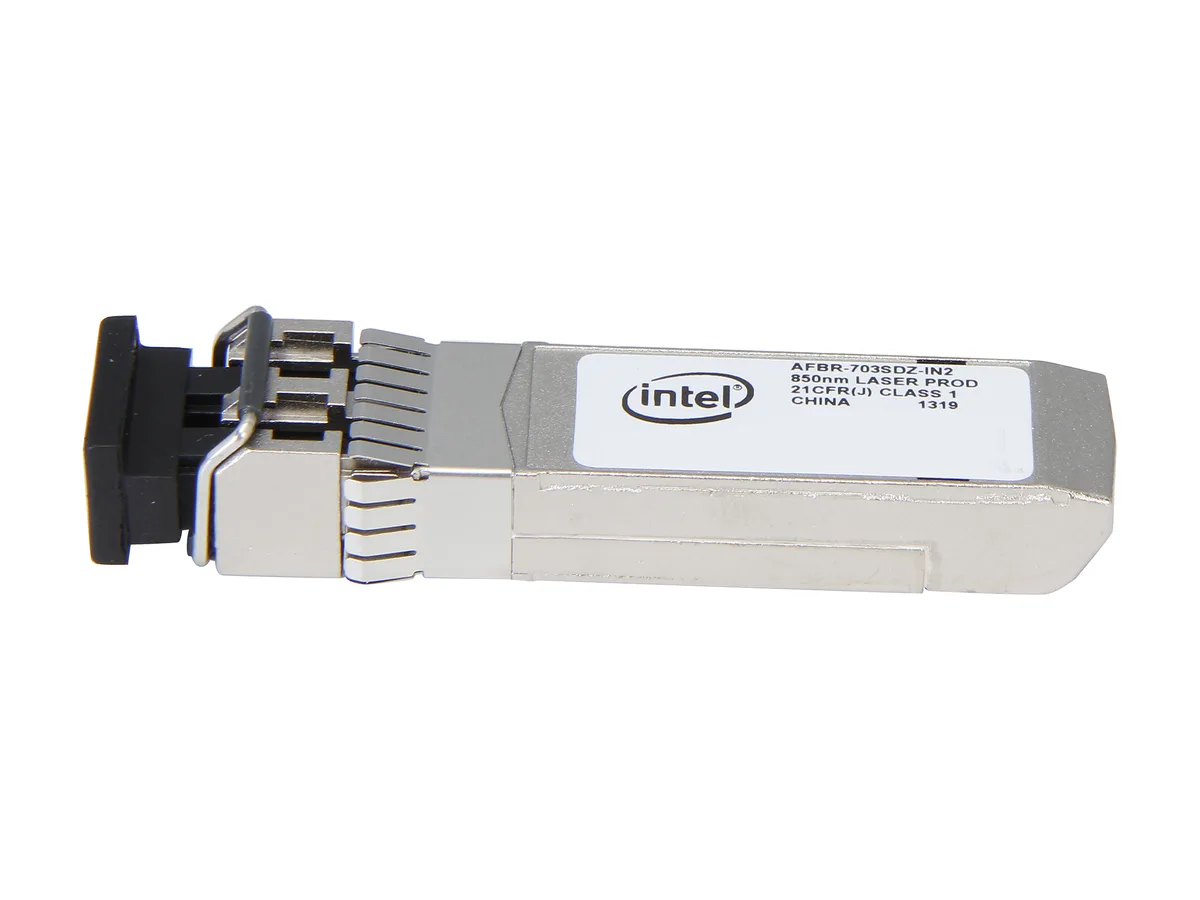

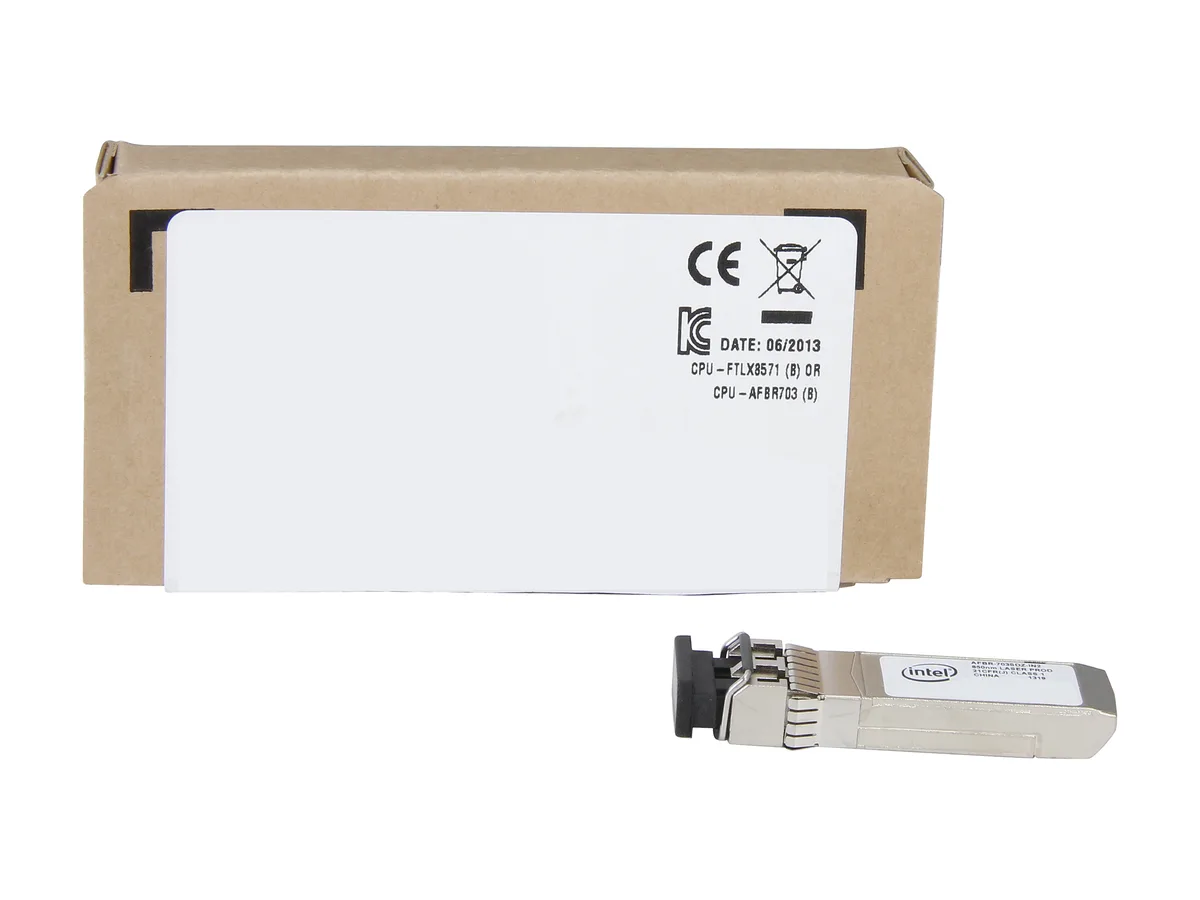

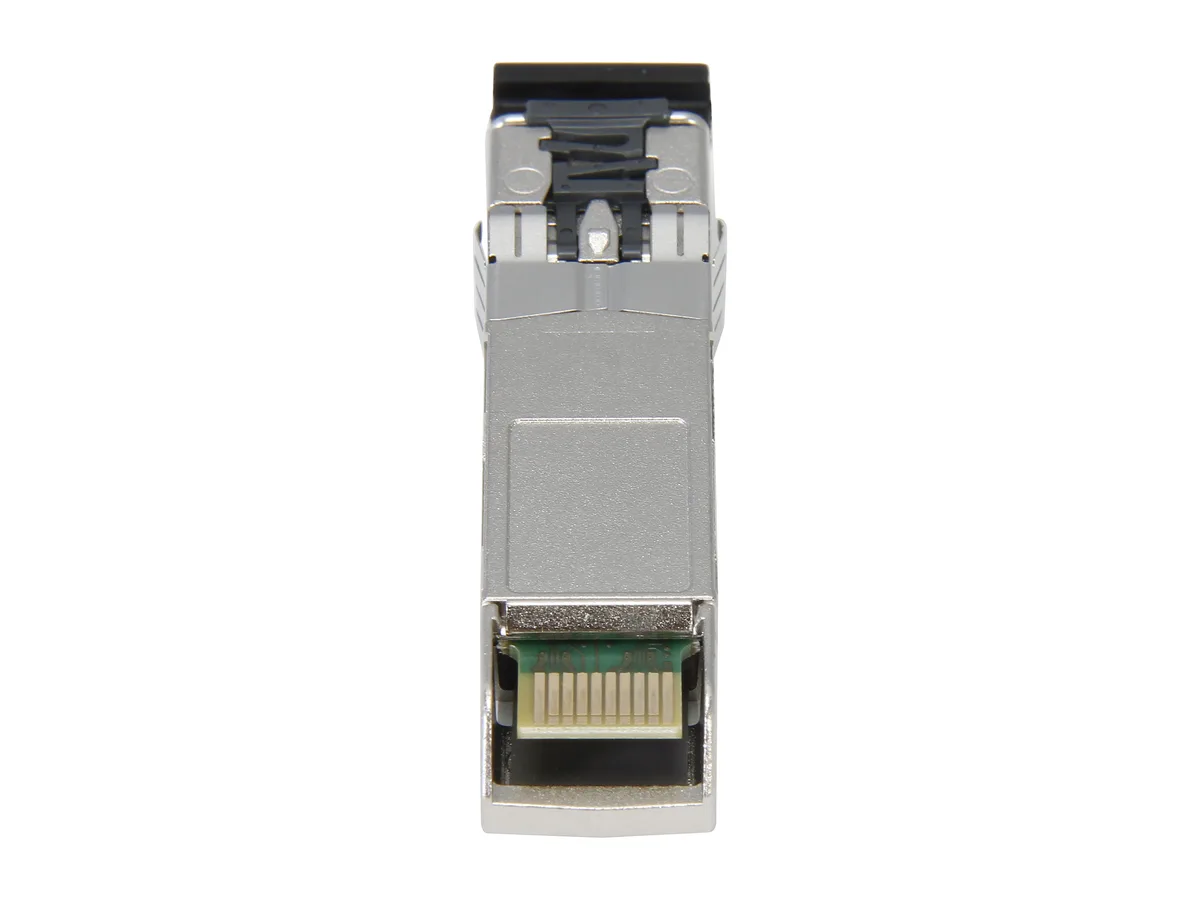

Small black SFP+ transceiver module with side bail latch and gold edge connector

Intel

Intel E10GSFPSR SFP+ SR transceiver dual rate 10GBASE-SR/1000BASE-SX

SKU CH-JQDJ-E2E2W MPN E10GSFPSR

Dual-rate SFP+ transceiver supports 10GBASE-SR and 1000BASE-SX links up to 300 m

  • FeatureDual Rate 10GBASE-SR/1000BASE-SX Compatibility : Intel Ether
  • Weight20
  • Package Contents48008N
  • Dual-rate flexibility supports 10GBASE-SR and 1000BASE-SX links
  • range optic reaches 300 m over multimode fibre
  • Selectable bit rates from 1.25 to 10.3 Gb/s
  • Validated for Intel X520 server adapter family
  • Lead-free module weighs 20 g and ships as part 48008N

Dual-rate SFP+ SR transceiver

This Intel E10GSFPSR module delivers dual-rate 10GBASE-SR and 1000BASE-SX operation over multimode fibre. It plugs into SFP+ cages on Intel Ethernet Converged Network Adapters of the X520 family. The lead-free optic supports selectable bit rates from 1.25 Gb/s to 10.3 Gb/s. Maximum link distance is 300 m.

Network teams needing 10 GbE

Suitable for administrators deploying Intel X520-series adapters where a single module must cover both 10 GbE and 1 GbE short-range requirements. Not suited for single-mode fibre runs, longer than 300 m reaches, or switches and adapters outside the validated X520 compatibility list.

300 m maximum link distance over multimode fibre

The 300 m reach on multimode fibre is the decisive specification. If your patch cables and switch ports stay within this distance at 10 GbE or 1 GbE, the module fits; otherwise a different optic is required.

Highlights

  • Dual-rate flexibility supports 10GBASE-SR and 1000BASE-SX links
  • range optic reaches 300 m over multimode fibre
  • Selectable bit rates from 1.25 to 10.3 Gb/s
  • Validated for Intel X520 server adapter family
  • Lead-free module weighs 20 g and ships as part 48008N

Specifications

BrandIntel
ModelE10GSFPSR
FeatureDual Rate 10GBASE-SR/1000BASE-SX
Compatibility : Intel Ethernet Server Adapter X520 Series
Weight20
Package Contents48008N
Shipping weight0.05 kg
Package size126 × 65 × 22 mm

Questions about this item

What type of SFP+ port and cabling do I need to use this Intel E10GSFPSR transceiver?

This module fits a standard SFP+ cage and requires multimode fibre with LC duplex connectors for 10GBASE-SR or 1000BASE-SX links up to 300 m.

Will the transceiver work with my existing Intel X520-DA2 or X520-SR1 adapters?

The E10GSFPSR is qualified for the Intel Ethernet Server Adapter X520 Series, including the E10G42BFSR, E10G41BFSR, E10G43BTDA and E10G41BFLR product codes.

How can I verify the module is operating at the correct 10 Gb/s or 1 Gb/s rate after installation?

Check the adapter driver or switch port statistics; the dual-rate optic will report either 10.3 Gb/s for 10GBASE-SR or 1.25 Gb/s for 1000BASE-SX depending on the negotiated link speed.
