Intel

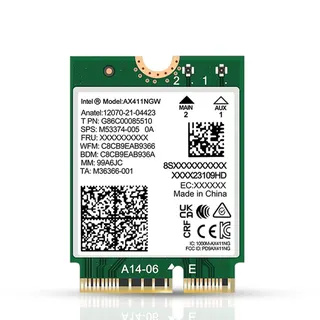

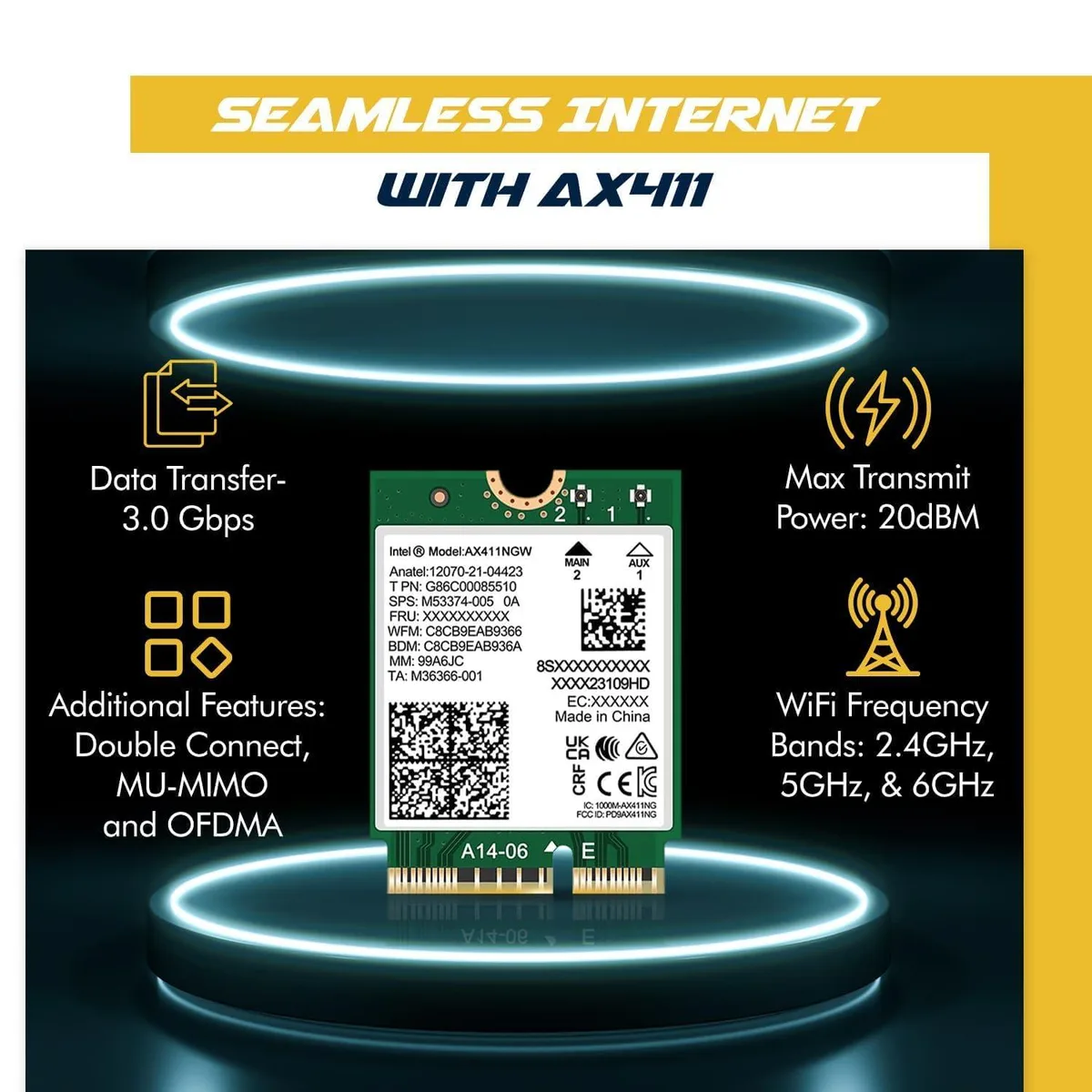

Intel AX411 Wi-Fi 6E Tri-Band M.2 2230 Wi-Fi adapter
M.2 2230 Wi-Fi 6E adapter with Intel Dual Connect technology using two radios simultaneously on 2.4 GHz and 5 GHz or 6 GHz bands for up to 2.4 Gbps
- TypeM.2 Wi-FI Adapter
- StandardsWireless Adapter
- FeaturesTri-Band,Wifi 6E,Double Connect,CRF,CNVi,6GHz
- DimensionsM.2 2230
- Weight2.4
- Tri-Band Wi-Fi 6E across 2.4, 5 and 6 GHz for high-speed, low-latency connections
- Intel Dual Connect runs two radios simultaneously on 2.4 GHz plus 5 or 6 GHz
- 4 Gbps peak data rate with 1024 QAM and 160 MHz channels
- Bluetooth 5.3 support including Isochronous Channel for Low Energy Audio
- M.2 2230 CNVio2 module compatible with 12th-gen and newer Intel laptop platforms
Laptop Wi-Fi 6E upgrade module
The Intel AX411 installs into a Key E M.2 2230 slot on 12th-generation and newer Intel laptop platforms. It requires a CNVio2 interface and a 64-bit Windows 10 or 11 installation, or a compatible Linux distribution. Desktop motherboards are not supported, even if they have a Key E slot. Buyers with older CPUs or non-Intel platforms cannot use this adapter.
Tri-band 2.4 and 5 and 6 GHz operation
The module delivers up to 2.4 Gbps peak throughput using 160 MHz channels and 1024 QAM modulation across three bands. The 2.4 GHz radio provides range while the 5 GHz and 6 GHz radios supply high-speed, low-latency links. Intel Dual Connect technology runs the 2.4 GHz radio and either the 5 GHz or 6 GHz radio simultaneously. Congested 2.4 GHz environments and legacy Wi-Fi 5 networks will limit real-world speed.
CNVio2 host-offload architecture
The AX411 relies on the processor integrated CNVio2 block for MAC and baseband processing, so it cannot function on systems lacking that interface. Bluetooth 5.3 and Bluetooth 5.2 core specifications are supported, including Isochronous Channels for Low Energy Audio. The 6 GHz band adds 1200 MHz of contiguous spectrum, but regulatory approval varies by region and may restrict available channels.
Highlights
- Tri-Band Wi-Fi 6E across 2.4, 5 and 6 GHz for high-speed, low-latency connections
- Intel Dual Connect runs two radios simultaneously on 2.4 GHz plus 5 or 6 GHz
- 4 Gbps peak data rate with 1024 QAM and 160 MHz channels
- Bluetooth 5.3 support including Isochronous Channel for Low Energy Audio
- M.2 2230 CNVio2 module compatible with 12th-gen and newer Intel laptop platforms
Specifications
| Brand | Intel |
|---|---|
| Model | AX411 |
| Type | M.2 Wi-FI Adapter |
| Standards | Wireless Adapter |
| Features | Tri-Band,Wifi 6E,Double Connect,CRF,CNVi,6GHz |

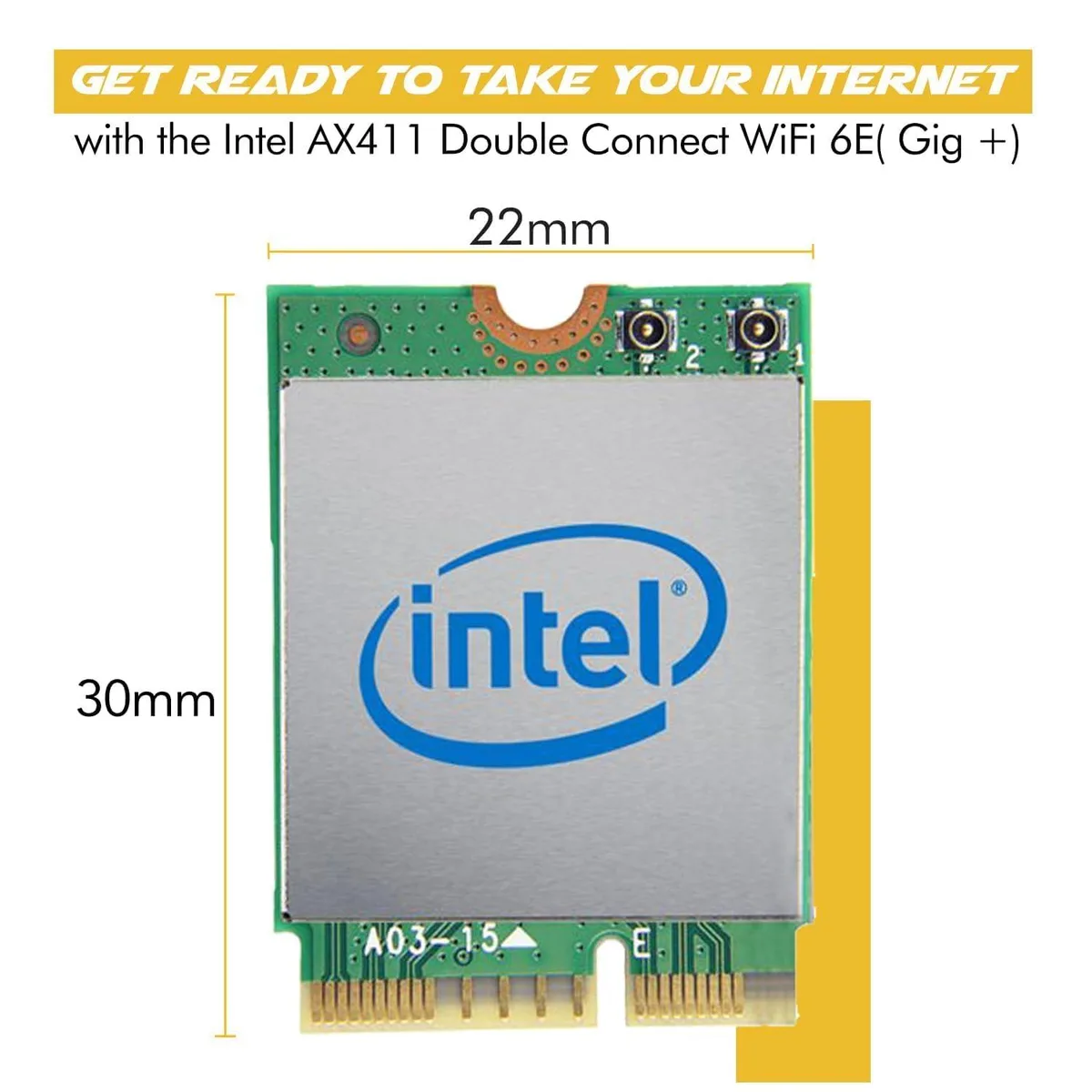

| Dimensions | M.2 2230 |
| Weight | 2.4 |
| Shipping weight | 0.45 kg |
| Package size | 25 × 25 × 25 mm |
Questions about this item
Will the AX411 work in my laptop that currently has an AX201 installed?
Yes, the AX411 can replace an AX201 or AX211 if the laptop has a 12th Gen or newer Intel CPU, an M.2 2230 Key E slot with CNVio2, and runs Windows 10/11 64-bit or Linux.
How can I verify the AX411 is using the 6 GHz band after installation?
Check the network properties in Windows 10/11 or use iwconfig on Linux; a connection showing 802.11ax on a 6 GHz channel with 160 MHz width confirms 6E operation.
Does the 735858502078 package include antennas or cables for a desktop build?
No, the module is an M.2 2230 card only; antennas and cables are not included and the adapter is not compatible with desktop systems.
