Intel
Intel 525 Series 60GB mSATA internal SSD SSDMCEAC060B301
A 60 GB mSATA solid-state drive with MLC memory, 550 MB/s read and 475 MB/s write speeds, plus hardware encryption
- Device TypeInternal Solid State Drive (SSD)
- Used ForConsumer
- Form FactormSATA
- Capacity60GB
- Memory ComponentsMLC
- InterfaceMini-SATA (mSATA)
- Fast boot and load times with 550 MB/s sequential read
- Responsive multitasking from 80,000 IOPS random write
- Data protected by 128-bit hardware encryption
- Compact mSATA form factor weighs under 10 grams
- Reliable MLC NAND rated for 1,200,000 hours MTBF

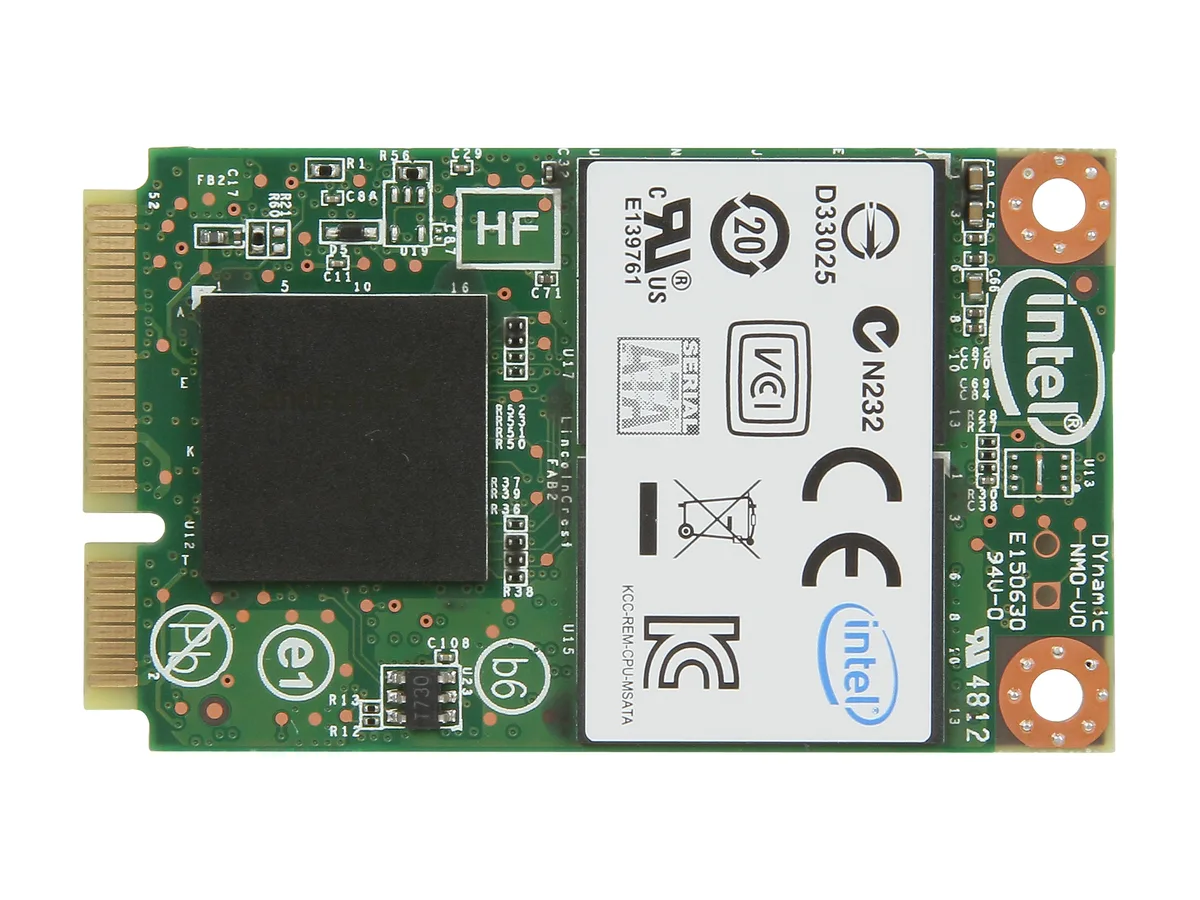

Intel 525 Series 60GB mSATA SSD
The Intel 525 Series is a 60GB mSATA internal solid-state drive built with MLC memory for consumer laptops and small-form-factor desktops. It connects through a Mini-SATA interface and fits into mSATA slots without adapters. The lightweight design weighs under 10 grams.
60GB capacity and performance headroom
Sequential reads reach 550 MB/s and writes reach 475 MB/s. Random 4KB performance delivers up to 50,000 read IOPS and up to 80,000 write IOPS. The 60GB capacity suits operating systems and core applications; heavier media libraries will require additional storage.
Thermals noise and power draw
With no moving parts the drive runs silently in normal use. Solid-state construction keeps heat output low inside tight chassis. Hardware-based 128-bit encryption and end-to-end data protection operate without adding measurable power draw or thermal load.
Highlights
- Fast boot and load times with 550 MB/s sequential read
- Responsive multitasking from 80,000 IOPS random write
- Data protected by 128-bit hardware encryption
- Compact mSATA form factor weighs under 10 grams
- Reliable MLC NAND rated for 1,200,000 hours MTBF
Specifications
| Brand | Intel |
|---|---|
| Series | 525 Series |
| Model | SSDMCEAC060B301 |
| Device Type | Internal Solid State Drive (SSD) |
| Used For | Consumer |
| Form Factor | mSATA |
| Capacity | 60GB |
| Memory Components | MLC |
| Interface | Mini-SATA (mSATA) |
| Max Sequential Read | 550 MB/s |
| Max Sequential Write | 475 MB/s |
| 4KB Random Read | Up to 50,000 IOPS |
| 4KB Random Write | Up to 80,000 IOPS |
| MTBF | 1,200,000 |
| Features | Hardware Encryption: 128 End-to-End Data Protection |
| Weight | <10 grams |
| Shipping weight | 0.04 kg |
| Package size | 99 × 62 × 25 mm |
Other versions of this model
2 more in the same range
Same family, different memory, cooler or clock — compare before you commit.
Intel
Intel 525 Series mSATA 180GB internal SSD SSDMCEAC180B301
- Internal Solid Stat…
- Consumer
$163.99
0.00195136BTC
In stockQuestions about this item
Will this mSATA drive work in a laptop that only has a SATA II slot?
The drive uses a SATA III interface and is backward compatible with SATA II slots, though sequential speeds will be limited to the older standard's maximum.
How can I verify the drive is delivering its rated 50,000 IOPS random read performance after installation?
Run a benchmark tool such as CrystalDiskMark or AS SSD using a 4 KB random read test and compare the reported IOPS figure to the 50,000 IOPS specification.

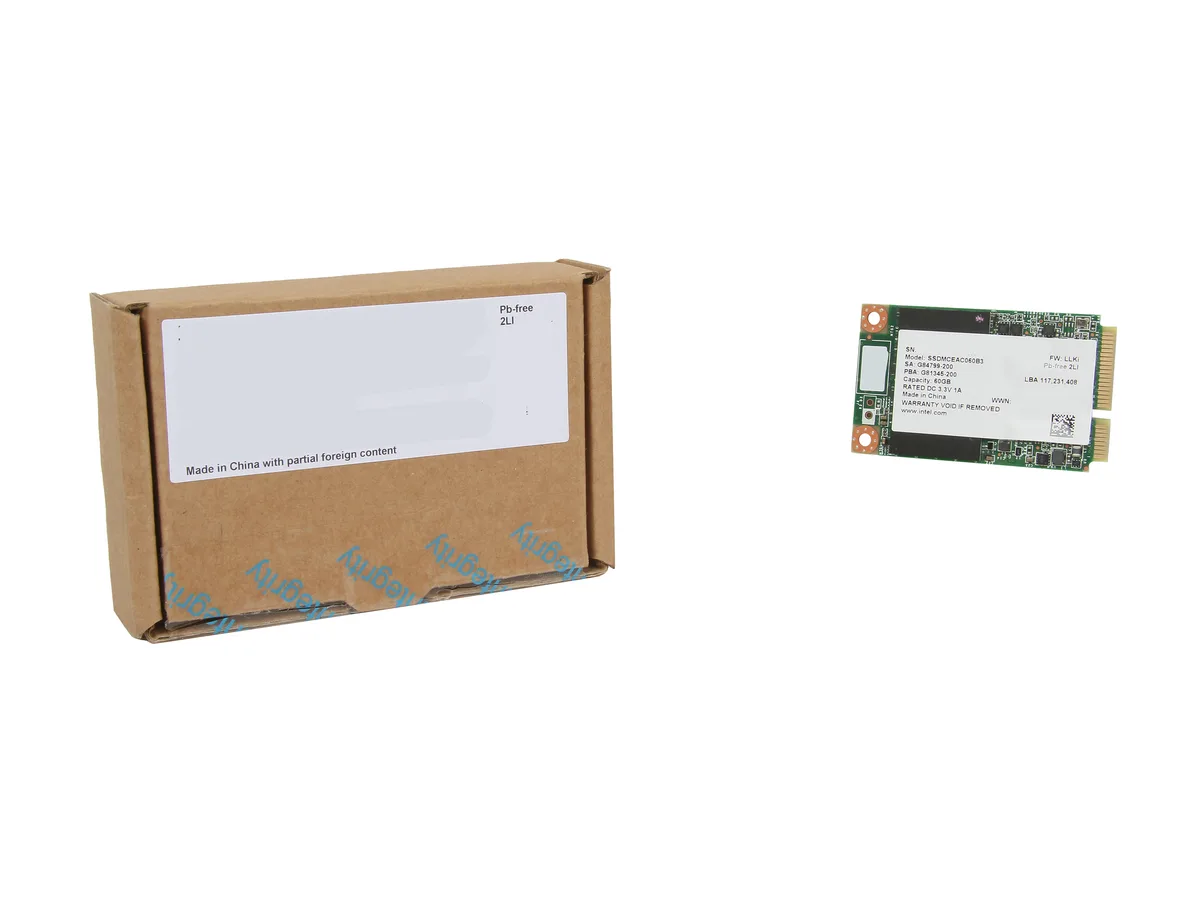

Does the retail box include a mounting screw or adapter bracket for the mSATA slot?
The drive weighs under 10 grams and ships as the bare mSATA module; mounting screws and any required adapters are supplied by the system or laptop manufacturer.
