Black 49FT hardwire kit cable with mini USB connector for mirror dash cam

INSEETECH

INSEETECH INS102-Cable 12-24V 5V 3A 49FT car electronics accessory

SKU CH-JECJ-MMPAZ MPN INS102-Cable

A 49 ft hardwire kit powers an INSEETECH 3-channel mirror dash cam from a 12-24 V vehicle supply with 5 V 3 A output and low-voltage protection

  • TypeDash Installation Kits
  • FeaturesDash Cam Hardwire Kit
  • Height0.78 inches
  • Width9.05 inches
  • Length7.48 inches
  • Weight4.76 Ounces
  • 49 ft cable reaches every corner of large vehicles
  • 12-24 V input protects battery with low-voltage cut-off
  • 5 V 3 A output powers 3-channel mirror dash cam
  • Red wire enables automatic reversing guide lines
  • Polypropylene jacket withstands automotive temperature extremes

INSEETECH 3-Channel Mirror Dash Cam Hardwire Kit

This hardwire kit is built specifically for the INSEETECH 3-channel mirror dash cam and provides a 49FT cable to reach from the front unit to a rear camera on larger vehicles. It converts a 12-24V vehicle supply to the 5V 3A output the dash cam requires and includes low-voltage protection to prevent battery drain during 24-hour parking mode. The kit suits cars, trucks, trailers, vans and RVs.

Installation Wiring and Reversing Assistant

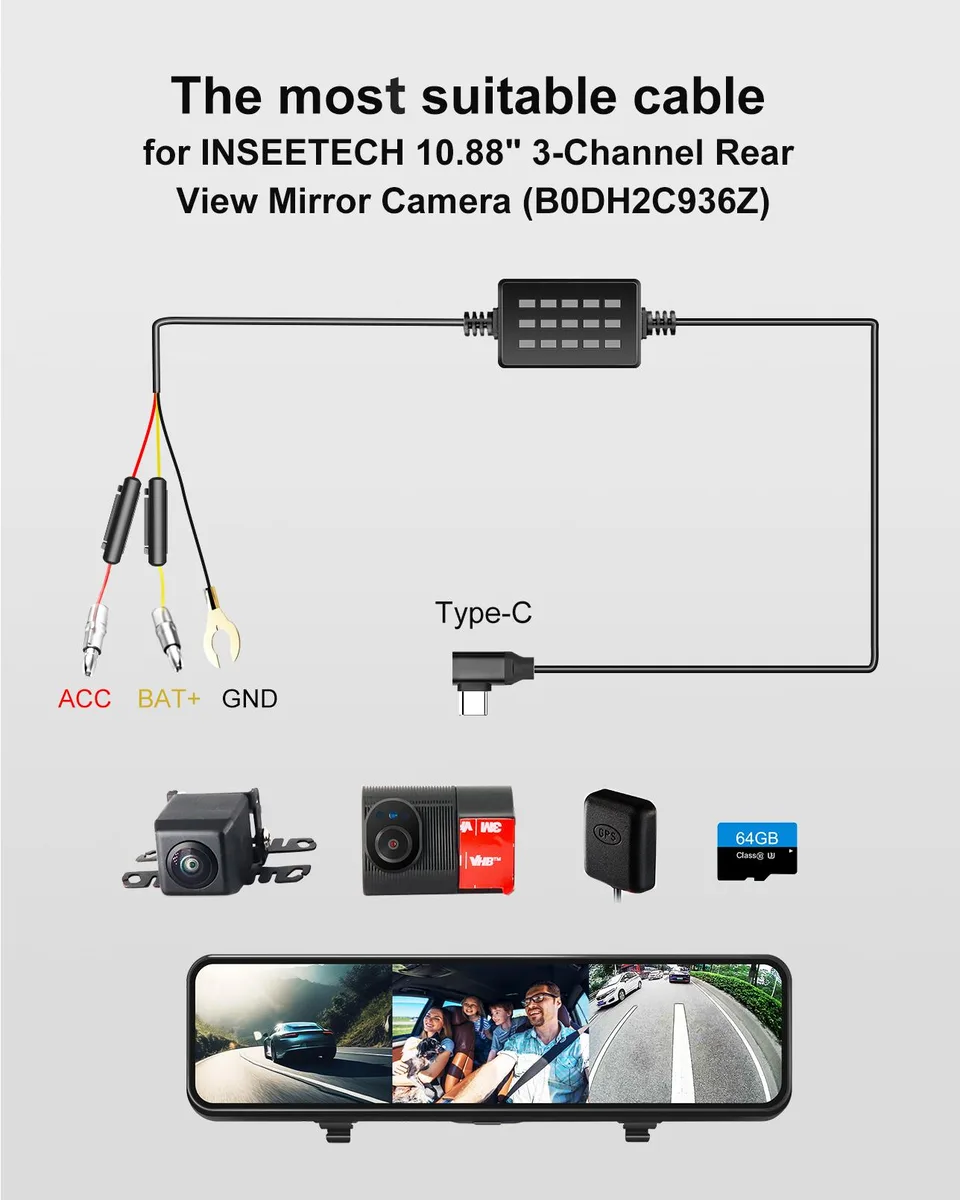

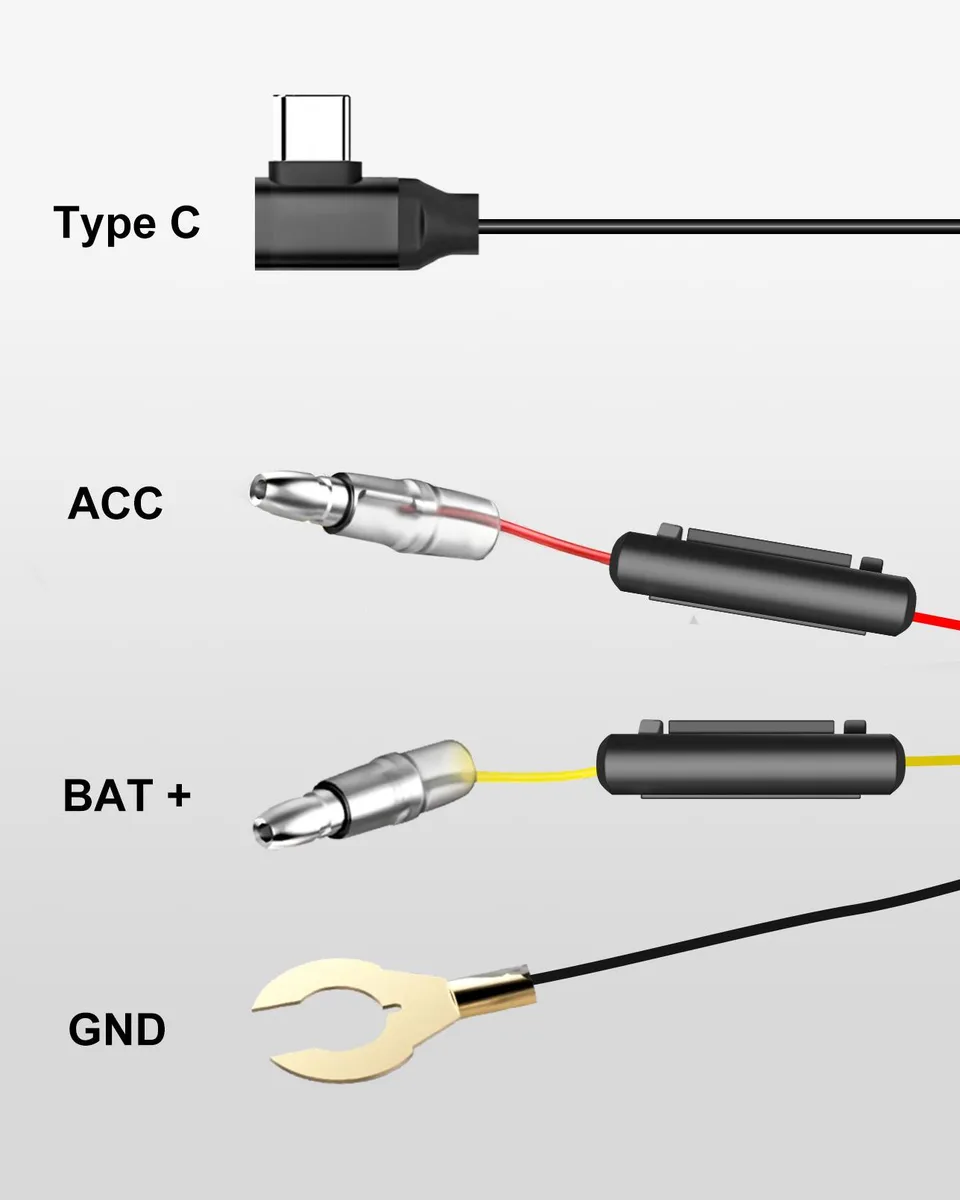

Three labelled wires connect to constant battery, ignition-switched ACC and a chassis ground point, while a dedicated red wire on the rear-camera lead activates an on-screen reversing guide when tied to the reversing-light positive. If the reversing assistant is not wanted the red wire can be left disconnected without affecting power delivery. Installation follows the dash cam user manual and requires no specialised tools.

Cable Length Limits and Vehicle Coverage

At 49FT the cable comfortably spans the full length of most cars, vans and RVs, allowing the rear camera to be mounted at the back of a long wheelbase or trailer. Runs significantly longer than 49FT are not supported by this kit, so builders needing extra reach for articulated lorries or extended conversions will need a different solution.

Highlights

  • 49 ft cable reaches every corner of large vehicles
  • 12-24 V input protects battery with low-voltage cut-off
  • 5 V 3 A output powers 3-channel mirror dash cam
  • Red wire enables automatic reversing guide lines
  • Polypropylene jacket withstands automotive temperature extremes

Specifications

BrandINSEETECH
ModelINS102-Cable
TypeDash Installation Kits
FeaturesDash Cam Hardwire Kit
Height0.78 inches
Width9.05 inches
Length7.48 inches
Weight4.76 Ounces
CableDash Cam Hardwire Kit
ColorBlack
Compatibilityonly for INSEETECH 3-Channel Mirror Dash Cam
MaterialPolypropylene (PP)
Size/Dimensions7.48*9.05*0.78 inches

Questions about this item

Is the 49 ft cable the only length offered for the INS102-Cable?

Yes, the hardwire kit comes in a single 49 ft length designed for the 3-channel mirror dash cam.

What does the 5 V 3 A output mean when the kit is wired into a vehicle?

It converts the 12-24 V vehicle supply to a steady 5 V at up to 3 A, powering the dash cam and enabling 24-hour parking monitoring without draining the battery.

Which connector standard does the kit use and what does it limit?

The kit uses a 4-pin Mini USB connector that carries the converted 5 V 3 A output; it cannot supply higher voltages or currents.
