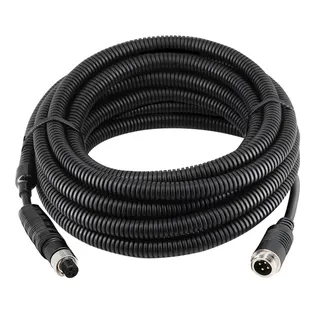

Black 4-pin aviation cable with corrugated tube cover, 16ft length, waterproof connectors

INSEETECH

INSEETECH 4PIN-5M 4 Pin Aviation Cable 5M Car Electronics Accessory

SKU CH-ECHD-JZZQ6 MPN 4PIN-5M

A 5 m, 4‑pin aviation extension cable with waterproof connectors and a corrugated polypropylene sheath for rear‑view camera, radar, DVR and CCTV systems on trucks, RVs, trailers and heavy equipment

  • TypeRearview Monitor
  • Features4pin Video Power Backup Camera Extension Cable with Corrugat
  • Height0.59 inches
  • Width0.59 inches
  • Length197 inches
  • Weight0.65 lb

Option 16FT/5M

  • Operates from -40 °F to 230 °F thanks to 100 % polypropylene sheath
  • Waterproof, snowproof, windproof and shockproof for severe outdoor use
  • All-copper shielded cores deliver clean video and power signals
  • Universal 4-pin aviation connectors fit rear-view, radar, DVR and CCTV systems
  • 16 ft length with corrugated tube cover suits RV, truck, trailer and bus installs

Universal 4-pin aviation cable

This 5-metre extension cable uses a 4-pin aviation connector to link backup cameras, radar units, DVRs and CCTV systems across a wide range of vehicles. It is built for installers and fleet operators who need a reliable plug-and-play link between a monitor and a rear-view camera on trucks, trailers, buses, RVs and agricultural equipment. The all-copper conductors and shielded design carry video and power on a single run.

Temperature and environmental limits

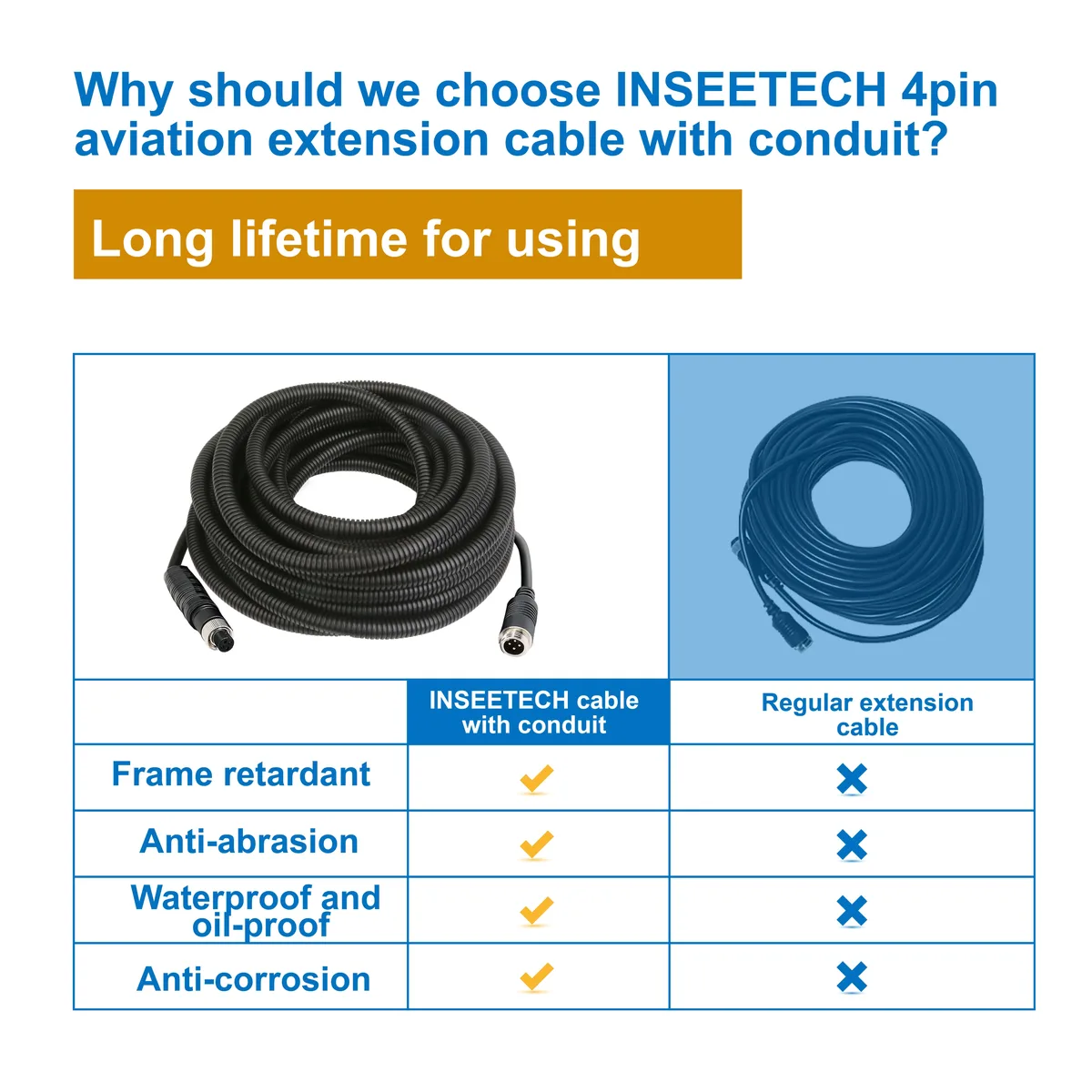

The polypropylene sheath is rated for continuous operation from minus 40 to 230 degrees Fahrenheit and meets a 100 percent flame-retardant specification. A corrugated tube cover and rubber O-ring on the screw-fit connector create a waterproof, oil-proof and corrosion-resistant seal that survives snow, wind, rain and vibration in outdoor and under-chassis routing. The assembly is also anti-abrasion for long-term exposure to road debris.

5-metre reach for single-camera runs

At 16 feet the cable comfortably spans the distance from a rear-mounted camera to a front cab monitor on most light commercial vehicles and trailers without signal boosters. It handles standard-definition and HD analogue video formats over that length. Installations requiring longer runs, multiple camera feeds or digital IP signalling will need a different cabling approach.

Highlights

  • Operates from -40 °F to 230 °F thanks to 100 % polypropylene sheath
  • Waterproof, snowproof, windproof and shockproof for severe outdoor use
  • All-copper shielded cores deliver clean video and power signals
  • Universal 4-pin aviation connectors fit rear-view, radar, DVR and CCTV systems
  • 16 ft length with corrugated tube cover suits RV, truck, trailer and bus installs

Specifications

BrandINSEETECH
Model4PIN-5M
TypeRearview Monitor
Features4pin Video Power Backup Camera Extension Cable with Corrugation Tube Cover
Height0.59 inches
Width0.59 inches
Length197 inches
Weight0.65 lb
Cable4 pin backup camera cable
ColorBlack
Compatibilityvehicle rear view system, radar system, DVR system, CCTV system, etc.
MaterialPolypropylene (PP)
Size/Dimensions5M/16ft

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I choose the 16 ft length or a different size?

This listing is the 16 ft (5 m) version; select it if your camera-to-monitor run is roughly that distance.

What does the -40 to 230 °F rating mean once the cable is installed?

The polypropylene sheath stays flexible and protective from -40 °F to 230 °F, so the cable handles extreme cold and engine-bay heat without cracking.

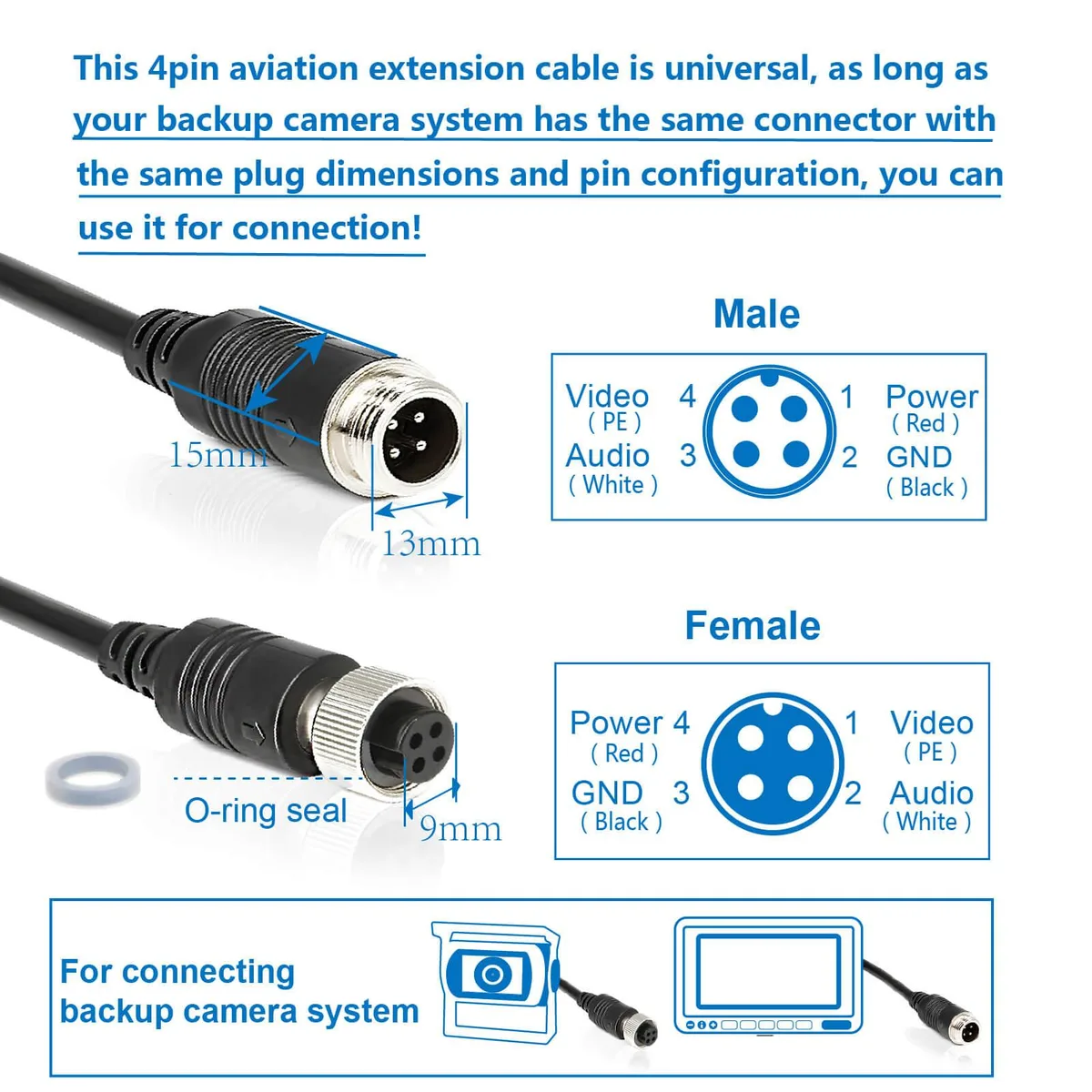

What does the 4-pin aviation connector cap in practice?

It carries video, power and ground on four pins with a screw-on, O-ring sealed plug that locks out water, oil and vibration.
