innomaker U20CAM-1080P 1080p 30 fps 130° USB 2.0 video capturing device

Compact UVC Camera for Embedded Builds

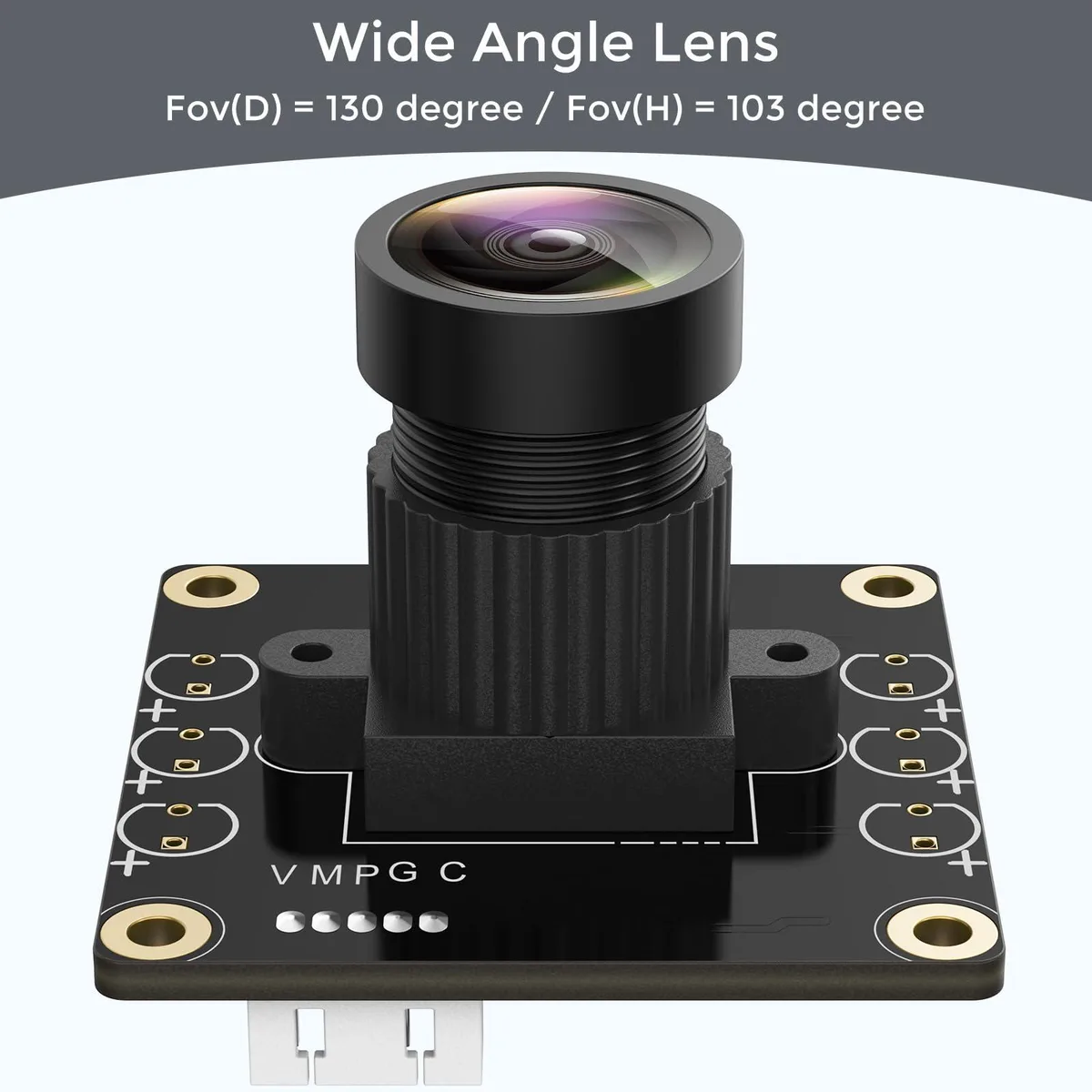

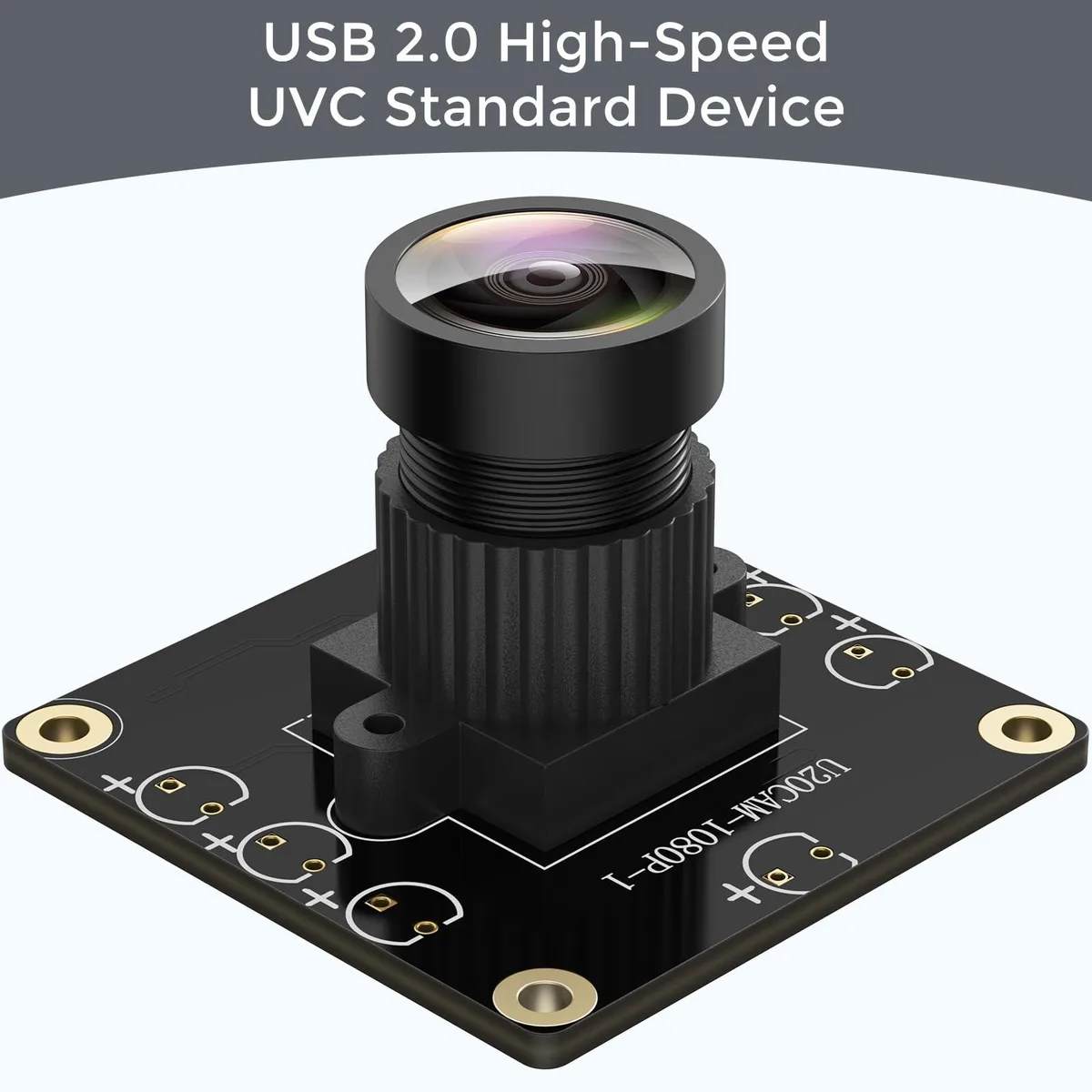

The innomaker U20CAM-1080P is a 130 degree wide-angle USB 2.0 camera module that delivers 1920 by 1080 video at 30 fps. It uses a native UVC driver so it works on Windows 10, 11, Linux, macOS and Android without extra software. The 32 by 32 mm PCB with four M2 holes fits inside tight enclosures for robotics, kiosks or single-board computers.

Upgrade from Basic Webcams or MIPI Modules

Unlike generic webcams this board exposes an M12 lens thread for optical swaps and needs no external power beyond the USB 2.0 port. It replaces bulky USB cameras when space is limited and avoids the driver hassle of MIPI CSI modules on a Raspberry Pi or Jetson Nano. The jump is worth it when you need plug-and-play 1080p capture in a 32 mm square footprint.

Suits Makers Integrating Vision into SBCs

Developers building vision into a Pi, Jetson or industrial SBC get instant 1080p30 video with YUY2 or MJPEG output and AAC audio. Buyers who need higher frame rates, 4K resolution, global shutter or onboard ISP tuning should look at something else. The fixed 130 degree field of view also rules out projects requiring narrow-angle optics.
