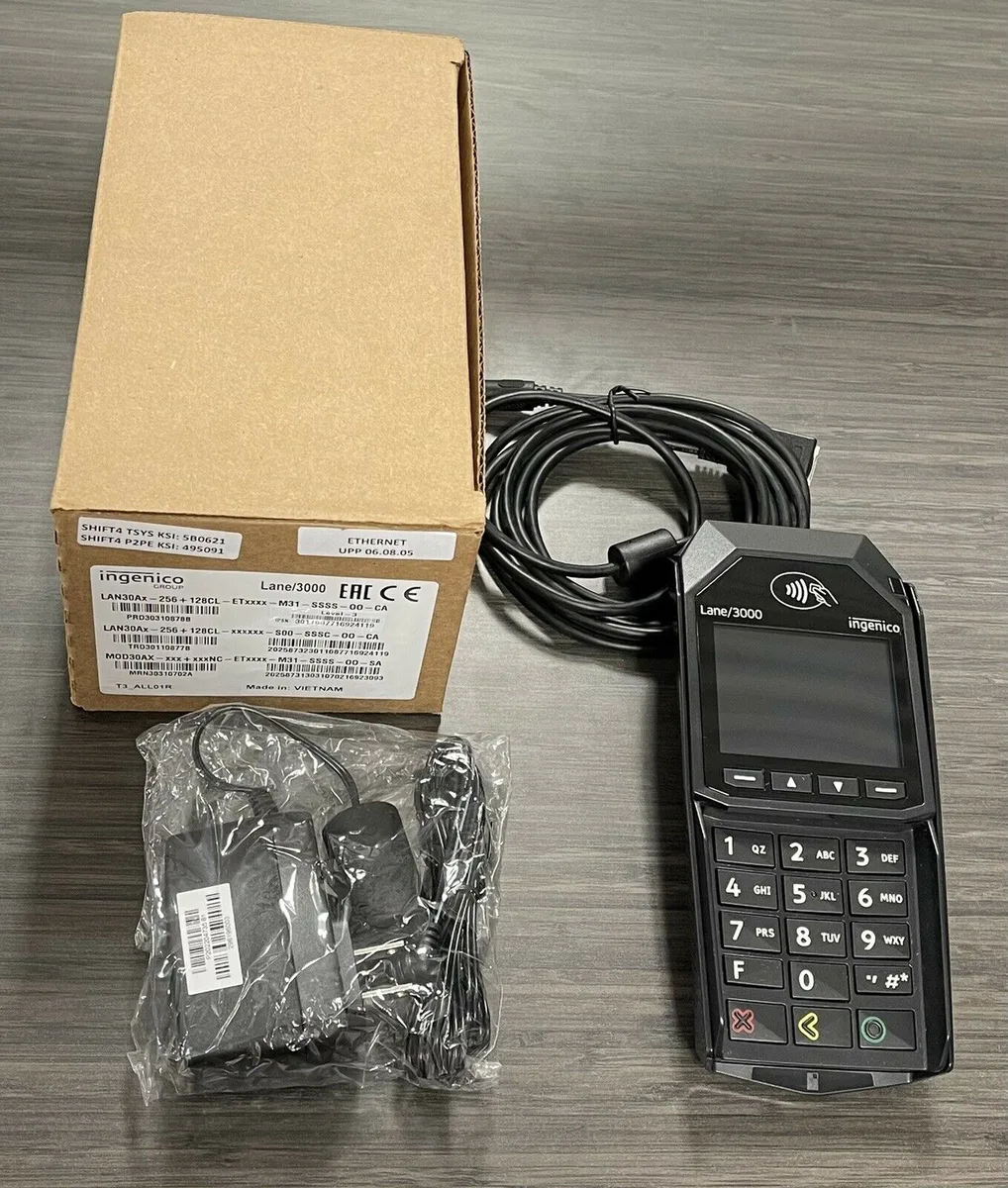

Black Ingenico Lane/3000 PIN pad with 2.8 inch backlit touchscreen and numeric keypad

Ingenico

Ingenico Lane/3000 PRD30310878A credit card reader

SKU CH-5Y9E-NZC3G MPN PRD30310878A

A PIN pad processing thousands of daily transactions with a 2.8-inch touchscreen, EMV chip reader and optional Wi-Fi or Ethernet connectivity

  • ColorBlack
  • Handles high-volume retail with thousands of daily transactions
  • Cortex A5 processor with 256 MB flash and 128 MB RAM
  • 8" QVGA touchscreen supports finger and stylus input
  • Multiple wired and wireless connectivity options including Ethernet, Wi-Fi and Bluetooth
  • Compact 83 x 180 x 43 mm design weighs 254 g

Built for High-Volume Retail Lanes

The Ingenico Lane/3000 PRD30310878A is a PIN pad designed to manage thousands of transactions per day. Its robust construction suits demanding retail environments where reliability is critical. The device integrates into any lane or kiosk setup, offering a modular option to optimise total cost of ownership.

Upgrading from Basic Terminals

Retailers moving from entry-level readers gain a high-end keypad for secure PIN entry and a 2.8 inch QVGA touchscreen that supports finger and stylus input. The jump is worth it when daily volume requires ISO 1/2/3 and EMV Level 1 readers rated for 500K lifespan, plus an embedded QR code library on a 2M pixel camera.

Simple Integration, Watch Cabling

Terminal connections include USB, Serial, Powered USB, Powered RS 232 and Powered Ethernet, while connectivity covers wired Ethernet 10/100 and wireless options. Installation is straightforward when the correct powered cable matches the lane infrastructure; mismatched power feeds are the most common issue. The unit operates from 0 to 50°C and stores at -20 to 70°C.

Highlights

  • Handles high-volume retail with thousands of daily transactions
  • Cortex A5 processor with 256 MB flash and 128 MB RAM
  • 8" QVGA touchscreen supports finger and stylus input
  • Multiple wired and wireless connectivity options including Ethernet, Wi-Fi and Bluetooth
  • Compact 83 x 180 x 43 mm design weighs 254 g

Specifications

ColorBlack
Shipping weight0.45 kg
Package size127 × 89 × 76 mm

Questions about this item

What are the physical dimensions of the Lane/3000 terminal?

The terminal measures 83 x 180 x 43 mm (3.26 x 7.08 x 1.69 in) and weighs 254 g (8.89 oz).

Which connection interfaces are available for integrating the PIN pad?

It supports USB, Serial, Powered USB, Powered RS 232, Powered Ethernet, and an External Power Supply for terminal connections.

What is the rated lifespan of the card readers and touchscreen?

The magnetic stripe, EMV Level 1, and smart card readers are each rated for 500K reads, while the touchscreen supports 1000K signature captures.
