Compact alloy thermal camera for Android, 49.5 by 26 by 27.5 mm, 13 mm lens, 384 by 288 sensor

InfiRay

InfiRay T3S Android Thermal Imager 384x288 13mm 25Hz

SKU CH-7ZJY-HZGAR

Connects to Android 6.0+ devices for 384x288 thermal imaging at 25 Hz with a 13 mm lens and ±3 °C accuracy

  • TypeThermal Imager

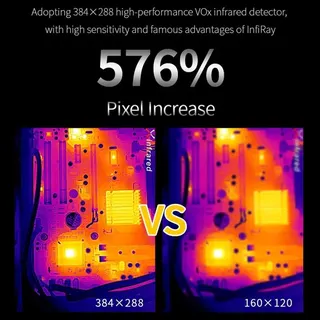

  • 384 × 288 resolution reveals fine thermal detail
  • 13 mm lens with 25 Hz refresh captures smooth real-time video
  • 50 mK NETD detects subtle temperature differences
  • Android 6.0+ plug-in turns any phone into a thermal camera

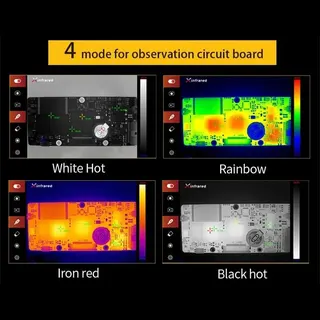

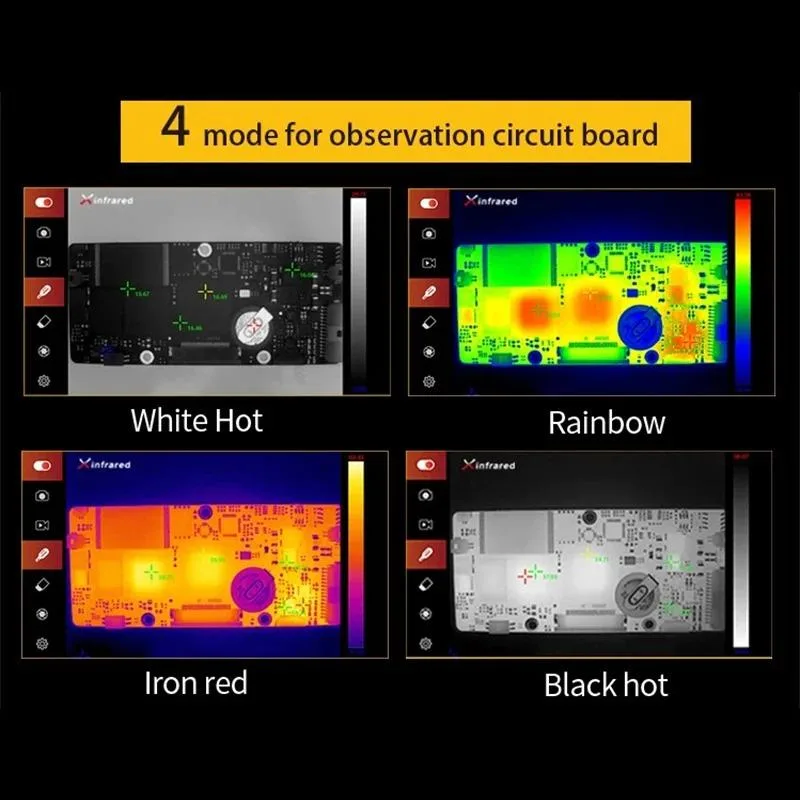

  • Six colour palettes plus point, line and area analysis tools

Compact Android Thermal Scope

The InfiRay T3S is a pocket-sized thermal imager that plugs directly into any Android 6.0 or newer device via USB-C. It delivers a 384x288 pixel sensor behind a 13 mm manual-focus lens running at 25 Hz, making it suitable for quick PCB inspections, floor-heating checks and general industrial troubleshooting.

Suited for Mobile Diagnostics

Technicians who need immediate thermal feedback on a phone or tablet without carrying a separate display will benefit from the alloy body and on-board DDE processing. Users requiring radiometric accuracy better than ±3 °C, a wider temperature span than -20 to 120 °C, or iOS compatibility should consider other instruments.

Steady Thermal Monitoring

During extended sessions the unit draws minimal power from the host while maintaining a stable 25 Hz frame rate and 50 mK NETD. Manual image correction and multiple palettes let operators lock in consistent contrast for long-duration video recording or time-lapse analysis without thermal drift.

Highlights

  • 384 × 288 resolution reveals fine thermal detail
  • 13 mm lens with 25 Hz refresh captures smooth real-time video
  • 50 mK NETD detects subtle temperature differences
  • Android 6.0+ plug-in turns any phone into a thermal camera
  • Six colour palettes plus point, line and area analysis tools

Specifications

TypeThermal Imager

Questions about this item

What Android phone do I need to run the T3S thermal imager?

Any Android device running version 6.0 or higher with a USB-C port will power and operate the T3S thermal imager.

Can I use the 13 mm lens on older InfiRay modules I already own?

The 13 mm lens is fixed to this T3S module; it cannot be swapped onto other InfiRay cores or earlier handheld units.

How do I confirm the 384x288 sensor is delivering a true 25 Hz frame rate after setup?

Open the companion app, enable the on-screen frame-rate overlay, and verify it reads a steady 25 Hz while panning the scene.
