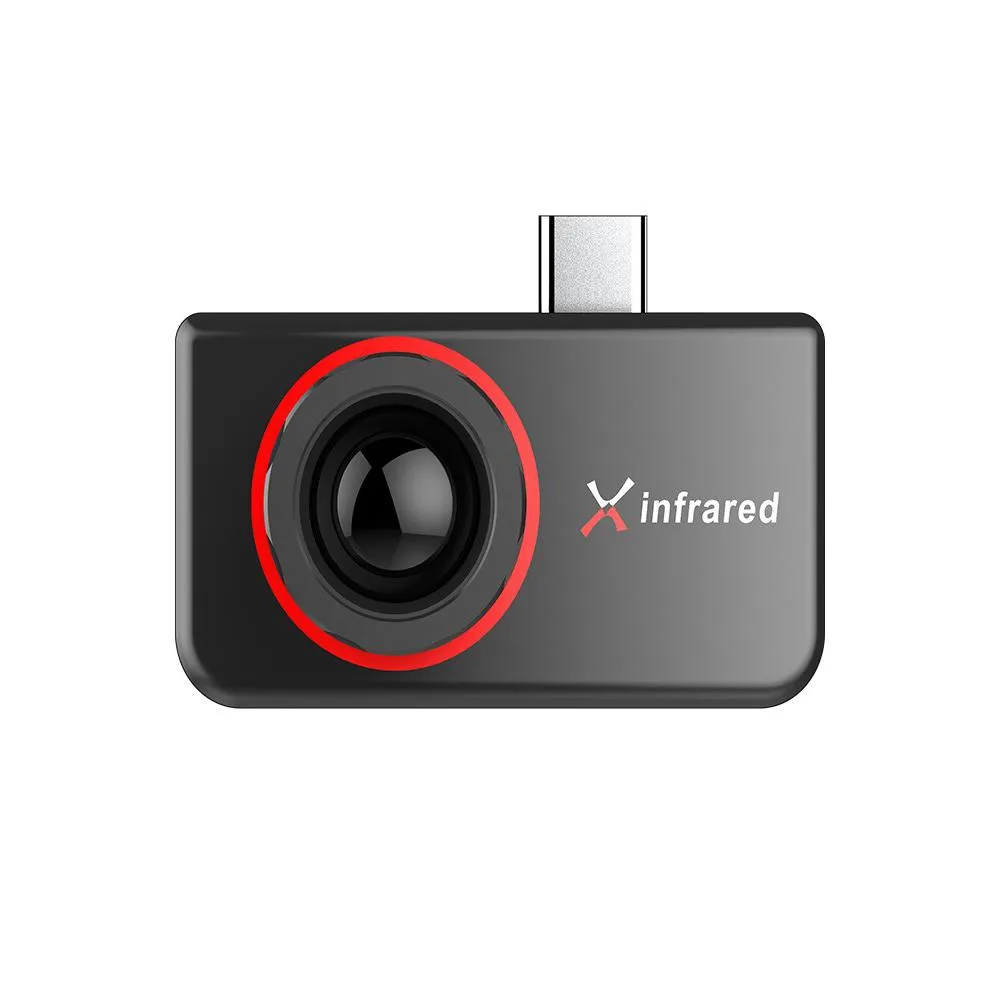

Compact thermal imager with Type-C plug, dark matte finish, no holder attached

InfiRay

InfiRay T3 Pro 384x288 thermal imager Type-C no holder

SKU CH-PEV1-S9P7K

Android thermal imager with 384×288 resolution, 13 mm lens and 25 Hz frame rate for −20 °C to 400 °C measurements

  • TypeThermal Imager
  • 384x288 resolution reveals fine thermal detail
  • 25 Hz frame rate keeps moving scenes smooth
  • 13 mm lens with manual focus adapts to any distance
  • Type-C Android connection turns your phone into a thermal camera
  • CE FCC RoHS UL certified for safety and compliance

Android thermal imager for mobile inspection

The InfiRay T3 Pro connects to an Android phone through a USB Type-C port and delivers a 384 by 288 thermal image. It is built for technicians, electricians and hobbyists who need immediate infrared vision without carrying a separate display or battery pack.

384 by 288 resolution with 13 mm lens

The sensor provides 384 by 288 pixels at a 17 µm pitch and operates in the 8 to 14 µm band. A 13 mm manual-focus lens and a 25 Hz frame rate let you capture photos and video of targets from minus 20 up to 400 degrees Celsius with a stated accuracy of plus or minus 2 degrees and an MRTD of 500 mK.

App-driven capture and online updates

Because the device is a smart accessory, the phone screen becomes the viewfinder and recording interface for both stills and video. Firmware improvements arrive through online software updates so the imager stays current without a PC connection. The unit ships without a holder, so users must supply their own mounting solution.

Highlights

  • 384x288 resolution reveals fine thermal detail
  • 25 Hz frame rate keeps moving scenes smooth
  • 13 mm lens with manual focus adapts to any distance
  • Type-C Android connection turns your phone into a thermal camera
  • CE FCC RoHS UL certified for safety and compliance

Specifications

BrandInfiRay
ModelT3 Pro
TypeThermal Imager

Questions about this item

What does the 384x288 resolution actually show on my phone screen?

The 384x288 pixel array delivers detailed thermal images where each 17um pixel captures temperature differences across the 8-14um band, displayed at 25Hz on your Android device.

How does the USB Type-C connection limit what I can do with the imager?

The Type-C plug provides power and data directly from an Android phone, enabling live 25Hz thermal video, photo capture, and online firmware updates without extra batteries.

Will the 13mm lens and manual focus fit my inspection tasks?

The fixed 13mm lens with manual focus ring lets you adjust sharpness from close components to wider scenes, while the compact embedded body needs no separate holder.
