Tiny square thermal camera with matte finish, 26mm sides, 18 grams

InfiRay

InfiRay T2S Plus Thermal Imager 256×192 25Hz iOS/Android

SKU CH-KAHD-2RWG5 MPN T2S

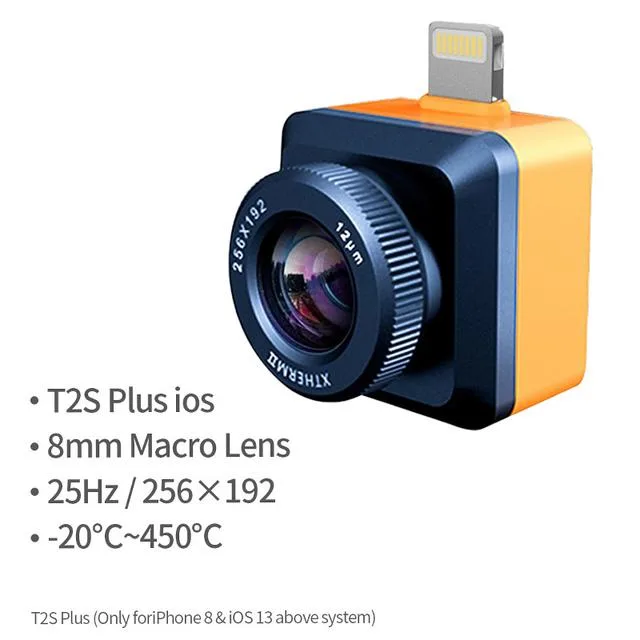

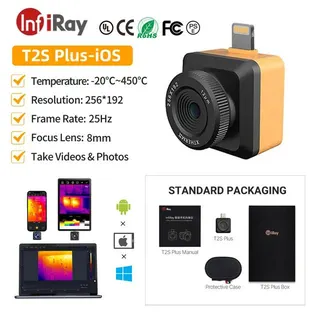

A pocket-sized 256×192 thermal camera that plugs into iOS or Android, runs at 25 Hz with a 44.9° field of view and weighs under 18 g

  • TypeThermal Imager
  • Detects heat loss with 256×192 resolution
  • 25 Hz frame rate gives smooth thermal video
  • 8 mm macro lens spots PCB faults close-up
  • Weighs under 18 g and fits in a pocket
  • Works with iOS, Android and Harmony OS

Pocket thermal imager for phones

The InfiRay T2S Plus is a 256×192 thermal camera that plugs directly into iOS or Android devices. It weighs under 18 grams and measures 26×26×24.2 millimetres, making it suited for technicians, homeowners and outdoor users who need immediate infrared vision without a separate display unit.

Plug-and-play with macro focus

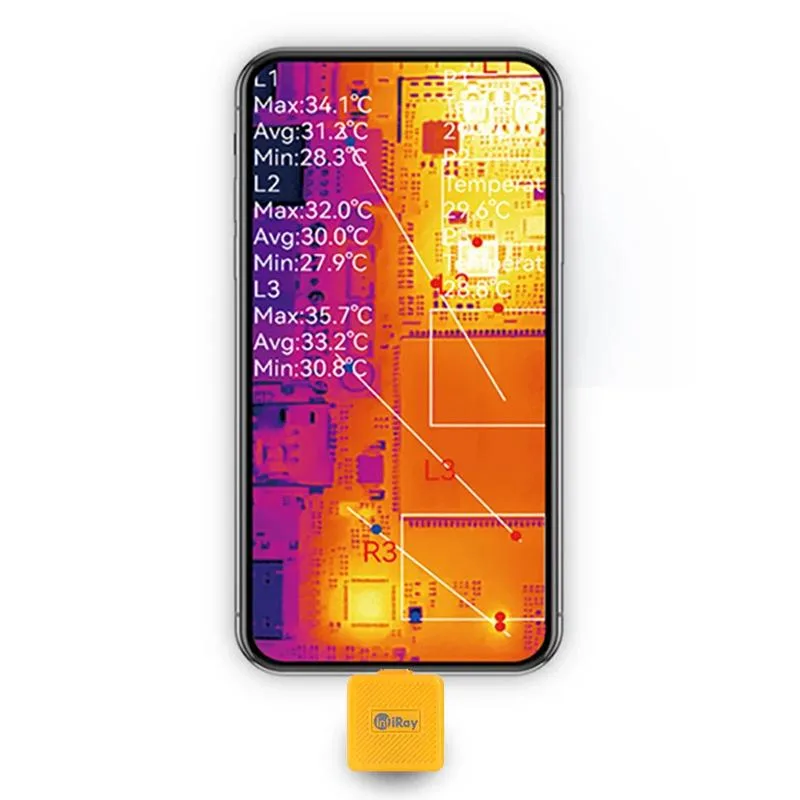

Connection is a simple plug-and-play operation once the correct model for the phone’s port and OS version is selected. The 8 millimetre minimum focus distance allows close inspection of PCB traces, while the 25 hertz frame rate keeps motion smooth. The only common issue is ordering a variant that does not match the handset’s connector or supported operating system.

Check phone port and OS before buying

Verify that the handset runs Android, Harmony OS or iOS and that the physical connector matches the unit being ordered. The imager draws less than 350 milliwatts from the phone, so battery impact is minimal. No separate power source or SDK knowledge is required for basic temperature measurement and photo or video capture.

Highlights

  • Detects heat loss with 256×192 resolution
  • 25 Hz frame rate gives smooth thermal video
  • 8 mm macro lens spots PCB faults close-up
  • Weighs under 18 g and fits in a pocket
  • Works with iOS, Android and Harmony OS

Specifications

BrandInfiRay
ModelT2S plus
TypeThermal Imager

Questions about this item

How do I verify the 256×192 thermal imager is working correctly after connecting it to my phone?

Open the companion app and confirm a live thermal feed appears at 25 Hz; point the 8 mm macro lens at a known heat source and check that the centre-spot reading falls within ±2 °C or ±2 % of the expected temperature.

What comes in the box and what must I supply separately?

The package contains only the T2S Plus thermal camera weighing under 18 g; you must provide a compatible smartphone running Android, Harmony OS or iOS, as the phone itself is not included.

Which version should I choose for my specific phone model and operating system?

Select the product link that matches your phone’s connector and OS — iOS for iPhone or Android/Harmony OS for supported Android devices — because the imager requires direct plug-and-play compatibility with the chosen platform.
