Compact thermal imager with USB-C connector for iPhone 15

InfiRay

InfiRay P2 Pro Thermal Imager 256x192 Type-C iPhone 15 No Macro Lens

SKU CH-J0EM-8A6BK

A compact thermal imager with a 256×192 sensor, 25 Hz frame rate and USB-C connection for iPhone 15, measuring −20 °C to 600 °C

  • TypeThermal Imager
  • High 256x192 resolution reveals fine PCB traces
  • 25 Hz frame rate keeps motion smooth during inspection
  • Measures -20 °C to 600 °C for wide thermal tasks
  • ±2 °C accuracy ensures reliable temperature readings
  • USB-C plug fits iPhone 15 for instant mobile use

Compatible iPhone 15 thermal imager

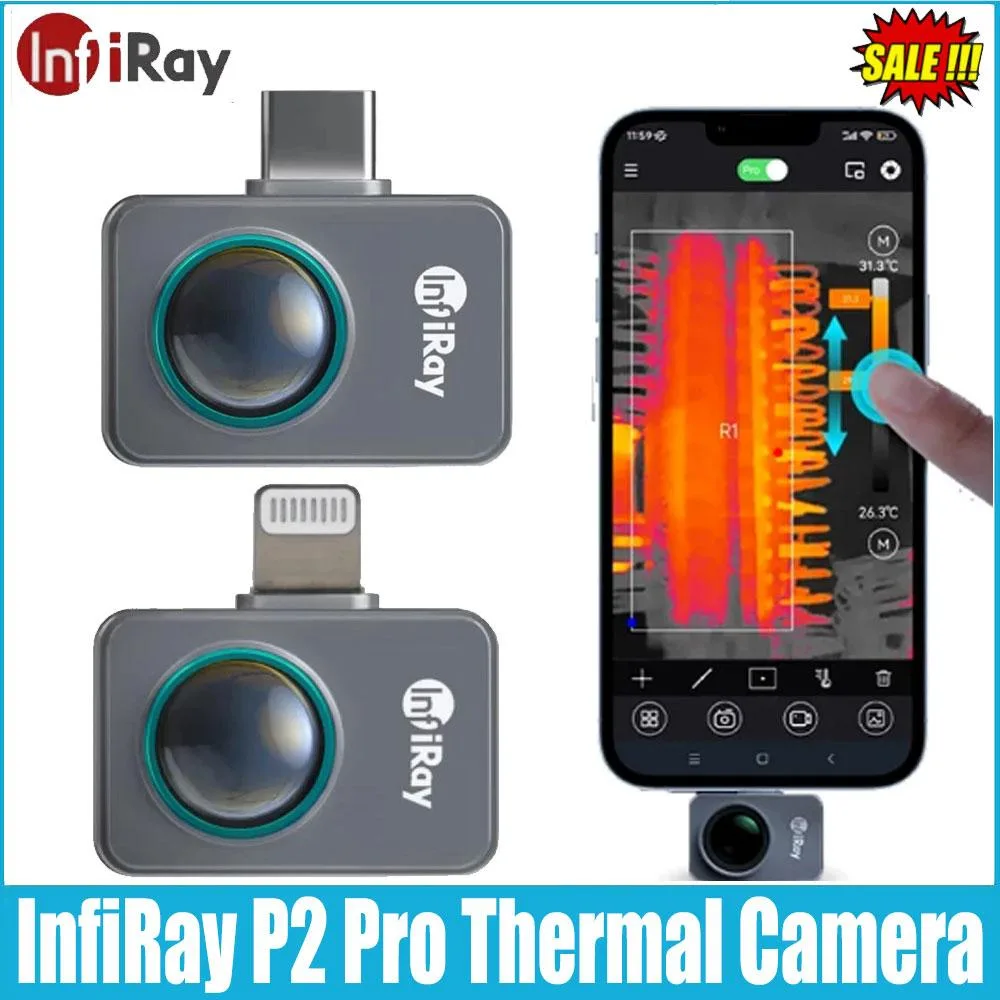

The InfiRay P2 Pro is a new USB Type-C thermal imager built for the iPhone 15. It uses a 256x192 Xinfrared sensor with a 12 µm pixel pitch and a NETD below 40 mK. The device draws 350 mW and runs at 25 Hz for PCB inspection, industrial heating checks and night-vision tasks.

Verify phone port and Android version

Buyers must confirm the handset has a USB Type-C port and runs Android 6.0 or higher for the companion app. The imager has no macro lens in this configuration, so the minimum 0.25 mm resistor observation capability is unavailable. Operating temperatures span -10 °C to 55 °C, while storage tolerates -40 °C to 85 °C.

Athermalised prime lens with macro option

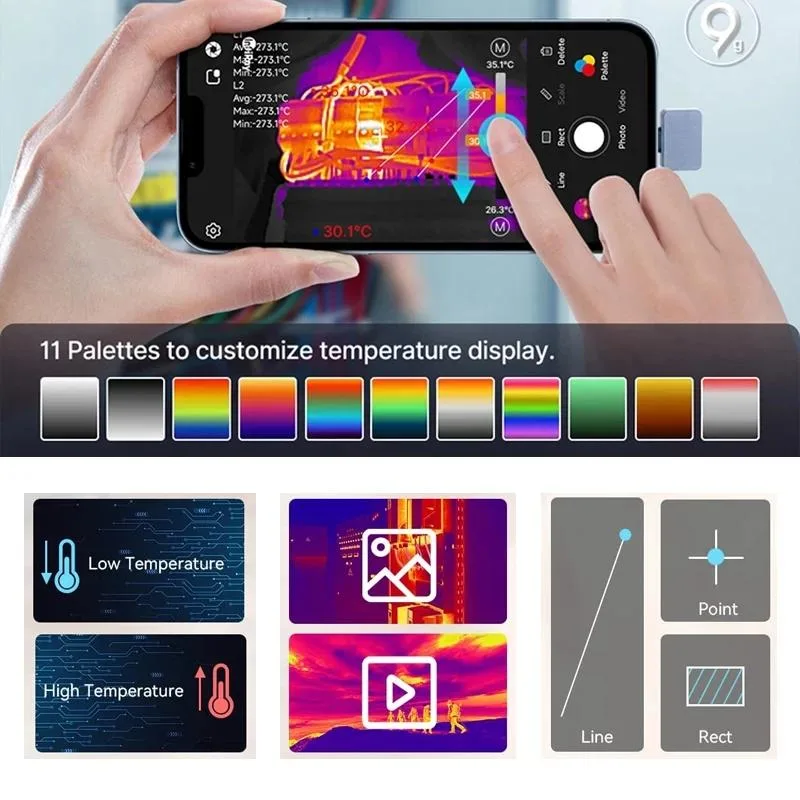

A fixed 3.2 mm F1.1 athermalised prime lens delivers a 56.0° x 42.2° field of view without manual focus. A magnetic macro lens can be added later for close-up work. Temperature measurement covers -20 °C to 600 °C with ±2 °C or ±2 % accuracy, supported by emissivity, distance and ambient correction plus seven colour palettes.

Highlights

  • High 256x192 resolution reveals fine PCB traces
  • 25 Hz frame rate keeps motion smooth during inspection
  • Measures -20 °C to 600 °C for wide thermal tasks
  • ±2 °C accuracy ensures reliable temperature readings
  • USB-C plug fits iPhone 15 for instant mobile use

Specifications

TypeThermal Imager

Questions about this item

Does the P2 Pro come with a macro lens or must it be purchased separately?

This listing is without the macro lens; the magnetic macro lens is adaptable but not included.

Which iPhone models are supported by the Type-C connector?

The imager is compatible with iPhone 15 and later models that use USB Type-C.

What temperature range can the sensor measure once plugged into a phone?

It measures from -20 °C to 600 °C with an accuracy of ±2 °C or ±2 % of the reading.
