Compact thermal camera module with USB-C connector and matte dark finish

InfiRay

InfiRay P2 Pro Thermal Imager 256x192 iPhone Type-C

SKU CH-MPN7-1GVT7

A USB-C thermal imager for iPhone 15 with a 256×192 sensor, 25 Hz frame rate, -20 °C to 600 °C range and an adaptable macro lens for 0.25 mm detail

  • TypeiPhone
  • 256×192 thermal resolution reveals fine PCB detail
  • 25 Hz frame rate gives smooth live thermal video

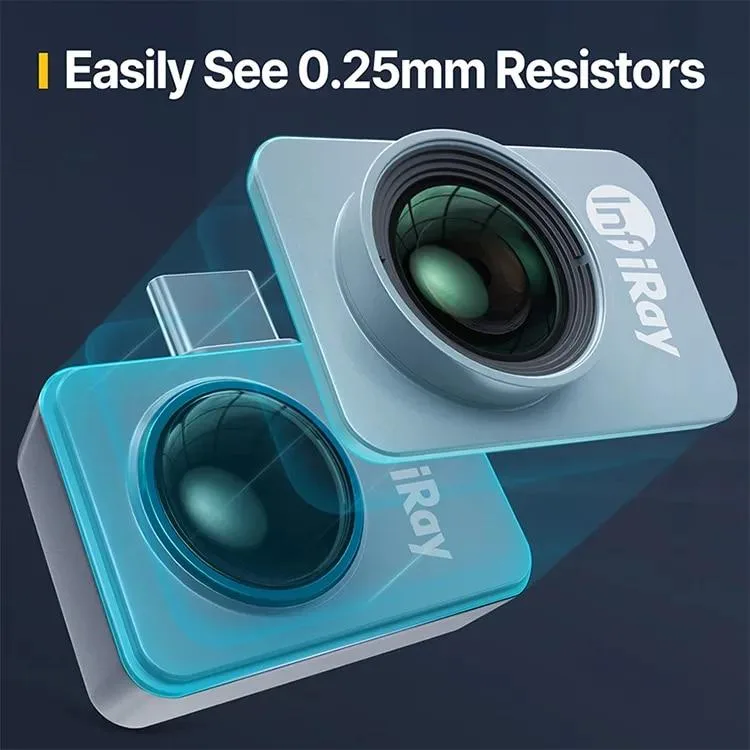

  • Magnetic macro lens focuses down to 0.25 mm for tiny resistors

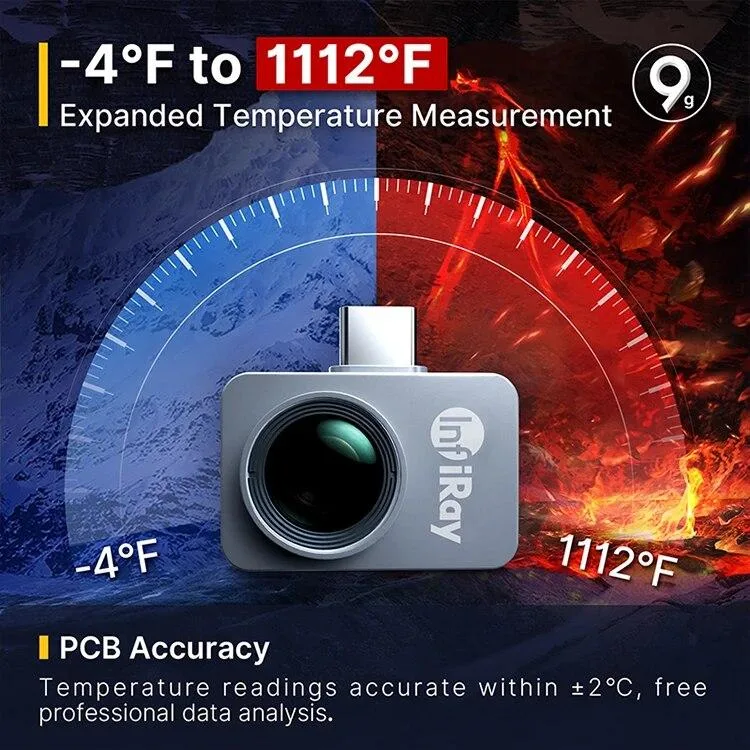

  • Measures −20 °C to 600 °C with ±2 °C accuracy

iPhone 15 Thermal Imager

The InfiRay P2 Pro is a USB-C thermal camera built for iPhone 15 models. It plugs directly into the phone and uses a 256x192 infrared sensor with a 12 µm pixel pitch. The unit draws 350 mW and runs on a self-developed ASIC chip at 25 Hz frame rate.

Upgrade From Basic Spot Checks

Replaces single-point IR thermometers when you need full-frame thermal video at 25 Hz. The jump is worth it for PCB inspection, industrial heating tests or night-vision tasks that demand 56.0° × 42.2° FOV and <40 mK NETD sensitivity. Not for users who need higher than 256x192 resolution or compatibility with Android 6.0 devices.

256x192 Sensor Headroom

Comfortably resolves 0.25 mm components with the magnetic macro lens across a -20 °C to 600 °C range. Accuracy holds at ±2 °C or ±2 % of reading. Runs out when targets exceed 600 °C, when finer than 256x192 detail is required or when operating beyond -10 °C to 55 °C ambient limits.

Highlights

  • 256×192 thermal resolution reveals fine PCB detail
  • 25 Hz frame rate gives smooth live thermal video
  • Magnetic macro lens focuses down to 0.25 mm for tiny resistors
  • Measures −20 °C to 600 °C with ±2 °C accuracy

Specifications

TypeiPhone

Questions about this item

What size USB-C port does the InfiRay P2 Pro need on my iPhone 15?

It plugs directly into the iPhone 15 USB-C port; no adapter or cable is required.

Which app do I install first, and what permission is often missed?

Install the Xinfrared app from the App Store, then grant camera access when prompted; the imager will not stream video until that permission is allowed.

Does the magnetic macro lens need periodic cleaning or replacement?

Wipe the macro lens with a soft cloth when dusty; the lens has no moving parts and no scheduled replacement interval.
