Red bulk Ethernet cable on a wooden spool, shielded riser type

Infinity Cable Products

Infinity Cable Products Cat6 Shielded Riser 1000ft 550MHz 23AWG F/UTP Solid Bare Copper Red

SKU CH-K4ZX-2RCZ1

Shielded Cat6 riser cable on a 1000 ft reel supports 1 Gb Ethernet at 550 MHz up to 328 ft and 10 Gb at shorter distances with 23 AWG solid bare copper conductors

  • TypeEthernet
  • Length1000 ft.
  • ColorRed
  • ConnectorsRJ45s and Keystone Jacks
  • Specifications23AWG
  • Weight42 lbs
  • Shielded F/UTP construction blocks interference in noisy environments
  • 550 MHz bandwidth supports 1 Gb Ethernet up to 328 ft
  • Solid 23 AWG bare copper conductors exceed EIA/TIA-568.2-D by 3‑5 dB
  • UL‑LP certification ensures safe PoE power delivery
  • CMR riser rating approved for in‑wall and between‑floor runs

Cat6 Shielded Riser 1000 ft

This bulk Ethernet cable is a CMR-rated Cat6 shielded riser supplied on a 1000 ft wooden spool. It uses 23 AWG solid bare copper conductors with an overall foil shield and drain wire. The construction suits in-wall runs, between floors and general commercial or residential network installs.

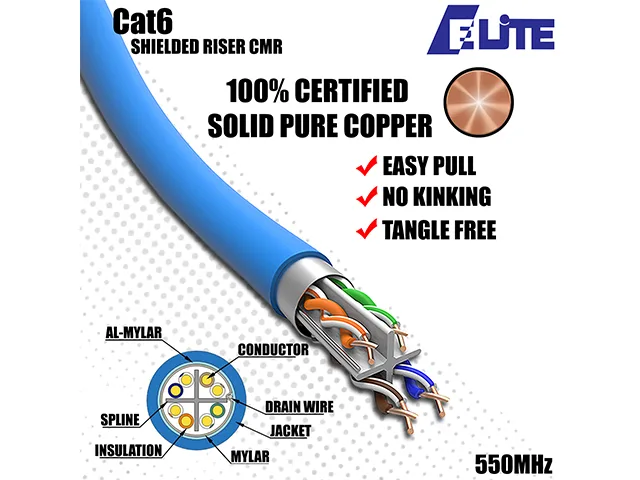

F/UTP build with spline and certifications

The four twisted pairs are separated by a spline and wrapped in a metal foil screen to reduce crosstalk. UL Listed, UL-LP certified, ETL Verified, RoHS Compliant and TAA Compliant markings confirm safety and PoE readiness. The reel format keeps the bend radius consistent during long pulls to protect the shield.

550 MHz bandwidth and distance limits

The cable is rated to 550 MHz and supports 1 Gb Ethernet up to 328 ft. It can reach 10 Gb at shorter distances using IEEE 802.3bz 2.5GBase-T and 5GBase-T operation. Performance exceeds the TIA-568.2-D standard by 3 to 5 dB. It is not suited for plenum spaces requiring CMP-rated cable.

Highlights

  • Shielded F/UTP construction blocks interference in noisy environments
  • 550 MHz bandwidth supports 1 Gb Ethernet up to 328 ft
  • Solid 23 AWG bare copper conductors exceed EIA/TIA-568.2-D by 3‑5 dB
  • UL‑LP certification ensures safe PoE power delivery
  • CMR riser rating approved for in‑wall and between‑floor runs

Specifications

BrandElite
ModelCat6 Shielded Riser
TypeEthernet
Length1000 ft.
ColorRed
ConnectorsRJ45s and Keystone Jacks
Specifications23AWG
Weight42 lbs

Questions about this item

What bandwidth does the Cat6 550 MHz rating actually support for 1 GbE and 10 GbE runs?

The cable is rated for 550 MHz and supports 1 GbE up to 328 feet. It can achieve 10 GbE at shorter distances using IEEE 802.3bz 2.5GBase-T and 5GBase-T operation.

What physical space and pathway does the 23 AWG F/UTP cable on a wooden spool require for a riser pull?

The 1000-foot reel weighs 42 lbs and uses a wooden spool to keep the bend radius even, protecting the overall foil shield and drain wire from cracking during installation pulls.

How is the foil shield and drain wire terminated correctly on keystone jacks and RJ45 plugs?

The F/UTP design has an overall foil screen with a drain wire. The drain wire must be bonded to the shielded jack or plug housing to maintain shielding continuity and meet grounding requirements.
