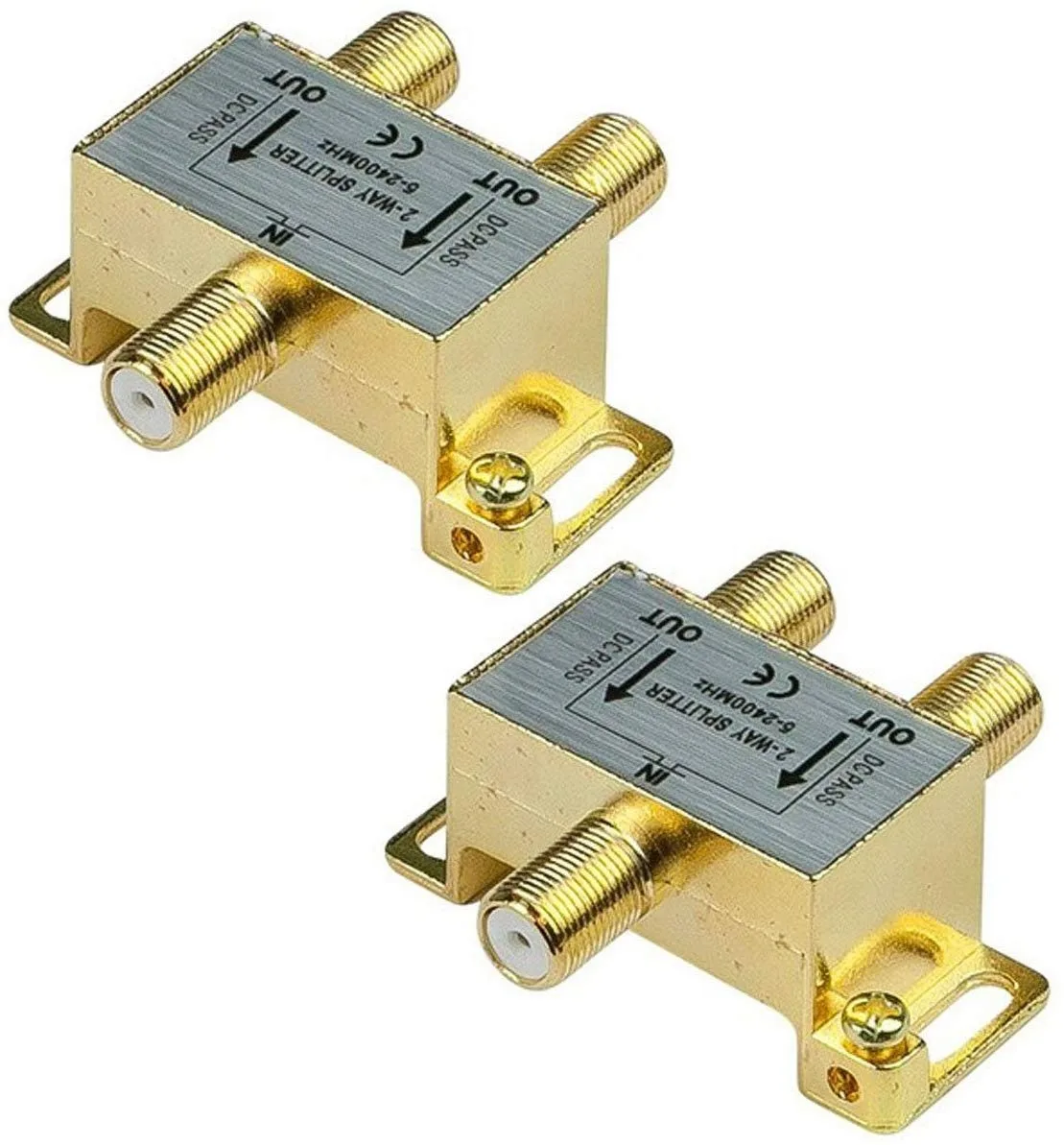

iMBAPrice 110013-2 2-Pack 2.4 GHz 2-Way Coaxial Splitter

Dual coaxial signal splitter pack

This iMBAPrice 2-pack provides two passive splitters that divide a single coaxial input into two outputs for video or satellite distribution. Each unit handles frequencies up to 2400 MHz and uses gold-plated F-type screw connectors. The design suits installers needing multiple display feeds from one source cable. Model 110013-2 ships new in a value pack of two identical splitters.

Passive splitting limits at 2.4 GHz

As a passive device, the splitter introduces insertion loss on each output port and cannot amplify a weak incoming signal. The 5 to 2400 MHz range covers standard cable and satellite bands, but signal quality degrades with long cable runs after the split. Isolation between ports is semi-isolated, so cross-talk may appear in demanding distributions. No external power is required or supported.

Simple screw-on installation

Connect the incoming coaxial cable to the single input port and attach two outgoing cables to the output ports using the F-type threads. Hand-tightening is usually sufficient, though a wrench ensures a snug fit for outdoor or vibration-prone sites. Common issues include loose connectors causing signal drop-out and using the splitter on already attenuated lines without a preceding amplifier.
