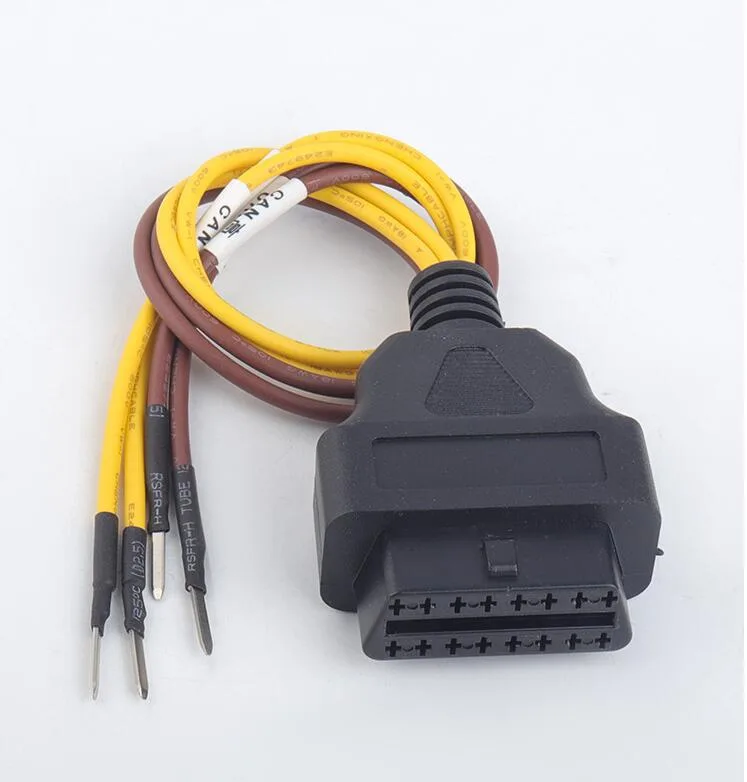

Black 16 pin OBD2 female connector with 30cm open wire pigtail

iKKEGOL

iKKEGOL OBD2 16 Pin Female to Open Wire 30cm car electronics accessory

SKU CH-78ED-HM12S

A 30 cm OBD2 16-pin female connector with four open wires for gasoline or diesel motorcycles

  • TypeCar Mount
  • 16-pin OBD2 female connector enables direct vehicle diagnostics
  • 4-pin open-wire pigtail allows custom harness fabrication
  • 30 cm cable length gives flexible routing inside the cabin
  • Plug-and-play design works with group-line diagnostic tools
  • Durable insulation resists wear on gasoline and diesel motorcycles

iKKEGOL OBD2 16 Pin Female Connector

This iKKEGOL accessory provides a 16 pin female OBD2 connector terminated in an open wire pigtail. It is intended for technicians or owners who need to interface diagnostic equipment with gasoline or diesel motorcycles equipped with an OBD2 port. The 30cm cable allows a convenient connection without permanent modification.

J1962 Pinout for CAN High and CAN Low

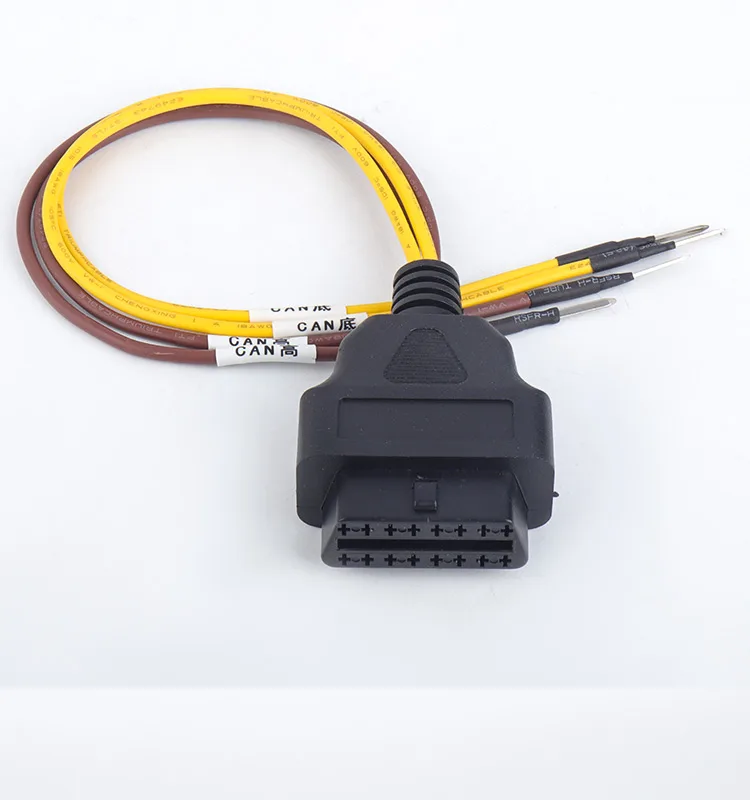

The decisive specification is the pin assignment: pin 6 carries CAN High on a brown wire and pin 14 carries CAN Low on a yellow wire. This wiring matches the standard J1962 layout used on compatible motorcycles. Buyers requiring a different pin configuration or additional populated pins should look elsewhere.

30cm Pigtail for Bench or In-Vehicle Use

The 30cm length offers enough reach for bench testing or temporary in-vehicle diagnostics while keeping the wiring tidy. It comfortably handles direct connection to scan tools or custom harnesses that expect open leads. The short pigtail runs out when the diagnostic device must be positioned further from the port or when a longer permanent loom is required.

Highlights

  • 16-pin OBD2 female connector enables direct vehicle diagnostics
  • 4-pin open-wire pigtail allows custom harness fabrication
  • 30 cm cable length gives flexible routing inside the cabin
  • Plug-and-play design works with group-line diagnostic tools
  • Durable insulation resists wear on gasoline and diesel motorcycles

Specifications

TypeCar Mount

Questions about this item

What can I actually connect with the 16-pin female connector?

The connector follows the J1962 pinout with CAN high on pin 6 and CAN low on pin 14, so it plugs directly into any OBD2 port on gasoline or diesel motorcycles that have one.

Does the 30 cm cable length limit where I can route the open wires?

The 30 cm pigtail is intended for short runs inside a fairing or under a seat; for longer distances you would need to extend the four open wires yourself.

What mounting options exist for the connector body?

The product is listed as a Car Mount type accessory, but no brackets, clips or adhesive pads are included in the supplied hardware.
