IHDAPP

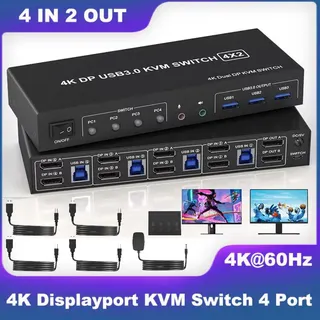

IHDAPP USB 3.0 Dual DisplayPort KVM Switch 4 PCs 2 Monitors 4K@60Hz
Connect four computers to two DisplayPort monitors at 4K 60 Hz with three USB 3.0 ports and audio output
- TypeDisplayPort, USB
- PC ConnectorsDisplayport, USB 3.0
- Computer Connections4 Ports
- Monitor Connections2 Ports
- Video Resolutionsupports a maximum resolution of 4K@60Hz, and is compatible
- PC SelectionPush Buttons and Wired Controller
- Control four computers with one keyboard, mouse and dual monitors
- Switch instantly via front buttons or the included wired remote
- Share three USB 3.0 peripherals across all connected systems
- Drive two displays at up to 4K 60 Hz YUV 4:4:4
- Compact 23.52 x 17.42 x 5.82 cm unit with 12 V power adapter
4-Computer Dual-Monitor KVM Switch

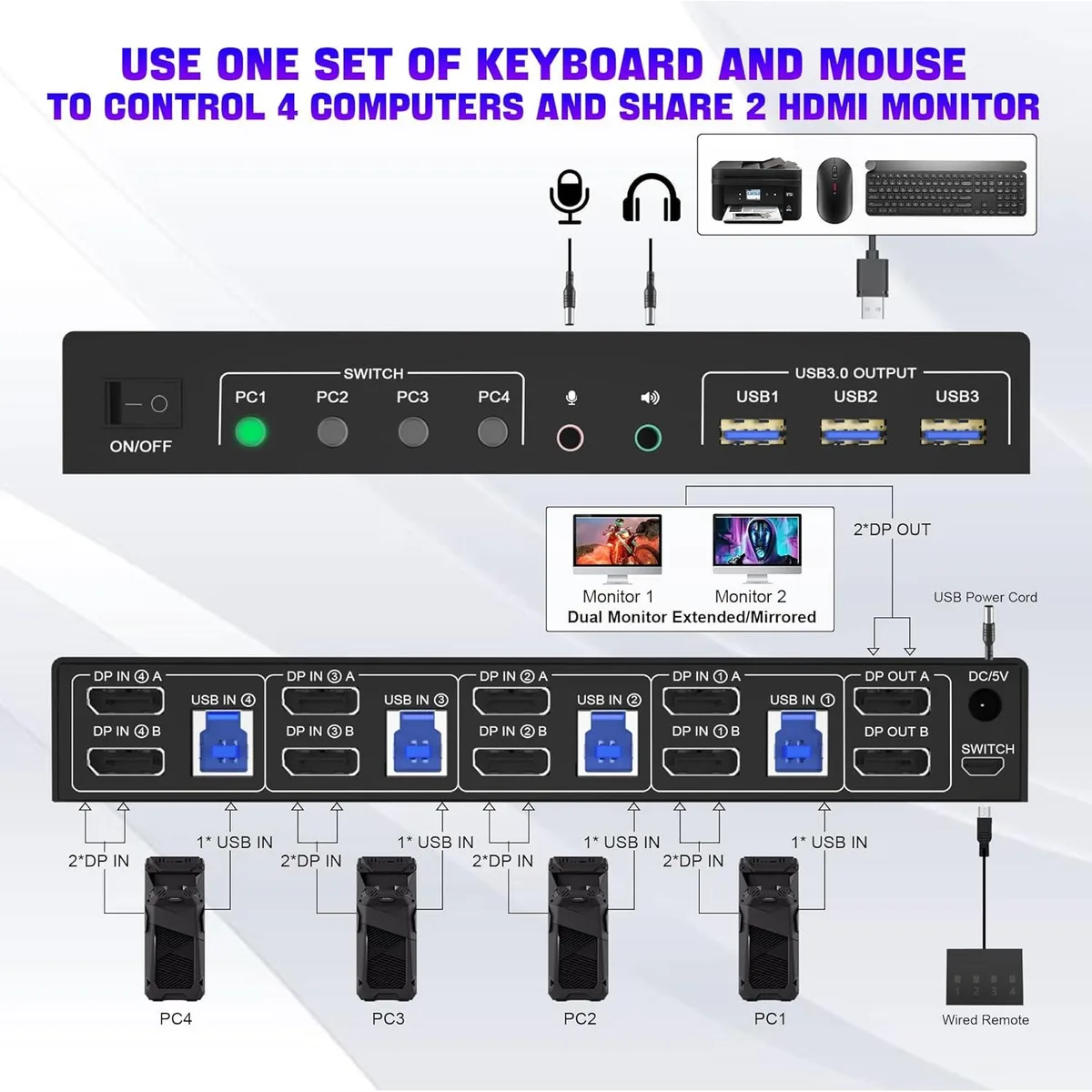

This DisplayPort KVM switch lets four desktops or laptops share one keyboard, one mouse and two monitors. It is aimed at multi-system workstations, trading desks and home labs where switching between several computers must be instant and cable clutter kept low. The unit includes a wired remote button for desk-edge control.
4K@60Hz Video with HDCP 1.4 and HDR 2.2
The switch passes up to 4K at 60 Hz with YUV 4:4:4 colour, HDCP 1.4 and HDR 2.2, so protected content and high-dynamic-range material display correctly. Both the source graphics cards, the monitors and the DisplayPort cables must support 4K@60Hz to achieve that maximum; otherwise the link falls back to lower resolutions such as 1080p@60Hz.
Three USB 3.0 Ports and 12 V Power
Three downstream USB 3.0 ports at 5 Gbps connect keyboards, mice, flash drives, printers or other peripherals that move with the active computer. A supplied 12 V DC adapter powers the switch so USB devices receive stable current without drawing from the host ports. The package includes four USB 3.0 cables and a wired selector button.
Highlights
- Control four computers with one keyboard, mouse and dual monitors
- Switch instantly via front buttons or the included wired remote
- Share three USB 3.0 peripherals across all connected systems
- Drive two displays at up to 4K 60 Hz YUV 4:4:4
- Compact 23.52 x 17.42 x 5.82 cm unit with 12 V power adapter
Specifications
| Type | DisplayPort, USB |
|---|---|
| PC Connectors | Displayport, USB 3.0 |
| Computer Connections | 4 Ports |
| Monitor Connections | 2 Ports |
| Video Resolution | supports a maximum resolution of 4K@60Hz, and is compatible downwards. |
| PC Selection | Push Buttons and Wired Controller |
| Monitors Supported | Displayport, Displayport |
| LED Indicators | Yes |
| Audio Features | with Audio Microphone Output |
| Power Features | Come with 12V DC Power Adapter |
| USB Features | This Dual monitor Displayport KVM switch with 3 USB 3.0 ports which can recognize wired/wireless keyboard mouse, U-disk, printer, or other USB devices. USB 3.0 has a faster data transfer speed of up to 5Gbps, backward compatible with USB 2.0/1.1 devices while USB 2.0 has a data transfer speed of 480Mbps. |

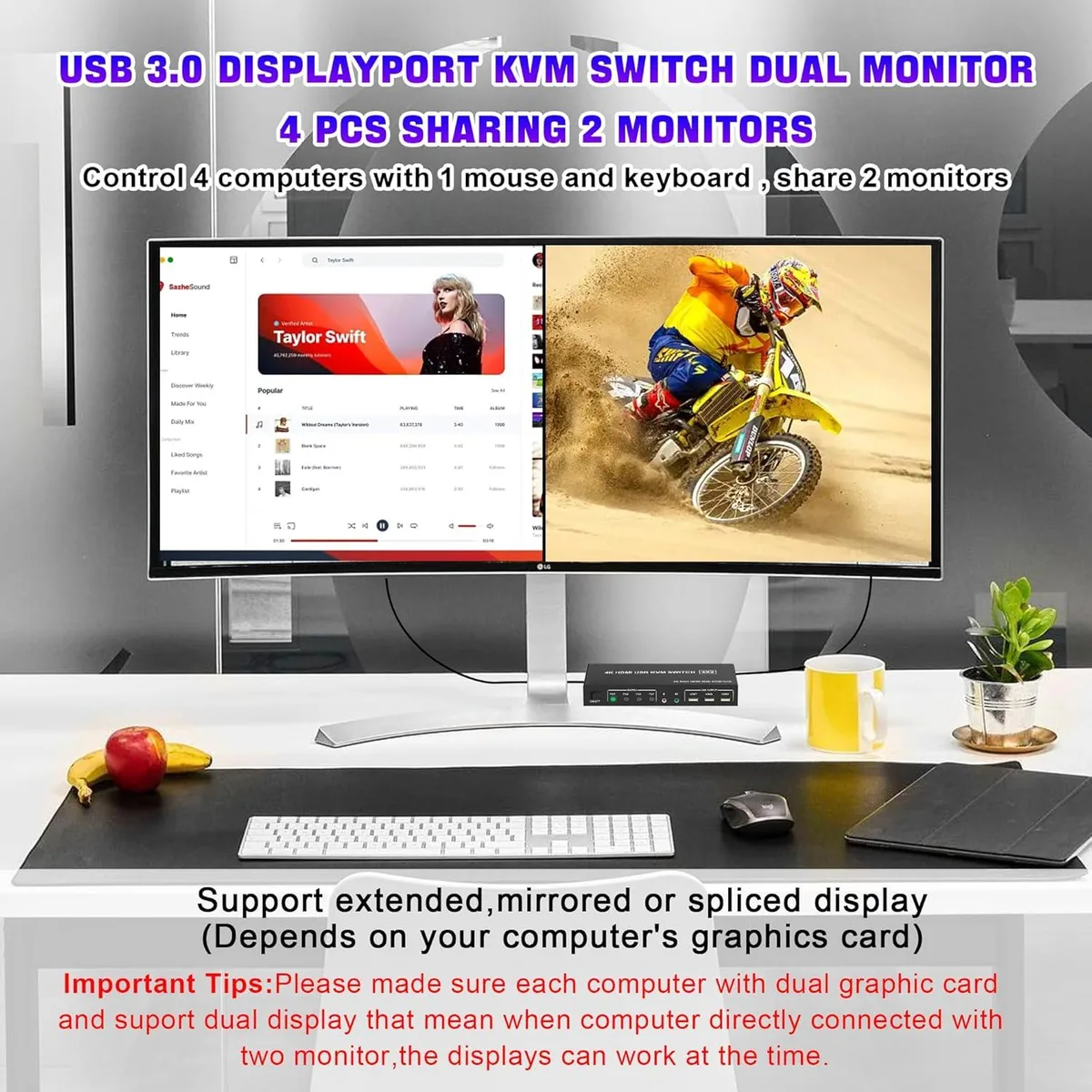

| Application | This DP KVM Switch 4 IN 2 OUT perfect for hooking up 4 desktops or laptops to share one set of keyboard, mouse and 2 monitors for extended, mirrored display. Only when your computer supports dual display or multi display, you can use this KVM to achieve 4 PC to share 2 monitors. |
| Features | 4 computers share one set of keyboard, mouse, 2 monitors, and more USB 3.0 peripherals. This dual monitor DisplayPort KVM switch Supports maximum resolution up to 4K 60Hz YUV 4:4:4, HDCP 1.4, HDR 2.2; Dual monitors output support up to 4K@60Hz for extended, mirrored or spliced display（Depends on your computer's graphics card.）; Compatible with Windows 11/10/7/2000/XP/Vista, Linux, UNIX, Ubuntu, Fedora, and other systems; 2 Switching modes: Button switch and wired remote. The ports that need to plug in DisplayPort/USB cables are all hidden behind the KVM, so the desktop doesn't get cl |
| Dimensions | 23.52 x 17.42 x 5.82 cm |
| Weight | 330g |
| Package Contents | 1x USB 3.0 DisplayPort Dual Monitor KVM Switch, 4 x USB 3.0 Cables, 1x Power Adapter, 1x Wired Button Switch, 1x User's manual. |
Questions about this item
Will I actually get 4K at 60 Hz on both monitors?
The switch supports 4K 60 Hz YUV 4:4:4 on each DisplayPort output, but only if the graphics card, monitor and cable all support that mode; otherwise it falls back to lower resolutions.
What does the USB 3.0 label mean for my peripherals?
The three USB 3.0 ports run at up to 5 Gbps and are backward compatible, so keyboards, mice, flash drives and printers work without extra drivers.
How much desk space does the unit need?
The chassis measures 23.52 by 17.42 by 5.82 cm and weighs 330 g, so it fits on a typical desk and includes a wired remote for convenient placement.
