IHDAPP
IHDAPP USB 3.0 DP 1.4 KVM Switch 4×2 8K@60Hz 4K@144Hz
Shares two DisplayPort monitors and USB 3.0 peripherals across four computers with 8K at 60 Hz and 4K at 144 Hz support
- Type4-Port DisplayPort
- PC ConnectorsDP1.4, USB 3.0
- Computer Connections4 Ports
- Monitor Connections2 Ports
- Video Resolutionsupports high resolutions up to 8K@60Hz for immersive UHD vi
- PC SelectionPush Buttons and Desktop Controller
- Share one keyboard and mouse across four computers
- Dual-monitor support at 8K 60 Hz or 4K 144 Hz
- Three USB 3.0 ports deliver 5 Gbps peripheral sharing
- Switch via front buttons or 1.5 m wired remote
- Works with Windows, Mac, Linux and Unix

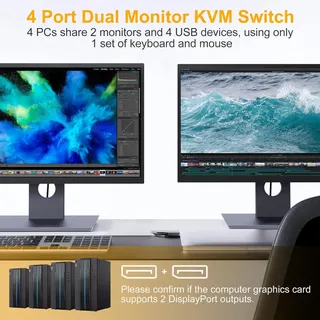

Four-computer dual-monitor KVM

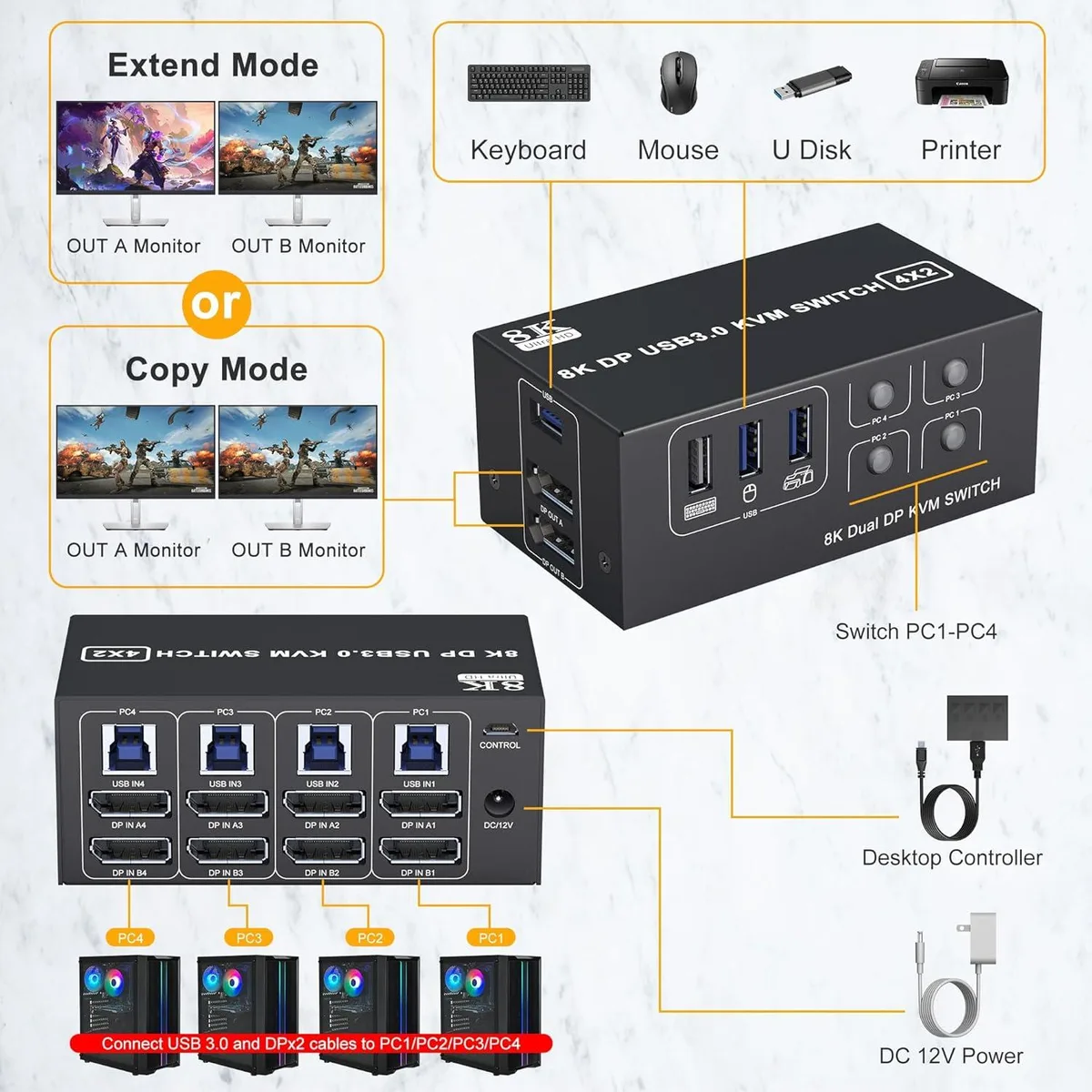

This DisplayPort 1.4 KVM switch lets four computers share two monitors and a single keyboard and mouse set. It is aimed at multi-system workstations, trading desks and home offices that need to control several PCs from one seat. The unit handles both extended and duplicate display modes for flexible desktop layouts. No software installation is required on any connected host.
8K 60 Hz and 4K 144 Hz headroom
Each DisplayPort 1.4 channel supports up to 8K at 60 Hz and 4K at 144 Hz, with backwards compatibility for lower resolutions. The dual-monitor topology provides two independent video paths per computer, so both screens can run at their native rates simultaneously. Bandwidth is sufficient for high-refresh gaming on one monitor and productivity on the other. Very high resolutions beyond 8K or refresh rates above 144 Hz at 4K are not supported.
Bundled cables and wired remote
The package includes four USB 3.0 cables for upstream computer links, a 12 V power adapter, a 1.5 m wired push-button controller and a user manual. The remote button lets you place the switch out of sight and toggle inputs from the desk edge. DisplayPort cables for the monitor outputs and computer inputs are not supplied and must be sourced separately. Hot-key switching is not available on this model.
Highlights
- Share one keyboard and mouse across four computers
- Dual-monitor support at 8K 60 Hz or 4K 144 Hz
- Three USB 3.0 ports deliver 5 Gbps peripheral sharing
- Switch via front buttons or 1.5 m wired remote
- Works with Windows, Mac, Linux and Unix
Specifications
| Type | 4-Port DisplayPort |
|---|---|
| PC Connectors | DP1.4, USB 3.0 |
| Computer Connections | 4 Ports |
| Monitor Connections | 2 Ports |
| Video Resolution | supports high resolutions up to 8K@60Hz for immersive UHD visuals, and also supports 4K@60Hz or other lower resolutions (backwards compatible). |
| PC Selection | Push Buttons and Desktop Controller |
| Monitors Supported | Displayport Dual Monitor |
| LED Indicators | Yes |
| Power Features | Requires no additional power supply |
| USB Features | with USB support |
| Application | This DP 1.4 dual monitor KVM switch is suitable for 4 computers and 2 monitors. It only needs a set of wired or wireless keyboard and mouse to control 4 computers and share 4 USB devices and 2 monitors. And supports copy mode and extended mode (copy mode: two monitors output the same image; extend mode: two monitors output different images) |
| Features | 8K@60Hz Dual Monitor KVM Switch (DP+DP) 4 computers share 2 monitors and USB 3.0 devices The dual-monitor KVM switch HDMI 2.0 can connect 4 computer hosts to share a set of keyboard, mouse and 2 monitors. Supports Windows/Vista/XP and Mac operating systems, Linux and Unix, plug and play. Supports front panel buttons and external switching buttons to control KVM switching input sources. Supports USB 3.0 transfer rates up to 5Gbps. |
| Dimensions | 9.06 x 6.77 x 2.24 inches |
| Weight | 1.63 Pounds |
| Package Contents | 1x USB 3.0 KVM Switch DisplayPort 8K, 4 x USB 3.0 Cables, 1x 12V Power Adapter, 1x Wired Button Contorller, 1x User's manual |
Questions about this item
Will the IHDAPP 4×2 DP 1.4 KVM work with my older PCs that only output 4K@60Hz?
Yes. The switch is backwards compatible and will pass 4K@60Hz signals from legacy sources to both monitors without any extra setup.
How do I confirm the switch is passing an 8K@60Hz signal to both displays after I connect everything?
Power on the unit, select a port using the front button or wired controller, then check that each monitor’s on-screen menu reports 8K at 60 Hz and that the corresponding LED for that port is lit.
Which cables and accessories are included, and what must I buy separately to run four computers on two monitors?
The box contains the KVM, four USB 3.0 cables, a 12 V power adapter, a 1.5 m wired button controller and the manual; you must supply eight DisplayPort cables (two per computer) to complete the 4×2 setup.
