IHDAPP
IHDAPP SW524KVM KVM Switch 2×2 4K@60Hz 12-in-1
Controls two computers across two 4K 60 Hz monitors with 12 ports including 1 Gb Ethernet, USB 3.2, USB-C and card readers
- TypeUSB C, HDMI
- PC ConnectorsUSB C in, HDMI Out
- Computer Connections2 Ports
- Monitor Connections2 Ports HDMI
- Video Resolution4K@60Hz
- PC SelectionPush Buttons and Desktop Controller
- Control two computers and two monitors with one keyboard and mouse
- 12 integrated ports including 1000 Mbps Ethernet, USB 3.2, USB-C, SD and microSD slots
- Dual-mode EDID emulation keeps 4K@60 Hz output stable across mixed-resolution displays
- Push-button and wired remote switching lets you change sources instantly
- Compact 2.55 x 2.95 x 1.5 in design weighs only 280 g

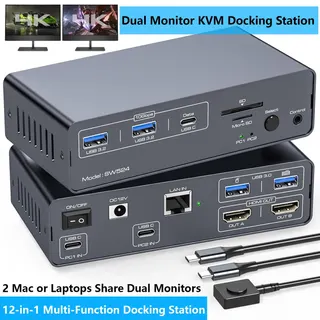

Dual Monitor KVM Docking Station

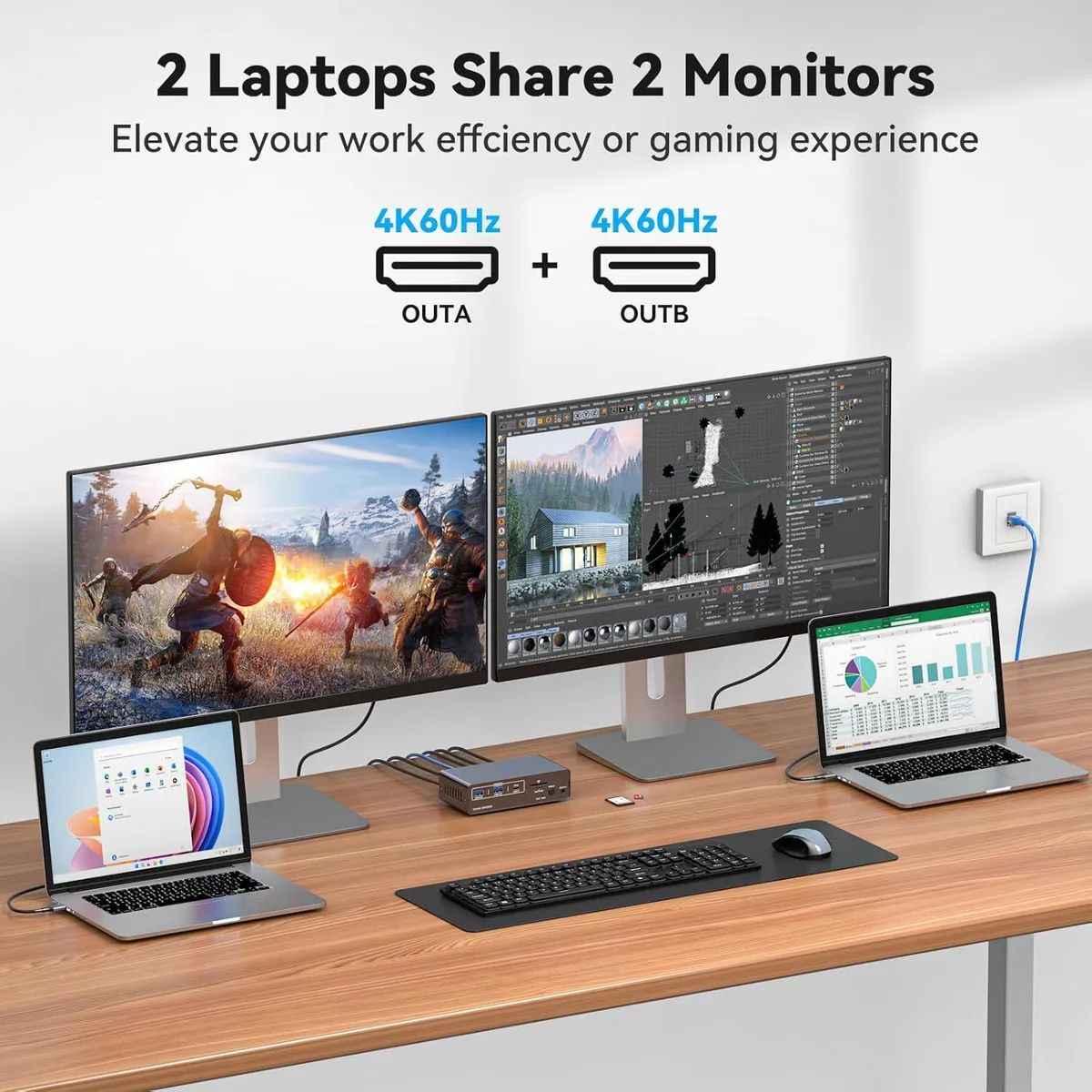

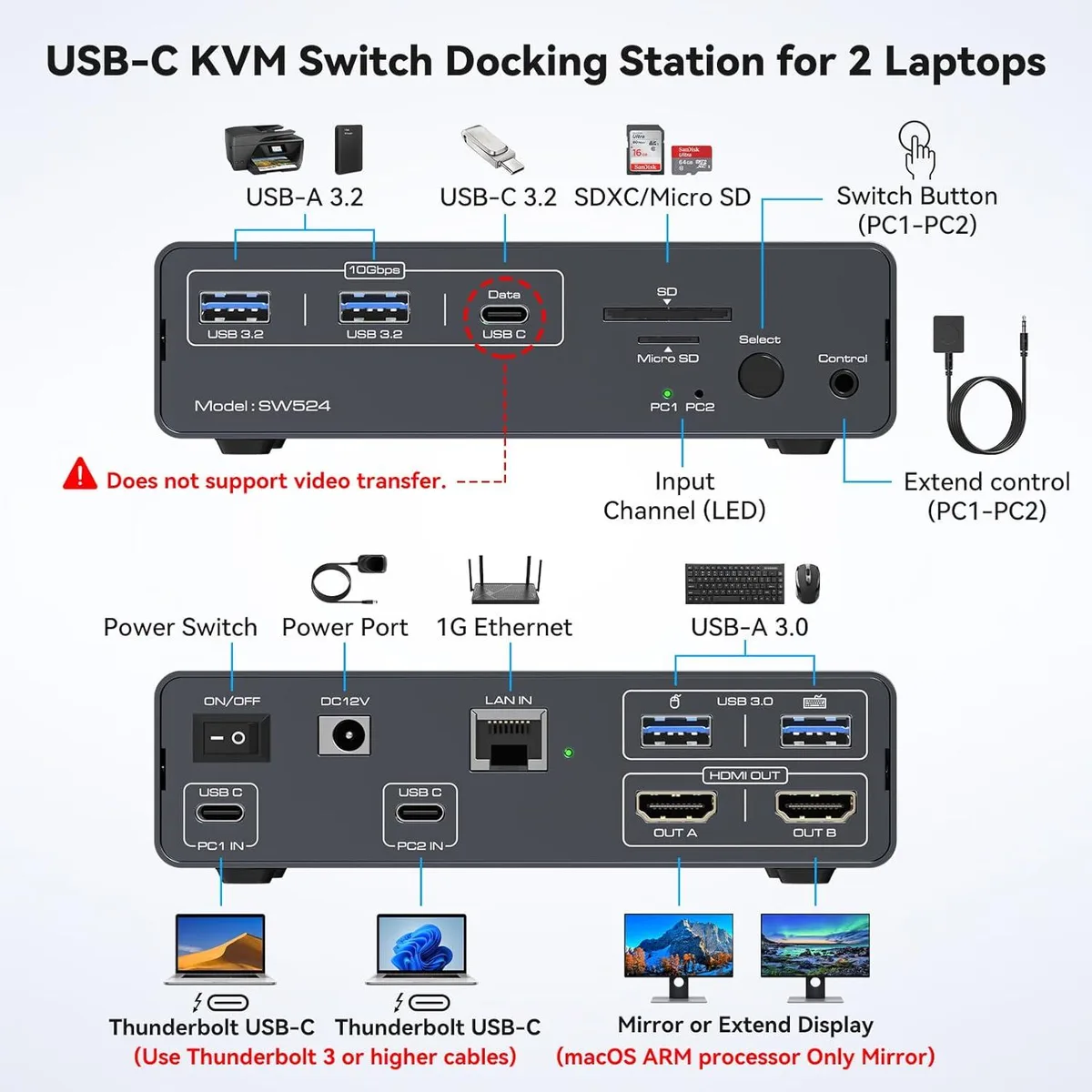

This IHDAPP SW524KVM KVM switch connects two computers to two HDMI monitors at 4K@60Hz, sharing one keyboard and mouse set. A 12-in-1 design adds Gigabit Ethernet, USB 3.2 and USB-C data ports, plus SD and microSD card slots. Switching is handled by push buttons or the wired remote controller. It suits users who need a compact dual-head KVM with integrated docking.
Ideal for dual-computer desk setups
Workers alternating between a work laptop and a personal machine will benefit from single-peripheral control and fast peripheral sharing. The front USB-C port handles data only, so buyers needing PD charging or video from that port should look elsewhere. Network switching follows the active computer, preventing simultaneous dual-PC network access.
Video resolution capped at 4K@60Hz
Both HDMI outputs are limited to 4K at 60 Hz with dual-mode EDID emulation for resolution compatibility. If your workflow demands higher refresh rates, HDR, or resolutions beyond 4K60, this unit will not meet that requirement.
Highlights
- Control two computers and two monitors with one keyboard and mouse
- 12 integrated ports including 1000 Mbps Ethernet, USB 3.2, USB-C, SD and microSD slots
- Dual-mode EDID emulation keeps 4K@60 Hz output stable across mixed-resolution displays
- Push-button and wired remote switching lets you change sources instantly
- Compact 2.55 x 2.95 x 1.5 in design weighs only 280 g
Specifications
| Model | SW524KVM |
|---|---|
| Type | USB C, HDMI |
| PC Connectors | USB C in, HDMI Out |
| Computer Connections | 2 Ports |
| Monitor Connections | 2 Ports HDMI |
| Video Resolution | 4K@60Hz |
| PC Selection | Push Buttons and Desktop Controller |
| Monitors Supported | HDMI, HDMI |
| LED Indicators | YES |
| Audio Features | No |
| Power Features | 12V DC Power Adapter |
| USB Features | with USB support |
| Application | This dual monitor kvm docking station supports controlling 2 computer and 2 monitors using only 1 set of keyboards and mice, you can easily switch between your work and personal computers, suitable for a variety of office environments. |
| Features | The docking station offers a variety of ports with Ethernet bandwidth up to 1000Mbps, USB 3.2 and USB-C ports for connecting high-speed USB devices, SD card and micro SD card slots to make reading and transferring data more convenient. |
| Dimensions | 2.55 inch x 2.95 inch x 1.5 inch |
| Weight | 280g |
| Package Contents | 1 x KVM Switch, 2 x USB C Cables, 1 x Power Adapter, 1 x Wired Remote, 1 x User Manual |
Questions about this item
Does the IHDAPP SW524KVM run hot or draw much power when both 4K@60Hz outputs are active all day?
The unit ships with a 12 V DC power adapter and measures 2.55 × 2.95 × 1.5 inch; no fan is mentioned, so heat and noise stay low during continuous dual-monitor use.
What ports must my two laptops already provide for the SW524KVM to drive both displays and USB devices?
Each computer needs a USB-C port that supports video output (DisplayPort Alt Mode) plus an HDMI output; the rear panel has one USB-C and one HDMI input per system.
Will my older 1080p monitors work correctly when I switch between a new laptop and a legacy PC on this KVM?
Dual-mode EDID emulation presents a stable 4K@60Hz-capable sink to each source, so older 1080p displays are recognised and keep their native resolution when you switch channels.
