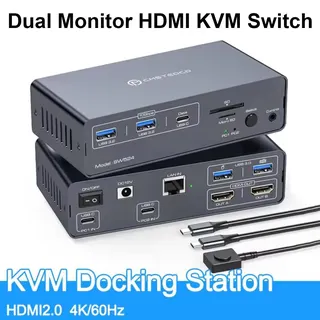

IHDAPP SW524 12-in-1 Thunderbolt 3 KVM Switch
A 12-in-1 Thunderbolt 3 KVM switch lets two laptops share dual 4K60 HDMI monitors, keyboard, mouse, 1000Mbps Ethernet, 10Gbps USB 3.2 ports.
- TypeHDMI, Type-C
- PC ConnectorsType C, HDMI
- Computer Connections2 Port HDMI - Dual Monitor
- Monitor Connections2 Ports HDMI
- Video ResolutionThis KVM Switch 2 computers the resolution is up to 4K60Hz,
- PC SelectionPush Buttons and Wired Controller
- Controls two laptops and two monitors with one keyboard and mouse
- Dual 4K 60 Hz HDMI outputs for detailed visuals
- 10 Gbps USB 3.2 ports move large files in seconds
- 1000 Mbps Ethernet follows the active computer
- Front buttons and wired remote give instant switching
Dual laptop control via Thunderbolt 3
The IHDAPP SW524 is a 12-in-1 KVM switch that lets two laptops share dual HDMI monitors, keyboard, mouse and a full set of USB and Ethernet ports. Each laptop connects through a single Thunderbolt 3 USB-C cable that carries video and data. A 12 V 1.5 A power adapter is included for stable operation.
Windows users needing dual 4K60 output.

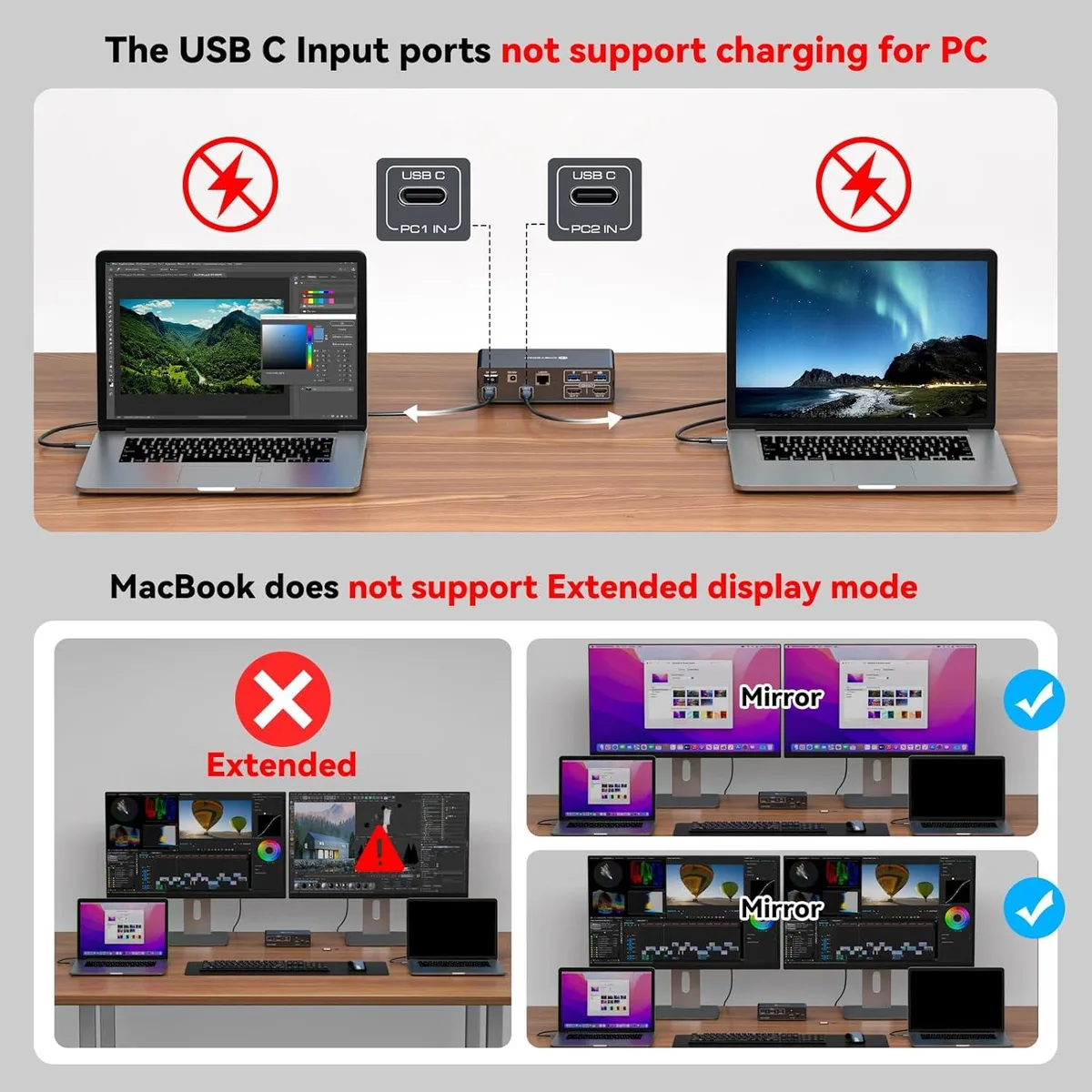

Windows laptops with Thunderbolt 3 or higher can drive two external displays at 4K 60 Hz and use all 10 Gbps USB 3.2 ports, dual 5 Gbps USB 3.0 ports, Gigabit Ethernet, SD and microSD slots. MacOS laptops are limited to copy mode only and cannot use the expansion ports. Buyers who need Power Delivery charging through the KVM should look elsewhere, as the USB-C inputs do not supply power to the host.
Thunderbolt 3 host requirement decides compatibility
The decisive specification is that each laptop must provide a Thunderbolt 3 (or newer) USB-C port with video-out capability. Without Thunderbolt 3 the switch cannot deliver dual 4K60 HDMI signals or the 10 Gbps USB 3.2 data paths. Verify the host port specification before purchase.
Highlights
- Controls two laptops and two monitors with one keyboard and mouse
- Dual 4K 60 Hz HDMI outputs for detailed visuals
- 10 Gbps USB 3.2 ports move large files in seconds
- 1000 Mbps Ethernet follows the active computer
- Front buttons and wired remote give instant switching
Specifications
| Model | SW524 KVM Switch |
|---|---|
| Type | HDMI, Type-C |
| PC Connectors | Type C, HDMI |
| Computer Connections | 2 Port HDMI - Dual Monitor |
| Monitor Connections | 2 Ports HDMI |
| Video Resolution | This KVM Switch 2 computers the resolution is up to 4K60Hz, let you feel the details and colors in the picture more realistically. |
| PC Selection | Push Buttons and Wired Controller |
| Monitors Supported | HDMI, HDMI |
| LED Indicators | Yes |
| Power Features | Come with DC Power Adapter |
| USB Features | USB 3.2 port of the kvm switches supports up to 10gbps data transfer speed for fast synchronization of large files, you can move or copy large amount of data/photos/HD movies in seconds (USB-C Data port on the front channel can only transfer data, it doesn't support PD charging and video transfer) |

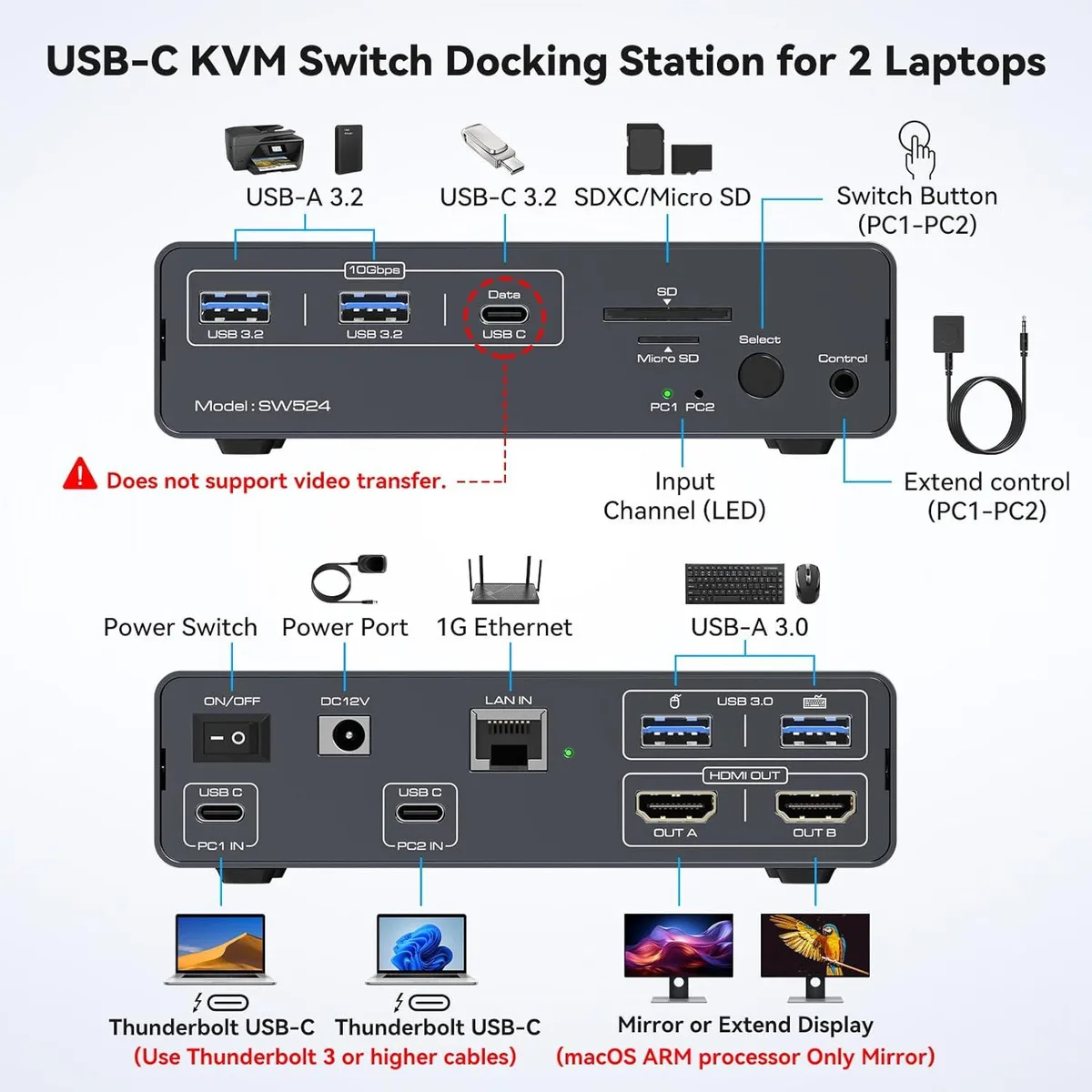

| Application | Allows two laptops to share the following expansion ports: 2*5Gbps USB3.0, 1*1000Mbps Ethernet port, 2*4K60 HDMI Display, 2*10Gbps USB3.2, 1*10Gbps USB C , 1*SD, 1*microSD card. (Please note that two laptops cannot use the KVM Switch at the same time.) |
| Features | Supports controlling 2 computer devices and 2 monitors using only 1 set of keyboard and mouse. Supports mouse and keyboard connection to laptop docking stations via two USB 3.0 ports. Supports connecting barcode scanners, USB storage, or other high-speed USB devices through two USB 3.2 Gen2 and one USB-C port. Supports host USB 3.2 Gen2 transfer rate. Supports Ethernet bandwidth up to 1000Mbps (The network follows the current channel switch and cannot be used by two computers simultaneously). Support front panel buttons and external switch buttons to control laptop docking stations i |
| Dimensions | L141xW75xH38mm |
| Package Contents | Machine *1 Cowhide box *1 Neck card *1 USBC-C Data Cable *2 12V1.5A power adapter *1 External wiring control *1 Instructions *1 |
Questions about this item
Should I pick this 12-in-1 model or a simpler hub for two laptops and two monitors?
This SW524 provides 12 functions including dual 4K60 HDMI, 10Gbps USB 3.2, 1000Mbps Ethernet, SD and microSD slots, letting two laptops share one keyboard, mouse and monitor pair.
What does the 4K60Hz headline figure deliver on my actual screens?
Each monitor can run at 4K resolution and 60Hz refresh when connected through the HDMI outputs, giving sharp detail and smooth motion for both computers.
How does the Thunderbolt 3 interface limit what I can connect?
The USB-C inputs require Thunderbolt 3 or higher for video; the switch does not supply power to laptops and Macs only support copy mode, not extended desktop.
