IHDAPP

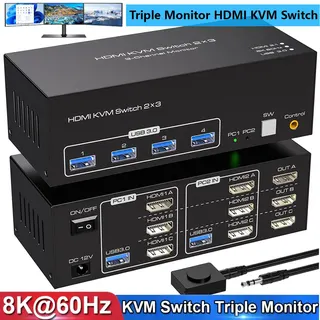

IHDAPP SW231 8K@60Hz HDMI KVM Switch 3 Monitors 2 Computers
Share two computers across three HDMI monitors up to 8K 60 Hz with four USB 3.0 ports and a wired remote
- TypeHDMI KVM Switch 3 Monitors 2 Computers
- PC ConnectorsHDMI 2.1, USB 3.0
- Computer Connections2 Ports
- Monitor Connections3 Ports HDMI
- Video ResolutionThe HDMI 2.1 KVM switch supports resolutions and refresh rat
- PC SelectionPush Buttons and Wired Controller
- Share triple monitors between two computers with 8K@60Hz clarity
- Switch instantly via front buttons or wired remote for hands-free control
- Four USB 3.0 ports at 5Gbps keep keyboard, mouse, printer and drive connected
- Extend or mirror three displays to match any workflow
- HDMI 2.1 and HDCP 2.3 support ensures compatibility with modern sources
Triple-monitor KVM for two computers

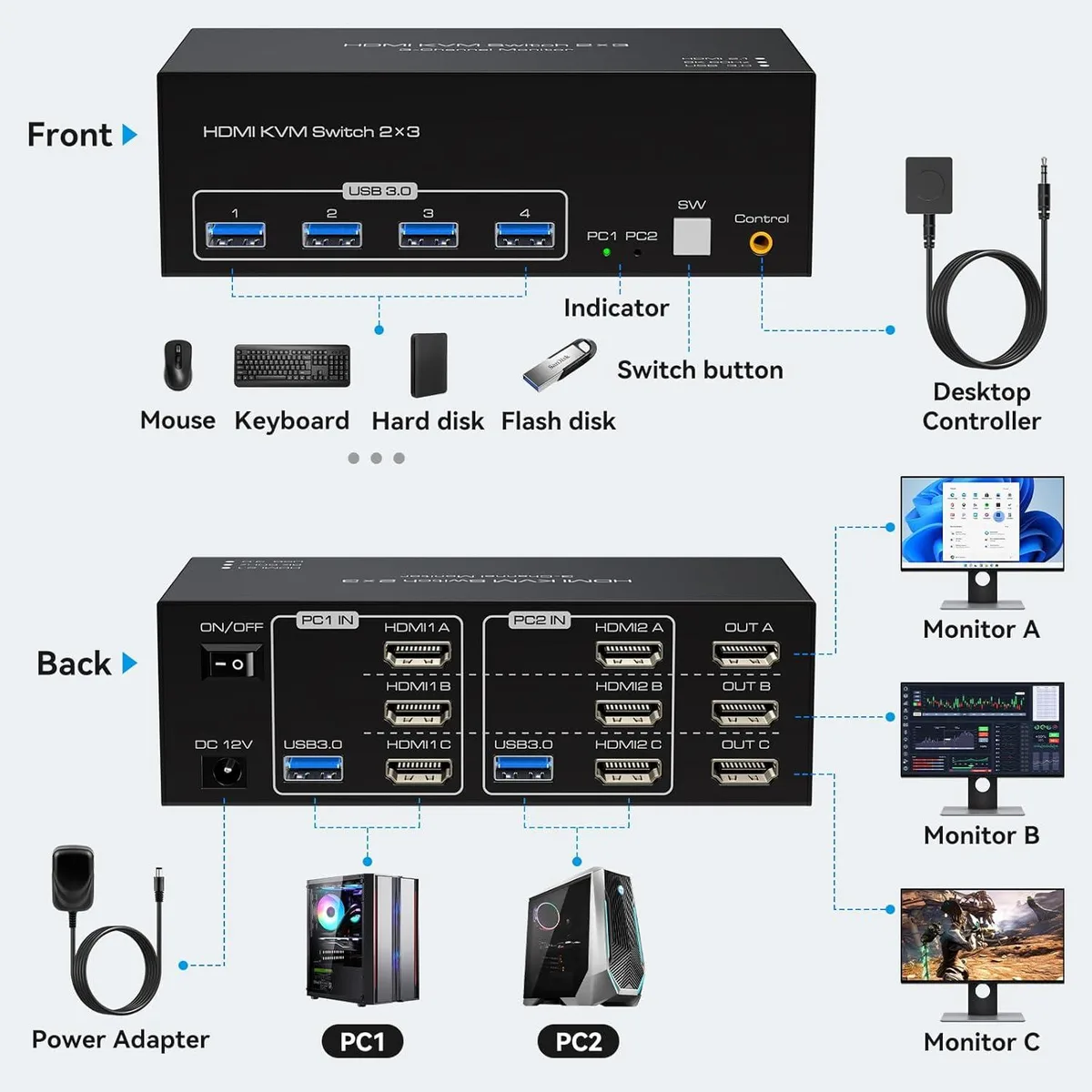

The IHDAPP SW231 lets two PCs or laptops share three HDMI displays and four USB 3.0 peripherals. Users can switch between the connected computers using front-panel push buttons or the included wired remote. The unit supports both extended and duplicate display modes for flexible multitasking setups.
HDMI 2.1 bandwidth and USB 3.0 limits
Video passes through HDMI 2.1 at up to 8K@60Hz and 4K@120Hz, with backward compatibility down to 720P. The four USB 3.0 ports each deliver 5Gbps data throughput and remain compatible with USB 2.0 and 1.1 devices. No audio extraction or dedicated audio ports are provided on this model.
Replaces manual cable swapping for dual-system desks
This switch removes the need to physically move monitor and USB cables when changing between two computers. The upgrade is worthwhile when a workflow demands simultaneous access to three screens and multiple peripherals across both machines. It does not suit single-computer users or setups requiring more than two host connections.
Highlights
- Share triple monitors between two computers with 8K@60Hz clarity
- Switch instantly via front buttons or wired remote for hands-free control
- Four USB 3.0 ports at 5Gbps keep keyboard, mouse, printer and drive connected
- Extend or mirror three displays to match any workflow
- HDMI 2.1 and HDCP 2.3 support ensures compatibility with modern sources
Specifications
| Model | SW231 KVM |
|---|---|
| Type | HDMI KVM Switch 3 Monitors 2 Computers |
| PC Connectors | HDMI 2.1, USB 3.0 |
| Computer Connections | 2 Ports |
| Monitor Connections | 3 Ports HDMI |
| Video Resolution | The HDMI 2.1 KVM switch supports resolutions and refresh rates up to 8K@60Hz 4K@120Hz, and is backward compatible with 1080p 3D 720P, etc. |
| PC Selection | Push Buttons and Wired Controller |
| Monitors Supported | HDMI, HDMI, HDMI - Triple Monitor |
| LED Indicators | Yes |
| Audio Features | No |
| Power Features | 12V DC Adapter |
| USB Features | featuring 4 USB 3.0 ports. Each port can transmit data at speeds of up to 5Gbps, offering significantly faster performance compared to USB 2.0. USB 3.0 is also compatible with older USB versions like 2.0 and 1.1 |

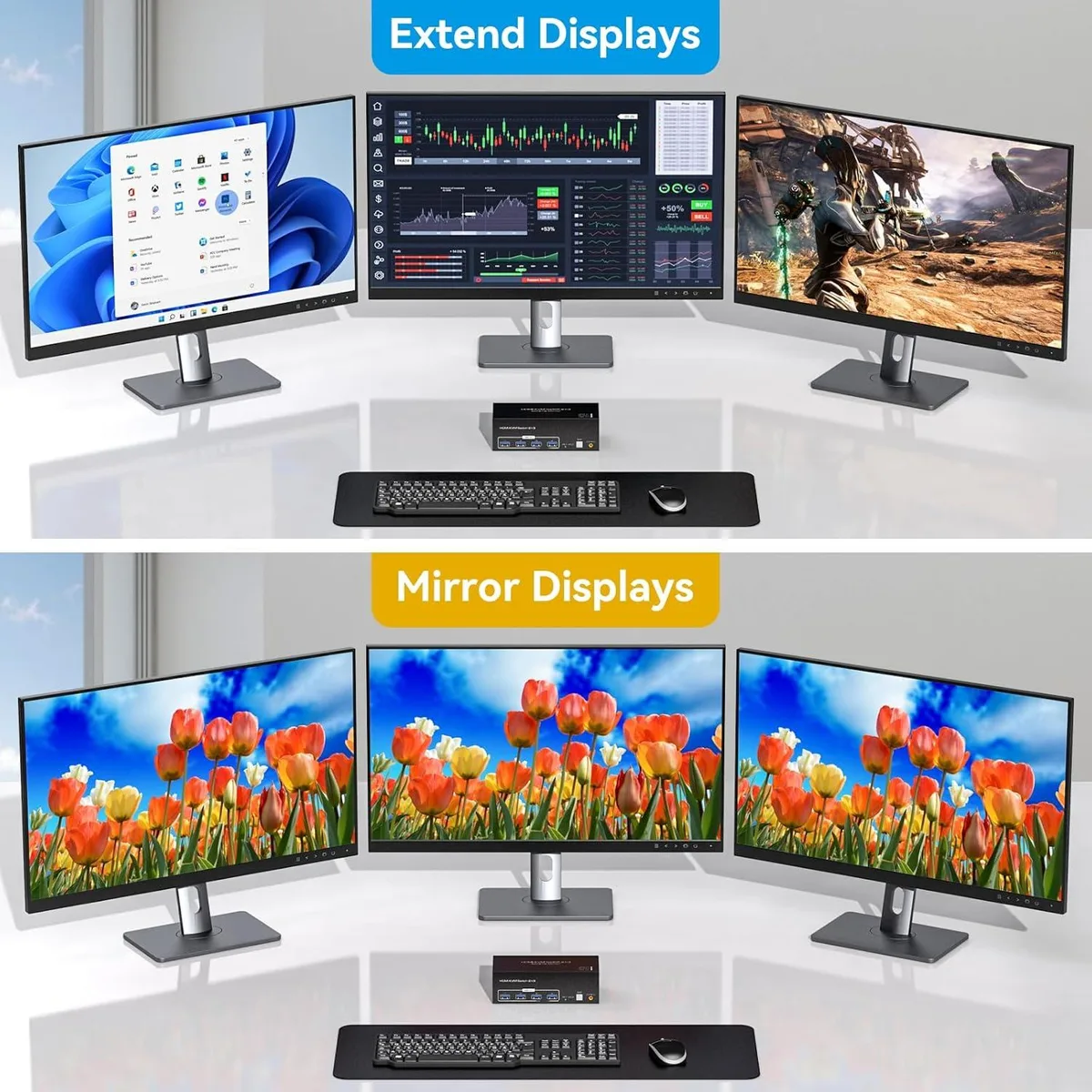

| Application | KVM Switch 3 Monitors allow two computers to share triple high-definition monitors and 4 USB 3.0 ports, such as mouse, keyboard, printer U disk, etc. And connect three displays in extend or duplicate display mode. Extended Mode: PC host in output 3 different images on 3 monitors. Copy Mode: Computer host outputs 3 identical images on 3 monitors. |
| Features | 1. 2 computers/laptops share one set of keyboard, mouse, and 3 HDMI monitors 2. Triple monitors output support up to 8K@60Hz for extended and mirror display, support HDMI 2.1 and HDCP 2.3 standards. 3. 2 Switching modes: Button switch and wired remote. 4. With extra 4 x 5Gbps USB 3.0 ports . 5. Cross-support most major OS including Windows, Linux, Mac, and more. 6. The ports that need to plug in HDMI/USB cables are all hidden behind the 3 monitor kvm switch, so the desktop doesn't get cluttered, you can enjoy the clean work space. |
| Dimensions | 7.83 x 5.71 x 2.72 inches |
| Weight | 1.34 Pounds |
| Package Contents | 1x USB 3.0 HDMI Triple Monitor KVM Switch, 2x USB 3.0 Cables, 1x Power Adapter, 1x Wired Button Switch, 1x User's manual |
Questions about this item
How do I pick the right resolution setting for my three monitors?
Choose 8K at 60 Hz if your graphics cards and cables support HDMI 2.1; otherwise select 4K at 120 Hz or any lower resolution such as 1080p or 720p — the switch handles all of them.
What does the 8K@60Hz rating mean when I connect two PCs?
Each computer can drive three displays at up to 8K 60 Hz or 4K 120 Hz through HDMI 2.1, provided the source, cables and monitors all support that bandwidth.
Which HDMI version does the switch use and what bandwidth limit applies?
The unit uses HDMI 2.1 with HDCP 2.3, capping video at 8K 60 Hz or 4K 120 Hz per channel.
