IHDAPP
IHDAPP KVM202 DP+HD KVM Switch 2 Monitors 2 Computers 4K@60Hz 100W PD
Controls two computers across dual 4K@60Hz monitors with one keyboard and mouse, plus four USB 3.0 ports and 100W power delivery
- TypeUSB C HDMI Displayport KVM Switch 2 Monitors 2 Computers
- Computer Connections2 Ports
- Monitor Connections2 Ports
- Video ResolutionOur dual-monitor KVM switch support delivers stunning 4K@60H
- PC SelectionPush Buttons and Wired Remote
- Monitors SupportedHDMI, Displayport
- Control two computers with one keyboard and mouse
- Dual 4K@60Hz video with HDCP 2.2 support
- Four USB 3.0 ports sharing peripherals at 5Gbps
- Push-button and wired remote switching options
- 100W USB-C power delivery charges laptops

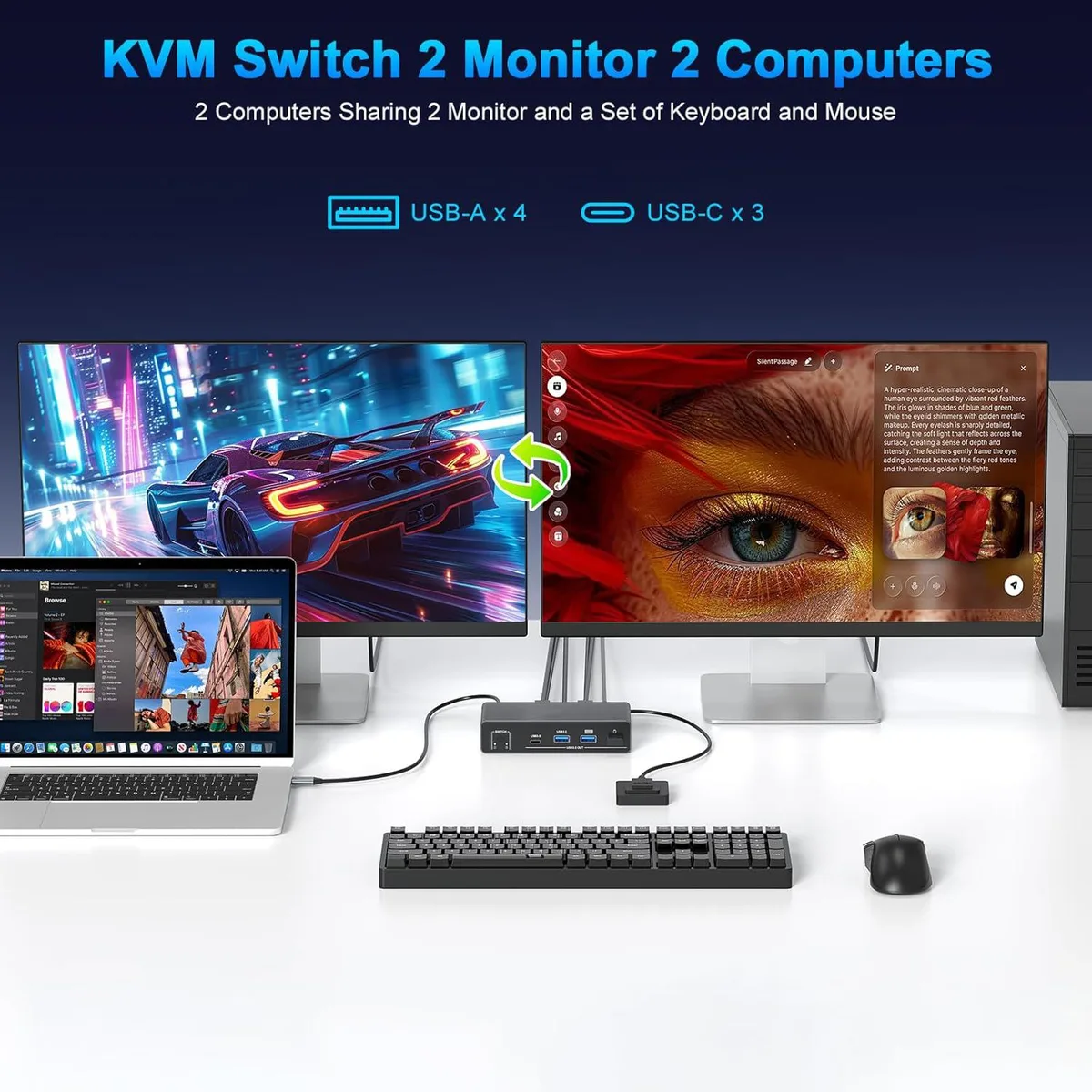

Dual-Monitor KVM Switch for Two Computers
The IHDAPP KVM202 DP+HD connects two computers to two monitors and shares a single keyboard, mouse and four USB 3.0 peripherals. It supports HDMI and DisplayPort inputs and delivers 4K@60Hz video with HDCP 2.2 compliance. The unit includes a 100W USB-C Power Delivery port for charging a connected laptop.
Plug-and-Play Installation
No drivers are required; the switch uses adaptive EDID to set display parameters automatically. Users change the active computer by pressing the front-panel buttons or the supplied wired desktop keypad. Hotkey switching is not supported, so a physical button press is always needed. High-quality HDMI 2.1 and DisplayPort 1.4 cables are necessary to reach 4K@60Hz.
Bandwidth and Peripheral Limits
The HDMI 2.1 and DisplayPort 1.4 interfaces cap video at 4K@60Hz; higher refresh rates or resolutions are not possible. USB 3.0 ports run at 5Gbps, so very high-speed storage will be limited to that throughput. The 100W Power Delivery port charges only the computer attached to the USB-C upstream port; the second computer must use its own power supply.
Highlights
- Control two computers with one keyboard and mouse
- Dual 4K@60Hz video with HDCP 2.2 support
- Four USB 3.0 ports sharing peripherals at 5Gbps
- Push-button and wired remote switching options
- 100W USB-C power delivery charges laptops
Specifications
| Model | KVM202 DP+HD |
|---|---|
| Type | USB C HDMI Displayport KVM Switch 2 Monitors 2 Computers |
| Computer Connections | 2 Ports |
| Monitor Connections | 2 Ports |
| Video Resolution | Our dual-monitor KVM switch support delivers stunning 4K@60Hz visuals, with crystal-clear details on your monitors. It works seamlessly with HDCP 2.2, which allowing watch protected content without interruptions.? It’s flexible for many display needs, supporting 4K@60Hz/30Hz, 2K, 3D, and 1080P. Note: Please use high-quality HDMI 2.1 Displayport 1.4 /USB C cables to achieve 4K@60Hz performance. |
| PC Selection | Push Buttons and Wired Remote |
| Monitors Supported | HDMI, Displayport |
| LED Indicators | Yes |
| Power Features | Come with DC 12V Power Adapter |
| USB Features | The 4K@60Hz USB-C HDMI Displayport KVM switch is equipped with one USB C and three USB 3.0 ports, with a transfer speed of up to 5Gbps, which is 10x faster than USB2.0. |
| Application | This Two monitor Two computers KVM switch revolutionizes your workflow by letting you control 2 computers effortlessly using a single keyboard and mouse—all while sharing 2 monitors. No more hassle of repeatedly plugging and unplugging devices; switching between the two computers is quick and smooth. Widely compatible with major operating systems like Windows, Mac, and Linux, it’s designed for easy setup with true plug-and-play functionality, so you can start using it right away without complex configurations. |
| Dimensions | 5.7 x 2.4 x 0.8 inches |
| Weight | 260g |
| Package Contents | 1*KVM switch Dual Monitor, 1*USB3.0 cables, 1*USB C cables,1*wired desktop keypad, 1*12V Power adapter and 1*user manual. |
Questions about this item
How do I confirm the switch is passing 4K@60Hz to both monitors after setup?
Check each monitor's on-screen menu to verify it reports 4K at 60 Hz; ensure HDCP 2.2 content plays without interruption on both screens.
What cables and accessories are included, and what must I provide?
The box includes the KVM unit, one USB 3.0 cable, one USB-C cable, a wired desktop keypad, a 12V power adapter, and a user manual. You must supply two HDMI 2.1 or DisplayPort 1.4 cables per computer for 4K@60Hz.
Which video-port combination should I choose for my dual-monitor setup?
The switch provides one HDMI and one DisplayPort monitor output; use the port that matches each monitor's input, and connect each computer via its HDMI and DisplayPort sources for full dual-display operation.
