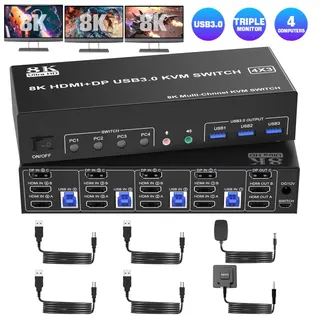

IHDAPP KVM Switch 3 Monitors 4 Computers 2 HDMI 1 DisplayPort 8K@60Hz 4K@144Hz
Connects four computers to three monitors — two HDMI and one DisplayPort — at up to 8K 60 Hz or 4K 144 Hz with shared keyboard, mouse, audio and three USB 3.0 ports
- Type2 HDMI + 1 Displayport
- PC ConnectorsHDMI Displayport, USB
- Computer Connections4 Ports
- Monitor Connections3 Ports ( 2 HDMI + 1 Displayport )
- PC SelectionPush Buttons and Wired Remote
- Monitors SupportedHDMI, HDMI, Displayport
- Share one keyboard, mouse and three monitors across four computers
- Output up to 8K at 60 Hz and 4K at 144 Hz on three displays
- Switch instantly with front buttons or wired remote
- Three USB 3.0 ports plus separate audio and microphone outputs
- Rear-facing ports keep cables hidden for a tidy workspace
Triple-monitor KVM for four computers

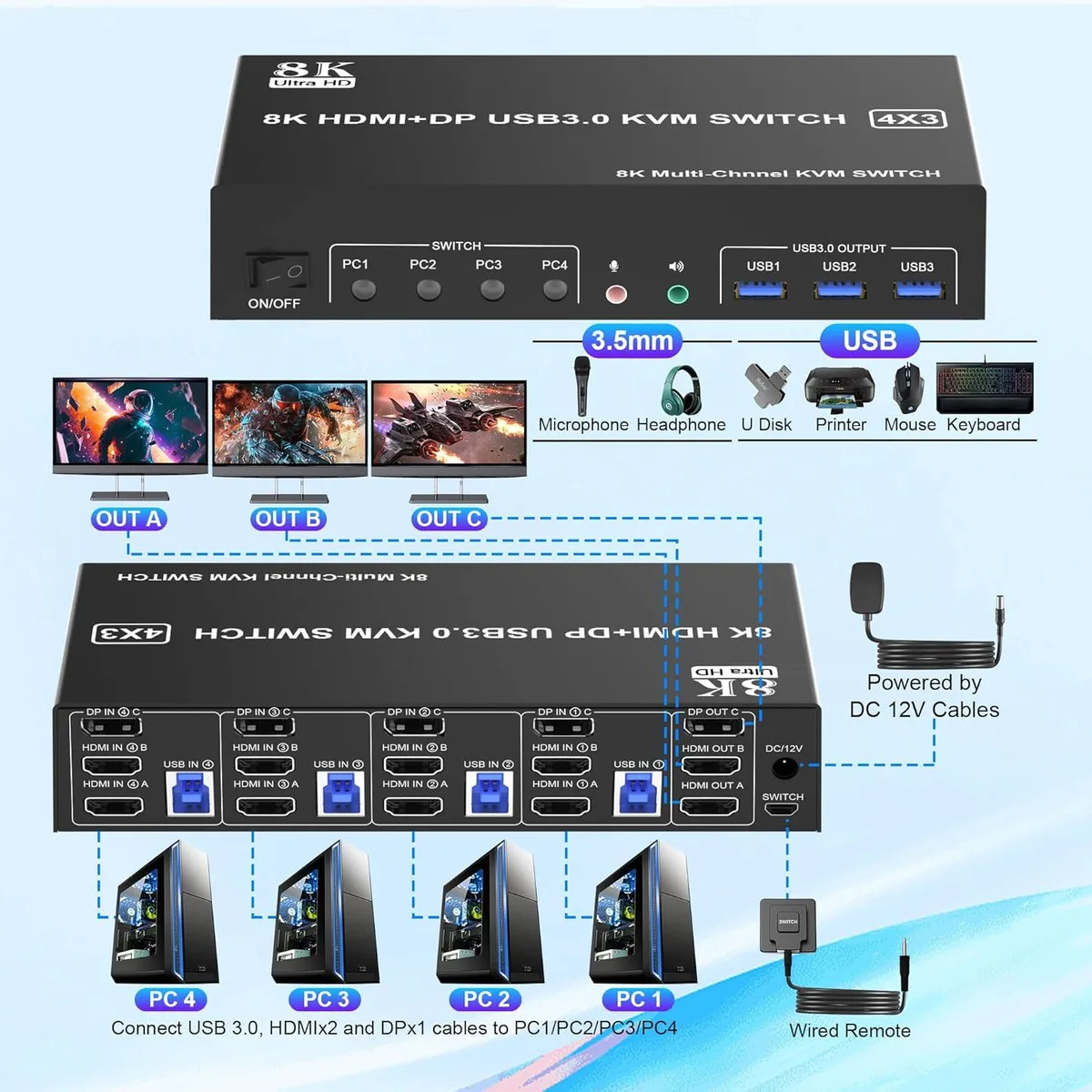

This KVM switch connects four computers or laptops to one keyboard, one mouse and three monitors using two HDMI and one DisplayPort output. It supports resolutions up to 8K at 60 Hz and 4K at 144 Hz for extended, mirrored or spliced desktop layouts. The unit includes three USB 3.0 ports for shared peripherals and separate audio and microphone connections. A 12 V power adapter, four USB 3.0 cables and a wired remote button are supplied.
Buyers with four systems and three displays
The switch suits users who need to operate four PCs from a single console with three monitors and shared USB devices. It does not suit setups that require more than three monitor outputs or more than four computer inputs. It also does not suit users whose computers lack the necessary HDMI or DisplayPort video ports.
HDMI 2.1 and DisplayPort 1.4 video bandwidth
The single specification that determines compatibility is support for HDMI 2.1 and DisplayPort 1.4, enabling 8K@60Hz and 4K@144Hz output on each of the three monitor ports. Each connected computer must provide matching video outputs and graphics capability to reach those resolutions.
Highlights
- Share one keyboard, mouse and three monitors across four computers
- Output up to 8K at 60 Hz and 4K at 144 Hz on three displays
- Switch instantly with front buttons or wired remote
- Three USB 3.0 ports plus separate audio and microphone outputs
- Rear-facing ports keep cables hidden for a tidy workspace
Specifications
| Model | KVM Switch 3 Monitors 4 Computers |
|---|---|
| Type | 2 HDMI + 1 Displayport |
| PC Connectors | HDMI Displayport, USB |
| Computer Connections | 4 Ports |
| Monitor Connections | 3 Ports ( 2 HDMI + 1 Displayport ) |
| PC Selection | Push Buttons and Wired Remote |
| Monitors Supported | HDMI, HDMI, Displayport |
| LED Indicators | Yes |
| Audio Features | supports separate audio and microphone output |
| Power Features | Come with DC 12V Power Adapter |
| USB Features | with USB support |
| Application | This computer switch for 4 computers 3 monitors perfect for hooking up 4 desktops or laptops to share one set of keyboard, mouse and 3 monitors for extended, mirrored display; Perfect for computers with 2 HDMI and 1 Displayport monitor for the display outputs. |
| Features | 1. 8K 3 monitor kvm switches allows 4 computers/laptops share one set of keyboard, mouse, and 3 monitors (2 HDMI + 1 DisplayPort) 2. Support HDMI 2.1 and DP 1.4 standards and downward compatible. 3 monitors output support up to 8K@60Hz 4K@144Hz for extended, mirrored or spliced display（Depends on your computer's graphics card.）; 3. 2 Switching modes: Button switch and wired remote. 4. KVM switch with 3 USB 3.0 ports for USB devices, and with extra Audio Microphone output. 5. Plug and play, compatible with Windows, Linux, Mac, Unix, Ubuntu, Raspberry and most other major OS |
| Dimensions | 23.39 x 17.2 x 5.69 cm |
| Weight | 900g |
| Package Contents | 1x 4 Port USB 3.0 Triple Monitor KVM Switch, 4x USB 3.0 Cables, 1x Power Adapter, 1x Wired Button Switch, 1x User's manual |
Questions about this item
How long will the push buttons and wired remote last before they need replacing?
The switch provides two selection methods — front push buttons and a wired remote — so you can alternate between them and reduce wear on either control.
What limits triple-monitor output during extended sessions?
The unit supports HDMI 2.1 and DP 1.4 with a maximum of 8K at 60 Hz or 4K at 144 Hz across the three video ports.
Does the 12 V power adapter or the switch itself get hot or noisy when running all day?
The device has no fan and draws power from the included 12 V adapter, so it runs silently and stays cool under normal desktop loads.
