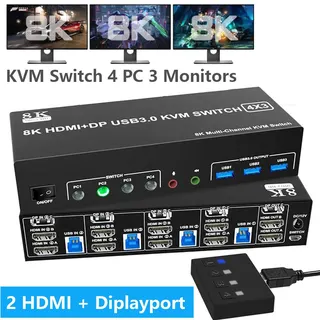

IHDAPP KVM Switch 3 Monitors 4 Computers 2 HDMI 1 DisplayPort 8K@60Hz 4K@144Hz USB 3.0 Audio
Control four computers with one keyboard, mouse and three monitors at up to 8K@60Hz via two HDMI and one DisplayPort, plus three USB 3.0 ports and audio
- Type1 Displayport + 2 HDMI
- PC ConnectorsHDMI, Displayport, USB
- Computer Connections4 Ports
- Monitor Connections3 Ports
- Video ResolutionKVM Switch DisplayPort: support resolution up to 8K@30Hz/ [e
- PC SelectionPush Buttons
- Control 4 computers with one keyboard, mouse and triple monitors
- Share 2 HDMI and 1 DisplayPort display across 4 PCs
- Switch instantly via front button or wired remote
- Connect printers and drives through 3 USB 3.0 ports at 5Gbps
- Supports 8K at 60Hz on HDMI and 4K at 144Hz on DisplayPort
4-Port Triple-Monitor KVM Switch

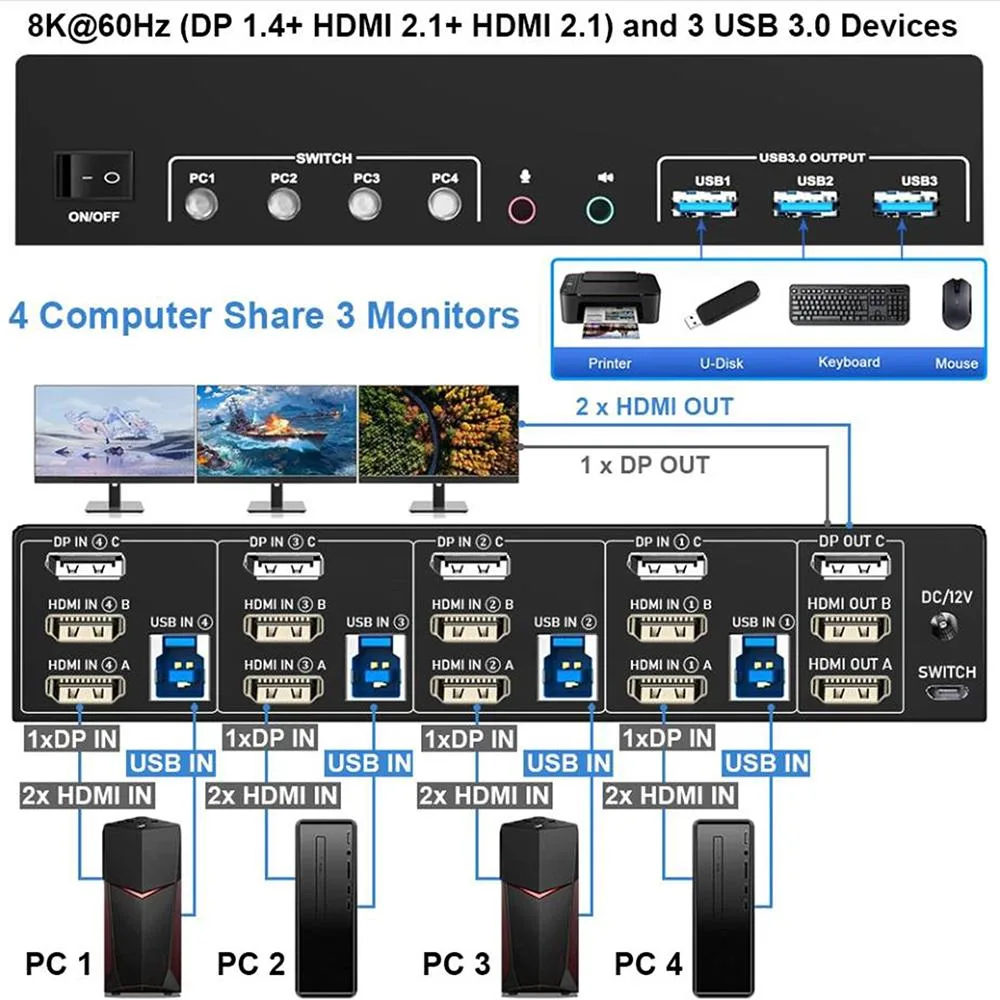

This IHDAPP KVM switch lets four computers share one keyboard, one mouse and three displays — two HDMI and one DisplayPort. It targets users who need simultaneous multi-monitor access across several systems without re-plugging cables. The unit draws power from the included adapter and requires no extra supply. Compatibility spans Windows, Linux, macOS and other major operating systems.
Bundled Cables, Remote and USB 3.0 Hub
The package supplies four USB 3.0 cables, a wired remote button and a power adapter so every host can be connected immediately. Three USB 3.0 ports on the switch add a shared hub for keyboards, mice, printers or storage at up to 5Gbps versus 480Mbps on USB 2.0. An audio microphone output is also provided for headset switching alongside the video channels.
HDMI 2.1 and DisplayPort 1.4 Limits

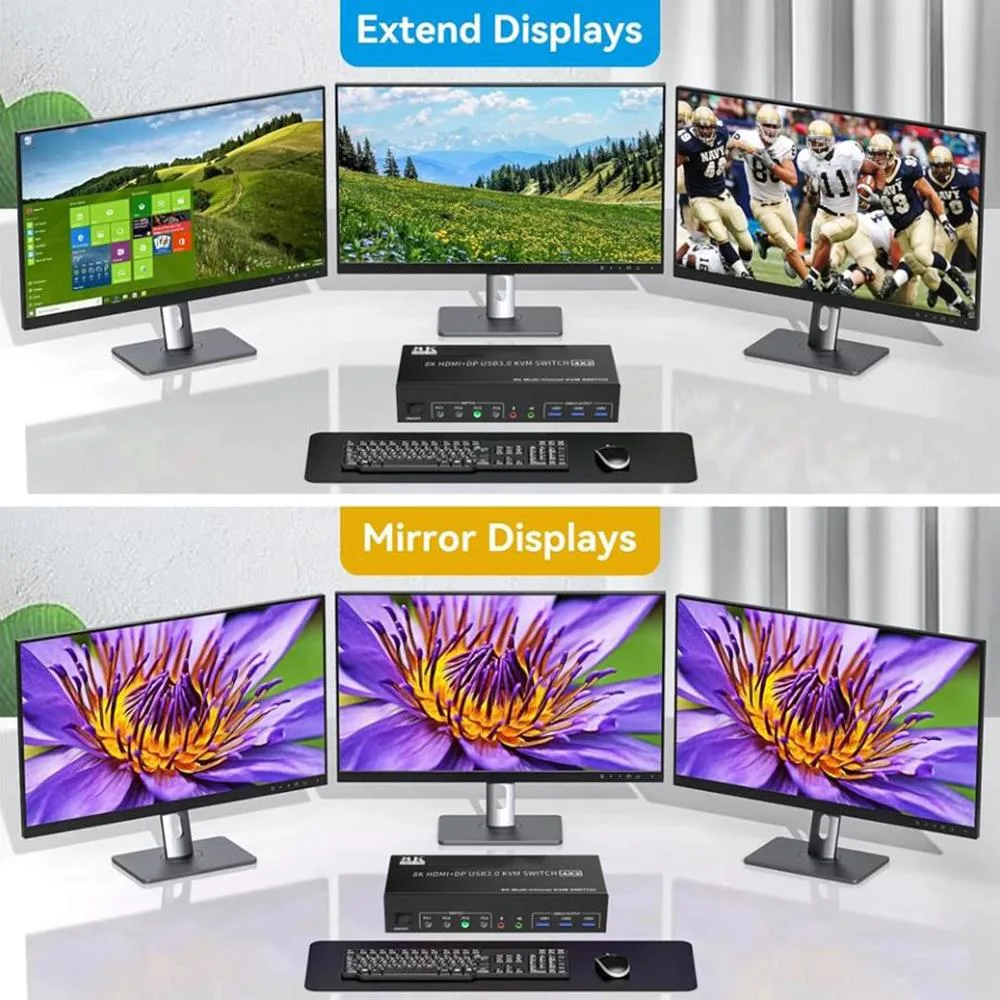

HDMI ports support up to 8K at 60Hz, 4K at 60Hz or 2K at 60Hz. The DisplayPort input reaches 8K at 30Hz or 4K at 144Hz. All outputs are backward compatible with lower resolutions. Extended, mirrored or spliced multi-monitor modes depend entirely on the host graphics card, so single-display GPUs cannot drive three screens.
Highlights
- Control 4 computers with one keyboard, mouse and triple monitors
- Share 2 HDMI and 1 DisplayPort display across 4 PCs
- Switch instantly via front button or wired remote
- Connect printers and drives through 3 USB 3.0 ports at 5Gbps
- Supports 8K at 60Hz on HDMI and 4K at 144Hz on DisplayPort
Specifications
| Type | 1 Displayport + 2 HDMI |
|---|---|
| PC Connectors | HDMI, Displayport, USB |
| Computer Connections | 4 Ports |
| Monitor Connections | 3 Ports |
| Video Resolution | KVM Switch DisplayPort: support resolution up to 8K@30Hz/ [email protected] Monitor KVM Switch HDMI: support resolution up to 8K@60Hz/4K@60Hz/2K@60Hz and backward compatible with lower resolution |
| PC Selection | Push Buttons |
| Monitors Supported | 2 HDMI + 1 Displayport, 3 Monitors |
| LED Indicators | Yes |
| Audio Features | with Audio |
| Power Features | Requires no additional power supply |
| USB Features | with USB support |
| Application | 8K 60Hz 4x3 2 Channel HDMI + 1 Channel Displayport USB 3.0 KVM Switch allows you to share one USB keyboard, USB mouse, and two HDMI monitor & one DP monitor to control 4 computers, laptops, game consoles. It is designed for multitask with four computers at your necessary, increasing productivity in the office or at home ; You can switch between 4 computers using a manual switch located on the top of the KVM unit. |
| Features | 1. 8K Triple Monitor KVM Switch 4-Port allows 4 computers/laptops share one set of keyboard, mouse, and 3 monitors (2 HDMI + 1 DisplayPort) 2. Support HDMI 2.1 and DP 1.4 standards and downward compatible. 3 monitors output support up to 8K@60Hz for extended,mirrored or spliced display（Depends on your computer's graphics card.）; 3. 2 Switching modes: Button switch and wired remote. 4. KVM switch with 3 USB 3.0 ports for USB devices, and with extra Audio Microphone output 5. Plug and play, compatible with Windows, Linux, Mac, Unix, Ubuntu, Raspberry and most other major OS |
| Dimensions | 9.13 x 6.77 x 2.32 inches |
| Weight | 2.14 Pounds |
| Package Contents | 1x 4 Port USB 3.0 Triple Monitor KVM Switch, 4x USB 3.0 Cables, 1x Power Adapter, 1x Wired Button Switch, 1x User's manual. |
Questions about this item
Will the wired remote switch or front-panel buttons wear out and need replacement?
Both switching methods are mechanical controls with no user-serviceable parts listed; the unit ships with one wired remote and the front buttons are built into the chassis.
What resolution limit appears first when all three monitors run at high refresh rates for hours?
DisplayPort output caps at 4K@144Hz or 8K@30Hz, while each HDMI output caps at 4K@60Hz, so the DP 1.4 link reaches its bandwidth ceiling before the HDMI 2.1 links.
How hot or loud does the KVM get when powering three 8K displays and four computers all day?
The switch draws power from the included adapter and has no fan; it runs silently and stays at ambient temperature because it only routes signals without active processing.
