IHDAPP KVM Switch 3 Monitors 3 Computers HDMI 2 DisplayPort 8K 60Hz 4K 144Hz USB 3.0 4 Ports Wired Remote
A triple-monitor KVM switch sharing three computers across three displays with 4 USB 3.0 ports at up to 8K 60 Hz or 4K 144 Hz
- TypeHDMI + 2 Displayport
- PC ConnectorsHDMI, Displayport, USB 3.0
- Computer Connections3 Ports
- Monitor Connections3 Ports
- Video ResolutionDisplayport: support resolution up to 8K@30Hz /4K@144Hz, HDM
- PC SelectionPush Buttons
- Share three PCs across three monitors with extended or mirrored modes
- Switch instantly via front buttons or 1.52 m wired remote
- Drive 8K at 60 Hz over HDMI and 4K at 144 Hz over DisplayPort
- Connect keyboard, mouse and peripherals through four USB 3.0 ports at 5 Gb/s
- Metal chassis with LED status lights fits in 16.5 × 6.5 × 4.5 cm
Triple-monitor KVM for three computers

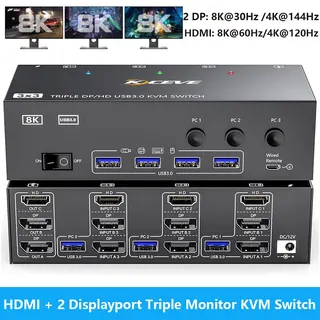

This IHDAPP switch lets three desktops or laptops share three monitors and four USB 3.0 peripherals. Each system connects through one HDMI and two DisplayPort inputs plus a USB link. Front-panel buttons and a 1.52 m wired remote change the active computer. A 12 V power adapter is included for stable operation.
Resolution limits across HDMI and DisplayPort
HDMI outputs reach 8K at 60 Hz and 4K at 120 Hz, while each DisplayPort handles 8K at 30 Hz or 4K at 144 Hz. Both interfaces scale down to lower resolutions automatically. The USB 3.0 hub delivers up to 5 Gb/s for keyboards, mice, webcams or drives. Extended and mirrored display modes are supported.
Bandwidth and cabling constraints
Every computer needs one HDMI, two DisplayPort and one USB 3.0 cable to drive all three monitors. The supplied cables are 1.5 m long and the remote adds another 1.52 m. Total bandwidth is capped by the HDMI 2.0 and DisplayPort 1.4 class links built into the switch, so 8K at 60 Hz is only available on the HDMI path..dpPort 1.4 class links built into the switch, so 8K at 60 Hz is only available on the HDMI path.
Highlights
- Share three PCs across three monitors with extended or mirrored modes
- Switch instantly via front buttons or 1.52 m wired remote
- Drive 8K at 60 Hz over HDMI and 4K at 144 Hz over DisplayPort
- Connect keyboard, mouse and peripherals through four USB 3.0 ports at 5 Gb/s
- Metal chassis with LED status lights fits in 16.5 × 6.5 × 4.5 cm
Specifications
| Type | HDMI + 2 Displayport |
|---|---|
| PC Connectors | HDMI, Displayport, USB 3.0 |
| Computer Connections | 3 Ports |
| Monitor Connections | 3 Ports |
| Video Resolution | Displayport: support resolution up to 8K@30Hz /4K@144Hz, HDMI: support resolution up to 8K@60Hz/4K@120Hz and backward compatible with lower resolution. |
| PC Selection | Push Buttons |
| Monitors Supported | 3 Monitor |
| LED Indicators | Yes |
| Power Features | Requires no additional power supply |
| USB Features | with USB support |
| Application | triple monitor KVM switch HDMI + 2 DisplayPort supports 3 desktops or laptops share 3 monitors and 4 USB 3.0 ports (for wired/wireless keyboard, mouse, webcam, hard drive, etc.). Supports mirror and expand display modes (click on "Windows+P" to select the display mode). Please note: the mirror mode can output three identical screens and the expand mode can output three different screens. Make sure your computer supports 3 or more screens and that each computer must be connected to the KVM via 1HDMI+2DP. |
| Features | 3 computers share 3 monitors and 4 USB device. Supports wired or wireless keyboard and mouse. Support resolutions up to 8K@60Hz, 4K@144Hz. USB 3.0 with ultra-fast data transfer up to 5Gb/s. |
| Dimensions | 16.5 x 6.5 x 4.5 centimetres |
| Weight | 380 g |
| Package Contents | 1*Triple Monitor USB 3.0 KVM Switch; 3*USB3.0 Cables(1.5m/4.9ft); 1*Wired remote controller(1.52m/5ft); 1*User manual; 1*12V Power Adapter(1.52m/5ft) |
Questions about this item
Will my older 1080p monitors work with the HDMI and DisplayPort outputs on this KVM switch?
Yes, the HDMI port supports up to 8K at 60 Hz and 4K at 120 Hz, while each DisplayPort supports up to 8K at 30 Hz and 4K at 144 Hz; both are backward compatible with lower resolutions such as 1080p.
How can I confirm the switch has selected the correct computer after I press the wired remote button?
The unit includes LED indicators that show which of the three connected computers is currently active, so you can verify the selection at a glance.
Which cables are included in the box and what must I provide myself to connect three computers?
The package supplies the KVM switch, three 1.5 m USB 3.0 cables, a 1.52 m wired remote, a 12 V power adapter and a user manual; you must supply one HDMI cable and two DisplayPort cables per computer (nine video cables total).
