IHDAPP

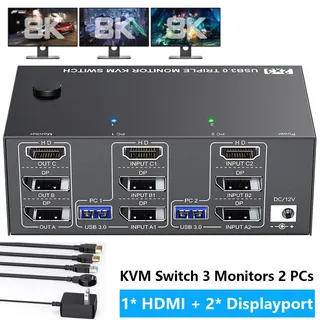

IHDAPP KVM Switch 3 Monitors 2 Computers 8K@60Hz 4K@144Hz HDMI+2 DisplayPort
Connects two computers to three monitors at up to 8K@60Hz or 4K@144Hz with four USB 3.0 ports and a wired remote
- Type1 Port HDMI + 2 Ports DisplayPort
- PC ConnectorsHDMI 2.1 and DP 1.4, USB 3.0
- Computer Connections2 Ports
- Monitor Connections3 Ports
- Video Resolutionsupport resolution up to 8K@60Hz 4K@144Hz and downwards
- PC SelectionPush Buttons and Wired Remote
- Switch two PCs across three monitors with a single keyboard and mouse
- Drive three displays at up to 8K 60 Hz or 4K 144 Hz via HDMI 2.1 and DP 1.4
- Four USB 3.0 ports share peripherals at 5 Gbps between both computers
- Change the active PC with front buttons or the wired remote
- Driver-free on Windows, Mac, Linux and Unix for instant setup
Triple-monitor KVM for two PCs
This KVM switch lets two computers share three displays and four USB 3.0 peripherals. It accepts one HDMI and two DisplayPort inputs per system and drives three monitor outputs in either extended or mirrored modes. The unit is aimed at professionals and gamers who need simultaneous multi-screen access across a pair of workstations. Driver-free operation covers Windows, Mac, Linux, Unix and Ubuntu.
HDMI 2.1 and DP 1.4 connectivity
Each computer connects through one HDMI 2.1 port and two DisplayPort 1.4 ports plus a USB 3.0 link, while the console side offers one HDMI and two DisplayPort monitor outputs. Four downstream USB 3.0 ports support 5 Gbps data for keyboards, mice, printers or flash drives. A 12 V power adapter ensures stable recognition, and front-panel buttons plus a wired remote provide two switching methods. LED indicators show the active port.
Bundled cables, remote and manual
The package includes two USB 3.0 cables for the PC links, a wired remote for desk-side switching, the 12 V power adapter and a user manual. No extra software or drivers are required, so the switch works immediately after cabling. Buyers whose systems lack the necessary HDMI and dual DisplayPort outputs will need appropriate adapters or docking stations, which are not supplied.
Highlights
- Switch two PCs across three monitors with a single keyboard and mouse
- Drive three displays at up to 8K 60 Hz or 4K 144 Hz via HDMI 2.1 and DP 1.4
- Four USB 3.0 ports share peripherals at 5 Gbps between both computers
- Change the active PC with front buttons or the wired remote
- Driver-free on Windows, Mac, Linux and Unix for instant setup
Specifications
| Type | 1 Port HDMI + 2 Ports DisplayPort |
|---|---|
| PC Connectors | HDMI 2.1 and DP 1.4, USB 3.0 |
| Computer Connections | 2 Ports |
| Monitor Connections | 3 Ports |
| Video Resolution | support resolution up to 8K@60Hz 4K@144Hz and downwards |
| PC Selection | Push Buttons and Wired Remote |
| Monitors Supported | 1* HDMI + 2* Displayport - 3 Monitors |
| LED Indicators | yes |
| Power Features | 12V power adapter |
| USB Features | with USB support |

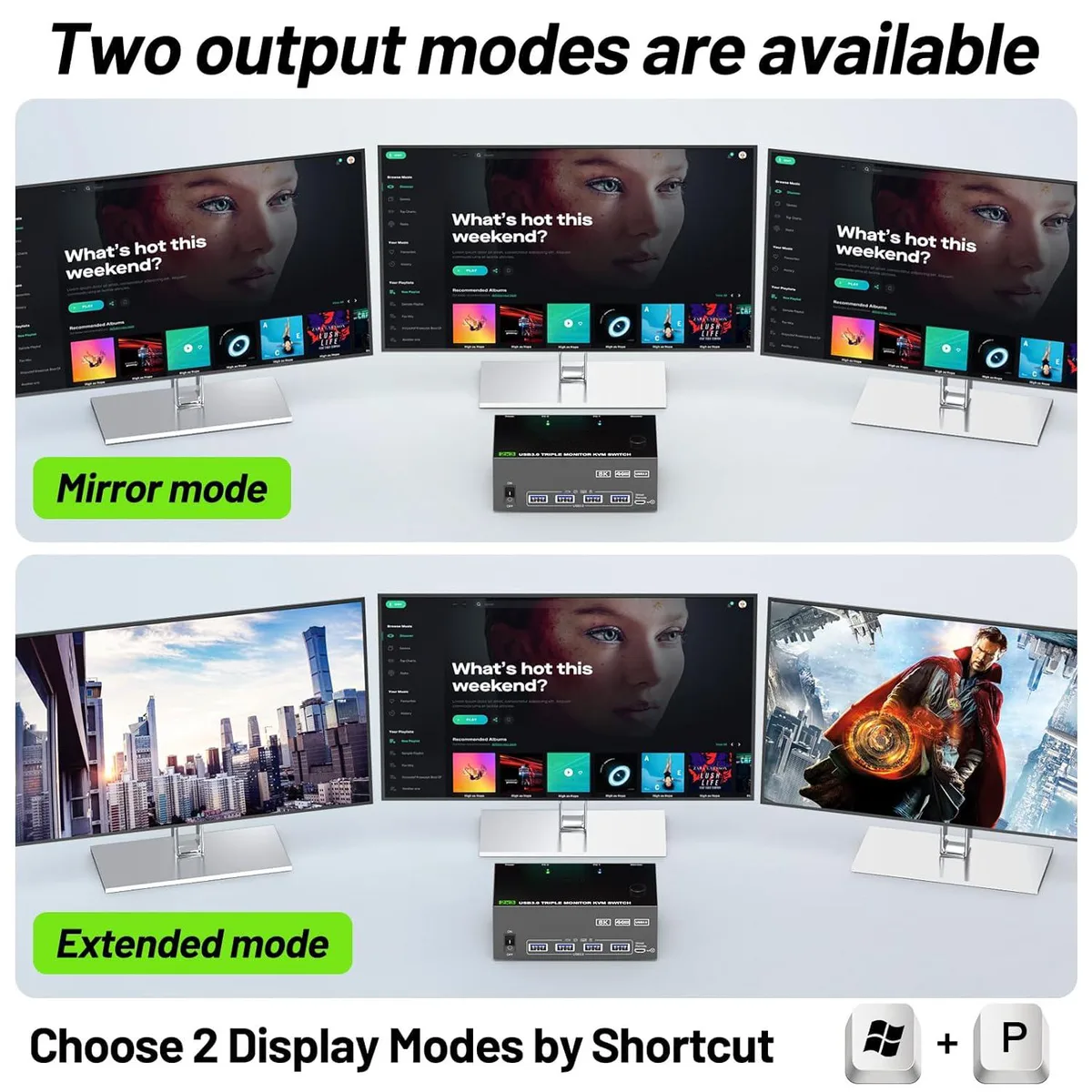

| Application | This 3 Monitors KVM Switch perfect for hooking up 2 computers to share 4 USB 3.0 ports and 3 monitors (supports extended and mirrored display modes). |
| Features | The HDMI 2.1 and DP 1.4 Triple Monitor KVM Switches support resolution up to 8K@60Hz 4K@144Hz and downwards; 3 Monitor KVM Switch with 4 USB 3.0 Ports; KVM switch 3 monitors driver-free for Windows，Mac，Linux，Unix and Ubuntu. Support PC，Laptop，Raspberry Pi，DVR，NVR.it is widely applied for home，Office，Game，Meeting，etc.. You can press the button on the panel or use the wired remote（included） to switch the 2 computers.Two color LED indicate the active computer. |
| Dimensions | 4.72 x 2.56 x 1.77 inches |
| Weight | 12.35 ounces |
| Package Contents | 1* triple monitor KVM Switch，2* USB 3.0 cable，wired remote，12V power adapter and user manual |
Questions about this item
What video bandwidth does the HDMI 2.1 and DP 1.4 interface actually deliver?
The HDMI 2.1 and DP 1.4 links support up to 8K at 60 Hz and 4K at 144 Hz, so the practical ceiling is 8K 60 Hz or 4K 144 Hz on each monitor.
How much desk space and clearance does the 4.72 x 2.56 x 1.77 inch chassis need?
The unit measures 4.72 by 2.56 by 1.77 inches and weighs 12.35 ounces, so allow a small footprint with room for the 12 V power adapter and cable bend radius.

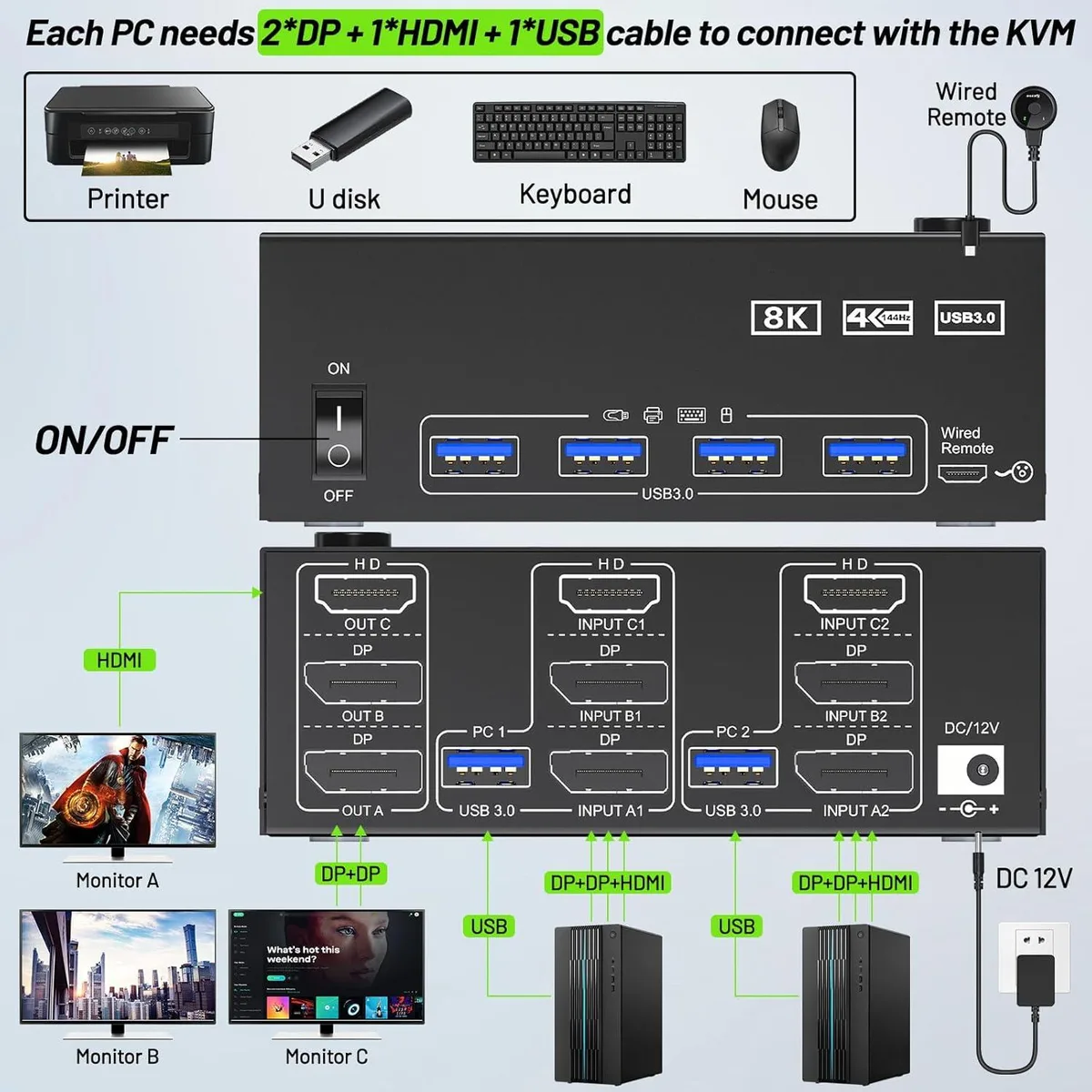

What cables must each PC provide, and which step do users often miss?
Each computer needs one HDMI cable, two DisplayPort cables and one USB 3.0 cable; the step people skip is plugging the USB cable in so keyboard and mouse switching works.
