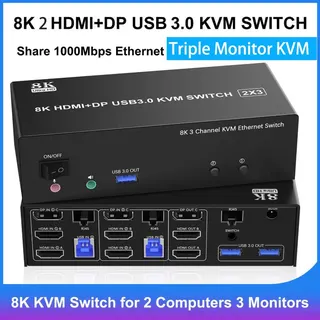

IHDAPP KVM Switch 2 PC 3 Mon 2 HDMI+DP 8K@60 4K@144 3 USB 3.0 1000Mbps LAN Audio Remote 12V
Share two computers across three monitors at up to 8K@60Hz or 4K@144Hz with USB 3.0, gigabit Ethernet and audio switching
- Type2 HDMI + 1 Displayport
- PC ConnectorsDP1.4, HDMI2.1, USB 3.0, 3.5mm Audio
- Computer Connections2 Ports
- Monitor Connections2 HDMI + 1 Displayport - Triple Monitor
- Video ResolutionThe HDMI 2.1 and DP 1.4 Triple Monitor KVM Switches support
- PC SelectionPush Buttons and Wired Controller Button
- Control two PCs with one keyboard and mouse across three monitors
- Enjoy crisp visuals up to 8K at 60 Hz or 4K at 144 Hz
- Share a single 1000 Mbps Ethernet connection between both computers
- Connect peripherals through three USB 3.0 ports running at 5 Gbps
- Switch instantly via front buttons or the wired remote controller
Triple-Monitor KVM for Two Computers
This IHDAPP KVM switch lets two computers share three monitors — two HDMI and one DisplayPort — along with three USB 3.0 ports, gigabit Ethernet and audio. One keyboard and mouse control both systems, and the unit supports extended, mirrored or spliced display modes. It is aimed at users who need a single workstation to drive multiple PCs.
Video Interface and Resolution Limits
The switch provides HDMI 2.1 and DisplayPort 1.4 connectivity, supporting up to 8K at 60 Hz and 4K at 144 Hz, with downward compatibility for lower resolutions. Actual output depends on the graphics card in each computer, so buyers must verify their GPU can drive the desired mode.
Installation Notes and Common Issues

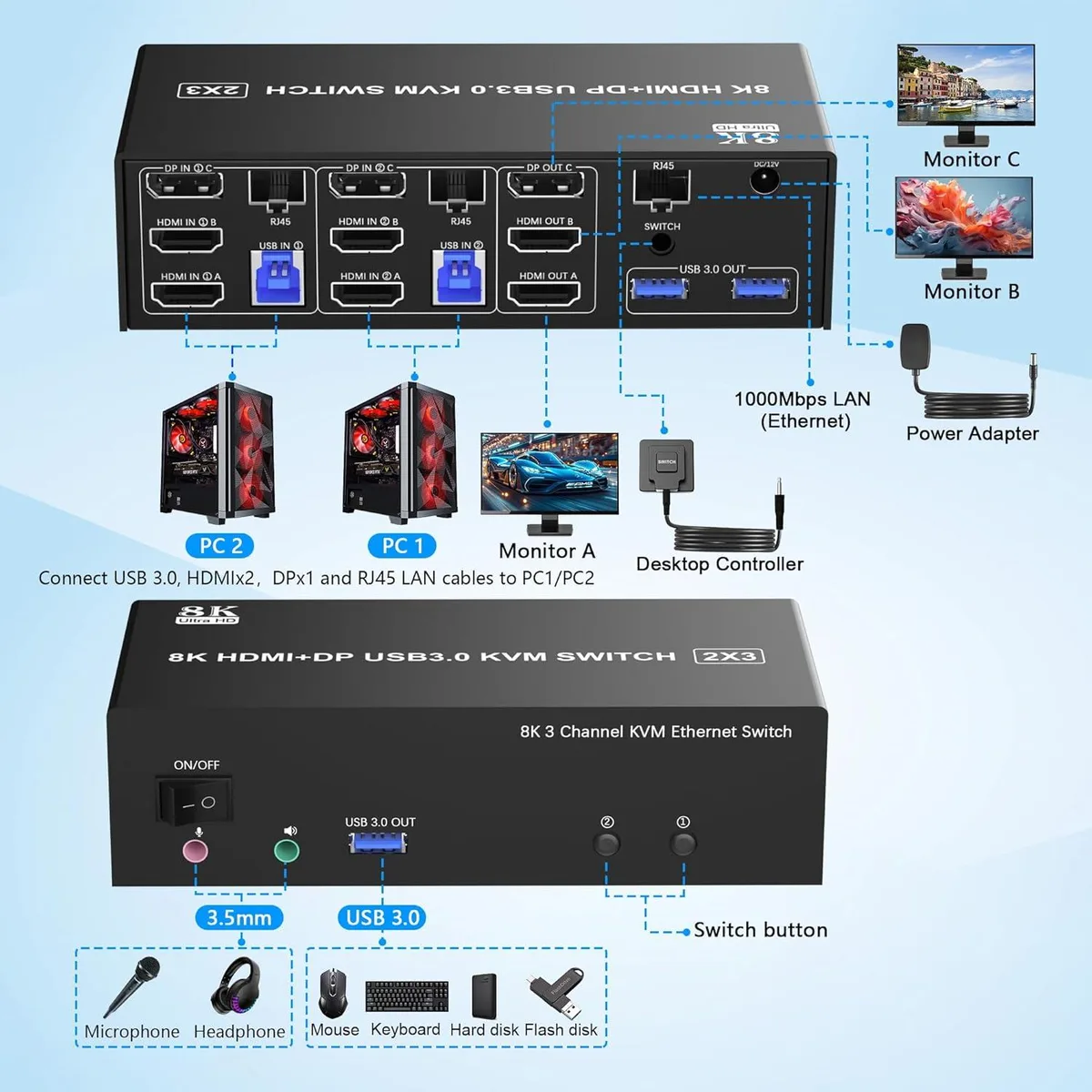

Front-panel push buttons and a wired remote give two ways to switch the active computer. A 12 V power adapter is included and required for stable operation when high-power USB devices are connected. All video, USB and network cables plug into rear-facing ports; the package supplies two USB 3.0 cables but no HDMI or DisplayPort cables, which must be sourced separately.
Highlights
- Control two PCs with one keyboard and mouse across three monitors
- Enjoy crisp visuals up to 8K at 60 Hz or 4K at 144 Hz
- Share a single 1000 Mbps Ethernet connection between both computers
- Connect peripherals through three USB 3.0 ports running at 5 Gbps
- Switch instantly via front buttons or the wired remote controller
Specifications
| Type | 2 HDMI + 1 Displayport |
|---|---|
| PC Connectors | DP1.4, HDMI2.1, USB 3.0, 3.5mm Audio |
| Computer Connections | 2 Ports |
| Monitor Connections | 2 HDMI + 1 Displayport - Triple Monitor |
| Video Resolution | The HDMI 2.1 and DP 1.4 Triple Monitor KVM Switches support resolution up to 8K@60Hz 4K@144Hz and downwards, makes the picture quality clearer, and the details are displayed clearly and finely. |
| PC Selection | Push Buttons and Wired Controller Button |
| Monitors Supported | 2 HDMI + 1 Displayport - 3 Monitors |
| LED Indicators | Yes |
| Audio Features | with Audio |
| Power Features | with 12V Power Adapter |
| USB Features | with 3 integrated USB 3.0 ports that can recognize keyboard, mouse, printer, scanner and other USB devices. Supports ultra-fast USB 3.0 data transfer up to 5Gbps, backward compatible with USB 2.0/1.1 devices. |
| Application | KVM Switch 3 Monitors allow 2 computers to share 3 monitors, 3 USB 3.0 ports, 1000Mbps Ethernet and Audio, You only need one set of keyboard and mouse to control all the monitors, and it supports splicing, extend and mirror displays mode. Splicing Mode: Computer host outputs splice screens on 3 monitors. Extended Mode: PC host in output 3 different images on 3 monitors. Copy Mode: Computer host outputs 3 identical images on 3 monitors. (Note: Please make sure your computer supports multi-display and each connected computer requires 2HDMI+DP ports) |
| Features | 1. KVM Switch allows 2 computers/laptops to share one set of keyboard, mouse, and 3 monitors (2 HDMI+1 DisplayPort) 2. Support HDMI 2.1& DP 1.4 standards and downward compatibility. 3 monitors output support up to 8K@60Hz 4K@144Hz for extended, mirrored or spliced display（Depends on your computer's graphics card.） 3. 2 Switching modes: Button switch and wired remote. 4. This triple monitor KVM Switch share 1000Mbps gigabit ethernet between 2 computers, providing Internet access for your laptop. 5. 3 monitor KVM switch equipped with 3 USB 3.0 ports for USB devices, and with extra Audi |
| Dimensions | About 9.17 x 6.73 x 2.2 inches |
| Weight | About 1.42 Pounds |
| Package Contents | 1x 8K Triple Monitor KVM Switch, 2x USB 3.0 Cables, 1x 12V Power Adapter, 1x Wired Button Switch, 1x User's manual |
Questions about this item
What does the 8K 60 Hz headline mean once the switch is connected to my PCs and monitors?
The switch passes HDMI 2.1 and DP 1.4 signals up to 8K at 60 Hz or 4K at 144 Hz, provided both your graphics cards and monitors also support those modes; otherwise it falls back to lower resolutions automatically.
Which video interfaces and standards does the unit use, and what do they limit in practice?
It uses two HDMI 2.1 inputs per computer and one DisplayPort 1.4 input per computer, outputting to two HDMI and one DisplayPort monitor; the HDMI 2.1 and DP 1.4 protocols cap the maximum resolution and refresh rate at 8K 60 Hz or 4K 144 Hz.
What physical space and mounting provisions does the device need?
The chassis measures 9.17 by 6.73 by 2.2 inches and weighs 1.42 pounds; all video, USB, Ethernet and audio ports face the rear, so allow clearance behind the unit for cables and the included 12 V power adapter.
