IHDAPP

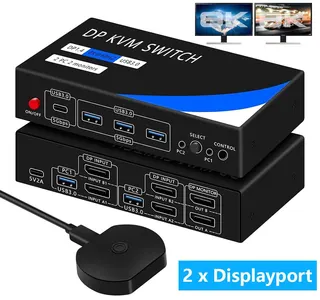

IHDAPP KM-DP202A KVM Switch 2 Port 8K@60Hz 3 USB-A 1 USB-C Wired Remote
Shares two monitors, keyboard, mouse and four USB 3.0 ports between two computers at up to 7680×4320@60Hz with a wired remote
- TypeDisplayport KVM Switch 2 Monitors 2 Computers
- PC ConnectorsDisplayport, USB
- Computer Connections2 Ports
- Monitor Connections2 Ports
- Video Resolutionsupport up to 7680*4320@60Hz and are backward compatible wit
- PC SelectionPush Buttons and Wired Remote
- Share two 8K monitors at 60 Hz between two PCs
- Switch instantly with push buttons or the 1.5 m wired remote
- Connect keyboards, mice and more via three USB-A and one USB-C port at 5 Gbp/s
- Compact 5.59 x 2.6 x 1 in unit fits any desk
- Backward compatible with 4K at 120 Hz and 2K at 144 Hz
Dual-Monitor KVM for Two PCs

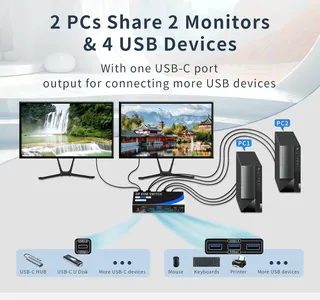

This DisplayPort KVM switch lets two computers share two monitors, one keyboard and one mouse. It supports resolutions up to 7680×4320 at 60 Hz and is backward compatible with 4K at 120 Hz and 2K at 144 Hz. Four USB ports — three USB-A and one USB-C — provide peripheral sharing at up to 5 Gbps. A wired remote and front push-buttons give instant PC selection.
Ideal for Dual-Display Workstations
Suits users who run two systems side-by-side and need simultaneous dual-monitor output on both. Each computer must already support dual-screen operation and provide two DisplayPort outputs; otherwise an adapter or dock is required. Buyers with only one monitor, or whose PCs lack dual DisplayPort capability, should look at a different switching solution.
8K 60 Hz Dual-Display Capability
The decisive specification is support for 7680×4320 at 60 Hz across two monitors simultaneously. If your workflow demands that resolution and refresh rate on both screens, this switch meets it; if your displays top out at 4K or lower, the headroom remains but the same dual-Port DisplayPort requirement still applies.
Highlights
- Share two 8K monitors at 60 Hz between two PCs
- Switch instantly with push buttons or the 1.5 m wired remote
- Connect keyboards, mice and more via three USB-A and one USB-C port at 5 Gbp/s
- Compact 5.59 x 2.6 x 1 in unit fits any desk
- Backward compatible with 4K at 120 Hz and 2K at 144 Hz
Specifications
| Model | KM-DP202A |
|---|---|
| Type | Displayport KVM Switch 2 Monitors 2 Computers |
| PC Connectors | Displayport, USB |
| Computer Connections | 2 Ports |
| Monitor Connections | 2 Ports |
| Video Resolution | support up to 7680*4320@60Hz and are backward compatible with 4K@120HZ, 2K@144HZ and below |
| PC Selection | Push Buttons and Wired Remote |
| Monitors Supported | Displayport, Displayport |
| LED Indicators | Yes |
| USB Features | Features 4 USB ports including 3 USB-A and 1 USB-C for compatibility with more USB devices, USB transfer rates up to 5Gbp/s for sharing printers, scanners, USB sound cards, wired or wireless keyboards/mice and more. |
| Application | 8K@60HZ USB3.0 Displayport KVM Dual Monitor Switch allows you to share switching between 2 computers 2 monitors 1 set of USB keyboard and mouse. Includes 3 USB-A ports and 1 USB-C port, having a USB-C port allows you to connect more USB devices. |
| Features | Ultra HD 8K@60Hz; KVM Switch with 3 USB-A and 1 USB-C; Desktop Controller Switching. |
| Dimensions | 5.59 x 2.6 x 1 inches |
| Weight | 200g |
| Package Contents | 1x Displayport KVM Switch, 1x 5V 2A Charger, 1x 1.5m/4.9ft Desktop Controller, 2x 1m/3.3ft USB3.0 Cables, 1x 1m/3.3ft USB Power Cord, and 1x User's Manual. |
Questions about this item
What cables and accessories come with the KM-DP202A, and what must I buy separately?
The box contains the KVM switch, a 5V 2A charger, a 1.5 m wired remote, two 1 m USB 3.0 cables, a 1 m USB power cord and the manual. You must supply four DisplayPort cables — two per computer — to connect both monitors.
The spec lists 8K@60Hz, 4K@120Hz and 2K@144Hz — which resolution and refresh rate should I choose?
Pick the highest combination your monitors and graphics cards support. The switch passes up to 7680×4320@60Hz and is backward compatible with 4K@120Hz and 2K@144Hz, so match the mode to your display capabilities.
What does the 5 Gbps USB rating mean when I plug in a keyboard, mouse and webcam?
The four USB ports (three USB-A, one USB-C) share a 5 Gbps bandwidth pool. Keyboards and mice use negligible throughput; a 1080p webcam fits comfortably, but multiple high-speed drives would contend for the same 5 Gbps limit.
