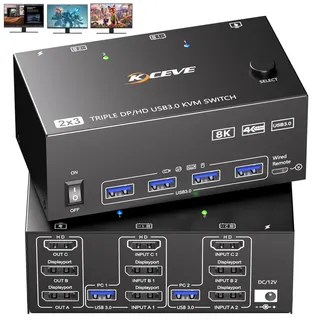

IHDAPP KC203DH KVM Switch 2 Computers 3 Monitors 8K@60Hz 4 USB 3.0
Shares three monitors and four USB 3.0 peripherals between two computers at up to 8K@60Hz or 4K@144Hz
- TypeKVM Switch 3 Monitors 2 Computers
- Computer Connections2 Ports
- Monitor Connections3 Ports
- Video ResolutionHDMI 2.1 & DP 1.4 enabled 3 monitor KVM switches supports up
- PC SelectionPush Buttons
- Monitors SupportedHDMI, DP, DP
- Share 3 monitors and 4 USB 3.0 devices between 2 computers
- 8K@60Hz and 4K@144Hz via HDMI 2.1 and DP 1.4
- 4 USB 3.0 ports deliver 5 Gbps data transfer for peripherals
- Driver-free on Windows, Mac, Linux, Unix and Ubuntu
- Switch via front button or wired remote with LED indicators
Triple-monitor KVM for two PCs

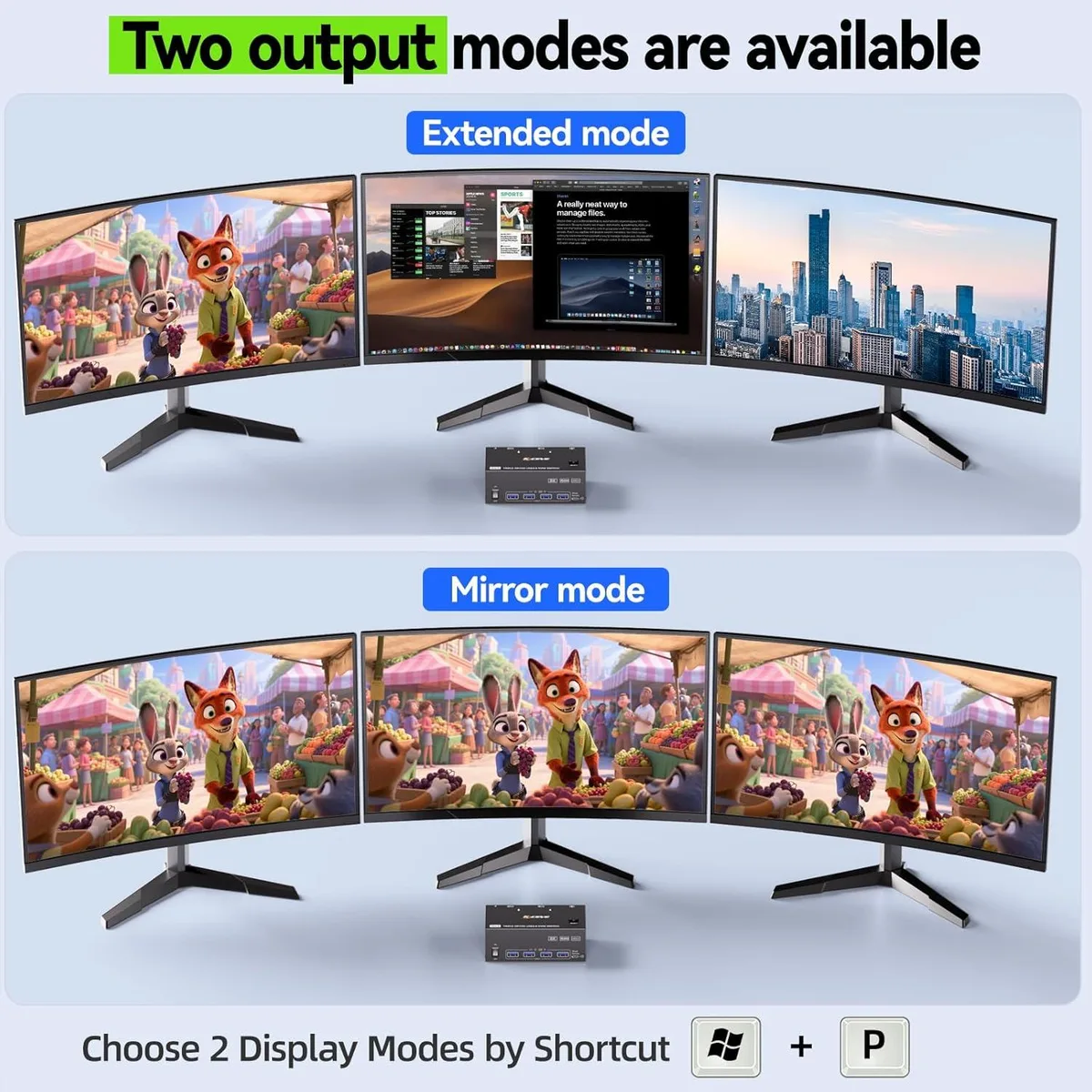

This IHDAPP KC203DH switch lets two computers share three displays and four USB 3.0 peripherals. It supports extended or mirrored desktop modes and reaches 8K@60Hz or 4K@144Hz over HDMI 2.1 and DisplayPort 1.4. Switching is handled by front-panel buttons or the included wired remote, with LED indication for the active system.
Suits dual-workstation setups.
The switch is built for professionals who operate two separate computers — such as a workstation and a laptop — across a triple-monitor desk. It requires each PC to provide one HDMI and two DisplayPort outputs plus a USB link. Buyers with only one computer or with monitors lacking DisplayPort inputs cannot use this unit as intended.
Each computer needs 1 HDMI + 2 DisplayPort + 1 USB
That specific port combination on both hosts is the single requirement that determines compatibility. If either machine cannot supply all three video connectors simultaneously, the switch will not deliver its three-screen extended mode. HDMI and DisplayPort cables are not included in the package.
Highlights
- Share 3 monitors and 4 USB 3.0 devices between 2 computers
- 8K@60Hz and 4K@144Hz via HDMI 2.1 and DP 1.4
- 4 USB 3.0 ports deliver 5 Gbps data transfer for peripherals
- Driver-free on Windows, Mac, Linux, Unix and Ubuntu
- Switch via front button or wired remote with LED indicators
Specifications
| Model | KC203DH KVM |
|---|---|
| Type | KVM Switch 3 Monitors 2 Computers |
| Computer Connections | 2 Ports |
| Monitor Connections | 3 Ports |
| Video Resolution | HDMI 2.1 & DP 1.4 enabled 3 monitor KVM switches supports up to 8K@60Hz, 4K@144Hz & lower resolutions, delivering crystal-clear visuals with sharp, detailed imagery. |
| PC Selection | Push Buttons |
| Monitors Supported | HDMI, DP, DP |
| LED Indicators | Yes |
| Power Features | Come with DC 12V Power Adapter |
| USB Features | with 4 USB 3.0 Ports |
| Application | This 3 Monitors KVM Switch effortlessly connect 2 PCs to share 3 monitors (supports extended & mirrored display modes) and 4 high-speed USB 3.0 ports. |
| Features | 8K Ultra HD; with 4 USB 3.0 Ports; Great compatibility & 2 switching modes |
| Dimensions | 4.72 x 2.56 x 1.57 inches |
| Package Contents | 1* triple monitor KVM Switch, 2* USB 3.0 cable, wired remote, 12V power adapter and user manual. |
Questions about this item
How do I install the KC203DH KVM switch and what is the step people often miss?
Connect each computer with one HDMI cable, two DisplayPort cables, and one USB 3.0 cable, then attach the 12V power adapter; the step often missed is ensuring all three video cables per PC are seated before powering on.
What maintenance or replacement will the KC203DH need later?
The unit has no user-serviceable parts; only the included 12V power adapter or the supplied USB 3.0 cables may need replacement if they fail over time.
What limit appears first during sustained use of the KC203DH?
The 5 Gbps bandwidth of the four USB 3.0 ports is the first bottleneck when multiple high-speed peripherals transfer data simultaneously.
