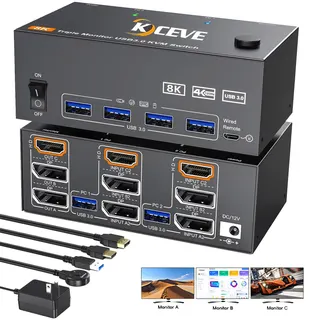

IHDAPP KC-203DH KVM Switch 2 Computers 3 Monitors 8K60 4K144 4 USB 3.0 Wired Remote
A triple-monitor KVM switch that lets two computers share three displays at up to 8K60 or 4K144 and four USB 3.0 peripherals, switched by front button or wired remote
- TypeHDMI + 2 Displayport KVM Switch 3 Monitors 2 Computers
- PC ConnectorsHDMI, Displayport
- Computer Connections2 Ports
- Monitor Connections3 Ports
- Video ResolutionThe resolution and fresh rate of triple monitor KVM switch s
- PC SelectionPush Buttons and Wired Remote
- Share three monitors across two computers via one HDMI 2.1 and two DisplayPort 1.4 outputs
- Drive one HDMI monitor at 8K 60 Hz and two DisplayPort monitors at 4K 144 Hz
- Transfer files at 5 Gbps through four USB 3.0 ports — ten times USB 2.0 speed
- Switch instantly with front-panel buttons or the included wired remote
- Driver-free plug-and-play with coloured LEDs showing the active system
Triple Monitor KVM for Two Computers

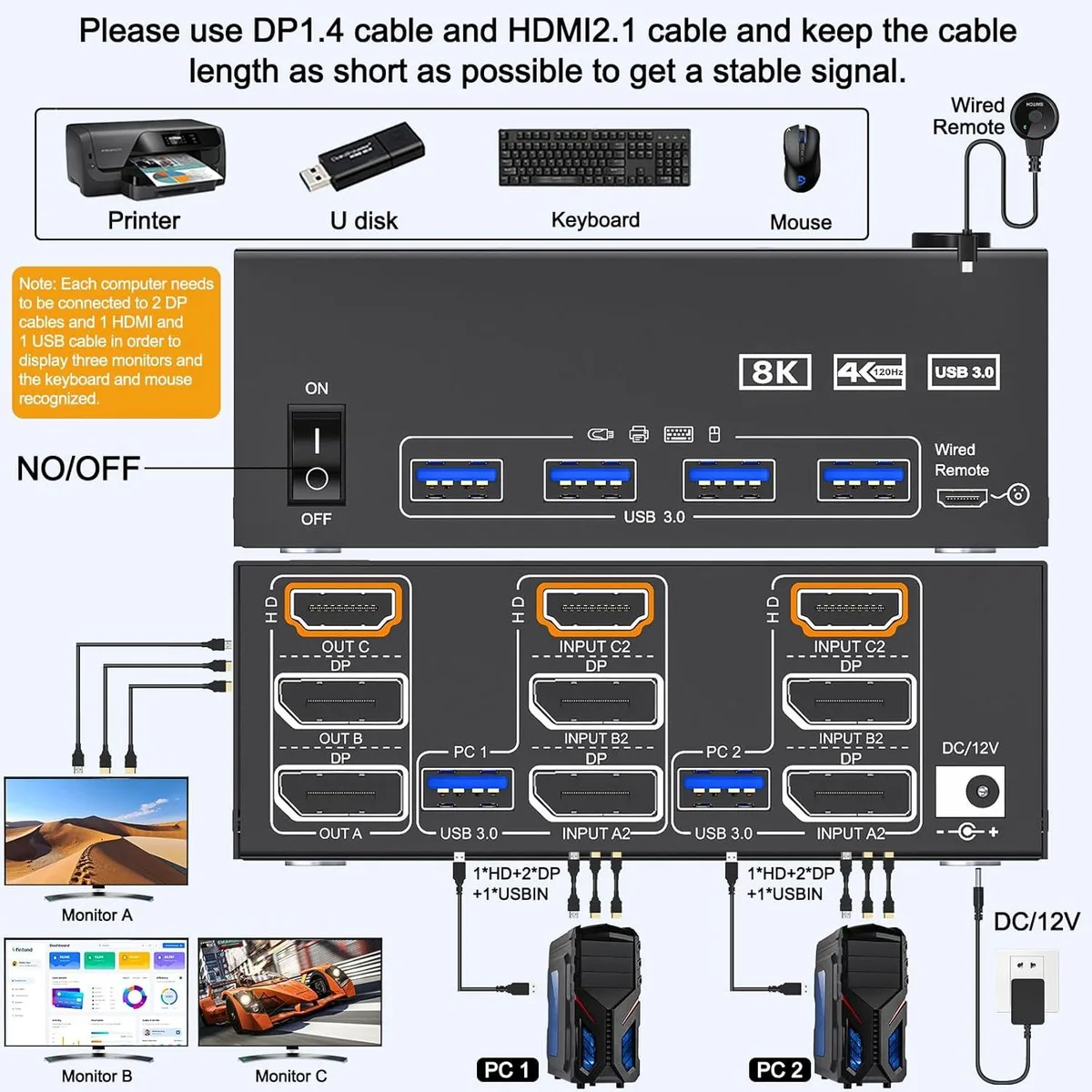

The KC-203DH KVM switch lets two computers share three monitors and four USB 3.0 ports. It is built for users who need a single keyboard, mouse and peripheral set across dual workstations. Driver-free operation and a wired remote make switching instant. The unit requires each computer to provide two DisplayPort and one HDMI output.
Video Interface and Resolution Limits
One HDMI 2.1 port supports up to 8K at 60 Hz and 4K at 120 Hz. Two DisplayPort 1.4 ports support up to 8K at 30 Hz and 4K at 144 Hz. Both interfaces are backward compatible with lower resolutions. Cables must meet the stated HDMI 2.1 and DP 1.4 standards for full performance.
Sustained Operation and Power
A supplied 12 V DC adapter powers the switch continuously, keeping all three video outputs and four USB 3.0 ports active during long sessions. USB 3.0 delivers 5 Gbps throughput, ten times the 480 Mbps of USB 2.0, so external drives and webcams maintain speed. LED indicators show the active computer at all times.
Highlights
- Share three monitors across two computers via one HDMI 2.1 and two DisplayPort 1.4 outputs
- Drive one HDMI monitor at 8K 60 Hz and two DisplayPort monitors at 4K 144 Hz
- Transfer files at 5 Gbps through four USB 3.0 ports — ten times USB 2.0 speed
- Switch instantly with front-panel buttons or the included wired remote
- Driver-free plug-and-play with coloured LEDs showing the active system
Specifications
| Model | KC-203DH KVM |
|---|---|
| Type | HDMI + 2 Displayport KVM Switch 3 Monitors 2 Computers |
| PC Connectors | HDMI, Displayport |
| Computer Connections | 2 Ports |
| Monitor Connections | 3 Ports |
| Video Resolution | The resolution and fresh rate of triple monitor KVM switch supports up to 8K@60Hz/4K@144Hz, But please note that:?HDMI part supports 8K@60Hz,4K@120Hz,4K@60Hz,and backward compatible.?Displayport part support 8K@30Hz ,4K@144Hz and backward compatible. |
| PC Selection | Push Buttons and Wired Remote |
| Monitors Supported | HDMI, Displayport, Displayport |
| LED Indicators | Yes |
| Power Features | Come with Dc 12V Power Adapter |
| USB Features | KVM switch 2 computers 3 monitors with 4 integrated USB 3.0 ports,supports ultra-fast 5Gbps data transmission,10 times than USB 2.0, which can recognize RGB keyboard, mouse, printer,hard drive,Webcam etc.Backward compatibility with USB 2.0/1.1 |

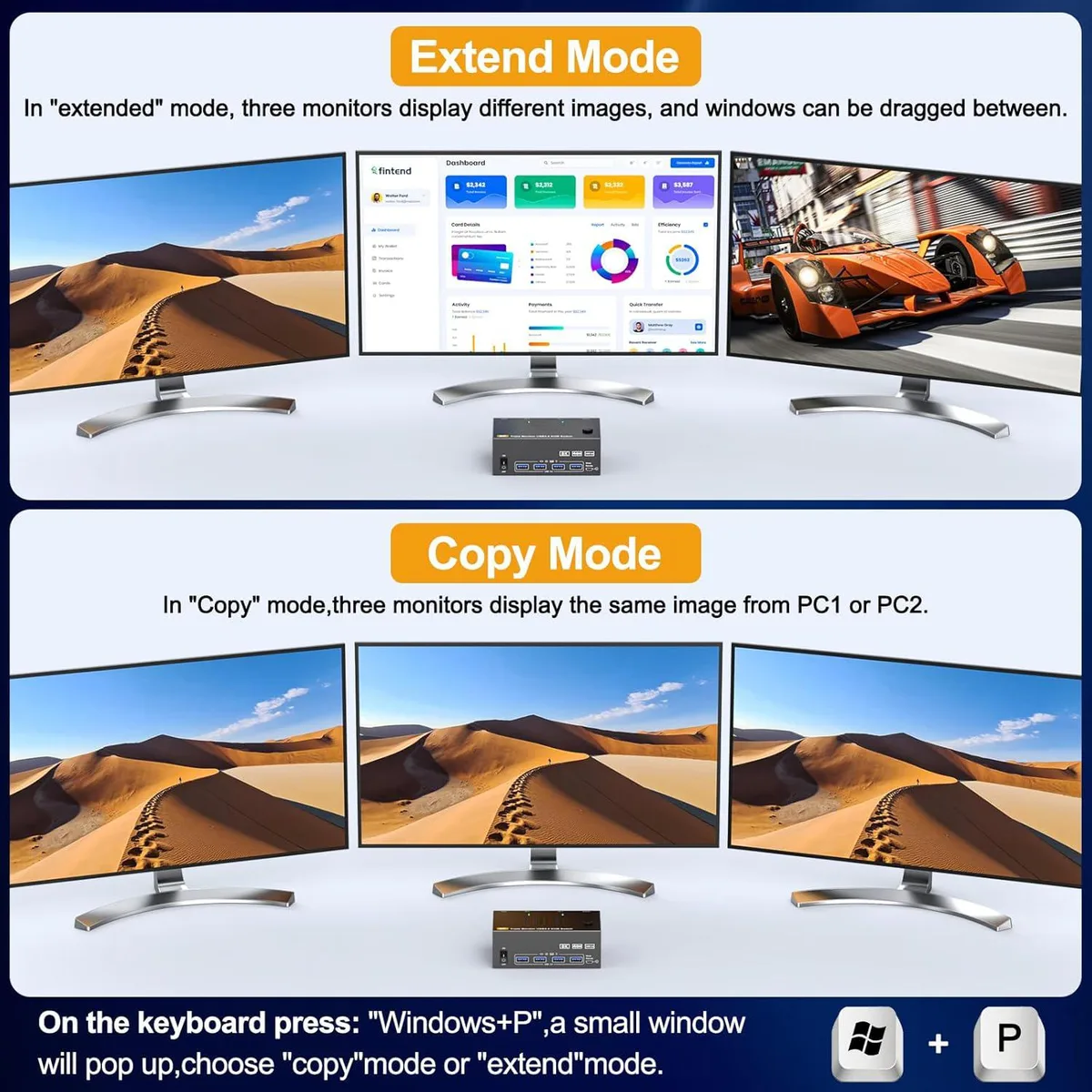

| Application | This 3 monitors KVM switch allows 2 computers to share 3 monitors and 4 USB 3.0 ports (for wired/wireless keyboard,mouse,webcam,Hard disk, etc.). Support mirror and extended display modes. |
| Features | triple monitors KVM switch driver-free and plug and play. you can press the button on the panel or use the wired remote controller(included in the package) to switch the computers.Three color lights indicate the active computer. |
| Dimensions | 7.91 x 5.94 x 2.64 inches |
| Weight | 1.48 Pounds |
| Package Contents | 1*Triple Monitor USB3.0 KVM Switch+2*USB3.0 Cables(1.5m/4.9ft)+1*Wired remote controller(1.52m/5ft)+1*User manual+1*12V Power Adapter(1.52m/5ft). |
Questions about this item
What does 8K at 60 Hz actually deliver on my desk?
The HDMI output can drive one monitor at 8K 60 Hz, while each DisplayPort output reaches 4K 144 Hz; the second DisplayPort is limited to 8K 30 Hz.
Which cable standard caps the resolution on each port?
HDMI 2.1 is required for the 8K 60 Hz path, and DisplayPort 1.4 cables are needed for 4K 144 Hz on the DP outputs.
How much space and power does the unit need to sit on my bench?
It measures 7.91 by 5.94 by 2.64 inches, weighs 1.48 pounds, and requires the included 12 V DC adapter.
