IHDAPP

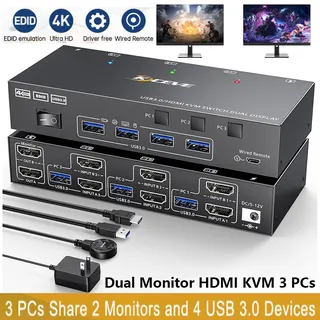

IHDAPP HDMI KVM Switch 3 Computers 2 Monitors 4K@60Hz
Connects three computers to two HDMI monitors at up to 4K 60 Hz with EDID emulation that preserves window layouts, plus four USB 3.0 ports for keyboard, mouse, printer and other peripherals.
- TypeHDMI KVM Switch 3 Computers 2 Monitors
- PC ConnectorsHDMI, USB
- Computer Connections3 Ports
- Monitor Connections2 Ports HDMI
- Video ResolutionSupport Up to Ultra HD 4K@60Hz
- PC SelectionPush Buttons and Wired Remote
- Control three computers with one keyboard and mouse set via buttons or wired remote
- Maintain 4K clarity at 60 Hz across both connected monitors
- Preserve window layout on every switch thanks to EDID emulation
- Connect printers and drives through four USB 3.0 ports running at 5 Gbps
- Operate on Windows, Linux or Mac without installing drivers
Triple-PC Dual-Monitor KVM

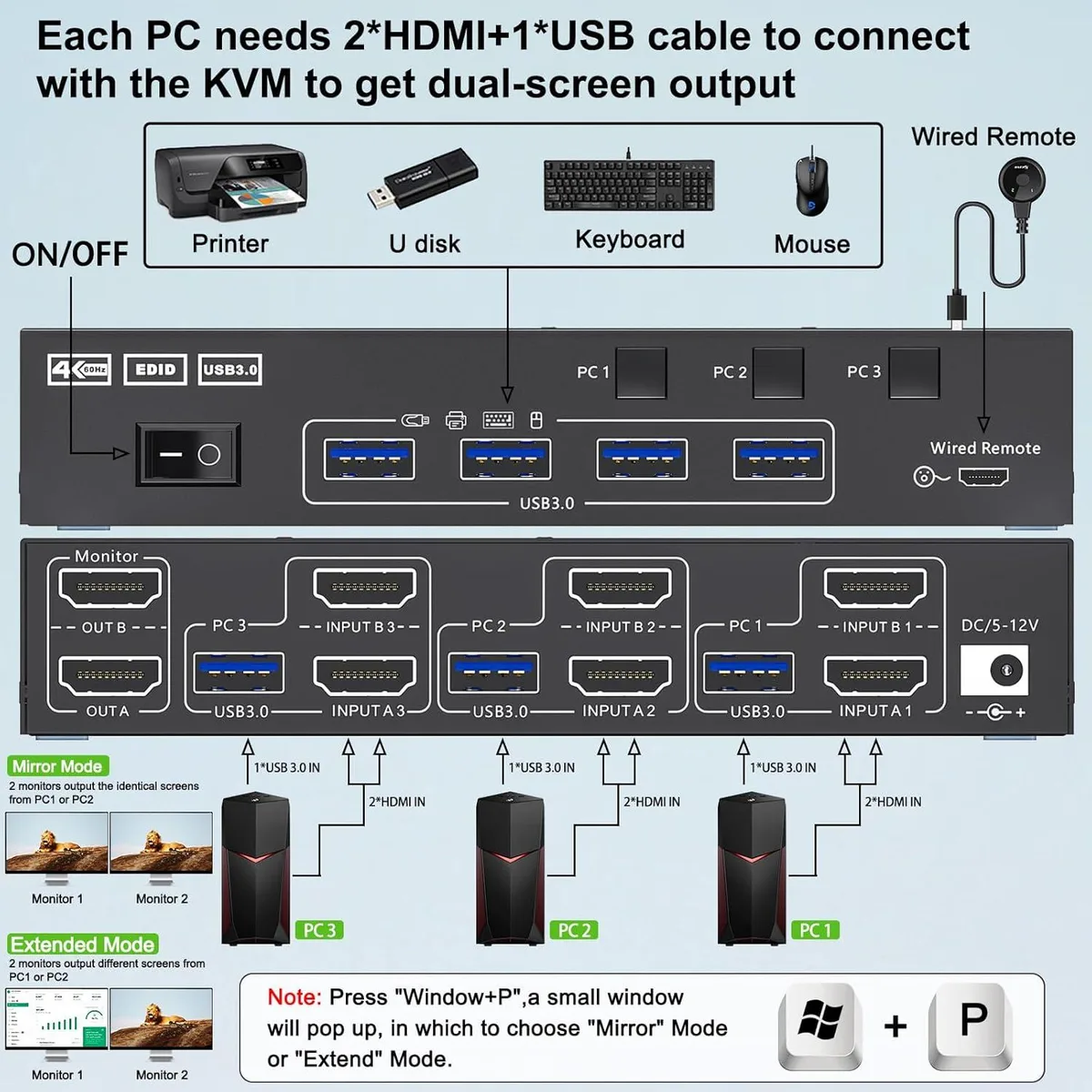

This IHDAPP HDMI KVM switch lets three computers share two monitors, one keyboard, one mouse and four USB 3.0 peripherals. It targets users who run a desktop, a laptop and a workstation side by side and want instant switching without cable swapping. Plug-and-play operation works across Windows, Linux and macOS. A wired remote and front-panel buttons both change the active system.

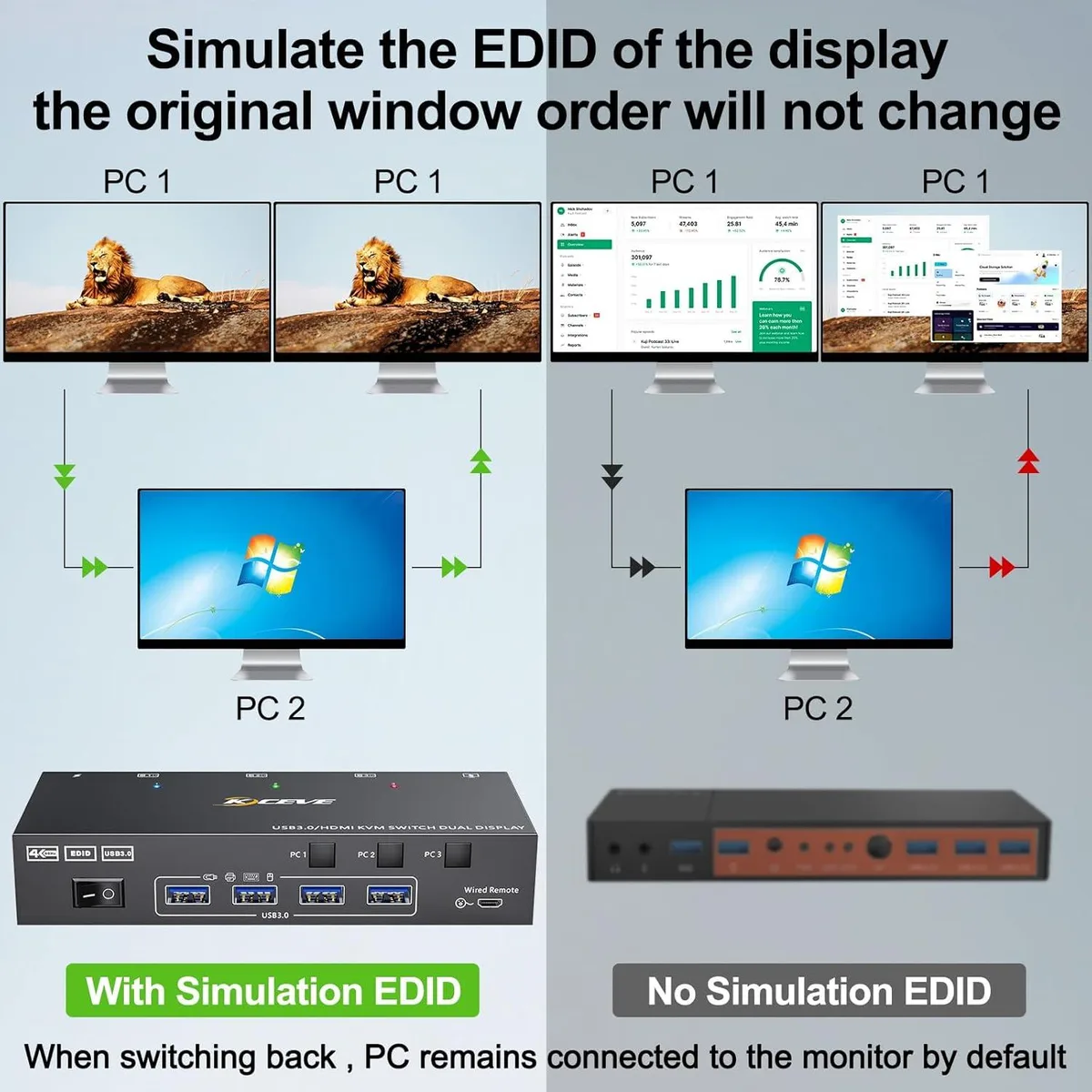

4K60 Video with EDID Emulation
Each HDMI output supports resolutions up to 4K at 60 Hz, plus 2560×1440 at 120 Hz or 144 Hz and 1920×1080 at 120 Hz or 144 Hz. EDID emulation keeps window layouts intact when you switch inputs, so applications stay on the correct screen. The unit handles extended or mirrored desktop modes. Bandwidth limits appear beyond 4K60, so 8K or higher refresh rates at 4K are not supported.
Replaces Separate Cables and Manual Switching
The device consolidates six video cables, three USB upstream cables and multiple peripheral hubs into one compact box measuring roughly 10 by 6.5 by 3.2 cm. It upgrades setups where users physically unplug monitors or use software KVM tools that add latency. The jump is worthwhile when three systems must drive two displays simultaneously with zero software overhead. It does not suit single-monitor users or anyone needing audio extraction.
Highlights
- Control three computers with one keyboard and mouse set via buttons or wired remote
- Maintain 4K clarity at 60 Hz across both connected monitors
- Preserve window layout on every switch thanks to EDID emulation
- Connect printers and drives through four USB 3.0 ports running at 5 Gbps
- Operate on Windows, Linux or Mac without installing drivers
Specifications
| Type | HDMI KVM Switch 3 Computers 2 Monitors |
|---|---|
| PC Connectors | HDMI, USB |
| Computer Connections | 3 Ports |
| Monitor Connections | 2 Ports HDMI |
| Video Resolution | Support Up to Ultra HD 4K@60Hz |
| PC Selection | Push Buttons and Wired Remote |
| Monitors Supported | HDMI + HDMI 2 Monitors |
| LED Indicators | Yes |
| Audio Features | No |
| Power Features | with 12V Power Adapter |
| USB Features | with 4 USB 3.0 Ports which can recognize keyboard,mouse,printer and other USB devices. Supports ultra-fast USB 3.0 data transfer up to 5Gbps. |
| Application | This 2 monitor KVM switch allow you to control 3 computers by only one set of wired or wireless keyboard mouse, share 4 USB 3.0 devices and 2 monitors(Extend display mode or copy display mode). Please note that the extended mode can output two different screens, and the copy mode can output two identical screens. |
| Features | Plug and play,3 computers share one set of wired/wireless keyboard, mouse and 2 monitors. With just a click of the panel button or wired remote, you can easily switch between 3 computers. Cross support most major OS including Windows, Linux, Mac With 4 USB 3.0 ports for USB peripherals. Support max up resolution 4K@60Hz,2560×1440@120Hz,@144Hz,1920x1080P@120Hz,@144Hz,downward compatible. Support EDID emulation, USB3.0 dual monitor KVM switch can simulate the EDID of the display, when the monitor is switched between three computers, the original window order will not be changed. |
| Dimensions | About 10 x 6.5 x 3.2 cm |
| Weight | About 240g |
| Package Contents | ?2 Monitors KVM Switch;2*USB 3.0 Cable;Wired remote;12V power adapter (Type G) |
Questions about this item
Will this KVM switch keep my window layouts intact when I switch between my three PCs connected via HDMI and USB?
Yes, the switch performs EDID emulation so each computer retains the monitor's display identification, preventing windows from being rearranged during switching.
How can I confirm the switch is passing a 2560×1440 @ 144 Hz signal to both monitors after setup?
Open the display settings on the active computer and verify the resolution and refresh rate read 2560×1440 at 144 Hz for each connected monitor.
Which cables come in the box and what must I provide to connect three computers and two monitors?
The package includes the KVM unit, a wired remote, a 12 V Type G power adapter, and two USB 3.0 cables; you must supply three HDMI cables per computer (nine total) for video.
