IHDAPP

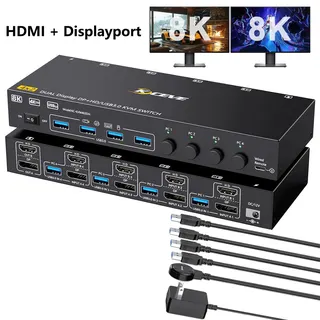

IHDAPP HDMI + DisplayPort KVM Switch 4 Computers 2 Monitors 8K@60Hz 4K@144Hz USB 3.0 Wired Remote
Controls four computers with one keyboard, mouse and two monitors at up to 8K 60 Hz and 4K 144 Hz
- TypeHDMI
- PC ConnectorsHDMI2.1, DP 1.4, USB 3.0
- Computer ConnectionsHDMI + Displayport
- Monitor Connections2 Ports
- Video ResolutionThe KVM switch 4 PCs HDMI ports supports 8K@60Hz, 4K@120Hz.
- PC SelectionPush Buttons and Wired Controller
- Control 4 PCs with one keyboard, mouse and dual monitors
- HDMI 2.1 ports deliver 8K@60 Hz, 4K@120 Hz, 2K@165 Hz
- DisplayPort 1.4 outputs reach 4K@144 Hz and 2K@165 Hz
- USB 3.0 hub runs at 5 Gbps for peripherals and flash drives
- Switch instantly via front buttons or 1.5 m wired remote
Four-computer dual-monitor KVM
This IHDAPP KVM switch lets one keyboard, one mouse and two monitors control four separate computers. Each system connects through one HDMI cable, one DisplayPort cable and one USB 3.0 cable, while the switch outputs to one HDMI monitor and one DisplayPort monitor. Four USB 3.0 peripheral ports share printers, scanners, flash drives or webcams across all four machines. No driver installation is required on Windows 11, 10, 8, XP, Vista, Chrome OS, Mac OS or Linux.
Replaces four individual monitor-and-peripheral sets
A single operator can eliminate three extra keyboards, mice and monitor pairs by routing everything through this unit. The upgrade is worthwhile when desk space is limited or when workflow demands instant switching between four PCs without unplugging cables. Front-panel push buttons and a 1.5 m wired remote both change the active computer in seconds. LED indicators confirm which system is currently selected.
Handles 8K 60 Hz and 4K 144 Hz video with 5 Gbps USB
HDMI 2.1 inputs accept 8K at 60 Hz, 4K at 120 Hz and 2K at 165 Hz. DisplayPort 1.4 inputs accept 4K at 144 Hz and 2K at 165 Hz, with backward compatibility for lower resolutions. USB 3.0 peripheral ports deliver up to 5 Gbps transfer speed and remain compatible with USB 2.0 and 1.1 devices. The switch does not support Bluetooth peripherals or wireless keyboards and mice.
Highlights
- Control 4 PCs with one keyboard, mouse and dual monitors
- HDMI 2.1 ports deliver 8K@60 Hz, 4K@120 Hz, 2K@165 Hz
- DisplayPort 1.4 outputs reach 4K@144 Hz and 2K@165 Hz
- USB 3.0 hub runs at 5 Gbps for peripherals and flash drives
- Switch instantly via front buttons or 1.5 m wired remote
Specifications
| Type | HDMI |
|---|---|
| PC Connectors | HDMI2.1, DP 1.4, USB 3.0 |
| Computer Connections | HDMI + Displayport |
| Monitor Connections | 2 Ports |
| Video Resolution | The KVM switch 4 PCs HDMI ports supports 8K@60Hz, 4K@120Hz. 2K@165Hz. The KVM switch 4 ports Displayport ports supports 4K@144Hz, 2K@165Hz and is backward compatible. |
| PC Selection | Push Buttons and Wired Controller |
| Monitors Supported | HDMI, Displayport |
| LED Indicators | Yes |
| Power Features | Come with DC 12V Power Adapter |
| USB Features | KVM switch USB 3.0 supports ultra-fast data transfer speeds of 5Gbps and is compatible with USB 2.0 and USB 1.1. KVM Switch HDMI Displayport has 4 USB 3.0 ports, which can control 4 computers and connect external USB devices such as mouse, keyboard, printer, scanner, hard drive, USB flash drive, webcam etc. |

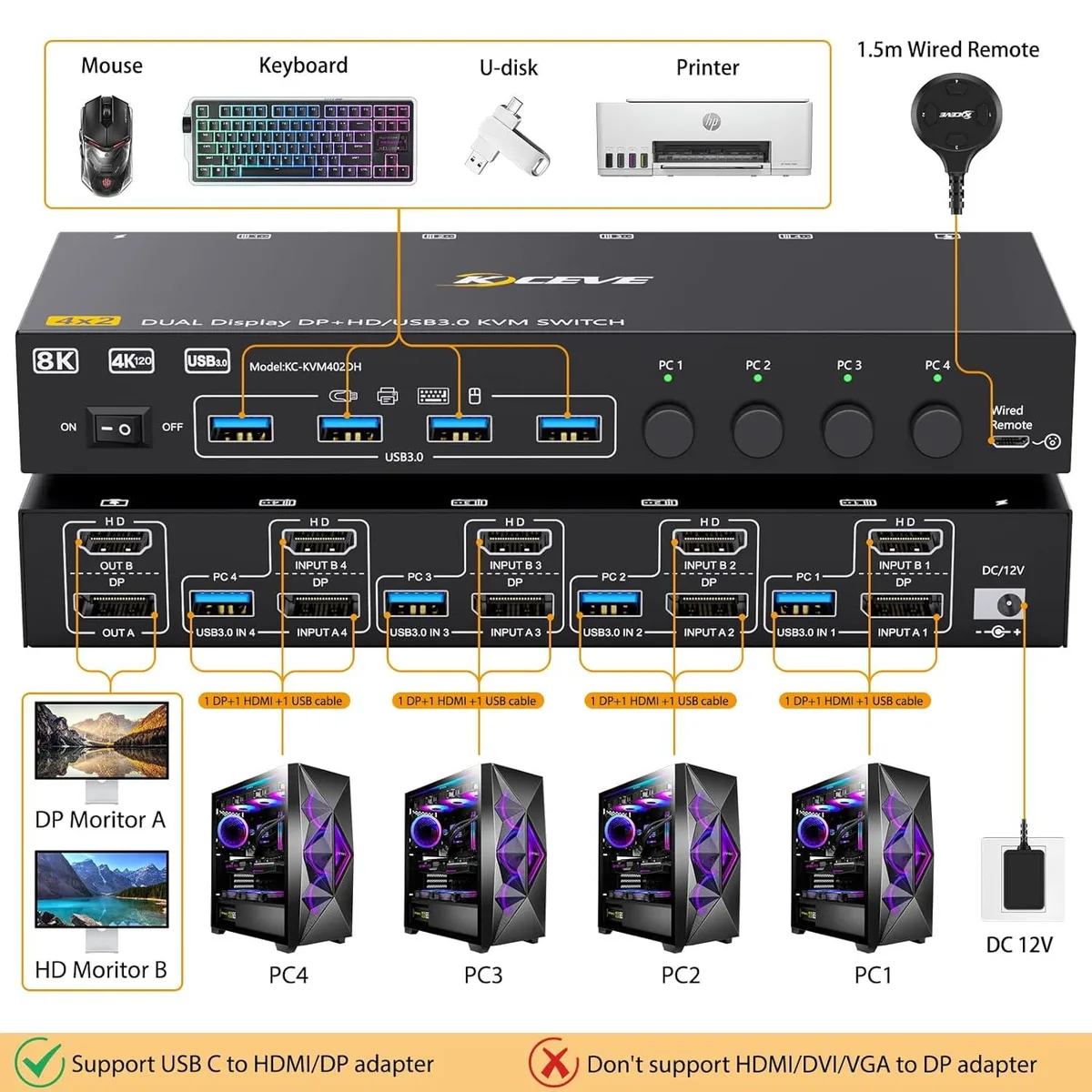

| Application | with this KVM Switch 4 PC 2 monitors, you can control 4 desktop computers with a mouse, keyboard and 2 monitors. You need to connect 1 HDMI cable, 1 Displayport cable and 1 USB cable from each computer to the KVM Switch Displayport HDMI. Output to 1 HDMI monitor and 1 Displayport monitor. Compatible with USB C to DisplayPort or HDMI adapters. Support DisplayPort to HDMI Adapter |
| Features | supports up to 8K@60Hz, 4K@120Hz; has 4 USB 3.0 ports; 2 Ways to Switch Computers |
| Dimensions | 212mm x 77.5mm x 30mm |
| Weight | 260g |
| Package Contents | 1 x KVM Switch, 4 x USB 3.0 Cable, 1 x Wired Remote, 1 x Power Adapter, 1 x User Manual |
Questions about this item
How much desk space does the 212mm by 77.5mm unit need?
The switch measures 212mm wide by 77.5mm deep by 30mm high and weighs 260g, so it fits on a typical desk or shelf with room for the wired remote and cables.
Which cables must be plugged into each computer before switching works?
Connect one HDMI cable, one DisplayPort cable and one USB 3.0 cable from every computer to the corresponding ports on the switch; the USB link is required for keyboard, mouse and peripheral sharing.
What resolution limits should I expect when I add a second monitor later?
The HDMI output handles up to 8K at 60Hz, 4K at 120Hz and 2K at 165Hz, while the DisplayPort output reaches 4K at 144Hz and 2K at 165Hz; both are backward compatible with lower modes.
