IHDAPP
IHDAPP DP202E-USB3.0-8K KVM Switch 2PC 2Mon 8K60 4K120 USB3.0 Audio SD/TF
Dual-monitor KVM switch lets two computers share two displays at up to 8K 60 Hz, four USB 3.0 ports, audio, and SD/TF slots
- TypeDisplayPort, USB
- PC ConnectorsDisplayport
- Computer Connections2 Port DisplayPort - Dual Monitor
- Monitor Connections2 Ports
- Video ResolutionDP 1.4 KVM Switch supports max resolution of 8K@60Hz and dow
- PC SelectionPush Buttons and Wired Controller
- Dual 8K@60Hz monitors from two PCs via DP 1.4
- Four USB 3.0 ports share peripherals at 5Gbps speed
- Audio mic output plus SD and TF card slots built in
- Switch instantly with front buttons or wired remote control
- Compact 5.51×2.36×1.18in unit powered by 12V 1A adapter
Two-computer dual-monitor KVM
The IHDAPP DP202E-USB3.0-8K lets two computers share two DisplayPort monitors, four USB devices, an audio microphone output and SD/TF card slots. Each computer must provide two DisplayPort outputs for the switch to function as intended. It suits home offices and professional desks that need simultaneous multi-display access across two systems.
Push-button and wired remote switching

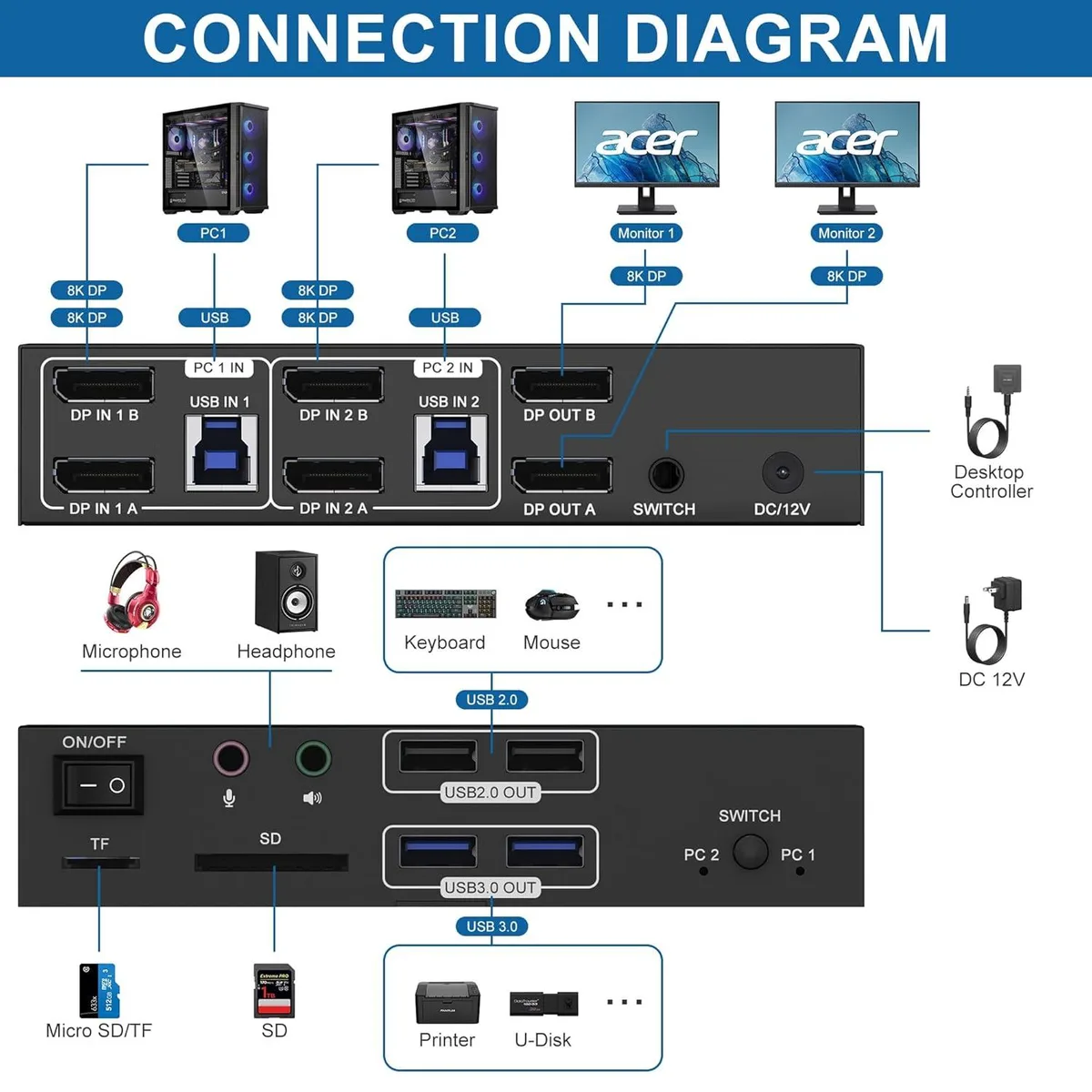

Select the active computer with front-panel push buttons or the included wired remote controller. LED indicators show which system is currently connected. Installation requires a 12 V DC power adapter, two DisplayPort cables per computer plus one USB 3.0 Type-A to Type-B cable per computer; the package supplies two USB 3.0 cables and the remote. Using conversion cables may reduce stability.
8K60 and 4K120 via DP 1.4

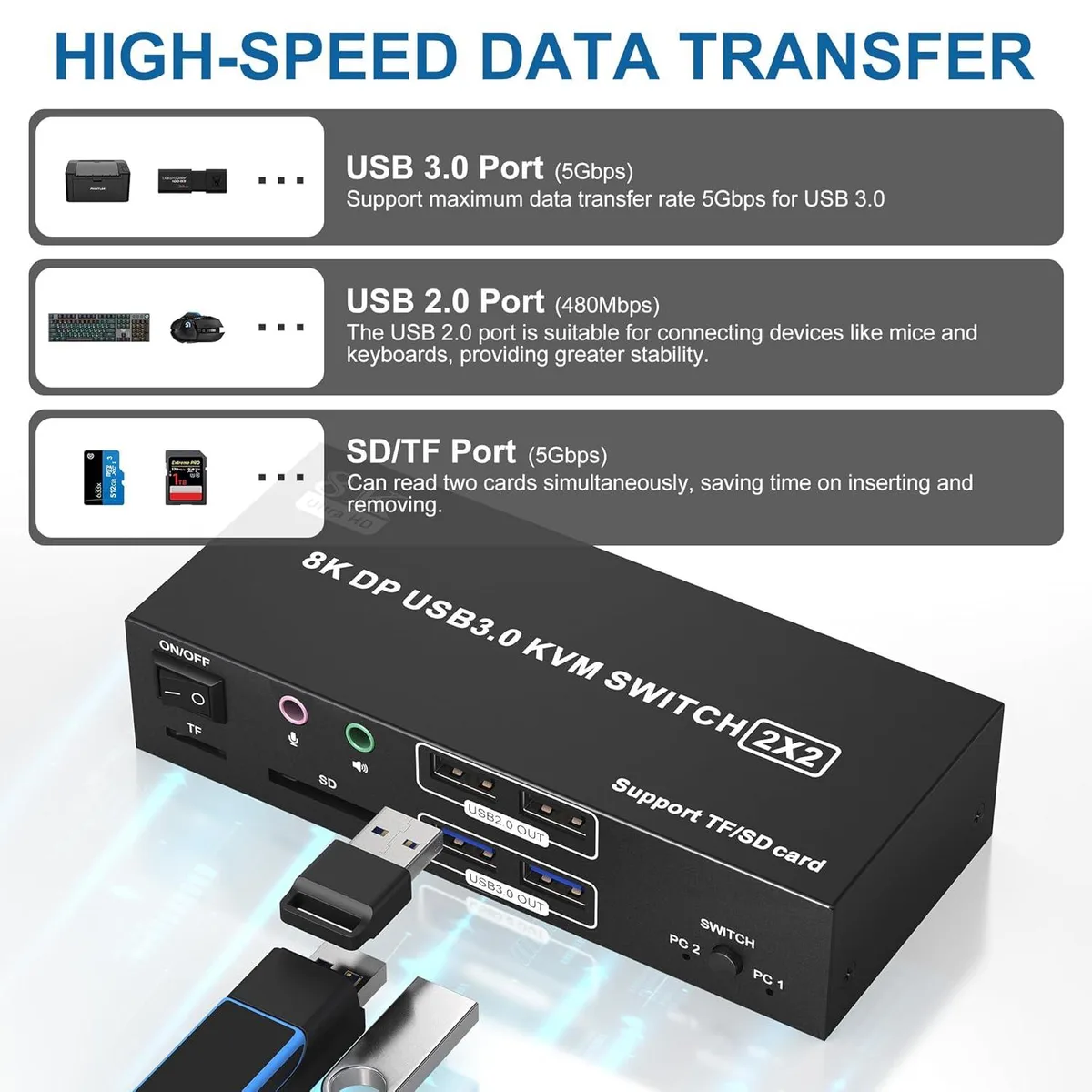

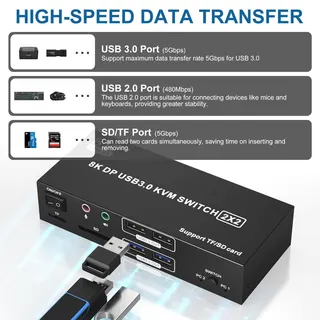

The switch supports DisplayPort 1.4 with a maximum resolution of 8K at 60 Hz and is downward compatible with DP 1.2. Dual-monitor output reaches 4K at 120 Hz for high-refresh workflows. USB 3.0 ports deliver up to 5 Gbps while USB 2.0 ports run at 480 Mbps. Extended, mirrored and spliced display modes depend on the connected graphics cards.
Highlights
- Dual 8K@60Hz monitors from two PCs via DP 1.4
- Four USB 3.0 ports share peripherals at 5Gbps speed
- Audio mic output plus SD and TF card slots built in
- Switch instantly with front buttons or wired remote control
- Compact 5.51×2.36×1.18in unit powered by 12V 1A adapter
Specifications
| Model | DP202E-USB3.0-8K |
|---|---|
| Type | DisplayPort, USB |
| PC Connectors | Displayport |
| Computer Connections | 2 Port DisplayPort - Dual Monitor |
| Monitor Connections | 2 Ports |
| Video Resolution | DP 1.4 KVM Switch supports max resolution of 8K@60Hz and downward compatible DP 1.2. |
| PC Selection | Push Buttons and Wired Controller |
| Monitors Supported | Displayport |
| LED Indicators | Yes |
| Audio Features | with Audio Microphone Output |
| Power Features | DC12V/1A power supply |
| USB Features | Maximize your data transfer speeds with our KVM switch, featuring USB 3.0 ports that support up to 5Gbps and USB 2.0 ports at 480Mbps. Whether you're transferring large files or connecting peripherals like mice and keyboards, this switch provides the stability and speed you need. |
| Application | This DP KVM switch enables two computers or laptops to share 2 monitors along with four USB devices. It effectively supports dual monitor setups, making it ideal for both home office and professional use. |
| Features | 2 computers/laptops share 4 USB devices and 2 monitors, and with extra Audio Microphone output and SD/Micro SD card slot; Supoort DP 1.4 and downward compatible.Dual monitors output support up to 8K@60Hz for extended,mirrored or spliced display（Depends on your computer's graphics card.）; Switching mode: push-button switch and wired remote control; Support for most major operating systems, including Windows, Linux, and Mac. |
| Dimensions | 5.51inch x 2.36inch x 1.18inch |
| Weight | 250g |
| Package Contents | 1 x KVM Switch, 2 x USB 3.0 Cable, 1 x Wired Remote, 1 x Power Adapter, 1 x User Manual |
Questions about this item
How do I confirm the IHDAPP DP202E-USB3.0-8K is delivering 8K@60Hz after setup?
Check that both monitors show 8K resolution at 60 Hz in your OS display settings and that the LED indicators on the switch light for the active PC; the unit supports DP 1.4 for 8K@60Hz and is backward compatible with DP 1.2.
What cables and accessories come in the box versus what I must buy separately?
The package includes the KVM switch, two USB 3.0 cables, a wired remote, a 12V/1A power adapter and a user manual; you must supply four DisplayPort cables (two per computer) for the dual-monitor inputs and outputs.
Which version should I choose if my computers only have one DisplayPort each?
This DP202E-USB3.0-8K model requires each computer to have two DisplayPort outputs for dual-monitor operation; if your systems only have one DP port, this switch will not support the intended two-monitor setup.
